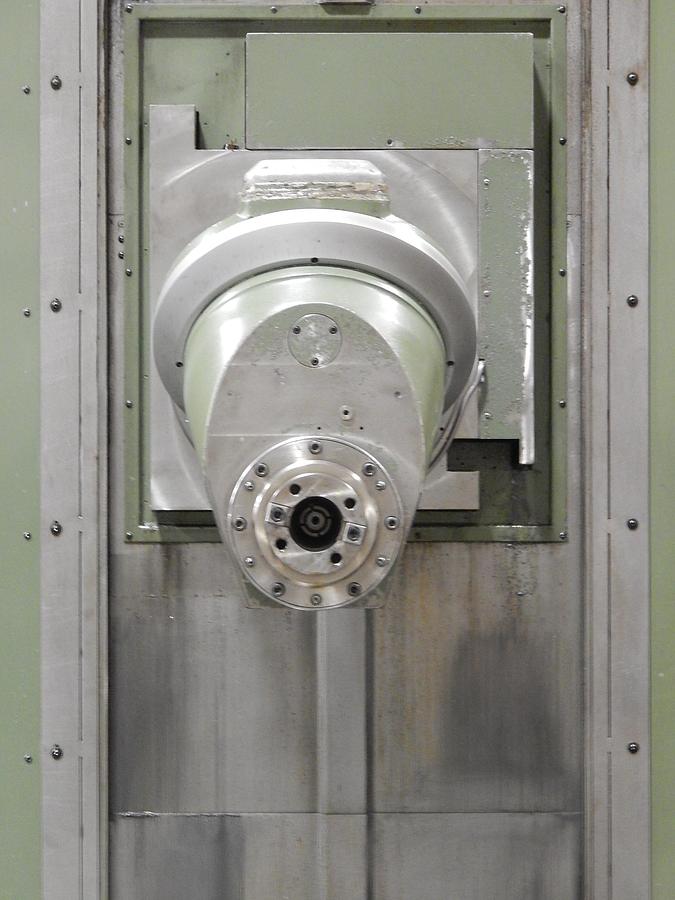

PARPAS ML-120
PARPAS ML-120
Available quantity:1
Description

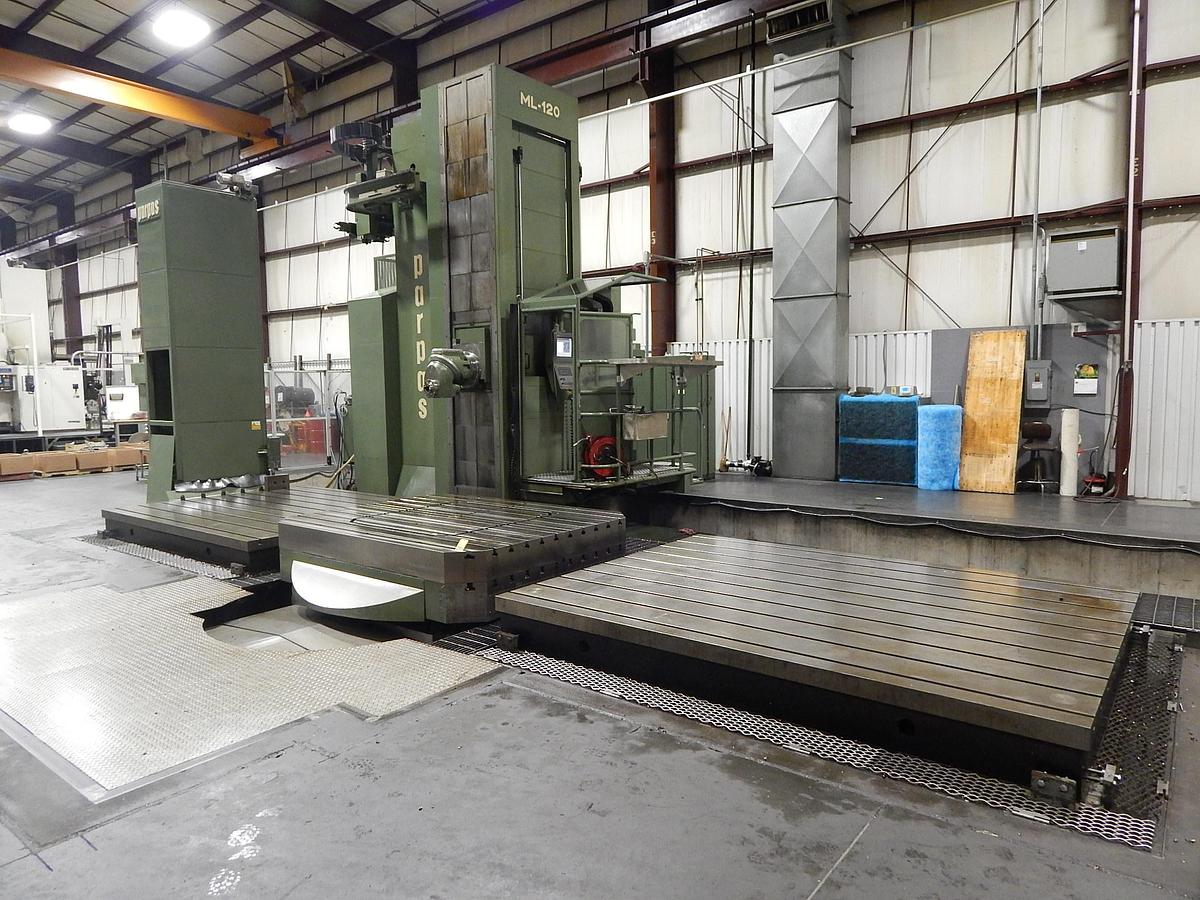

The Parpas ML-120 is a large-capacity CNC floor type horizontal boring mill built for machining oversized and heavy components. This 2007 machine features a 5" spindle with #50 taper, 4,000 RPM spindle speed, and massive travels including 400" (10,000 mm) in X, 138" (3,500 mm) in Y, and 59" (1,500 mm) in Z. Equipped with a 98.5" × 78.7" rotary table with 88,000 lb capacity, 120-position automatic tool changer, and multiple heads including universal and 90° heads, the ML-120 is ideal for large-scale machining in energy, aerospace, and heavy industrial applications. Controlled by Heidenhain CNC and complete with rotary table chip conveyors, main chip conveyor, and machine chiller.
Specifications
| Manufacturer | PARPAS |
| Model | ML-120 |
| Condition | Used |
| Serial Number | ML120/000507 |
| Stock Number | MAC-BOR-PAR-0507 |
| Spindle Diameter | 5 in |
| Spindle Taper | 50 taper |
| Spindle Speed | 4,000 RPM |
| X-Axis Travel | 400 in (10,000 mm) |
| Y-Axis Travel | 138 in (3,500 mm) |
| Z-Axis Travel | 59 in (1,500 mm) |
| B-Axis Travel | 59 in |

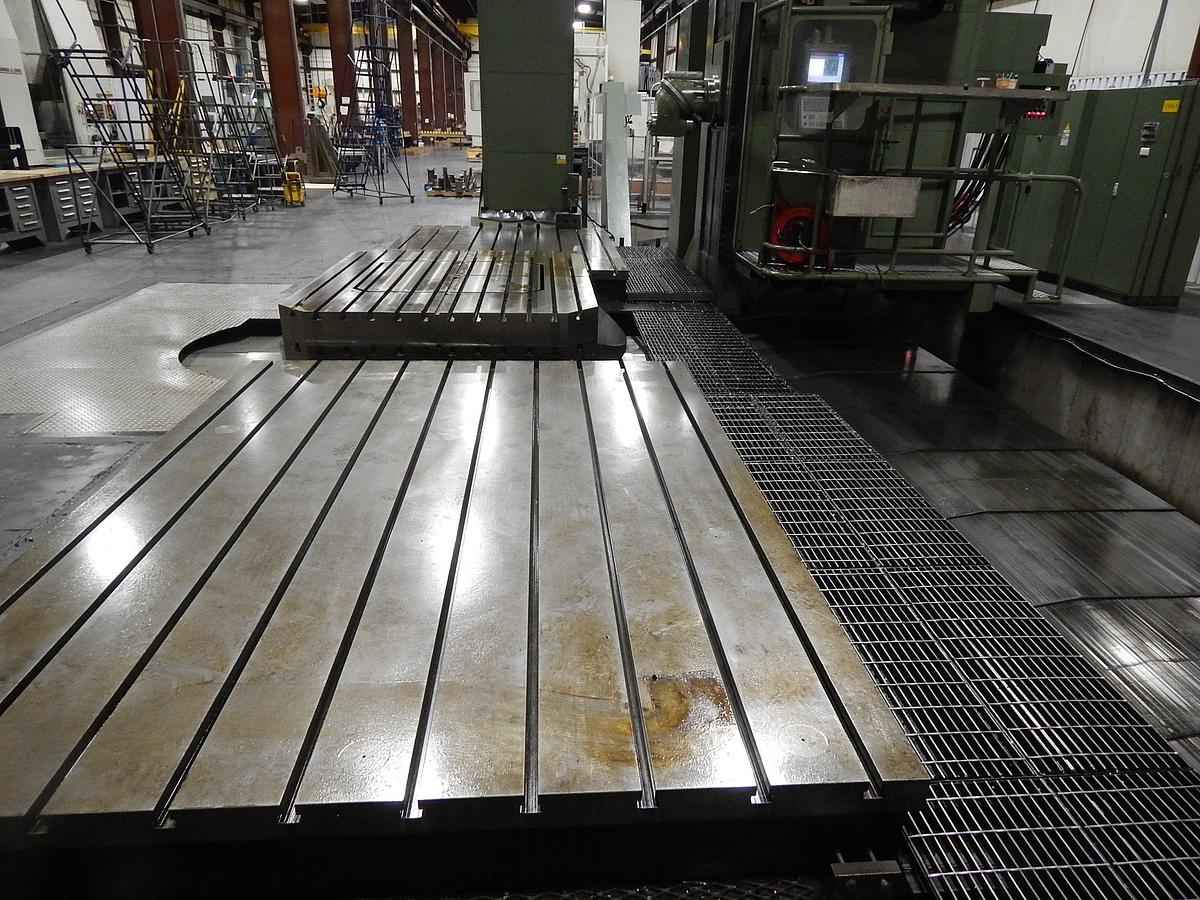

| Rotary Table Size | 98.5 in × 78.7 in |
| Rotary Table Capacity | 88,000 lbs |
| Stationary Table Capacity | 200,000 lbs |
| Automatic Tool Changer | 120 position |

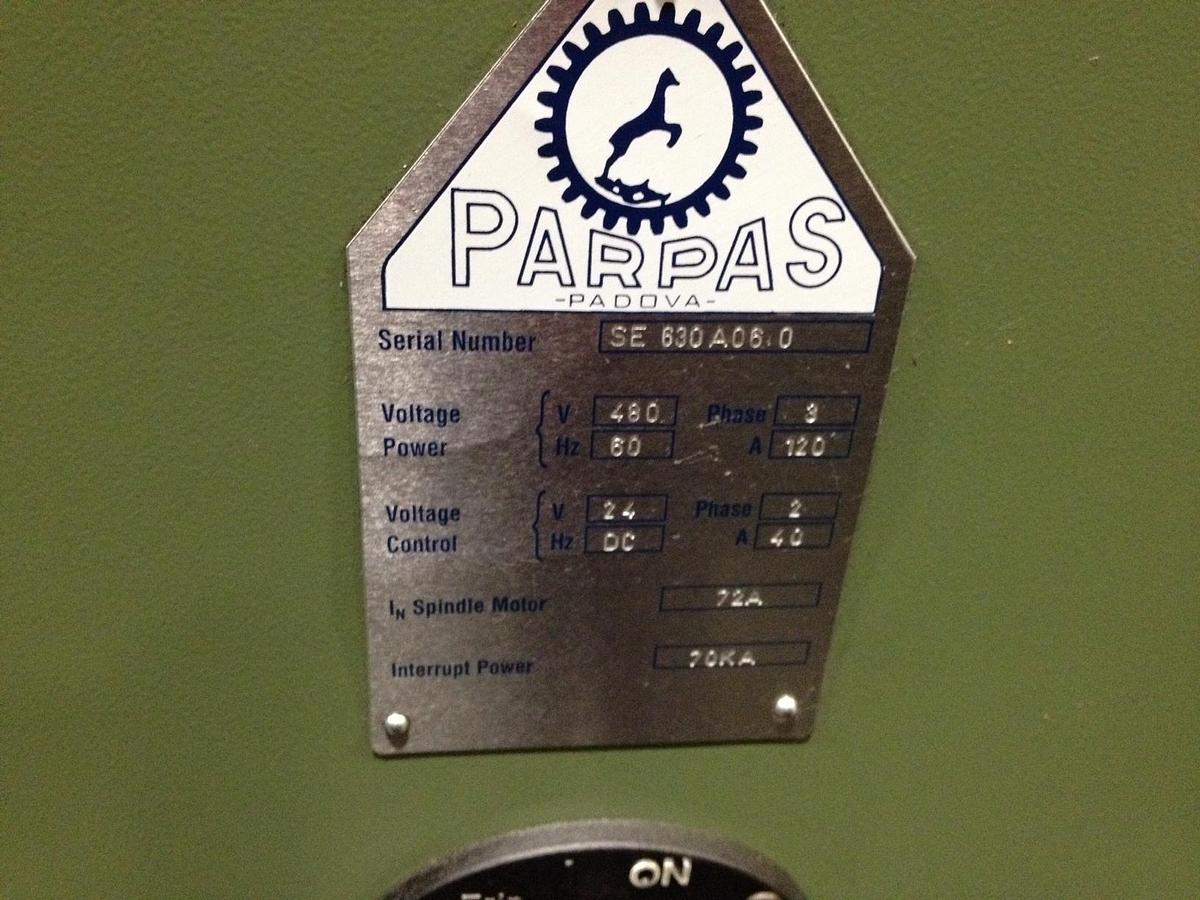

| Power Requirement | 480V / 3 phase / 60 Hz |
Equipped With

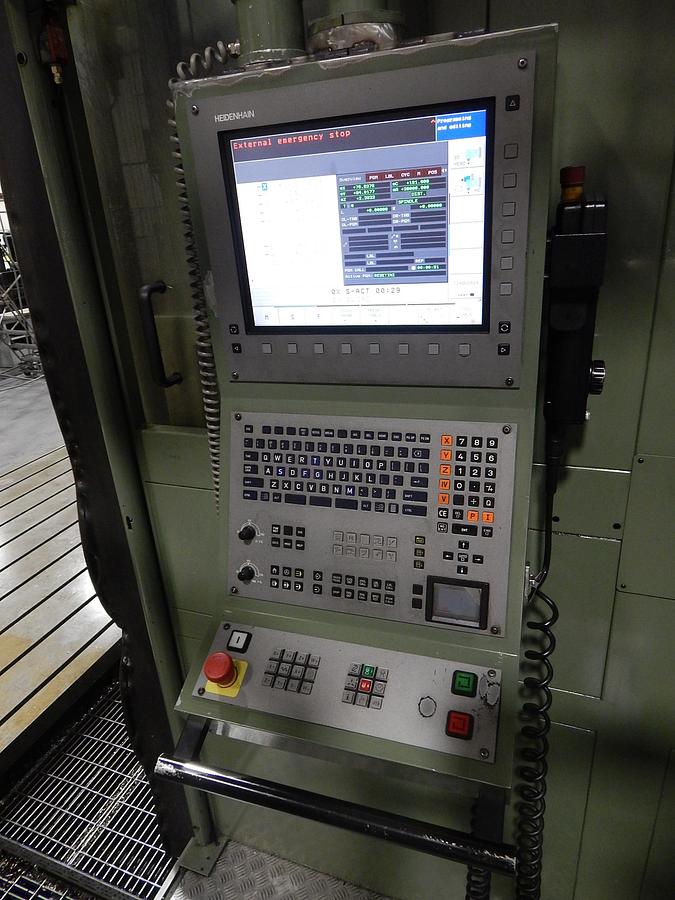

HEIDENHAIN CNC CONTROL
INFINITE INDEX ROTARY TABLE
CENTER MOUNT ROTARY TABLE
120 POSITION AUTOMATIC TOOL CHANGER
HEAD CHANGER STORAGE TOWER
UNIVERSAL HEAD
90 DEGREE HEAD
STANDARD BORING HEAD
