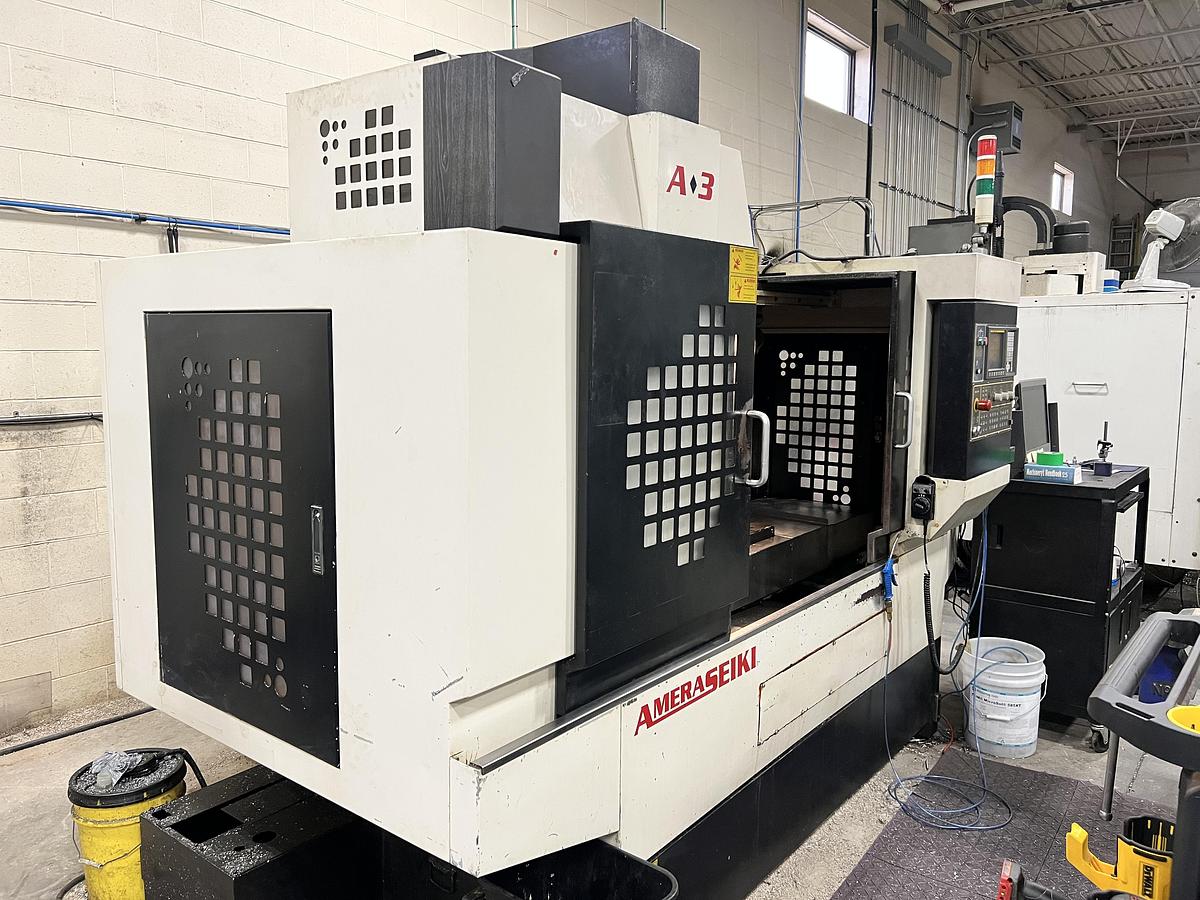

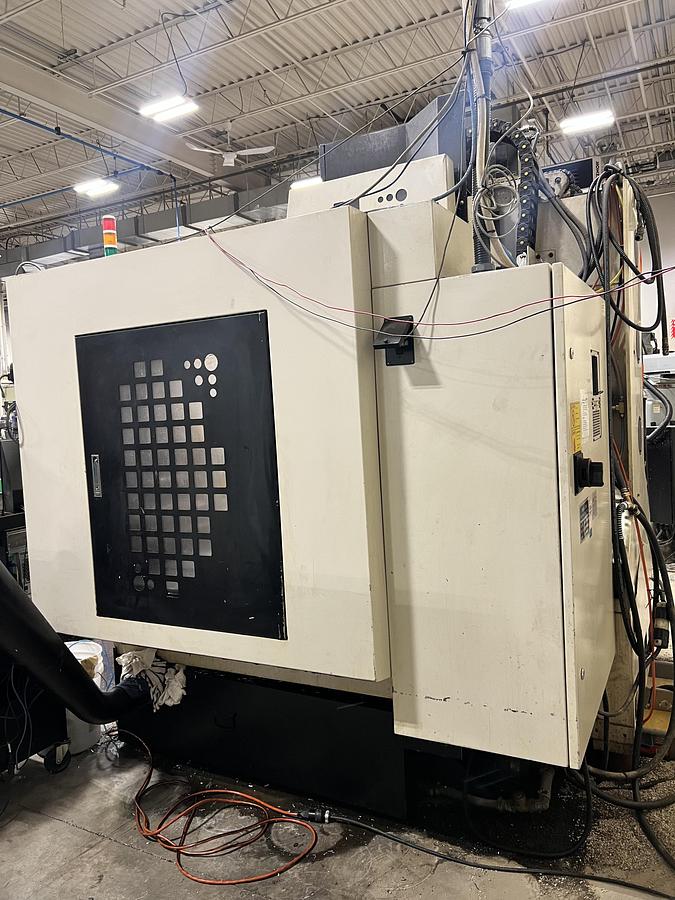

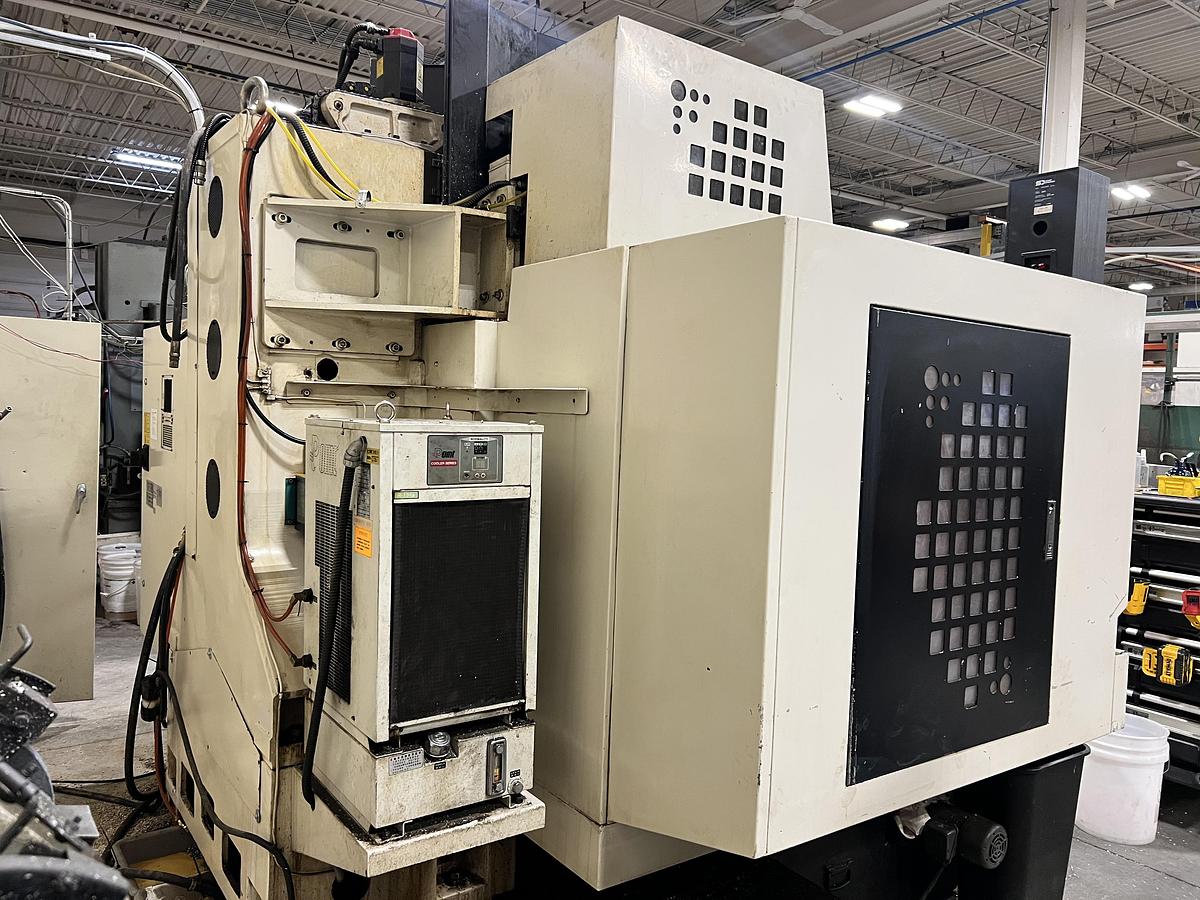

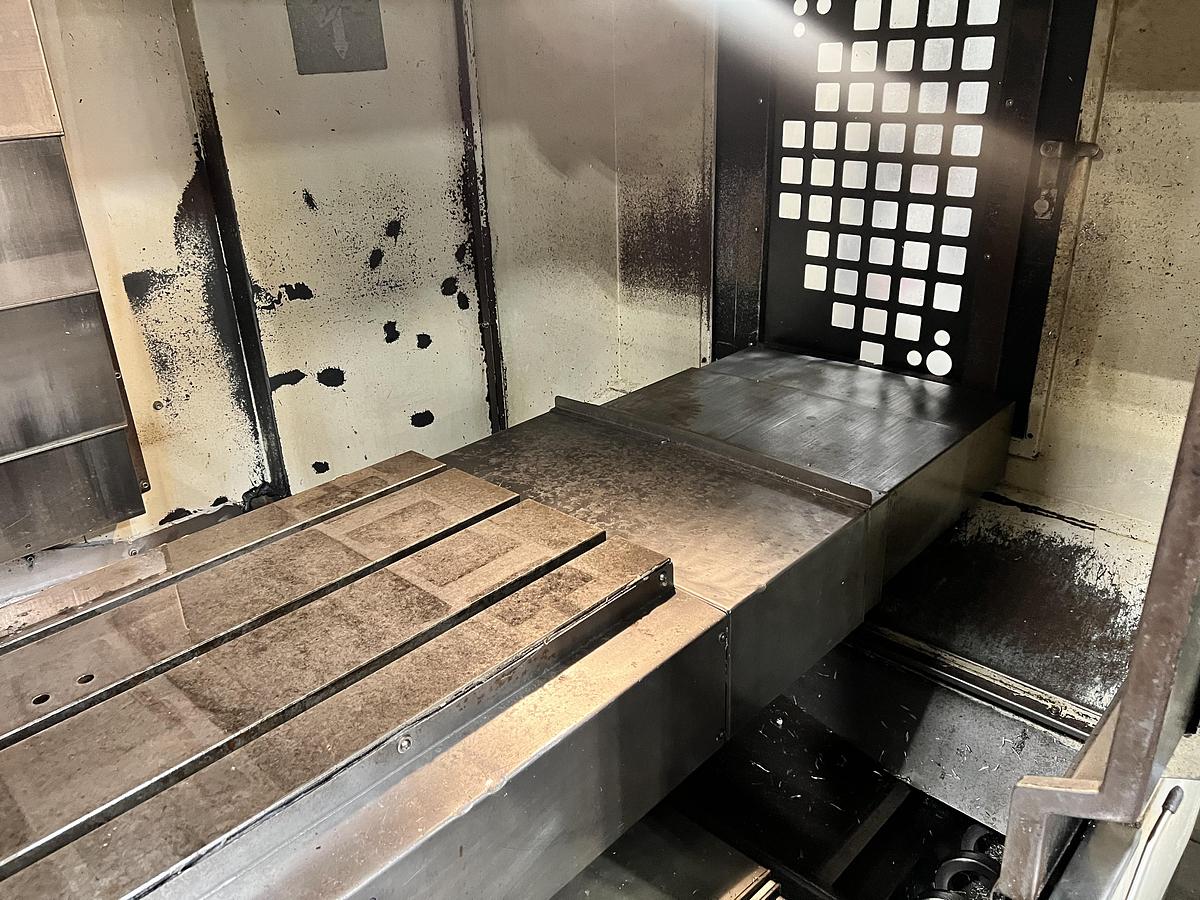

AMERA-SEIKI A-3 CNC VERTICAL MACHINING CENTER
AMERA-SEIKI A-3 CNC VERTICAL MACHINING CENTER
Available quantity:1
Description
The Amera-Seiki A-3 is a versatile CNC vertical machining center designed for reliable production milling and precision machining. This 2004 machine features 44" (X), 22" (Y), and 22" (Z) travels with a 44" × 20" table and 1,540 lb load capacity. Equipped with an 8,000 RPM ISO/CAT40 spindle, 24-tool automatic tool changer, and rapid traverse rates up to 1,260 IPM, the A-3 delivers efficient machining performance for a wide range of parts. Controlled by Fanuc Series 0i-MB and complete with coolant system and chip auger, it is ideal for job shops and production environments.
Specifications
| Manufacturer | Amera-Seiki |
| Model | A-3 |
| Year | 2004 |
| Condition | Used |

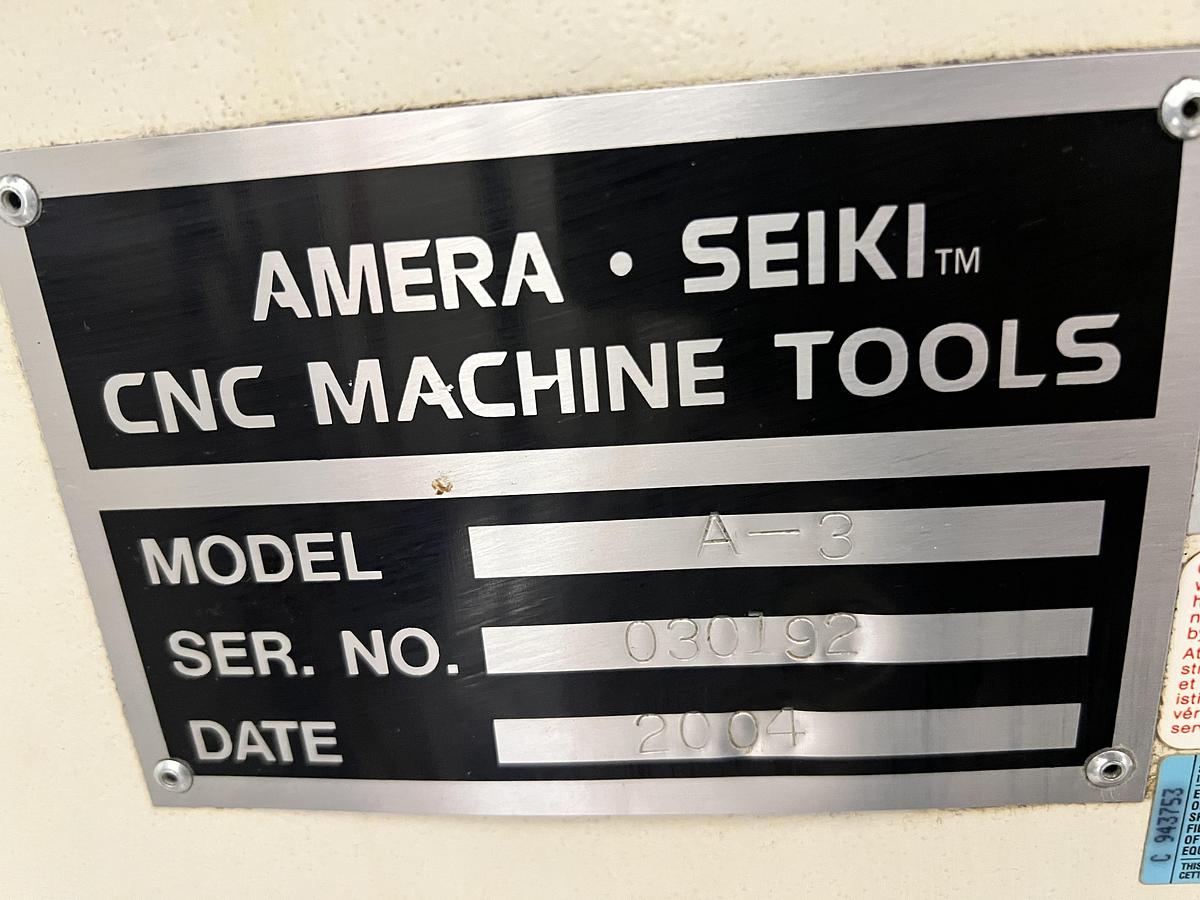

| Serial Number | 030192 |
| Stock Number | VMC-AMS-0192 |

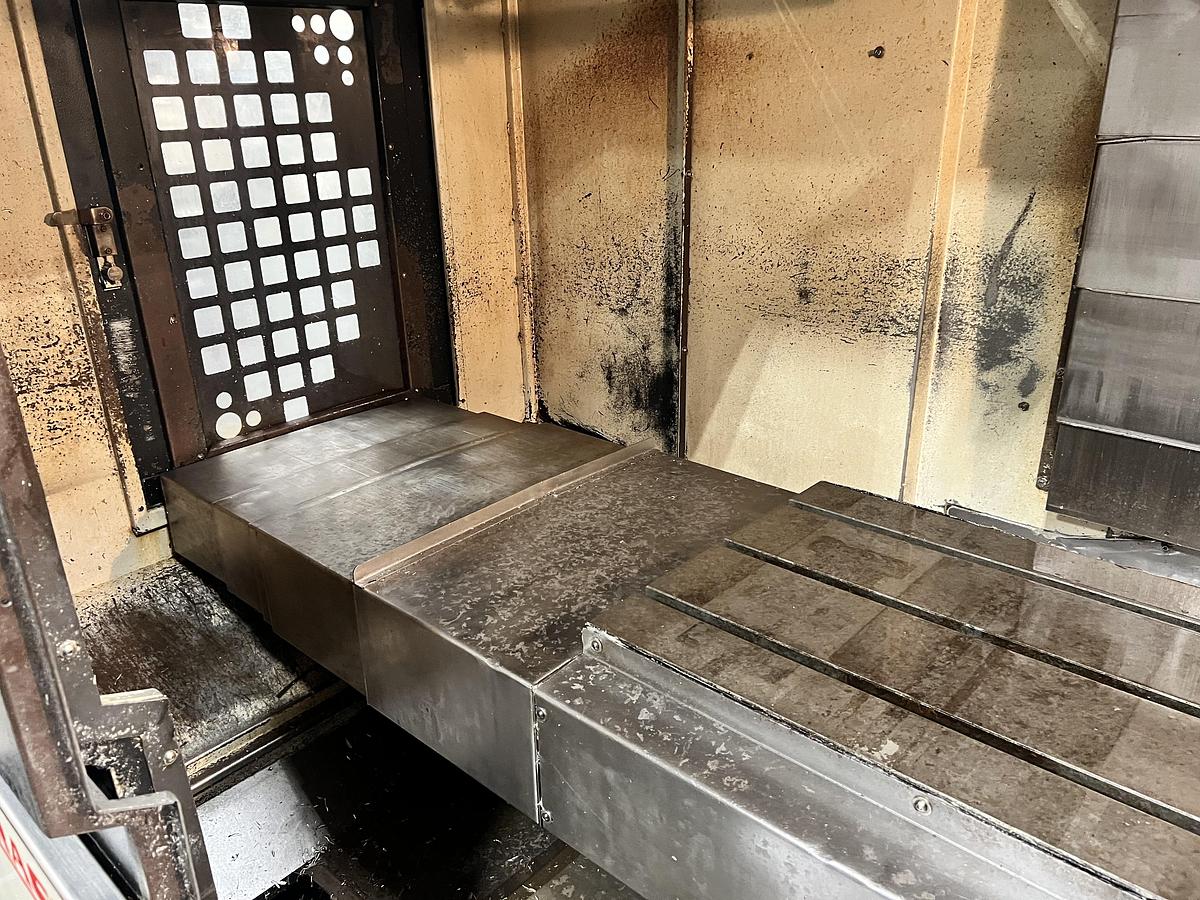

| Table Size | 44" x 20" |
| Working Area | 44" x 22" |
| T-Slots | 0.7" x 6.3" x 3 |
| Maximum Table Load | 1540 lb |
| X Axis Travel | 44" |
| Y Axis Travel | 22" |
| Z Axis Travel | 22" |
| Distance Spindle Nose to Table | 5.9" ~ 27.9" |
| Distance Spindle Center to Column | 24.6" |
| Spindle Taper | ISO 40 |
| Spindle Diameter | 2.76" |
| Maximum Speed | 8000 RPM |
| Spindle Motor | 10 hp / 15 hp (30 min) |
| Tool Changer Capacity | 24 |
| Max Tool Diameter | 3.15" |
| Max Tool Length | 9.84" |
| Max Tool Weight | 13.2 lb |
| Tool Change Time | 2.5 sec |
| Cutting Feed Rate | 472 in/min |
| Rapid Traverse Rate | 1260 in/min |
| Overall Dimensions | 121" x 87.3" x 102.2" |
| Gross Weight | 12,100 lb |
Equipped With

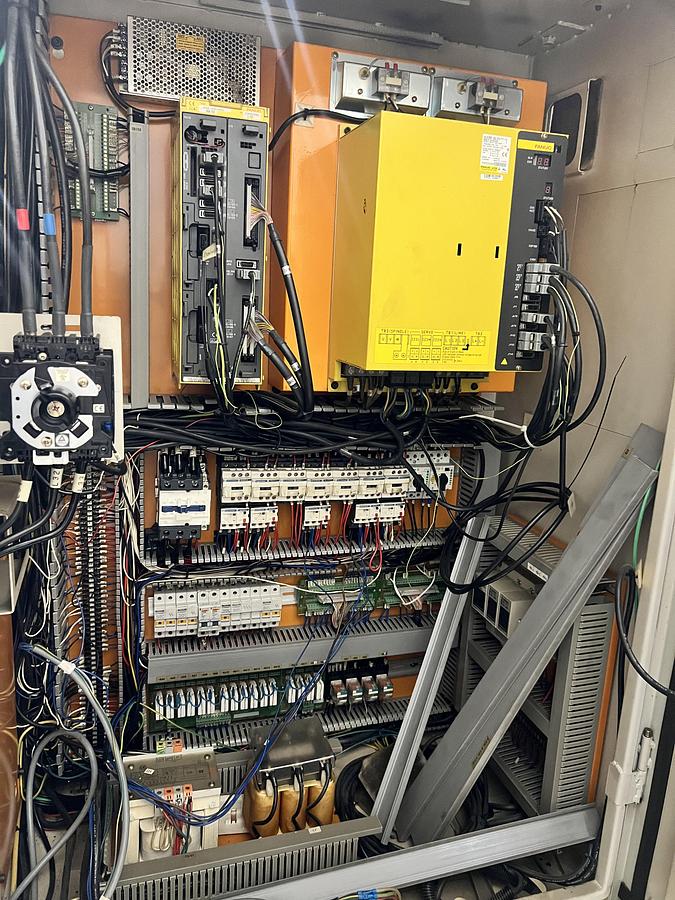

Fanuc Series 0i-MB CNC Control

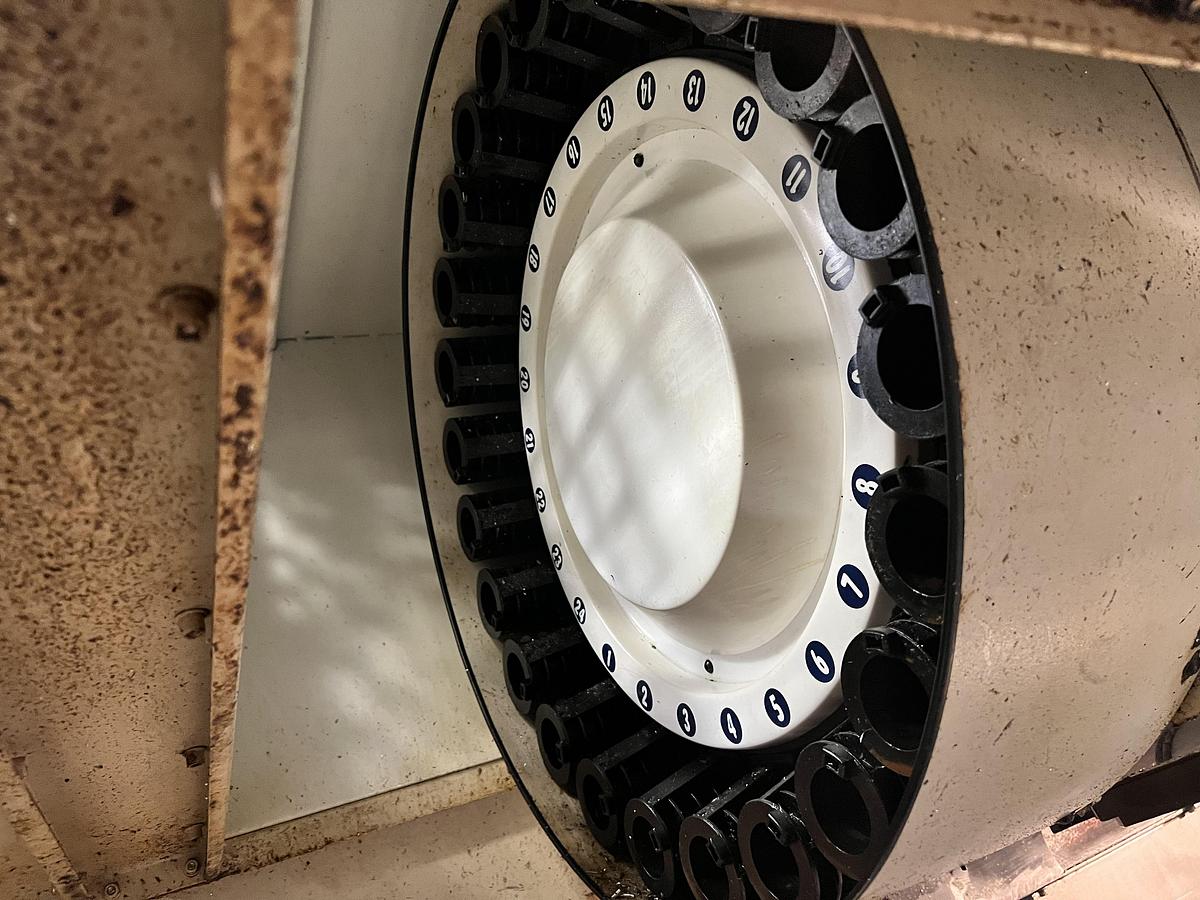

24 Position Automatic Tool Changer
ISO / CAT 40 Spindle
Coolant System

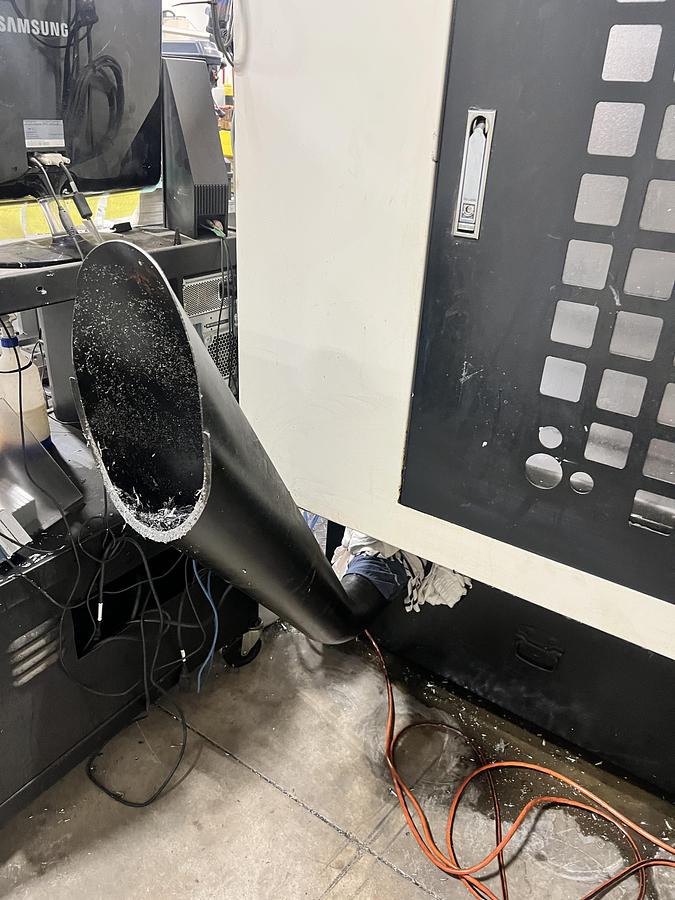

Chip Auger
