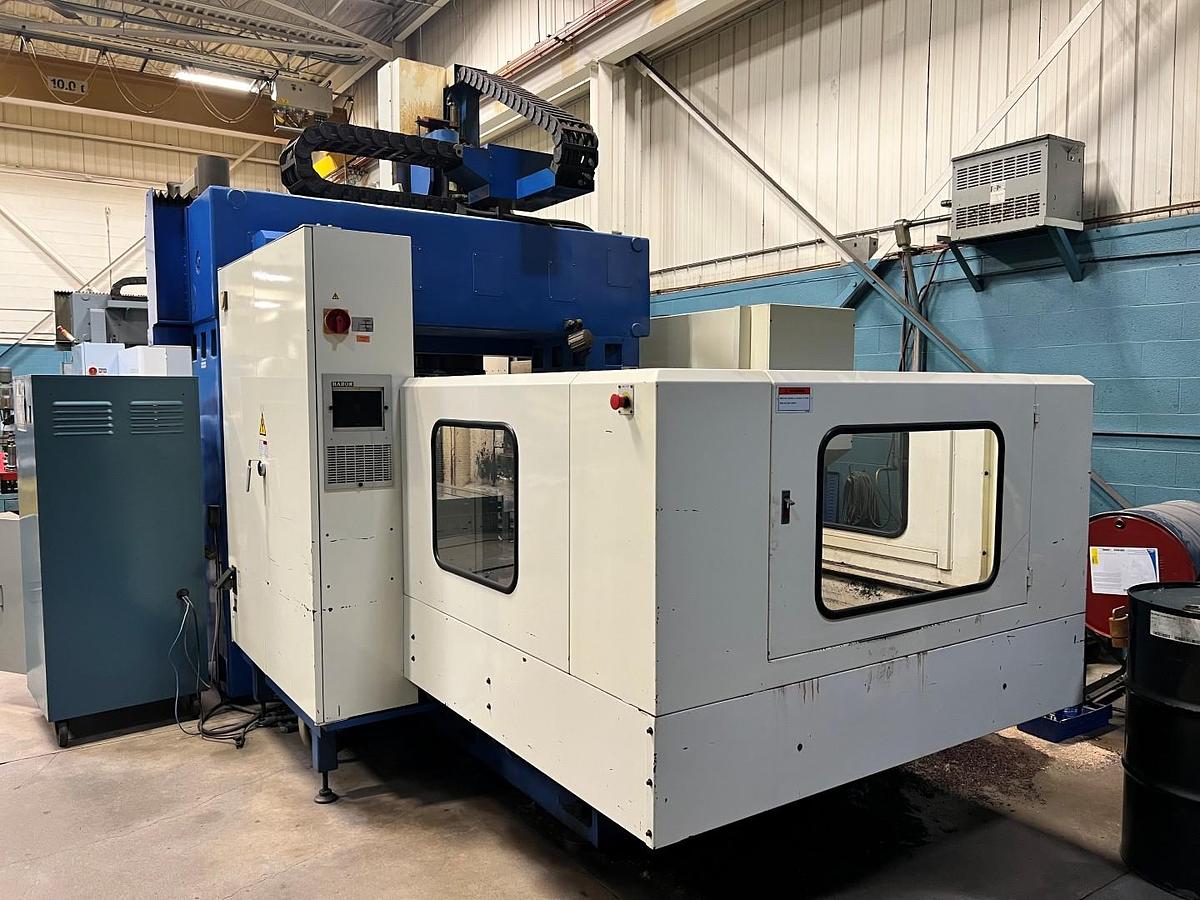

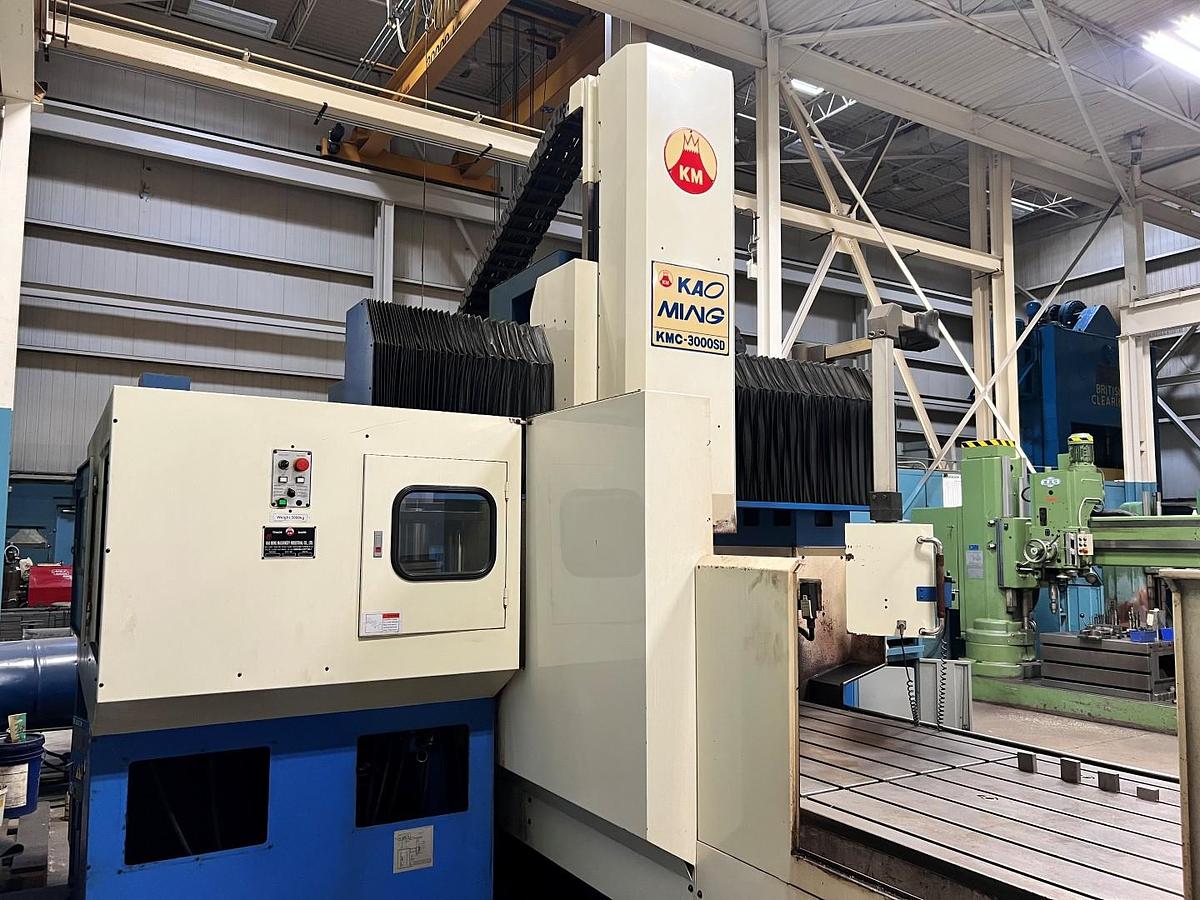

KAO MING KMC-3000SD CNC DOUBLE COLUMN VERTICAL MACHINING CENTER
KAO MING KMC-3000SD CNC DOUBLE COLUMN VERTICAL MACHINING CENTER
Available quantity:1
Description
The Kao Ming KMC-3000SD is a heavy-duty double column vertical machining center built for large-part and high-rigidity machining. Featuring a massive 118" × 49" table, 7,000 kg load capacity, and travels of 98.4" (X), 63" (Y), and 27.6" (Z), this machine is ideal for mold work, aerospace, and heavy fabrication. Equipped with a CAT50 spindle, up to 3,200 RPM, and a high-capacity automatic tool changer, the KMC-3000SD delivers strong torque and precision. Controlled by Fanuc, and complete with coolant system and chip conveyor, it is a reliable solution for demanding large-scale machining applications.
Specifications
| Manufacturer | Kao Ming |
| Model | KMC-3000 SD |
| Year | 1998 |
| Condition | Used |
| Stock Number | MAC-VMC-KMG-8116 |
| X Axis Travel | 2500 mm (98.4") |
| Y Axis Travel | 1600 mm (63.0") |
| Z Axis Travel | 700 mm (27.6") |

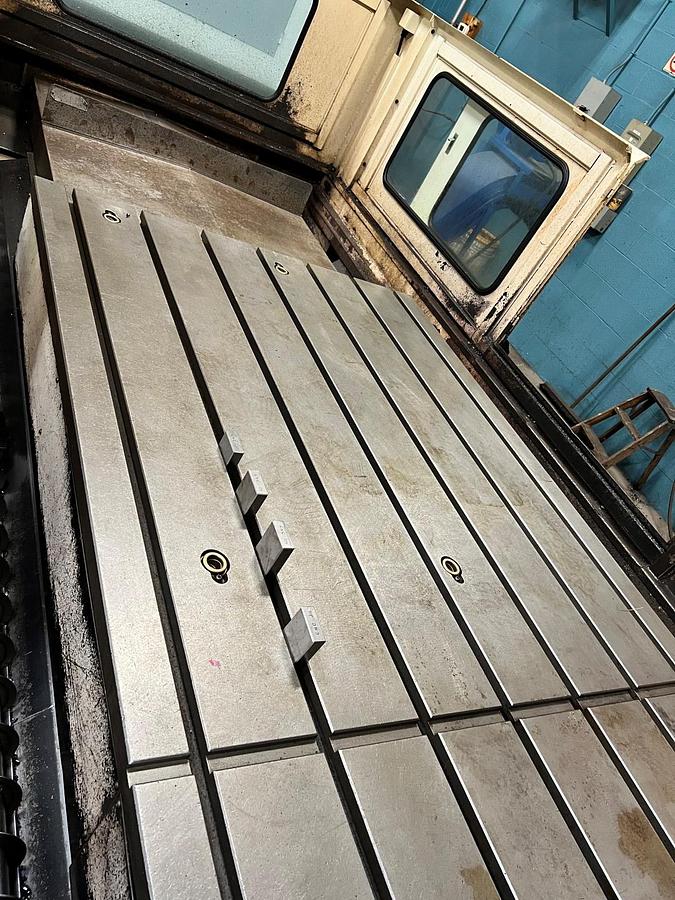

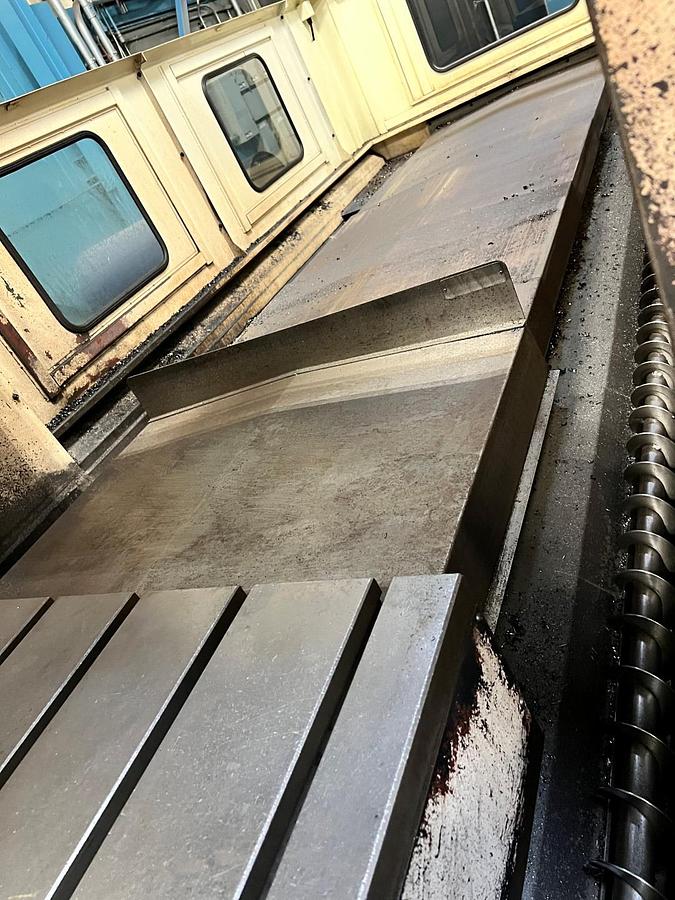

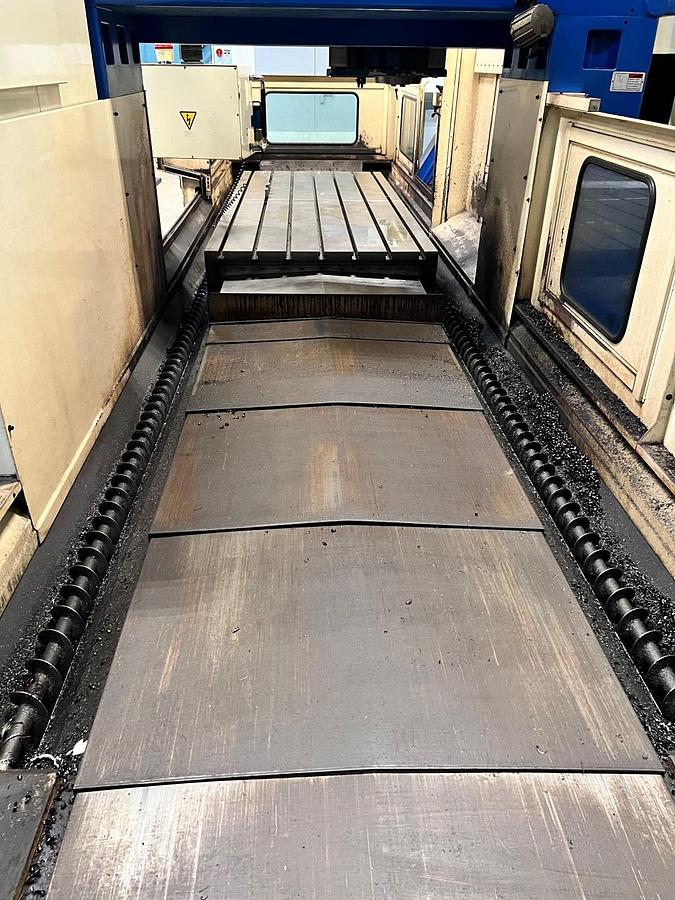

| Table Size | 3000 mm x 1250 mm (118.1" x 49.2") |
| Table Load Capacity | 7000 kg (15432.0 lb) |
| Distance Between Columns | 1600 mm (63.0") |
| Spindle Speed | 20 - 3200 RPM |
| Spindle Taper | ISO 50 / CAT 50 |
| Spindle Motor | 20 HP / 25 HP |
| Tool Changer Capacity | 30 ATC |
| Rapid Traverse Rate | 12000 mm/min (472.4 in/min) |
| Cutting Feed Rate | 1 - 5000 mm/min (1 - 196.9 in/min) |
| Repeatability | 0.003 mm (0.0001") |
| Machine Height | 4250 mm (167.3") |
| Machine Weight Approx. | 27000 kg ( 59525 lb) |
Equipped With

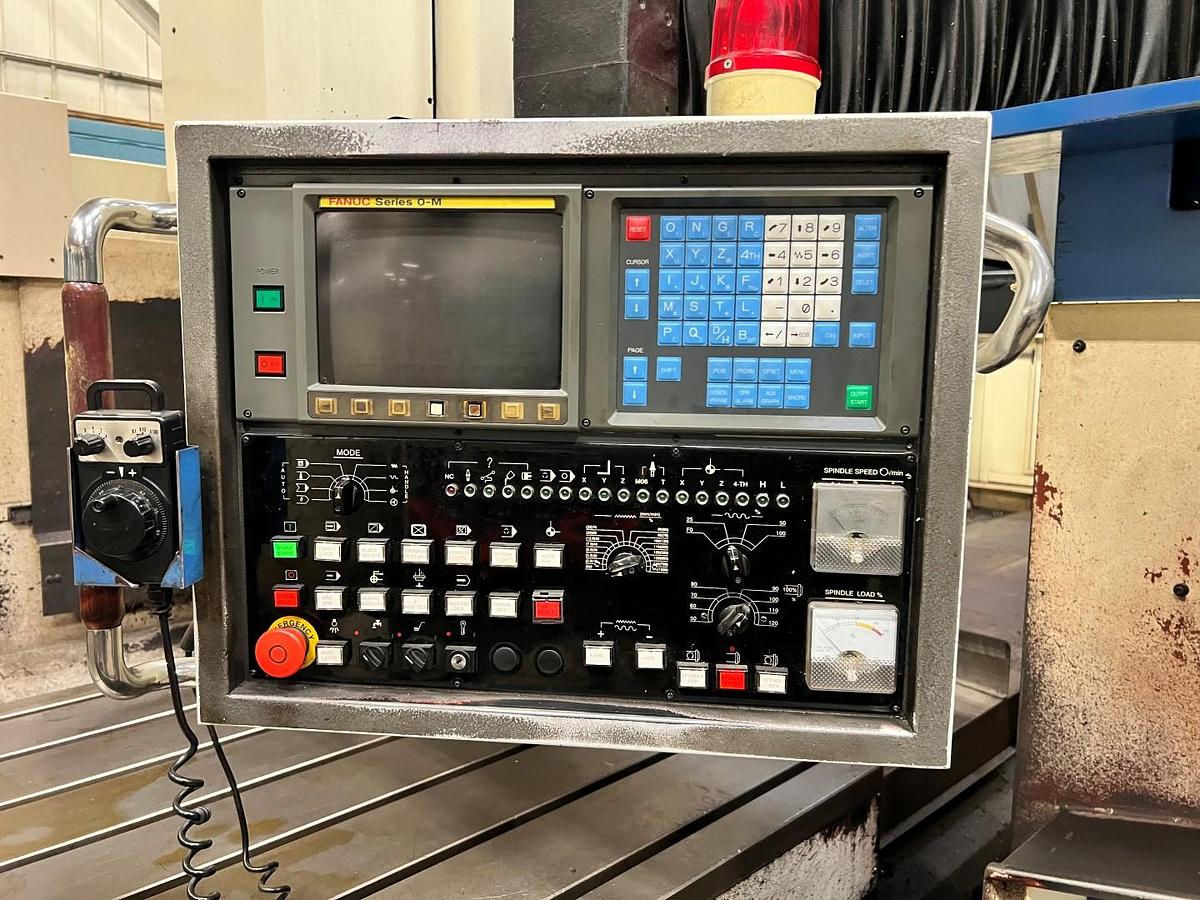

Fanuc Series 18-M CNC Control (Typical)
Double Column Bridge Construction
CAT 50 Spindle

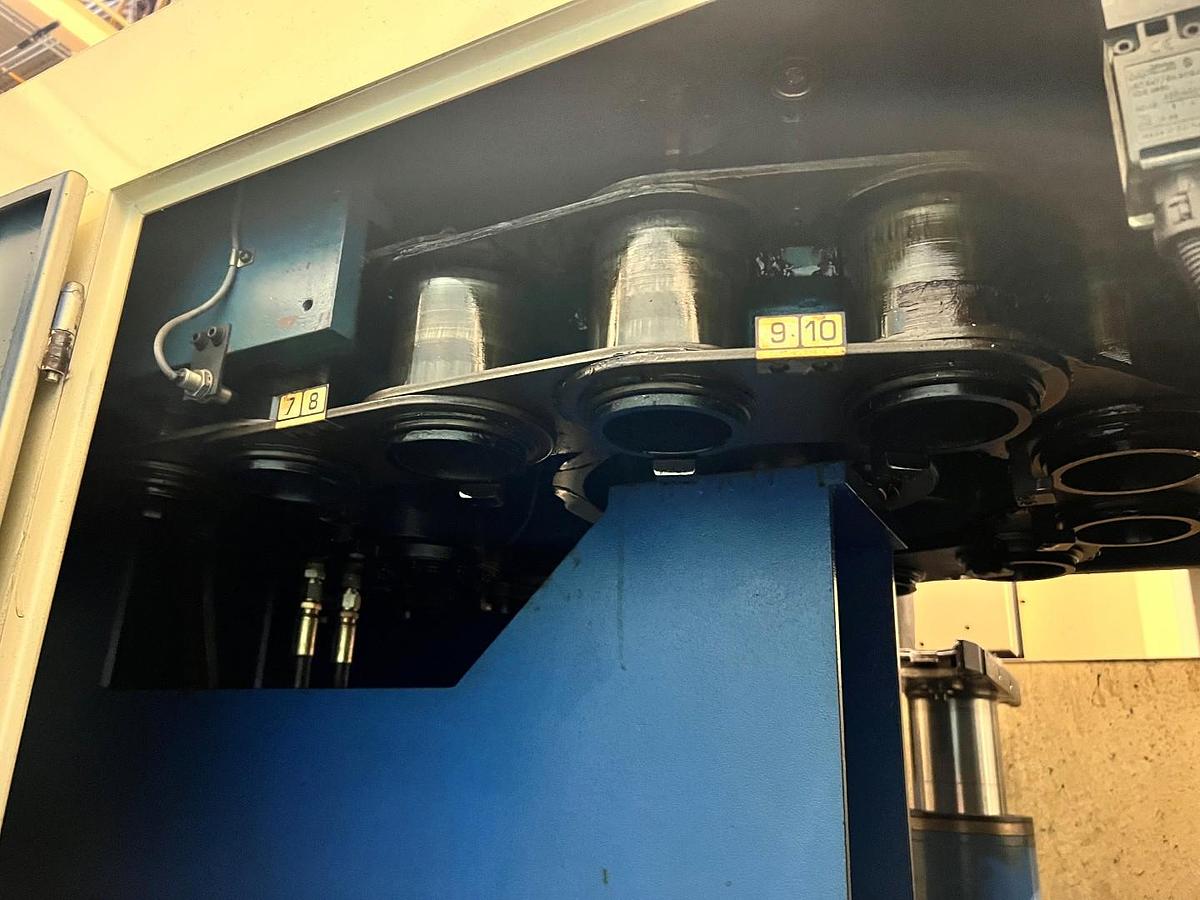

Automatic Tool Changer
Coolant System
Chip Conveyor (if equipped)
