KAO MING KMC-3000SV CNC DOUBLE COLUMN MACHINING CENTER
KAO MING KMC-3000SV CNC DOUBLE COLUMN MACHINING CENTER
Available quantity:1
Description
The Kao Ming KMC-3000SV is a heavy-duty double column machining center built for large-part, high-precision milling. Featuring extended travels of 118" (X), 63" (Y), and 33.5" (Z) with a massive 118" × 49" table and 7,000 kg load capacity, this machine is ideal for mold making, aerospace, and heavy fabrication. Equipped with a CAT50 spindle, up to 3,200 RPM, and a 30-tool automatic tool changer, the KMC-3000SV delivers strong cutting performance and stability. Controlled by Fanuc Series 18-M and complete with coolant system and chip conveyor, it is a reliable solution for demanding large-scale machining applications.
Specifications
| Manufacturer | Kao Ming |
| Model | KMC-3000SV |
| Year | 2001 |
| Condition | Used |
| Stock Number | MAC-VMC-KMG-1142 |
| X Axis Travel | 3000 mm (118.1") |
| Y Axis Travel | 1600 mm (63.0") |
| Z Axis Travel | 850 mm (33.5") |
| Table Size | 3000 mm x 1250 mm (118.1" x 49.2") |
| Table Load Capacity | 7000 kg (15432.0 lb) |
| Distance Between Columns | 1600 mm (63.0") |
| Spindle Speed | 20 - 3200 RPM |
| Spindle Taper | ISO 50 / CAT 50 |
| Spindle Motor | 20 HP / 25 HP |
| Tool Changer Capacity | 30 ATC |
| Rapid Traverse Rate | 12000 mm/min (472.4 in/min) |
| Cutting Feed Rate | 1 - 5000 mm/min (1 - 196.9 in/min) |
| Positioning Accuracy | 0.005 / 300 mm (0.0002") |
| Repeatability | 0.003 mm (0.0001") |
| Machine Height | 4250 mm (167.3") |
| Machine Weight Approx. | 29000 kg (63934 lb) |
Equipped With

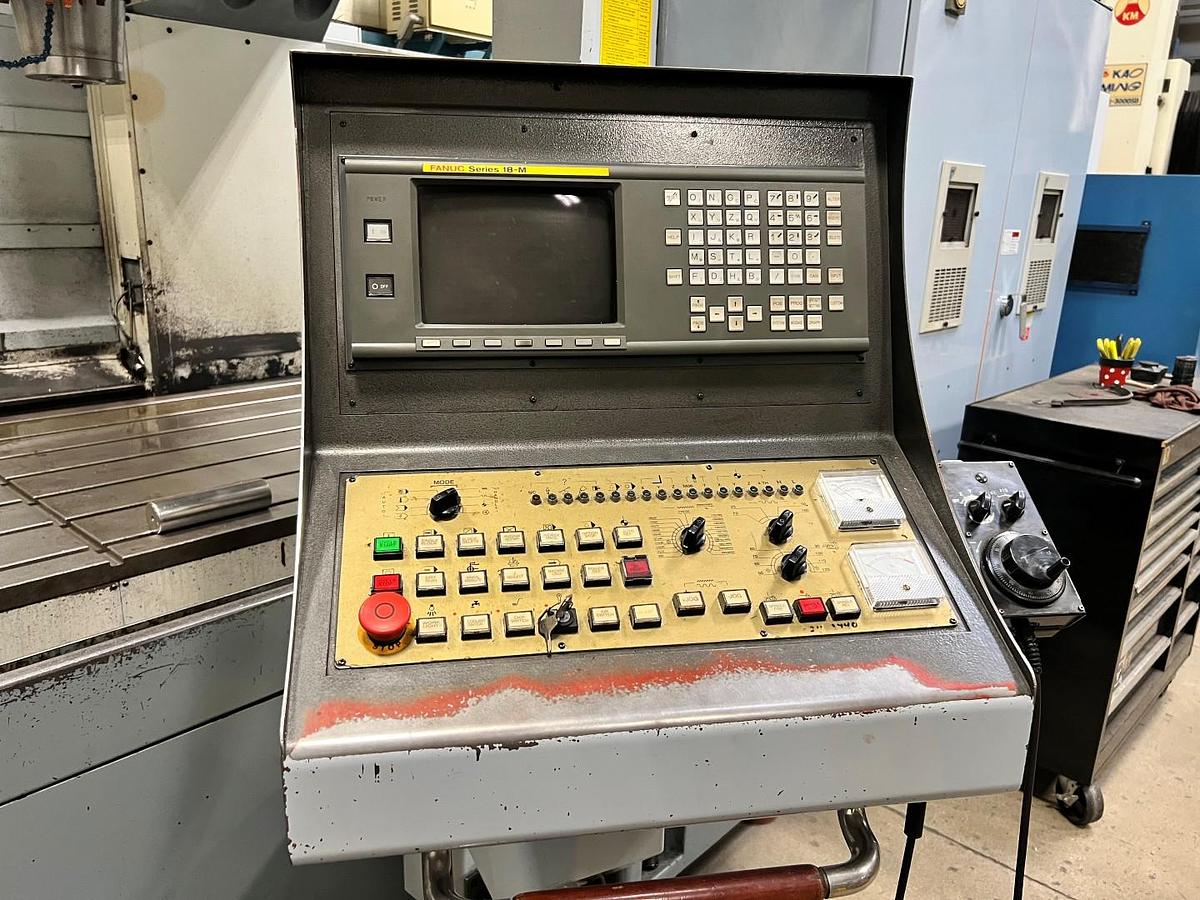

Fanuc Series 18-M CNC Control
Double Column Bridge Construction
CAT 50 Spindle
Automatic Tool Changer
Coolant System
Chip Conveyor
