HAAS VF-6/50 CNC VERTICAL MACHINING CENTER
HAAS VF-6/50 CNC VERTICAL MACHINING CENTER
Available quantity:1
Description
The Haas Automation VF-6/50 is a powerful CNC vertical machining center built for large-part machining and heavy-duty cutting. This 2015 machine features 64" (X), 32" (Y), and 30" (Z) travels with a large 72" × 28" table and 4,000 lb load capacity. Equipped with a CAT50 spindle, 7,500 RPM, and a 30 HP motor, it delivers strong torque for demanding applications. With a 24-tool changer, through spindle coolant, and fast rapids, the VF-6/50 is ideal for production machining, mold work, and heavy milling operations. Controlled by Haas CNC and complete with chip conveyor and coolant system.
Specifications
| Manufacturer | Haas |
| Model | VF-6/50 |
| Year | 2015 |
| Condition | Used |
| Stock Number | MAC-VMC-HAS-2941 |
| X Axis Travel | 1626 mm (64.0") |
| Y Axis Travel | 813 mm (32.0") |
| Z Axis Travel | 762 mm (30.0") |

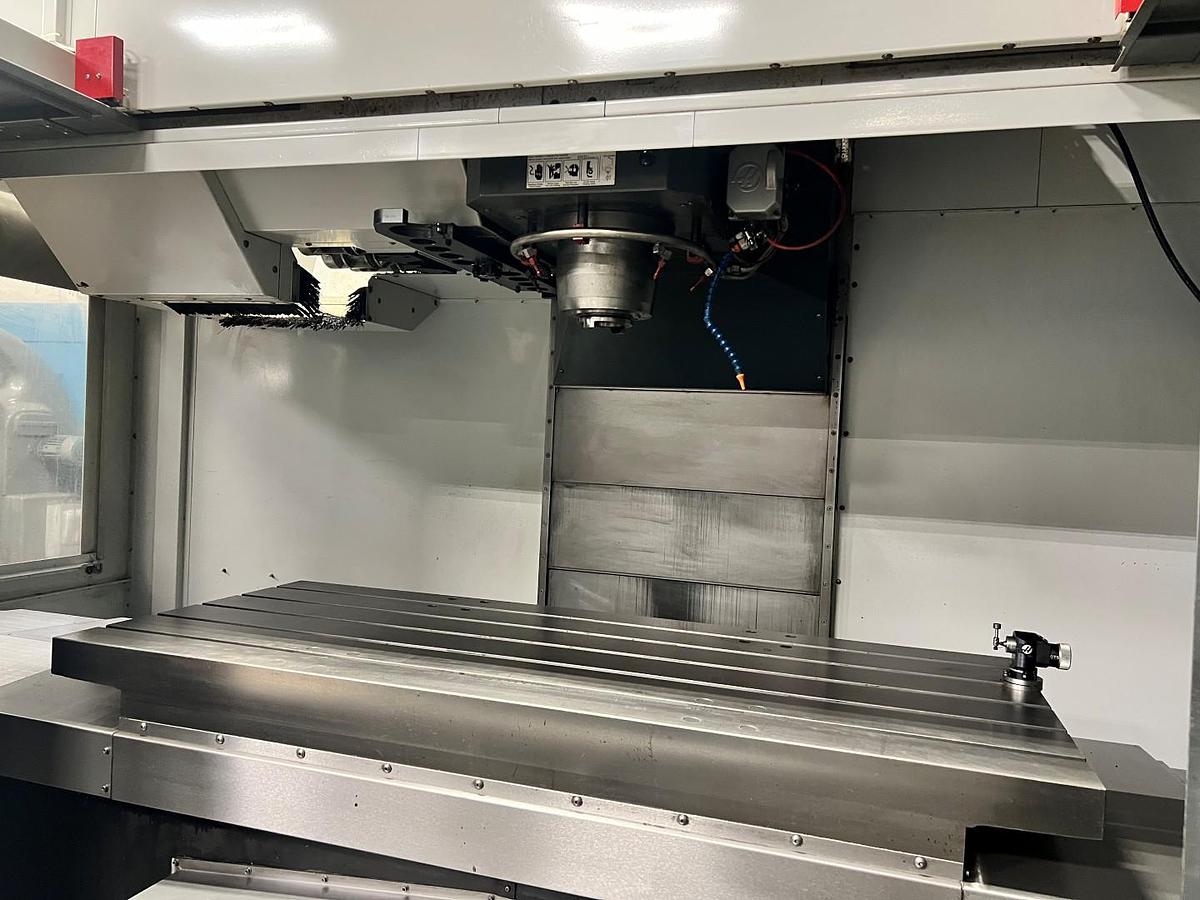

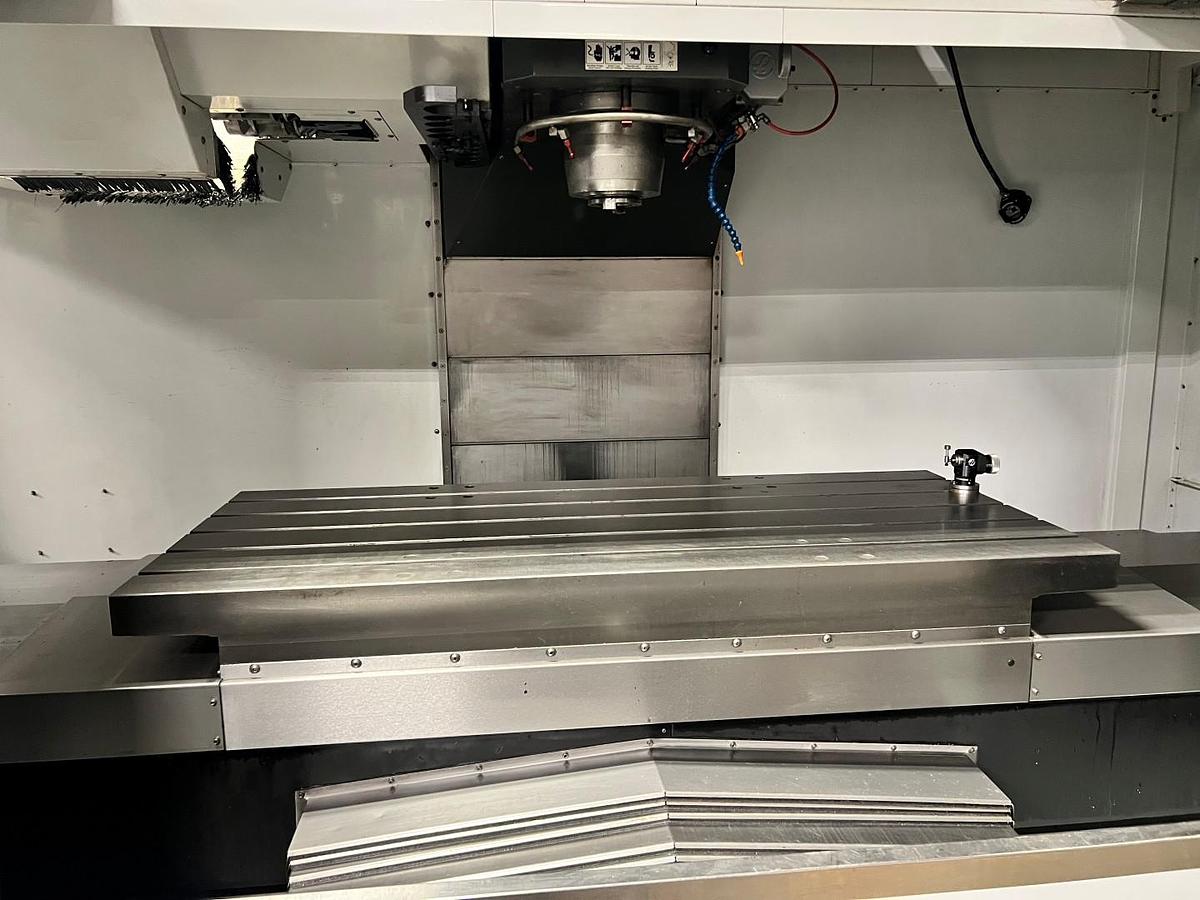

| Table Size | 1829 mm x 711 mm (72.0" x 28.0") |
| Table Load Capacity | 1814 kg (4000.0 lb) |
| Spindle Speed | 7500 RPM |
| Spindle Taper | CAT 50 |
| Spindle Motor | 30 HP |
| Tool Changer Capacity | 24 |
| Rapid Traverse Rate | 15240 mm/min (600.0 in/min) |
| Cutting Feed Rate | 10160 mm/min (400.0 in/min) |
| Machine Weight Approx. | 10433 kg (23000.0 lb) |
Equipped With
Haas CNC Control
CAT 50 Spindle
Through Spindle Coolant
Chip Conveyor

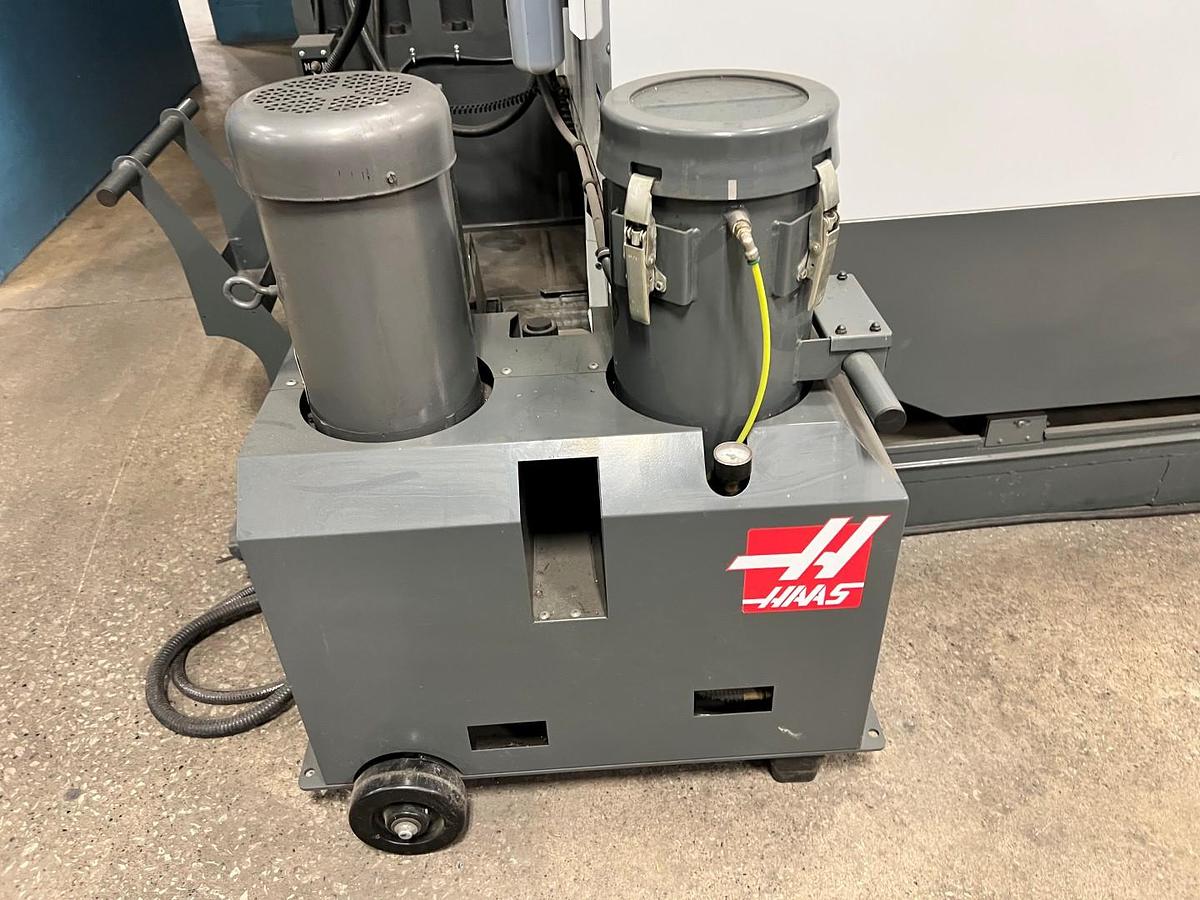

Coolant Tank
