DAH LIH DL-MCV1350 CNC VERTICAL MACHINING CENTER
DAH LIH DL-MCV1350 CNC VERTICAL MACHINING CENTER
Available quantity:1
Description
The Dah Lih DL-MCV1350 is a heavy-duty CNC vertical machining center designed for large-part milling and reliable production machining. Featuring travels of 53.1" (X), 25.6" (Y), and 25.6" (Z) with a 59" × 23.6" table and 2,645 lb load capacity, this machine offers excellent rigidity and workspace. Equipped with a CAT50 spindle, 6,000 RPM, and a 24-tool automatic tool changer, the DL-MCV1350 delivers strong cutting performance for demanding applications. Controlled by Fanuc Series 15-M and complete with coolant system, it is ideal for job shops and heavy machining environments.
Specifications
| Manufacturer | Dah Lih |
| Model | DL-MCV1350 |
| Year | 1993 |
| Condition | Used |
| Stock Number | MAC-VMC-DAL-0424 |
| X Axis Travel | 1350 mm (53.1") |
| Y Axis Travel | 650 mm (25.6") |
| Z Axis Travel | 650 mm (25.6") |

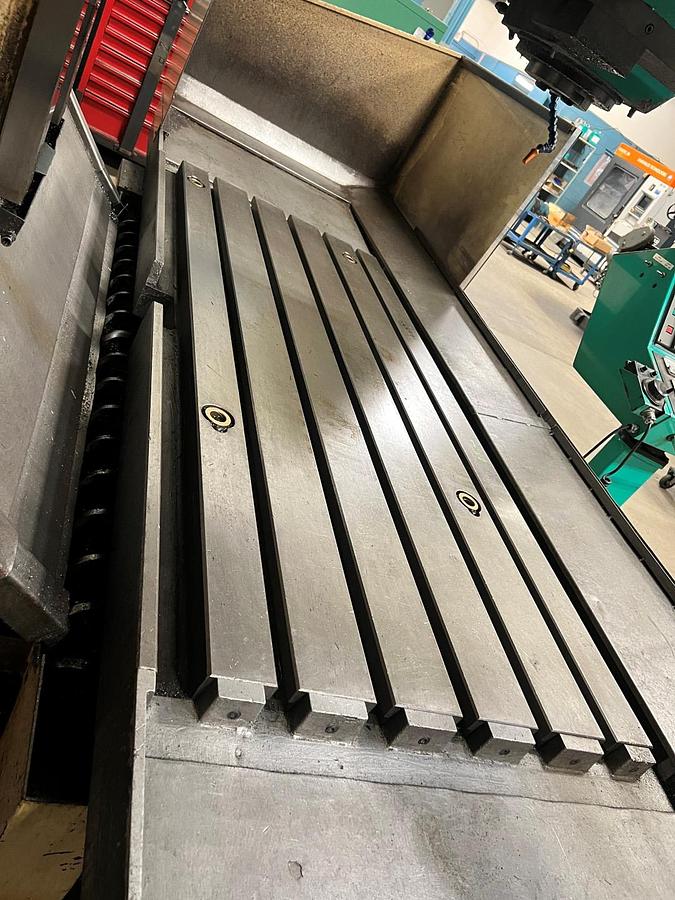

| Table Size | 1500 mm x 600 mm (59.1" x 23.6") |
| Table Load Capacity | 1200 kg (2645.5 lb) |
| Spindle Speed | 6000 RPM |
| Spindle Taper | ISO 50 / CAT 50 |
| Tool Changer Capacity | 24 |
| Rapid Traverse Rate | 18000 mm/min (708.7 in/min) |
| Cutting Feed Rate | 8000 mm/min (315.0 in/min) |
| Machine Weight Approx. | 14000 kg (30864.7 lb) |
Equipped With

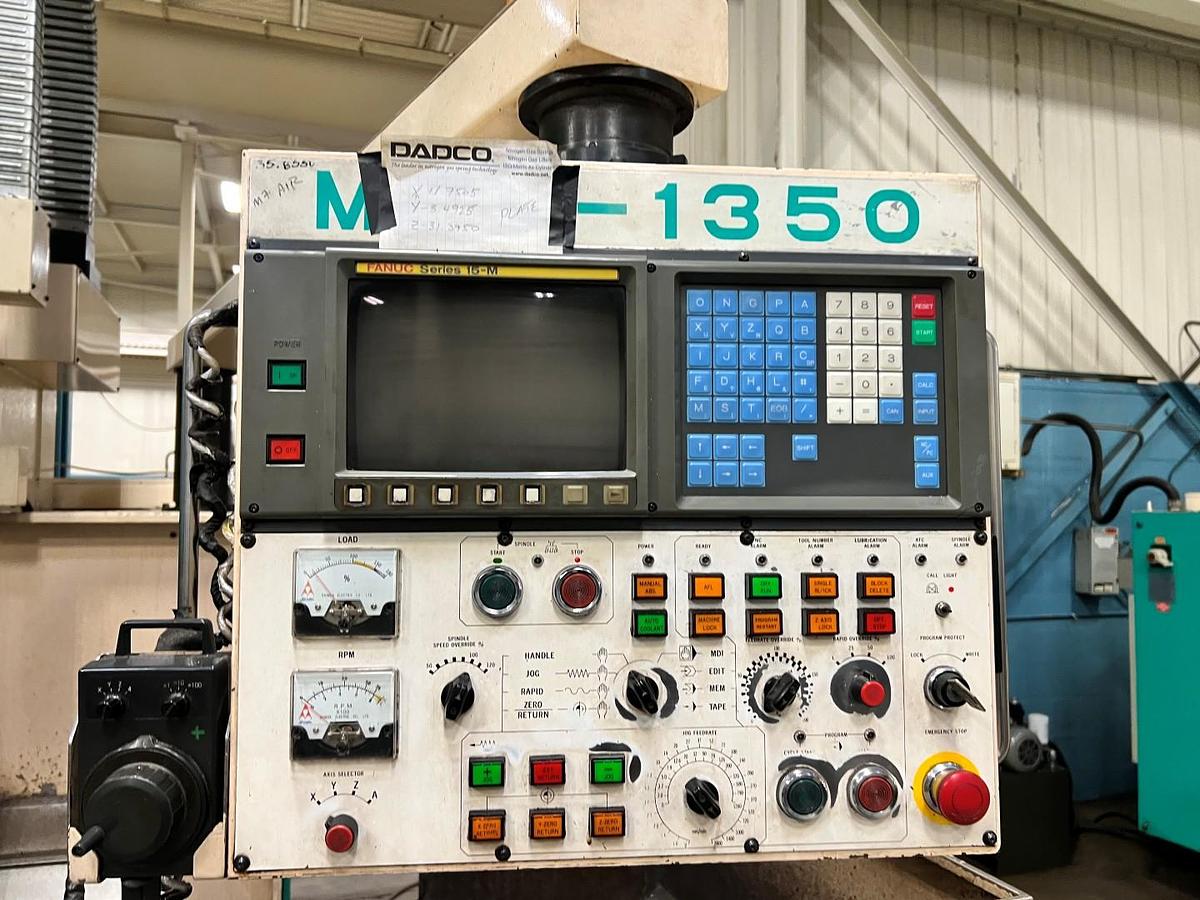

Fanuc Series 15-M CNC Control

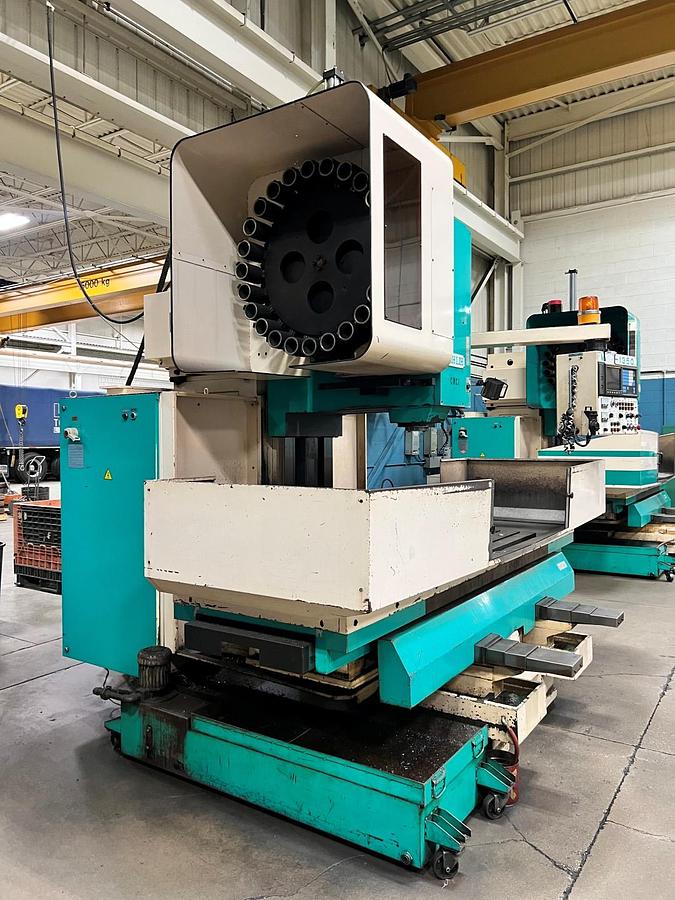

24 Position Automatic Tool Changer
Coolant System
