DAH LIH MCV-1500 CNC VERTICAL MACHINING CENTER
DAH LIH MCV-1500 CNC VERTICAL MACHINING CENTER
Available quantity:1
Description

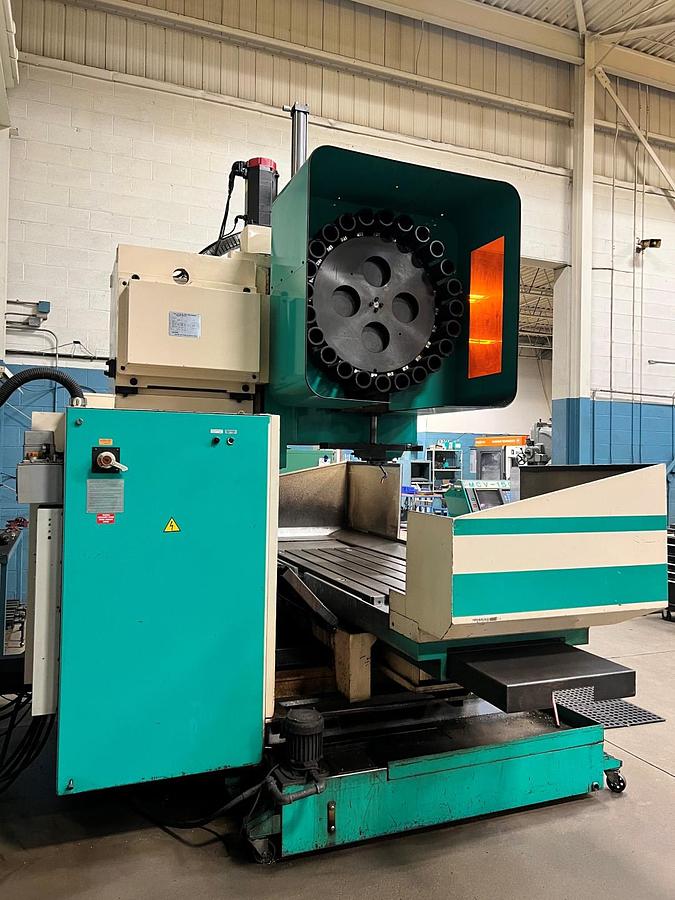

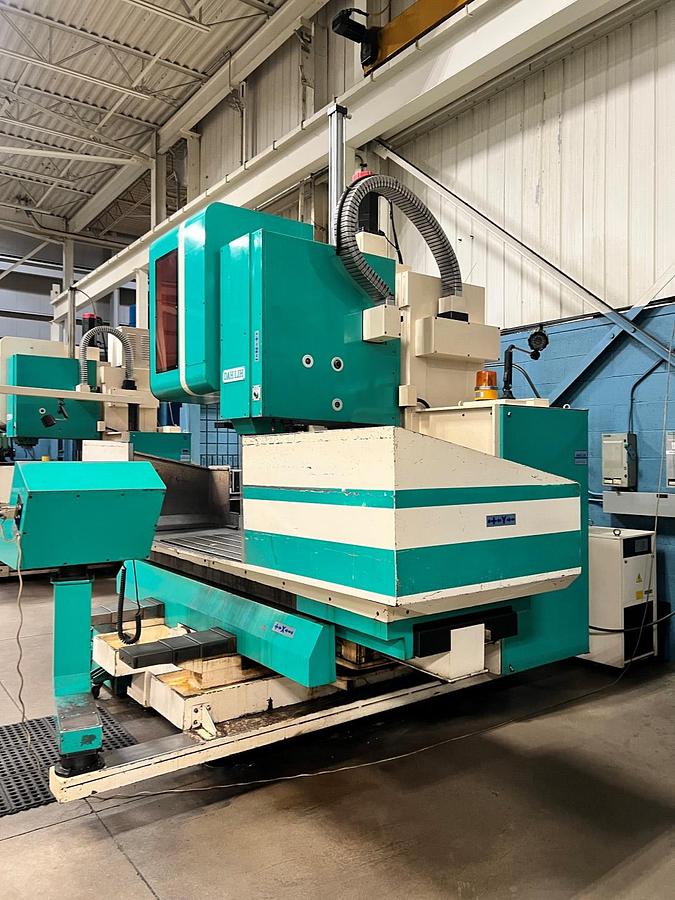

The Dah Lih MCV-1500 is a heavy-duty CNC vertical machining center designed for large-part milling and reliable production work. Featuring 59.1" (X), 24.8" (Y), and 27.6" (Z) travels with a 66.9" × 26.6" table and 3,300 lb load capacity, this machine offers excellent rigidity and capacity. Equipped with a CAT50 spindle, 4,500 RPM, and a 24-tool automatic tool changer, the MCV-1500 delivers solid cutting performance for demanding applications. Controlled by Fanuc Series 0-M and complete with coolant tank, spindle chiller, and hydraulic system, it is ideal for job shops and heavy machining environments.
Specifications
| Manufacturer | Dah Lih |
| Model | MCV-1500 |
| Year | 1995 |
| Condition | Used |
| Stock Number | MAC-VMC-DAL-0502 |
| X Axis Travel | 1500 mm (59.1") |
| Y Axis Travel | 630 mm (24.8") |
| Z Axis Travel | 700 mm (27.6") |
| Table Size | 1700 mm x 675 mm (66.9" x 26.6") |
| Table Load Capacity | 1500 kg (3306.9 lb) |
| Spindle Speed | 4500 RPM |
| Spindle Taper | ISO 50 / CAT 50 |
| Tool Changer Capacity | 24 |
| Rapid Traverse Rate | 20000 mm/min (787.4 in/min) |
| Cutting Feed Rate | 10000 mm/min (393.7 in/min) |
Equipped With
Fanuc Series 0-M CNC Control
24 Position Automatic Tool Changer
Coolant Tank

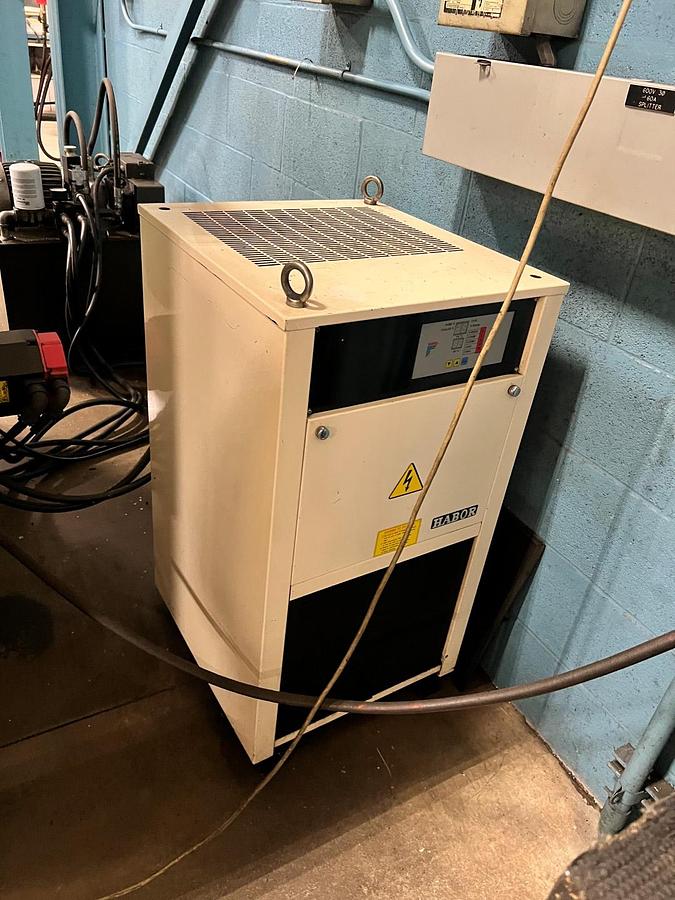

Spindle Chiller

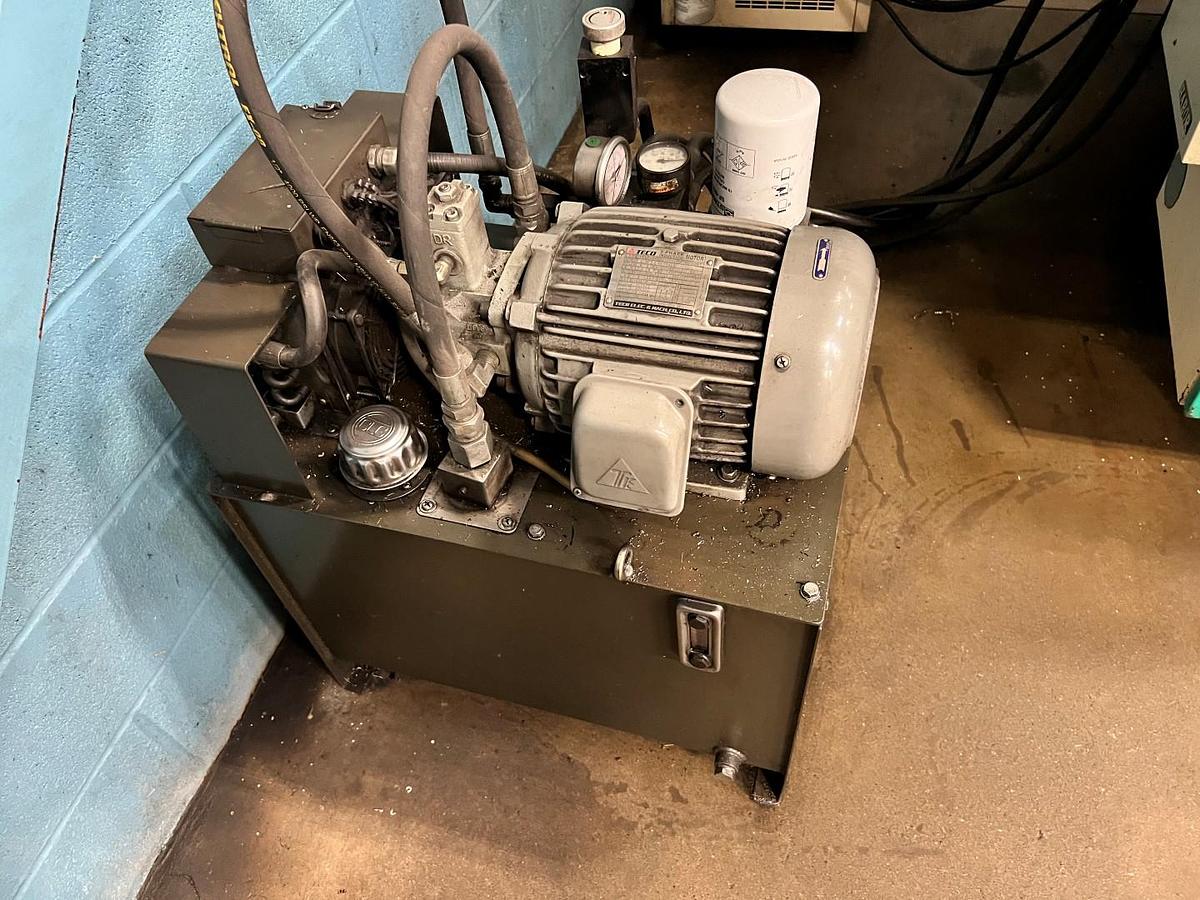

Hydraulic Tank
