TOS VARNSDORF W9 HORIZONTAL BORING MILL
TOS VARNSDORF W9 HORIZONTAL BORING MILL
Available quantity:1
Description

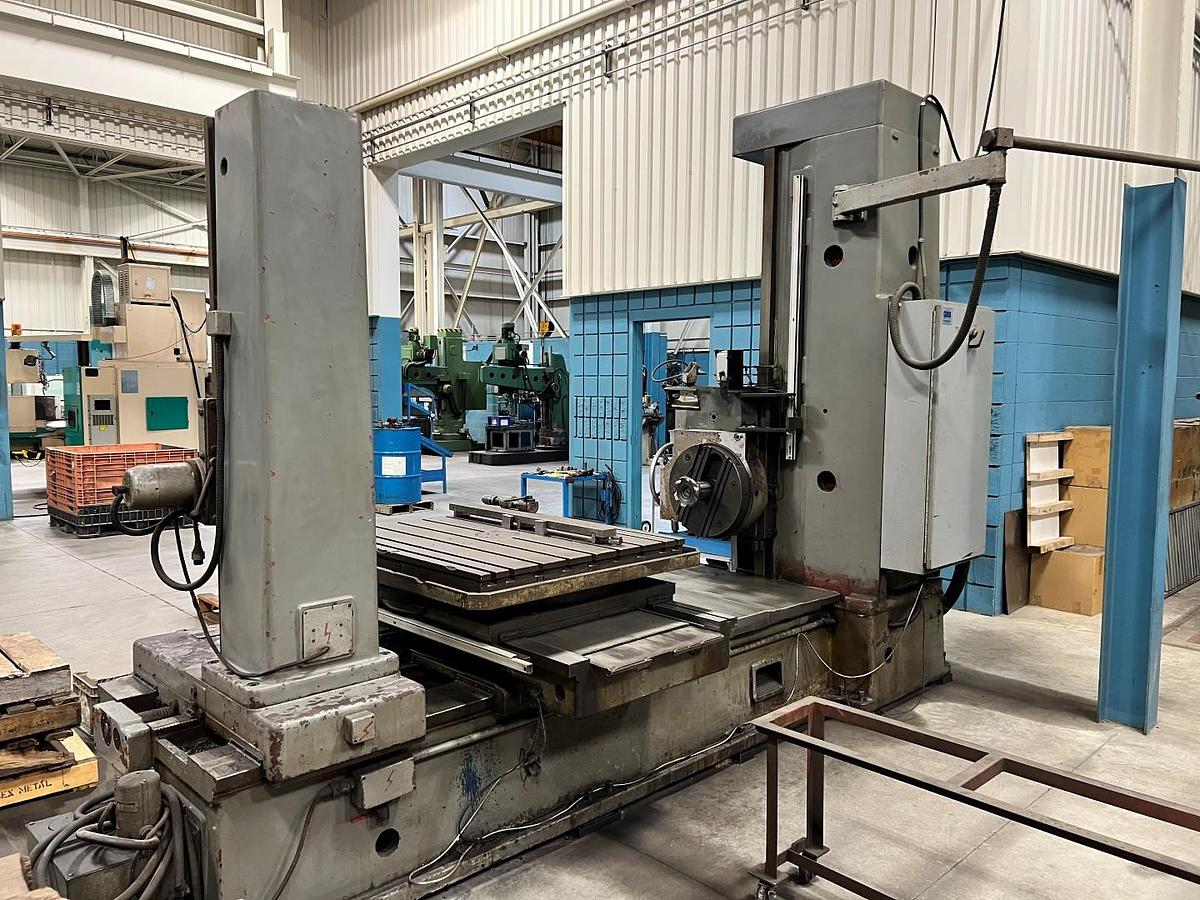

The TOS Varnsdorf W9 is a robust horizontal boring mill designed for precision machining of medium to large components. Featuring an 80 mm (3.1") spindle with MT5 taper, wide travels of 39.4" (X), 49.2" (Y), 35.4" (Z), and 27.6" (W), along with a 44" × 39" table, this machine offers excellent versatility and rigidity. With a 360° rotary table and spindle speeds up to 1400 RPM, the W9 is ideal for general machining, repair work, and fabrication applications. Includes rotary table and miscellaneous tooling for immediate use.
Specifications
| Manufacturer | TOS VARNSDORF |
| Model | W9 |
| Condition | Used |
| Stock Number | MAC-BOR-TOS-0001 |
| Spindle Diameter | 80 mm (3.1") |
| Spindle Taper Morse Taper | 5 (MT5) |
| Spindle Speed | 4 - 1400 RPM |
| X Axis Travel | 1000 mm (39.4") |
| Y Axis Travel | 1250 mm (49.2") |
| Z Axis Travel | 900 mm (35.4") |
| W Axis Travel | 700 mm (27.6") |
| Table Size | 1120 mm x 1000 mm (44.1" x 39.4") |
| Rotary Table | 360° |
| Machine Weight | 11000 kg (24250.0 lb) |
Equipped With
Rotary Table

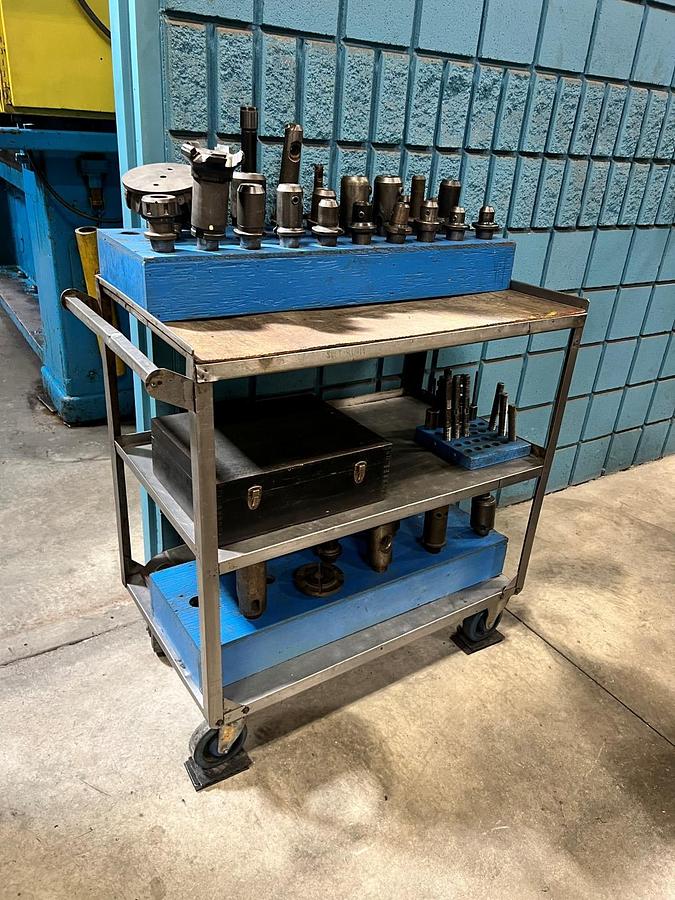

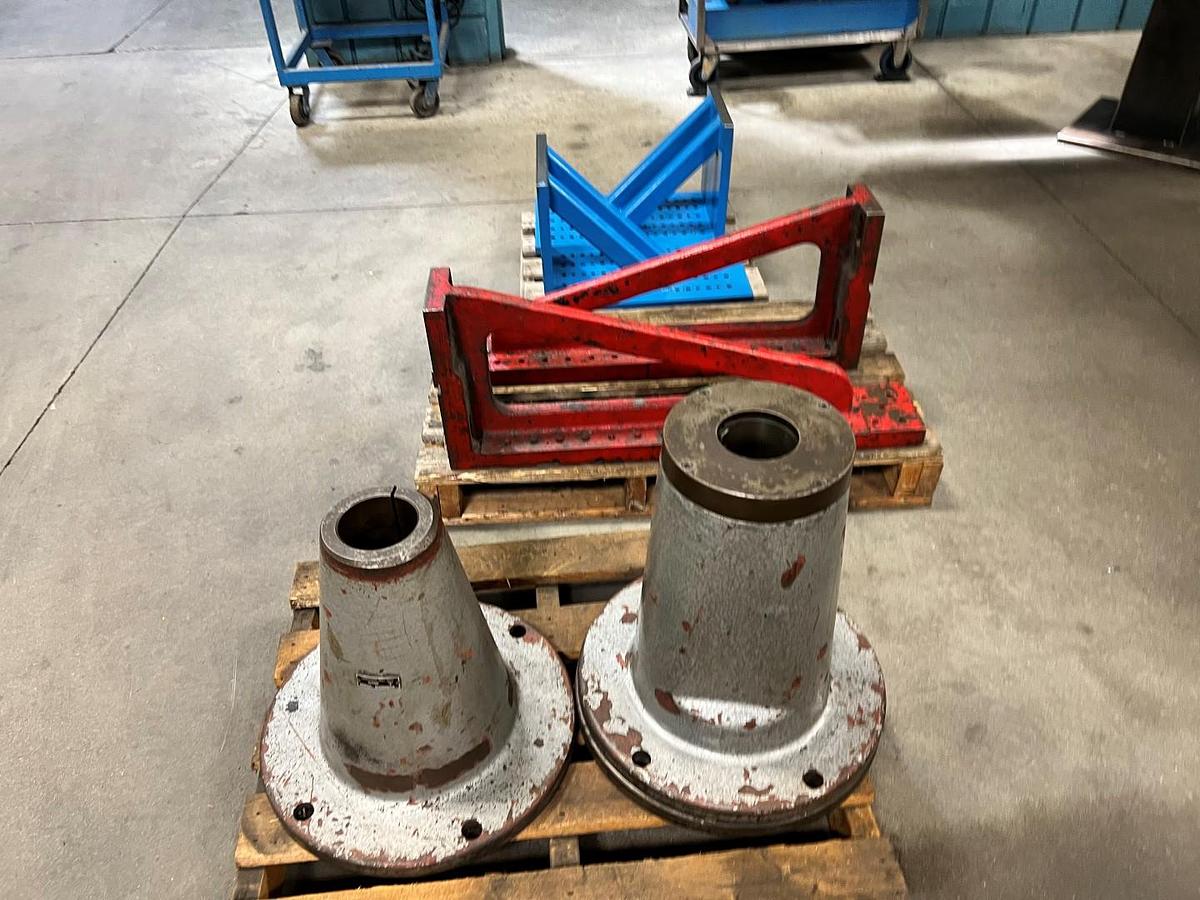

Misc Tooling
