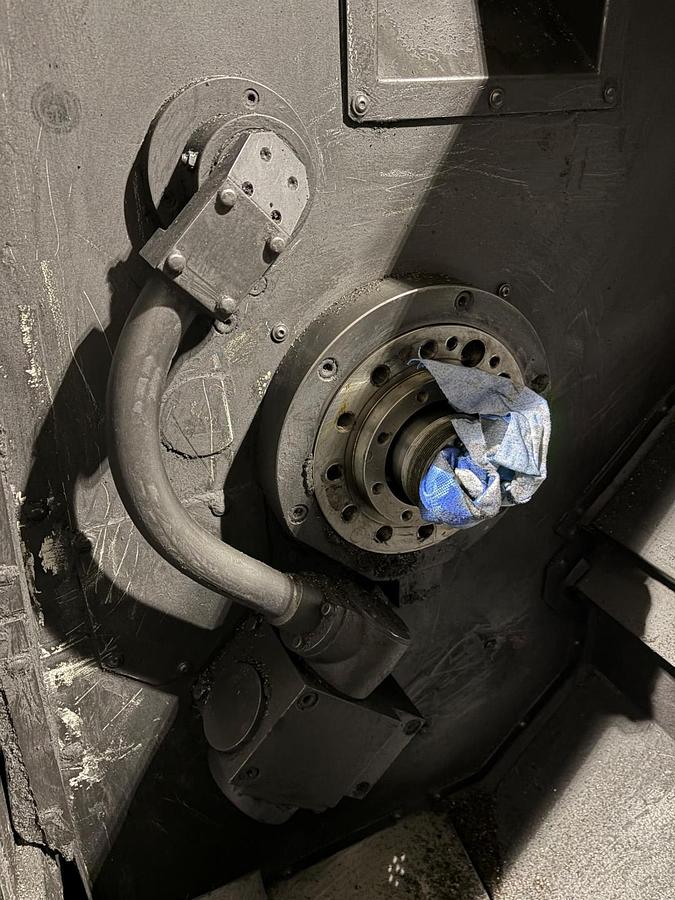

DOOSAN 240C CNC TURNING CENTER
DOOSAN 240C CNC TURNING CENTER
Available quantity:1
Description

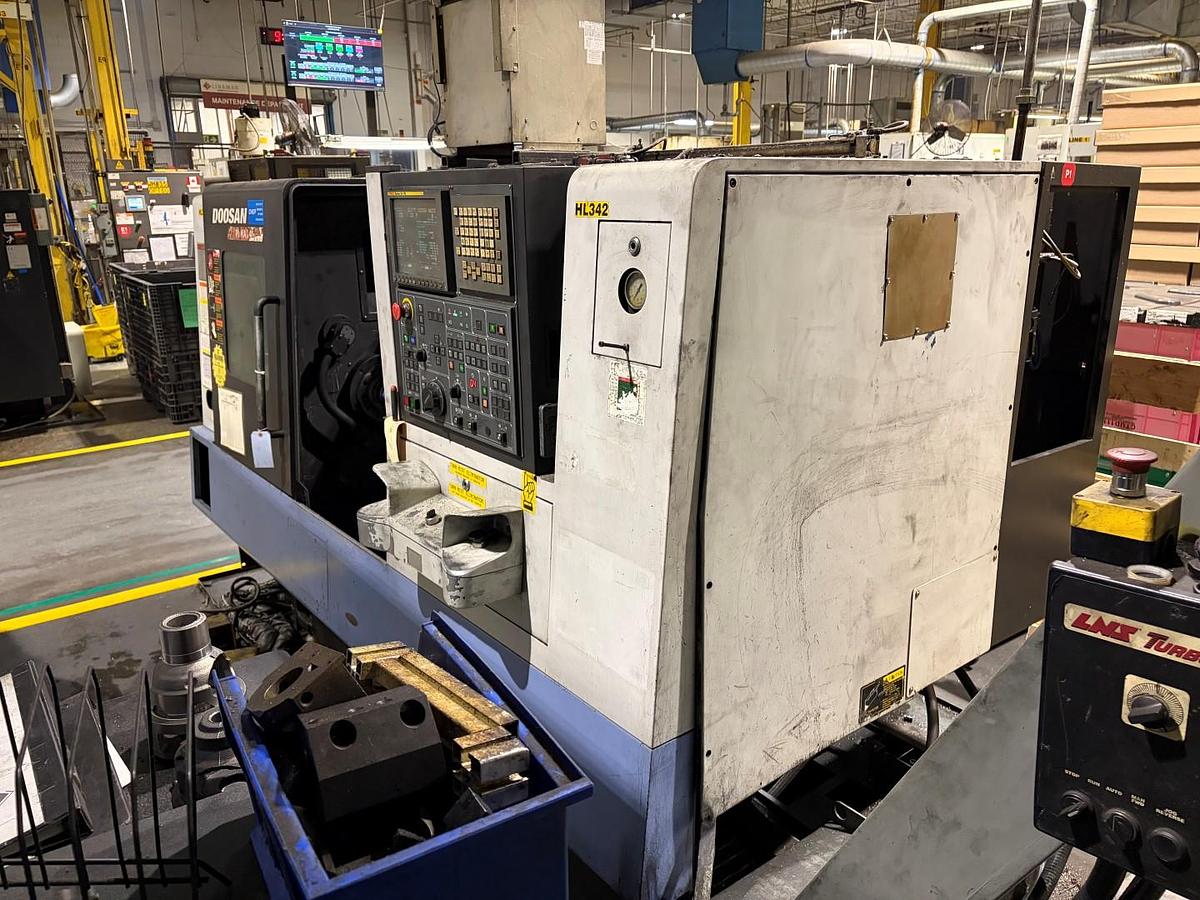

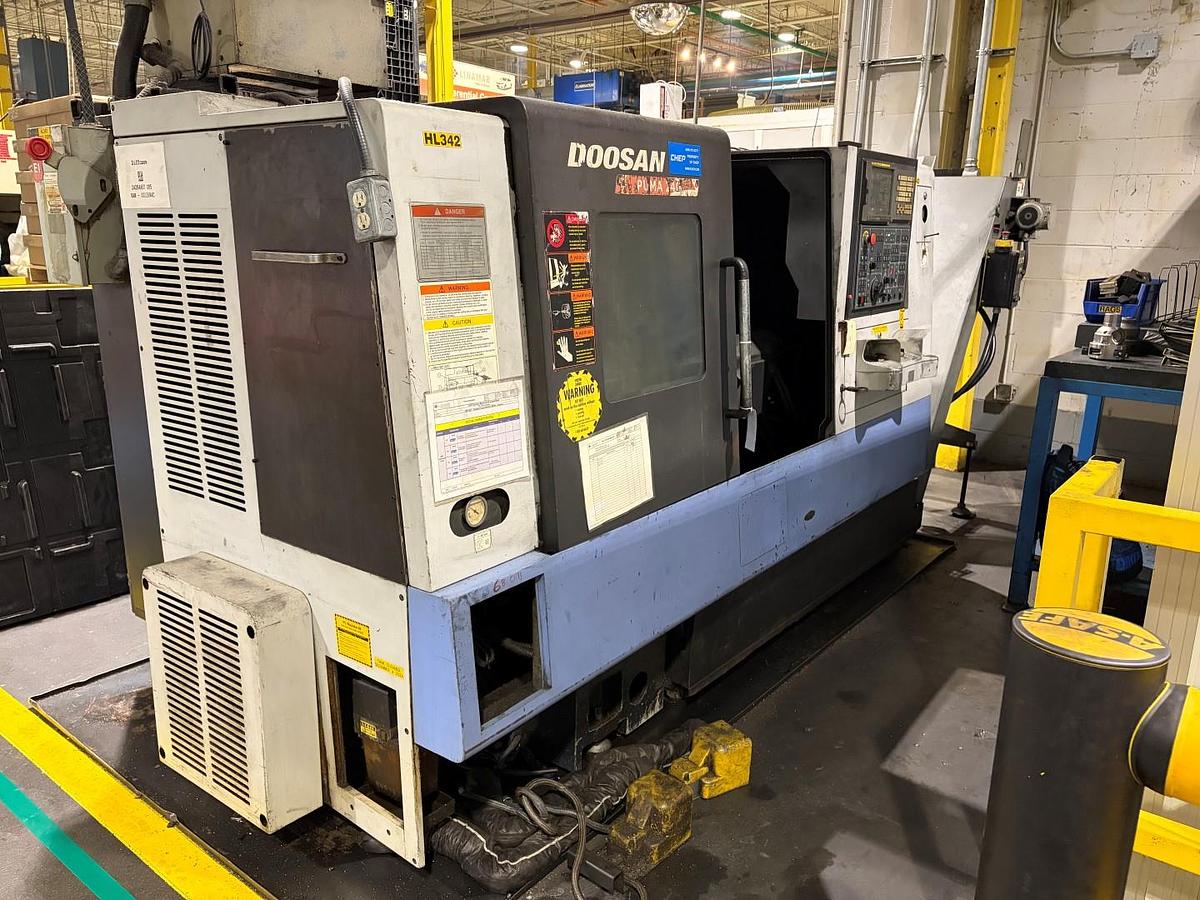

The Doosan 240C is a compact and high-performance CNC turning center designed for precision machining and production work. This 2007 machine features a 13.8" max turning diameter, 21.7" turning length, and 3" bar capacity, making it ideal for a wide range of parts. Equipped with a 6,000 RPM A2-8 spindle, 12-station turret, and fast rapids, the 240C delivers excellent speed, accuracy, and efficiency. Controlled by Fanuc Series 21i-TB and complete with chip conveyor, coolant tank, and tailstock, it is a reliable solution for job shops and manufacturing environments.
Specifications
| Manufacturer | Doosan |
| Model | 240C |
| Year | 2007 |
| Condition | Used |

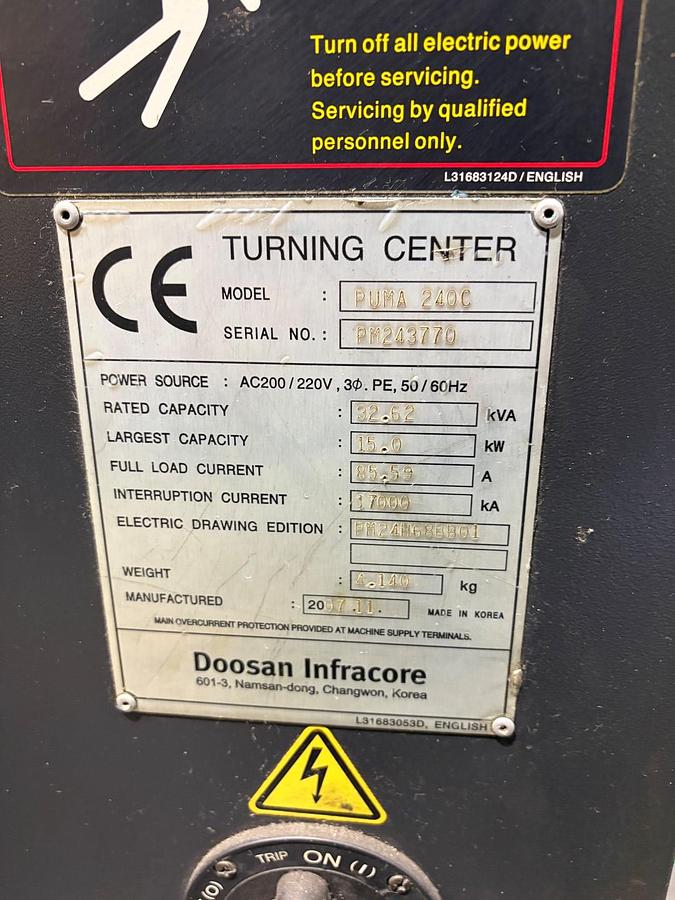

| Serial Number | PM243770 |
| Stock Number | LTH-DOO-3770 |
| Swing Over Bed (IN) | 21.7 |
| Swing Over Saddle (IN) | 15.4 |
| Max Turning Diameter (IN) | 13.8 |
| Max Turning Length (IN) | 21.7 |
| Bar Working Diameter (IN) | 3.0 |
| X-Axis Travel (IN) | 9.5 |
| Z-Axis Travel (IN) | 22.8 |
| Spindle Speed (RPM) | 6000 |
| Spindle Through Hole (IN) | 3.4 |
| Number of Tool Stations | 12 |
| OD Tool Height (IN) | 1.0 x 1.0 |
| Boring Bar Diameter (IN) | 1.6 |
| Quill Diameter (IN) | 3.1 |
| Quill Bore Taper | MT 4 |
| Quill Travel (IN) | 3.1 |
| Rapid Traverse (X/Z) IPM X: | 944.9 / Z: 1181.1 |
| Main Spindle Motor (30 Min Rating) | 24.8 HP |
| Machine Dimensions (L x W x H) (IN) | 128 x 77 x 80 |
| Approximate Weight (KG) | 4500 |
Equipped With

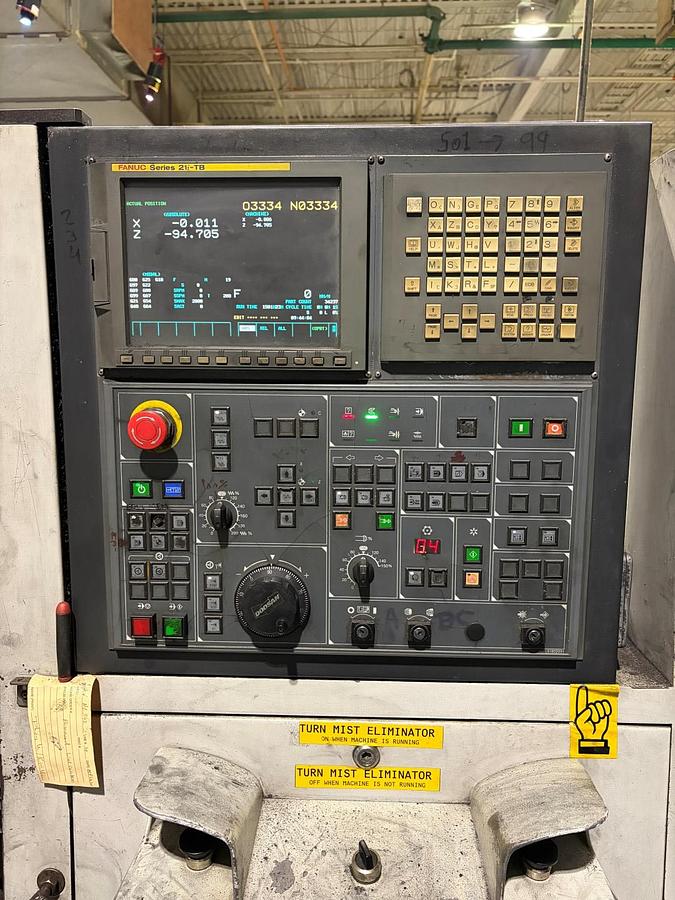

FANUC Series 21i-TB CNC Controller
Chip Conveyor
Coolant Tank

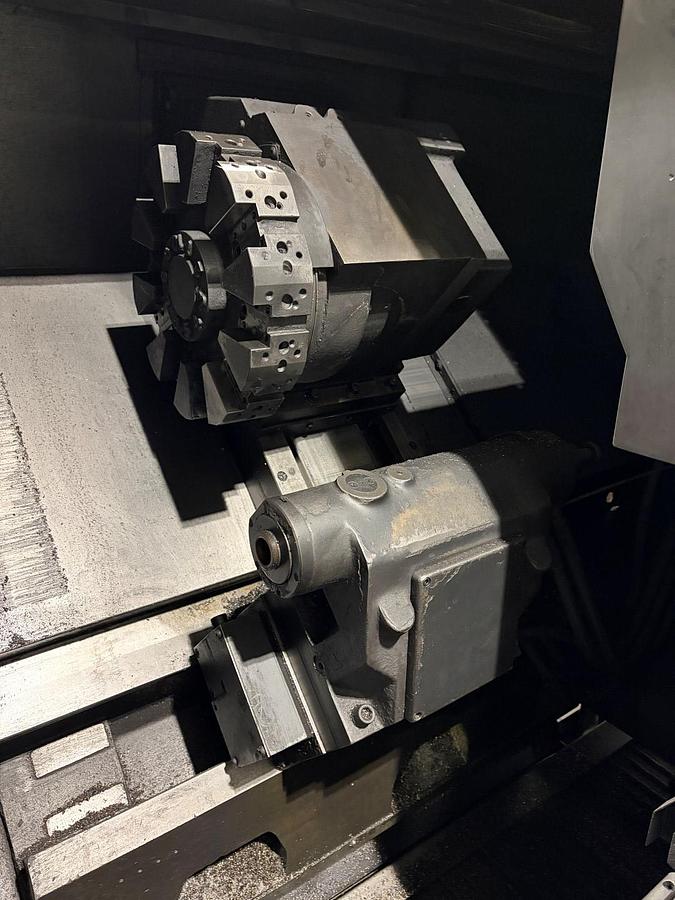

Tailstock
