G-NET Twin Merit 15 Twin Spindle CNC Vertical Turning Center with FANUC 18-TT Control
The G-NET Twin Merit 15 CNC Vertical Turning Center is a highly productive twin-spindle CNC vertical lathe designed for efficient, high-volume turning operations. Equipped with a reliable FANUC Series 18-TT CNC control, this machine offers simultaneous machining capability using dual spindles and twin 12-station turrets, making it ideal for reducing cycle times and maximizing output in demanding production environments.
With a 22" swing over bed, 12" standard chuck capacity, and optional 15" chuck capability, the Twin Merit 15 provides flexible machining for a wide range of part sizes. The 30 kW (40 HP) spindle motor delivers strong cutting performance, while spindle speeds up to 2500 RPM support both heavy roughing and precision finishing operations.
The machine features 305 mm (12") X-axis travel and 610 mm (24") Z-axis travel, allowing consistent and accurate machining across various part geometries. Its rapid traverse rates of 630 IPM and fast turret indexing (0.8 seconds) help maintain high throughput and reduced idle time.
Specifications
| Manufacturer | G-NET |
| Model | Twin Merit 15 |
| Condition | Used |
| Serial Number | TM-15015 |
| Stock Number | VTL-GNT-5015 |
| Swing Over Bed | 558.8 mm (22") |

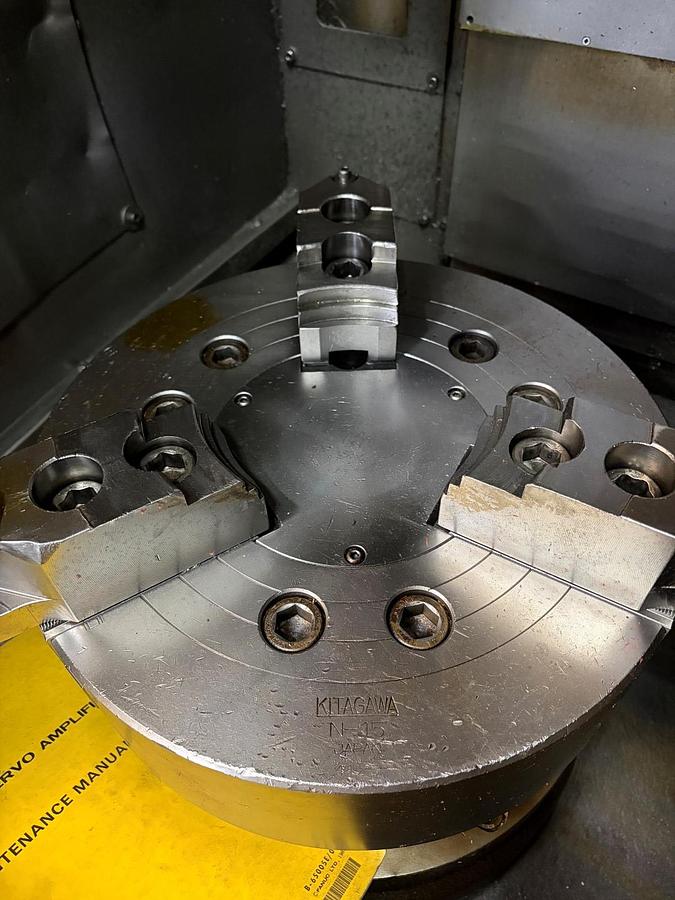

| Power Chuck Size | 304.8 mm (12") |
| Optional Chuck Size | 381 mm (15") |
| Max Turning Diameter | 304.8 mm (12") |
| Optional Max Turning Diameter | 381 mm (15") |
| Max Turning Length | 571.5 mm (22.5") |
| Optional Max Turning Length | 546.1 mm (21.5") |
| Spindle Through Hole | 75.4 mm (2-31/32") |
| Spindle Speed Range | 25 - 2500 RPM |
| Spindle Motor | 30 kW (40 HP) |
| Turret Stations | 12 |
| OD Tool Shank Size | 25.4 - 31.75 mm (1" - 1-1/4") |
| ID Tool Hole Size | 38.1 - 50.8 mm (1-1/2" - 2") |
| X Axis Travel | 305 mm (12") |
| Z Axis Travel | 610 mm (24") |
| Rapid Traverse (X/Z) | 630 / 630 ipm |
| Indexing Time | 0.8 sec/position |
Equipped With

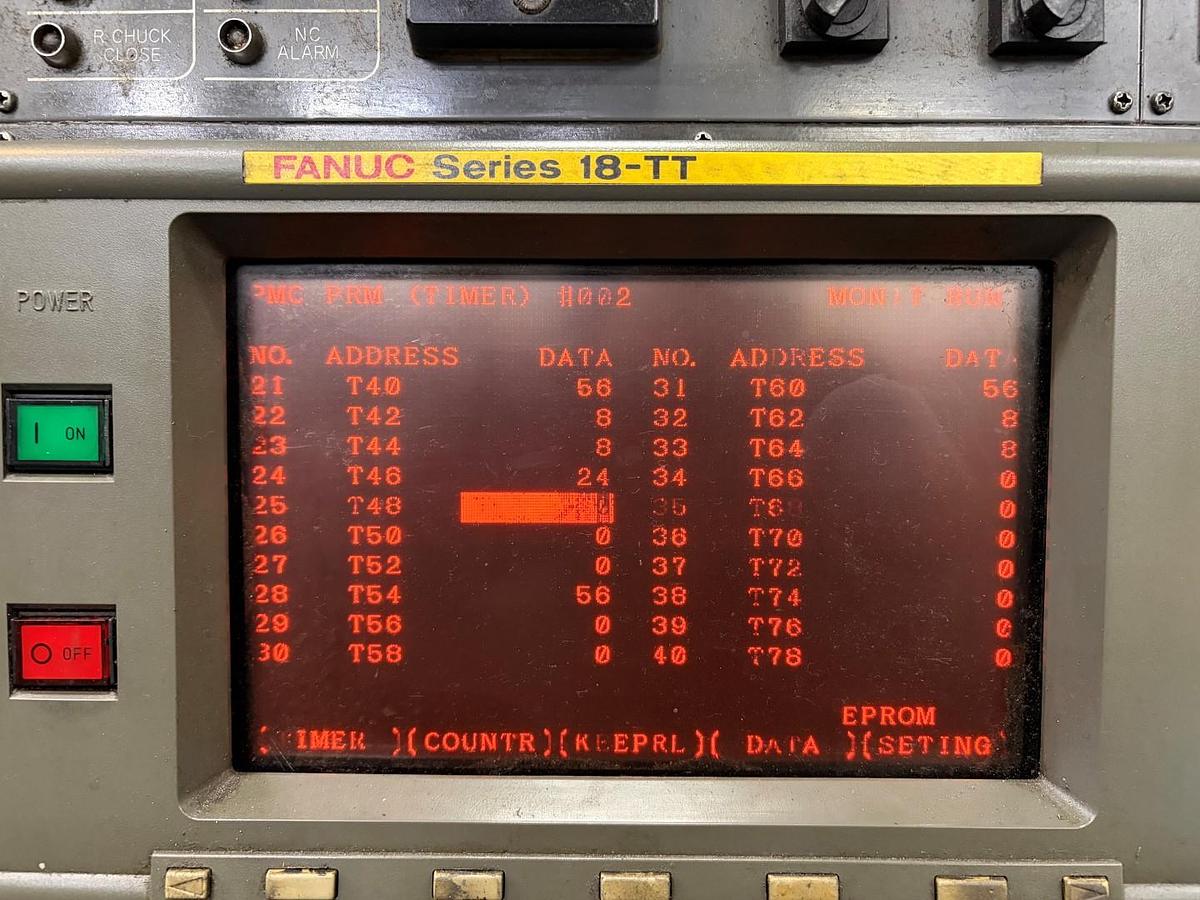

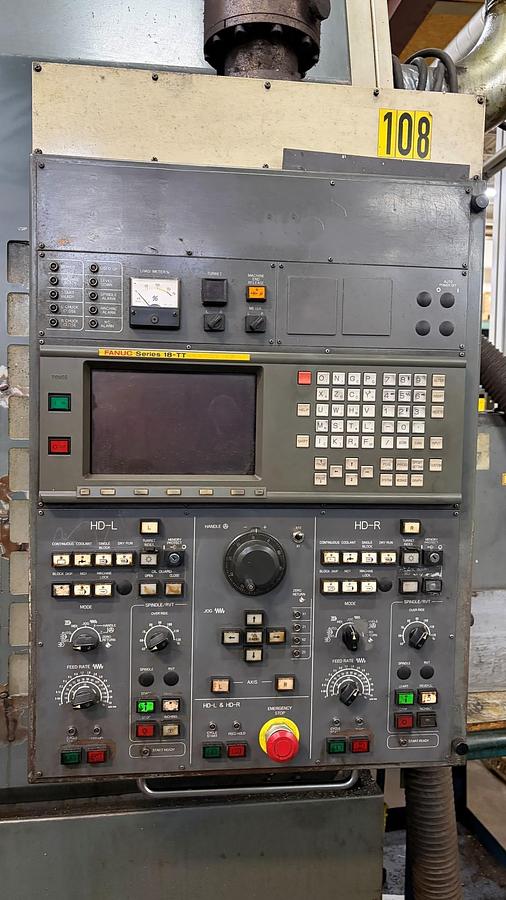

Fanuc Series 18-TT CNC Control
Twin Spindle Configuration
Twin 12-Station Turrets
Hydraulic System
Coolant System
Twin Chip Conveyors
