DOOSAN V450M CNC VERTICAL TURNING CENTER
DOOSAN V450M CNC VERTICAL TURNING CENTER
Available quantity:1
Description
DOOSAN V450M CNC Vertical Turning Center with FANUC 21i-TB and Live Tooling
The DOOSAN V450M CNC Vertical Turning Center is a dependable and efficient vertical CNC lathe designed for precision turning and secondary machining operations. Equipped with a FANUC Series 21i-TB CNC control and radial live tooling, this machine offers strong versatility for a wide range of production applications.
With a 580 mm (22.83") swing over bed, 450 mm (17.72") maximum turning diameter, and a 15" Power Grip chuck, the V450M provides stable machining for medium-sized components. The 2500 RPM spindle, 12-station turret, and rapid traverse rates up to 945 IPM help improve productivity and reduce cycle times.
This machine includes a chip conveyor, coolant system, and live tooling, making it well-suited for automotive, aerospace, and general manufacturing environments. With approximately 6,084 cutting hours, this DOOSAN V450M is a solid choice for shops seeking reliable vertical turning performance.
Specifications
| Manufacturer | Doosan |
| Model | V450M |
| Year | 2005 |
| Condition | Used |
| Serial Number | LVF-1007 |
| Stock Number | VTL-DOO-1007 |
| Swing Over Bed | 580 mm (22.83") |
| Max Turning Diameter | 450 mm (17.72") |
| Max Turning Length | 450 mm (17.72") |
| Chuck Size | 381 mm (15") |
| X Axis Travel | 240 mm (9.45") |
| Z Axis Travel | 450 mm (17.72") |
| Spindle Speed | 2500 RPM |
| Turret Stations | 12 |
| Rapid Traverse (X/Z) | 20 / 24 m/min (787 / 945 ipm) |
Equipped With

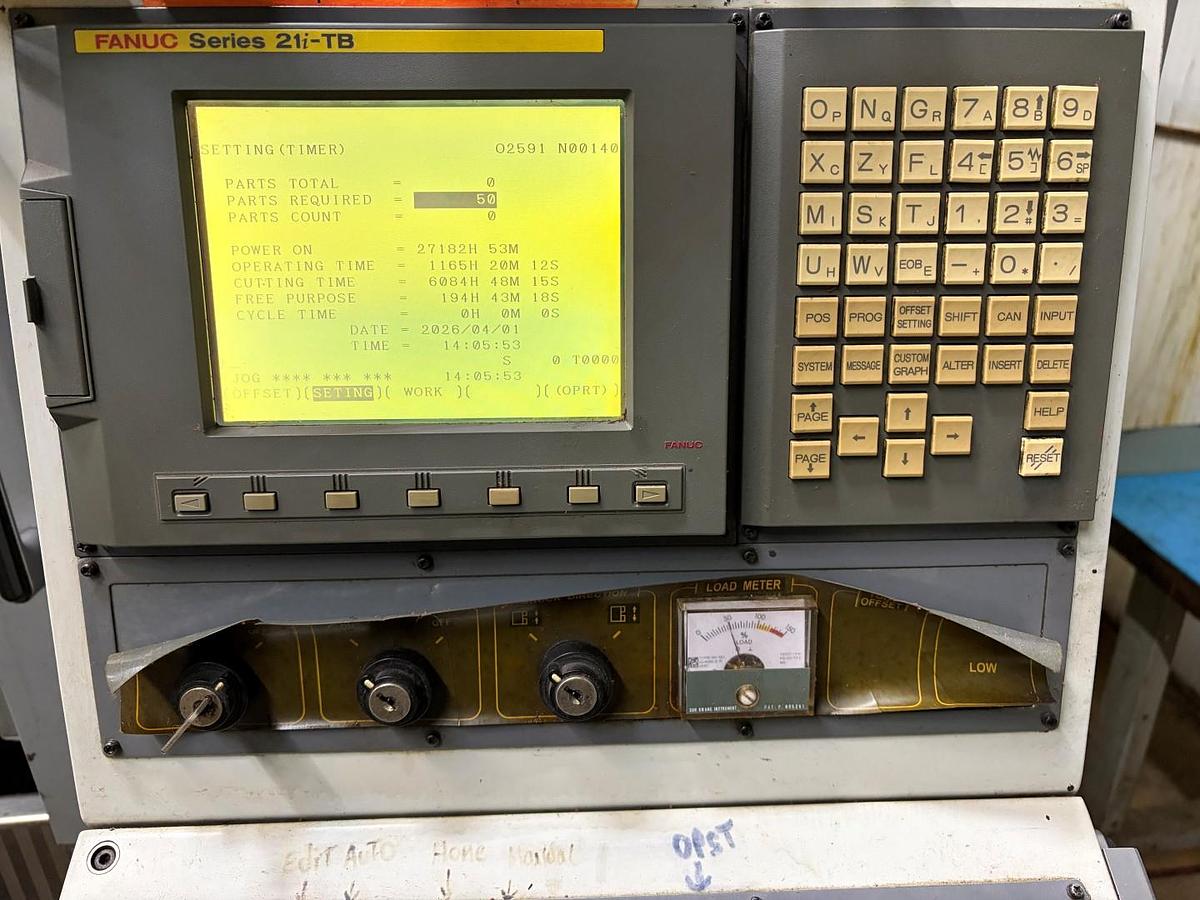

Fanuc Series 21i-TB CNC Control

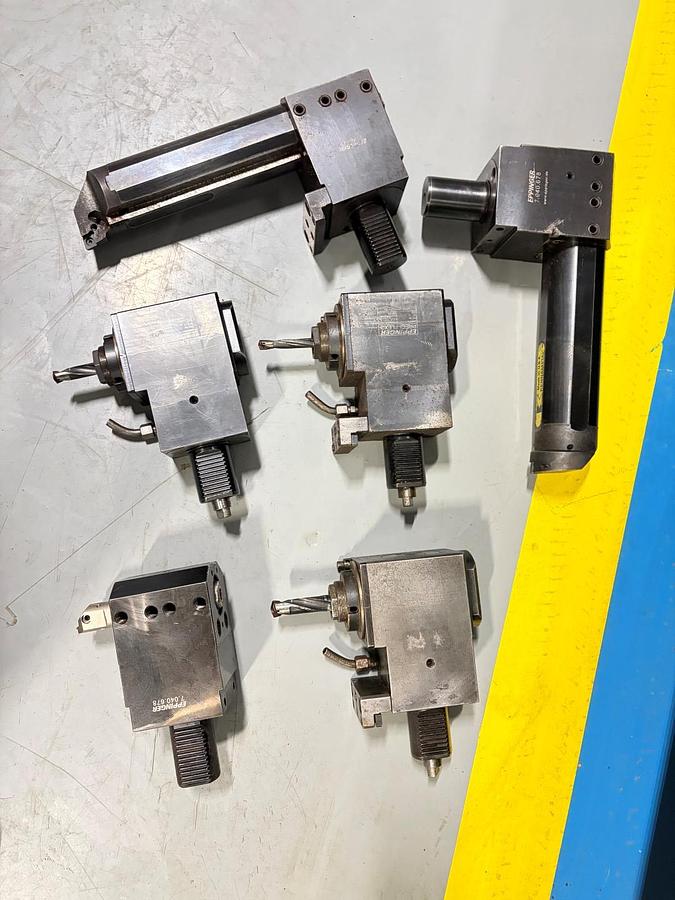

3- Radial Live tools
Misc tools.

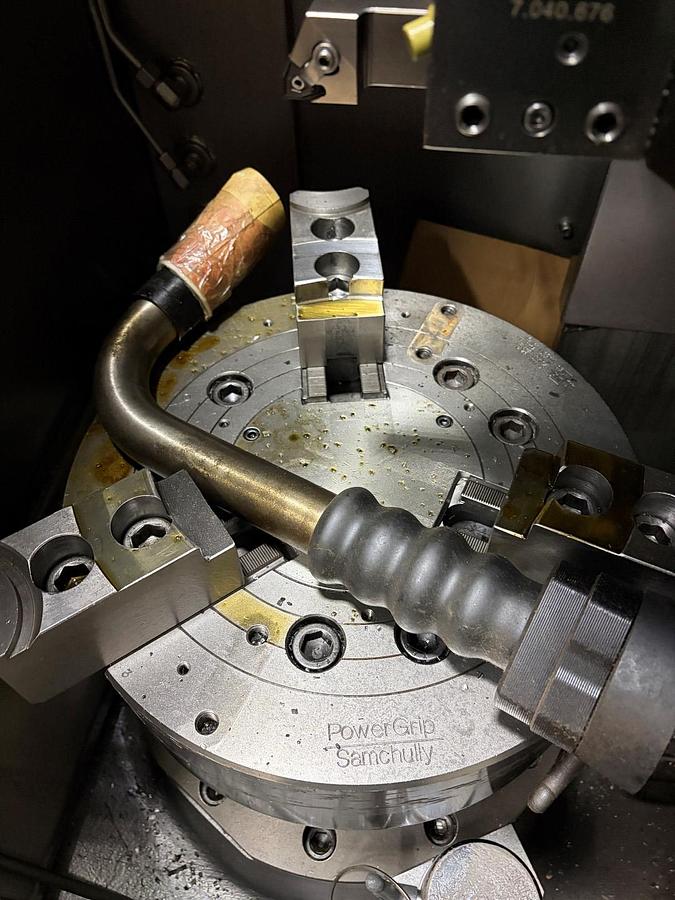

Power Grip 15” 3-Jaw Chuck

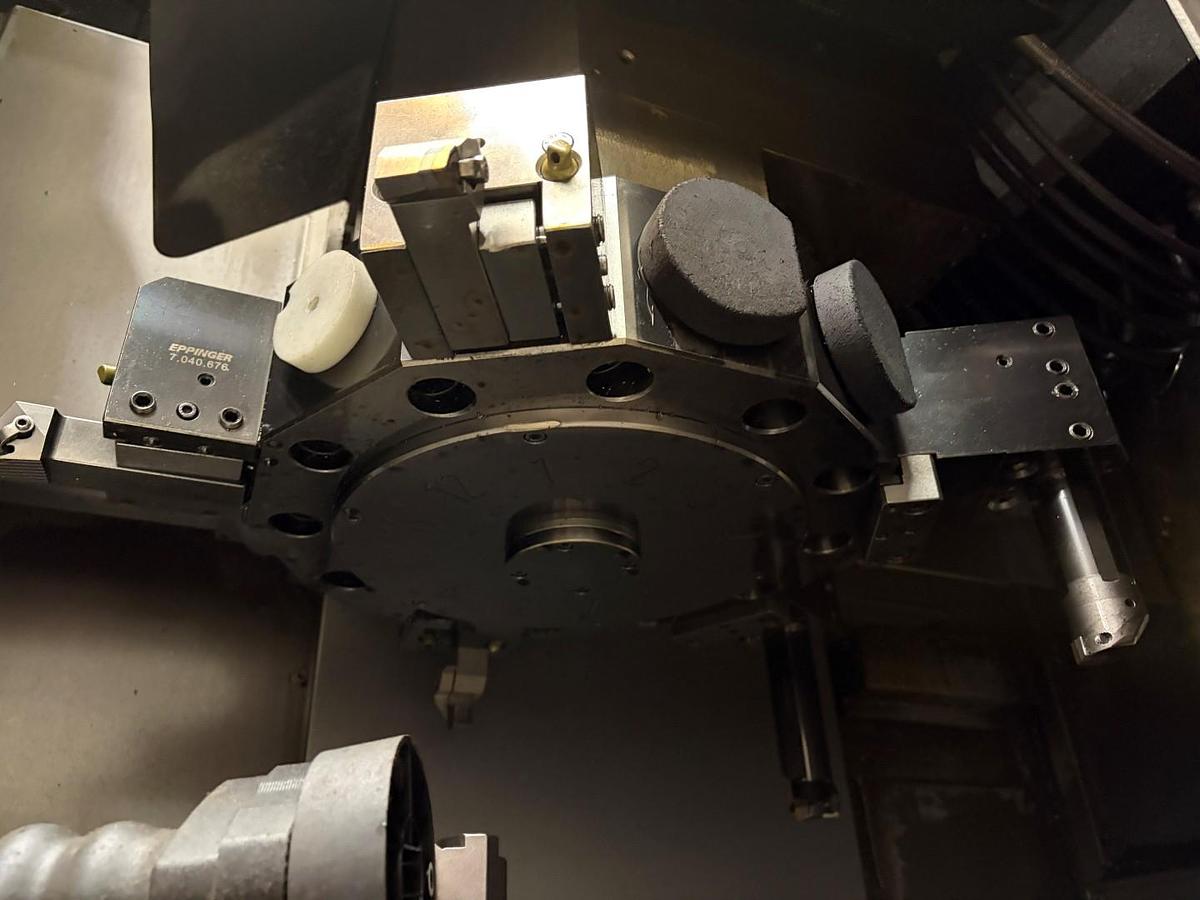

12-Station Turret
Coolant System

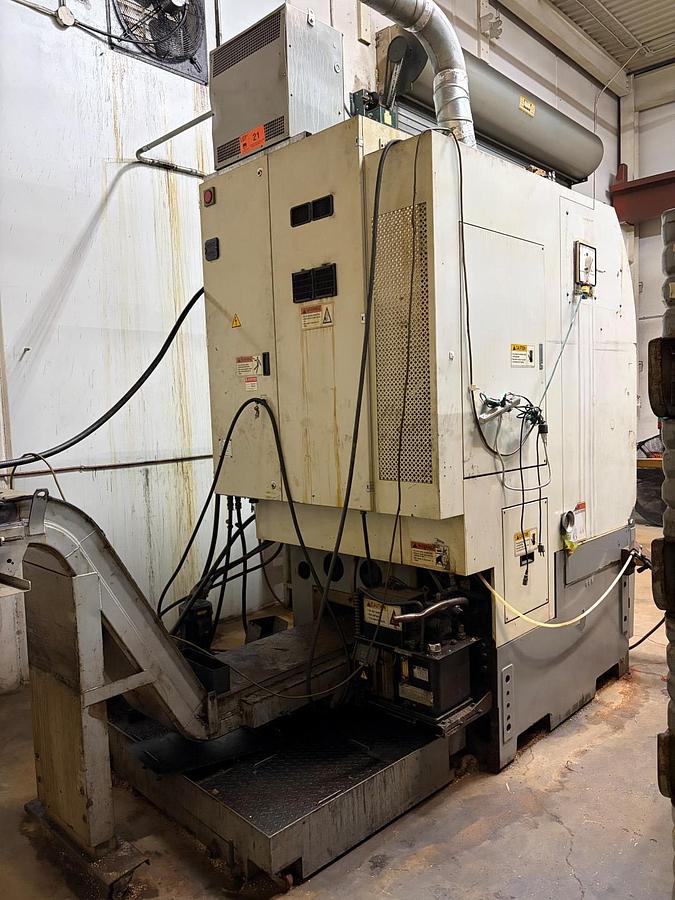

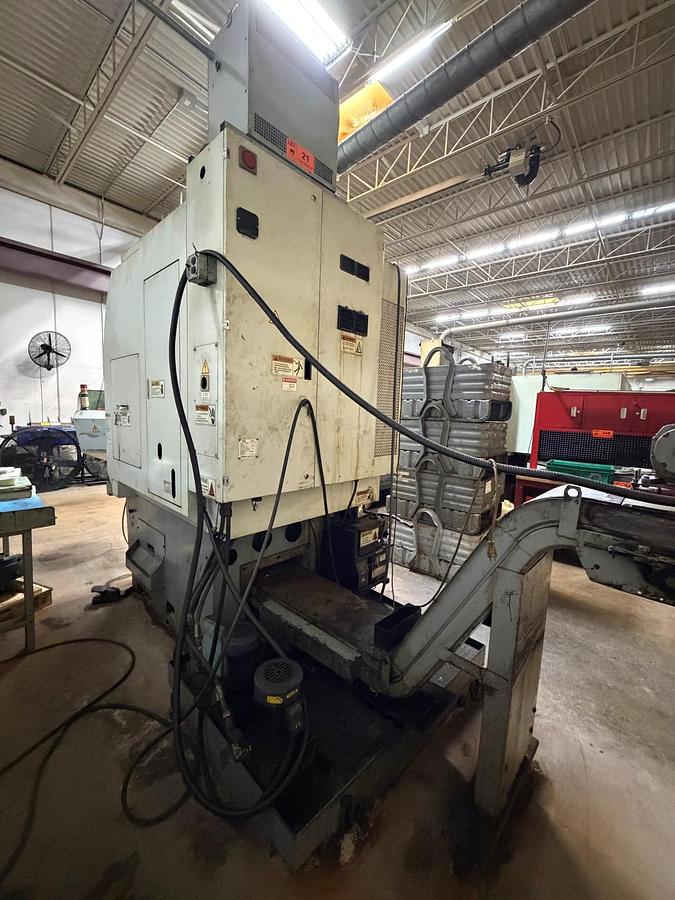

Chip Conveyor
