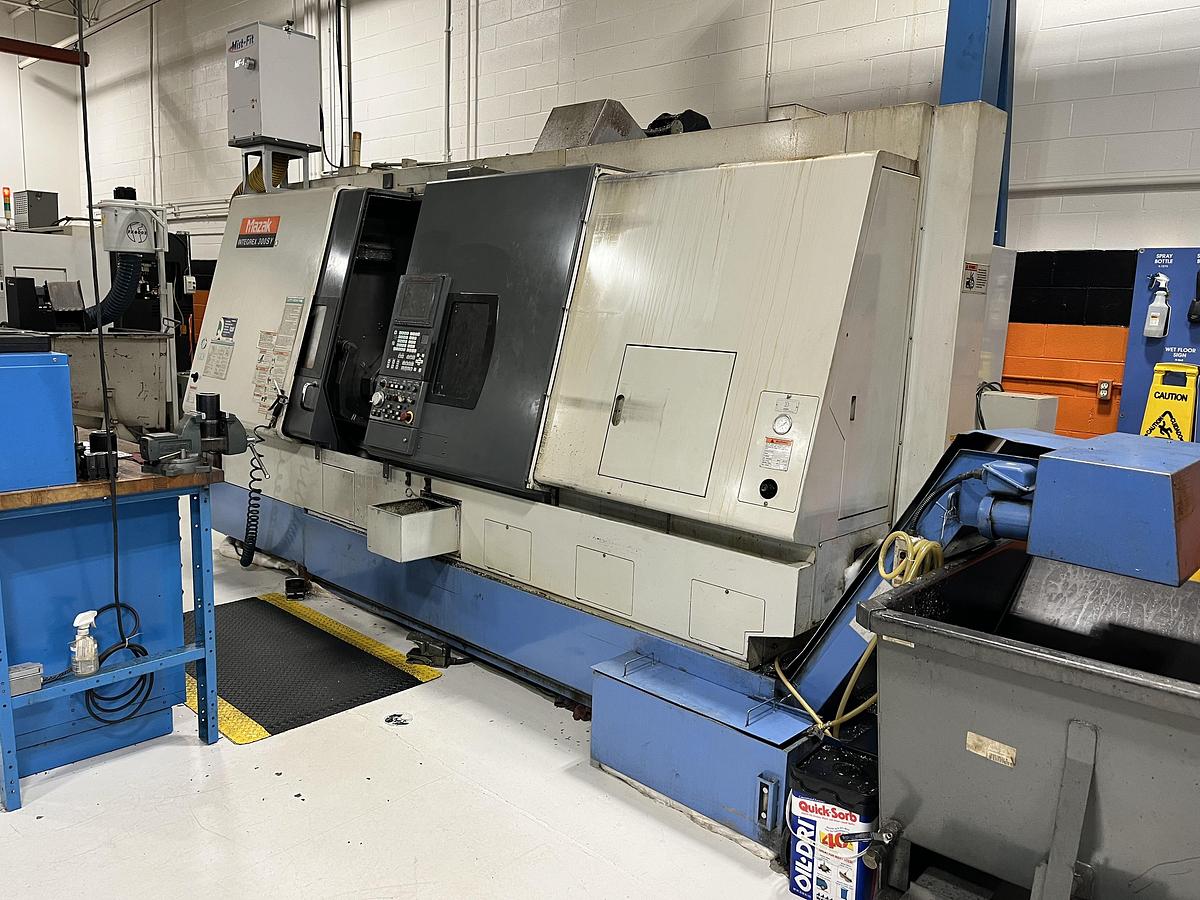

MAZAK INTEGREX 300SY CNC TURNING & MILLING CENTER
MAZAK INTEGREX 300SY CNC TURNING & MILLING CENTER
Available quantity:1
Description
The Mazak Integrex 300SY is a high-performance CNC turning and milling center designed for complete multi-tasking machining in a single setup. Equipped with Mazatrol Fusion 640MT control, full B-axis, Y-axis capability, and C-axis on both spindles, this machine delivers exceptional flexibility for complex part production. Featuring a 40-station HSK-63 tool changer, 10,000 RPM milling spindle, dual 10" chucks, and sub-spindle capability, the Integrex 300SY is ideal for aerospace, oil & gas, medical, and precision manufacturing applications. Complete with coolant-thru spindle, chip conveyor, and automatic tool eye for efficient, high-accuracy machining.
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300SY |
| Year | 2000 |
| Condition | Used |
| Stock Number | MAC-LTH-MZK-2755 |
| Max Swing Over Bed | 610 mm (24.01") |
| Max Swing Over Carriage | 450 mm (17.71") |
| Max Turning Length | 1018 mm (40.08") |
| X-Axis Travel | 580 mm (22.83") |
| Z-Axis Travel | 1097 mm (43.19") |
| Y-Axis Travel | 230 mm (9.06") (±115 mm / ±4.53") |
| B-Axis Rotation | 225° |
| Tool Changer Capacity | 40 Station (HSK-63) |
| Main Spindle Power | 26 kW (35 HP) |
| Main Spindle Speed | 35 - 3500 RPM |
| Sub-Spindle Power | 22 kW (30 HP) |
| Sub-Spindle Speed | 35 - 3500 RPM |
| Rotary Tool Spindle Power | 15 kW (20 HP) |
| Rotary Tool Speed | 15 - 10,000 RPM |
| Spindle Bore | 88 mm (3.46") |
| Bar Capacity | 77 mm (3.03") |
| Machine Dimensions | 5817 mm x 2438 mm (229" x 96") |
| Machine Height | 2692 mm (106") |
| Machine Weight | 12,065 kg (26,600 lbs) |
Equipped With

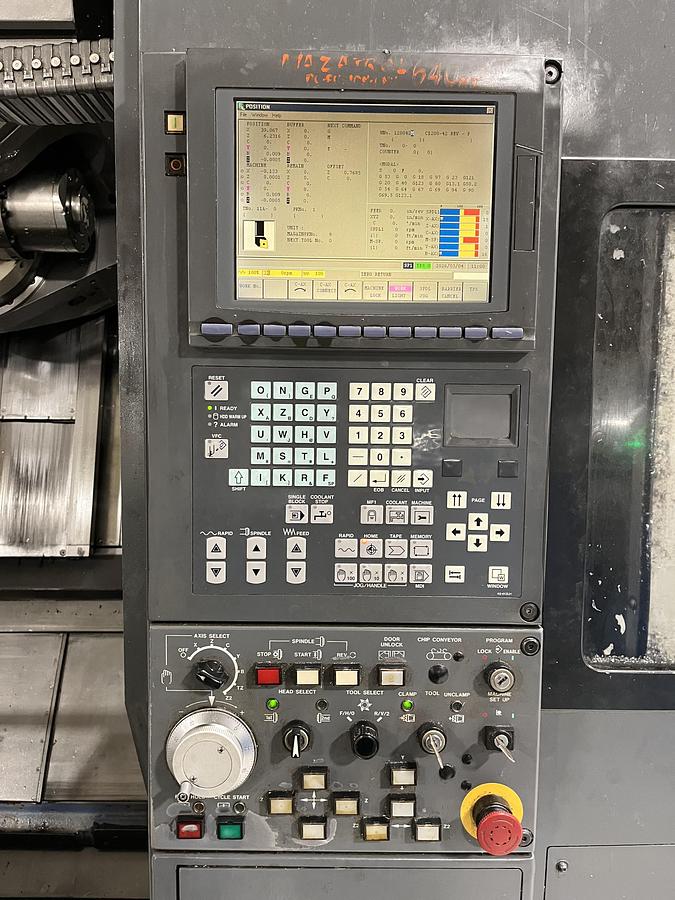

Mazatrol Fusion 640MT CNC Control

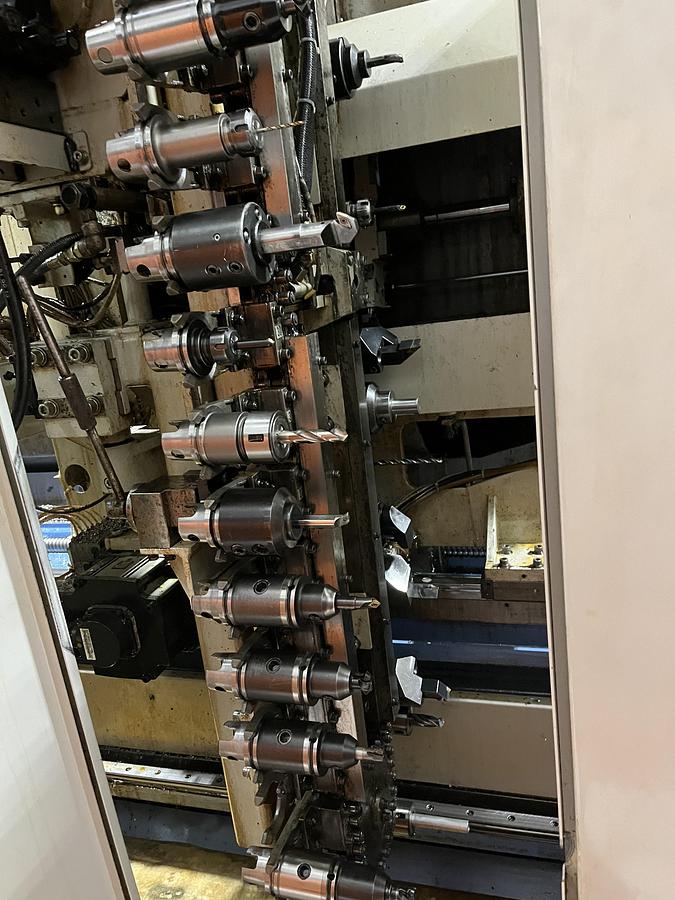

40 Station Automatic Tool Changer (HSK-63)

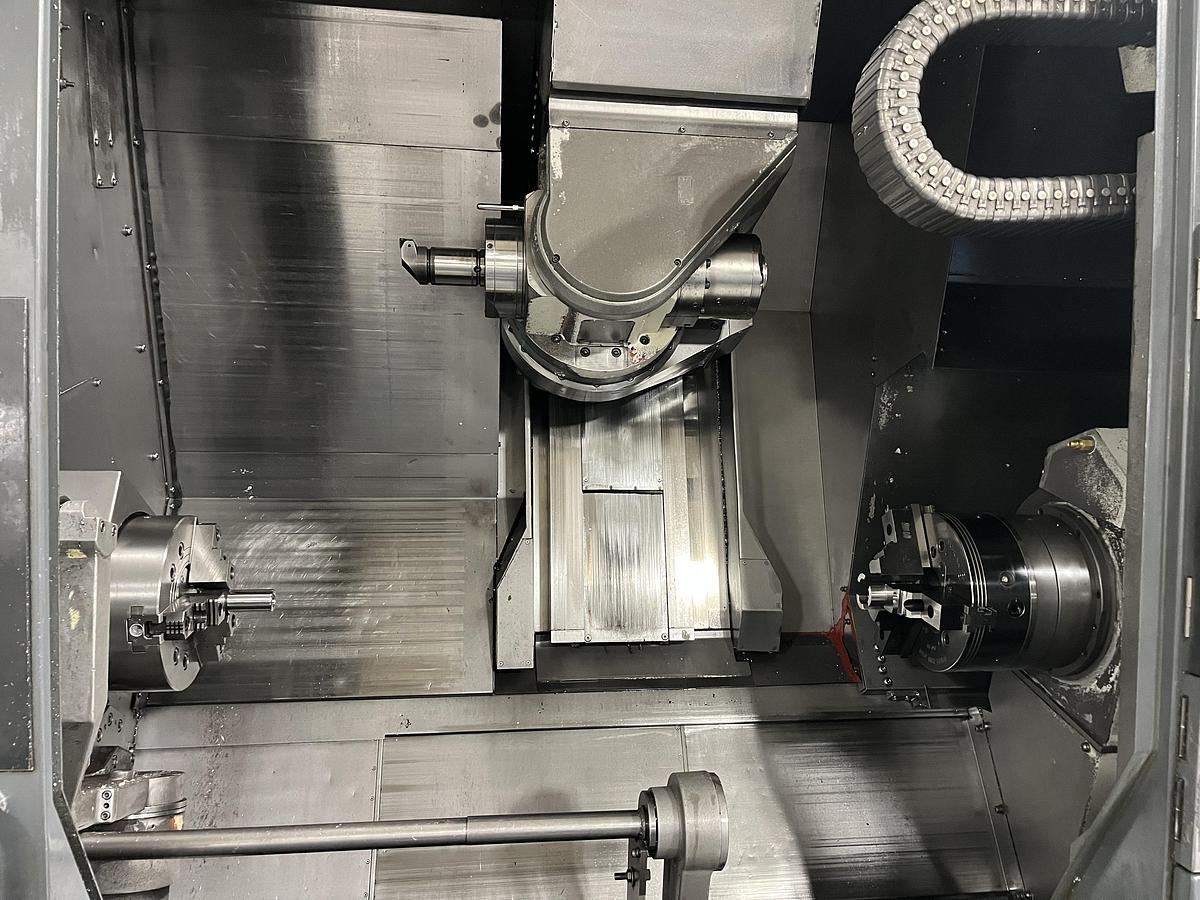

10" 3-Jaw Chuck (Main Spindle)
10" 3-Jaw Chuck (Sub-Spindle)
Automatic Tool Eye
Rigid Tapping
C-Axis on Both Spindles
Full B-Axis
Y-Axis Capability
Coolant Thru Milling Head
Spindle Coolant
Chip Conveyor
Coolant System
