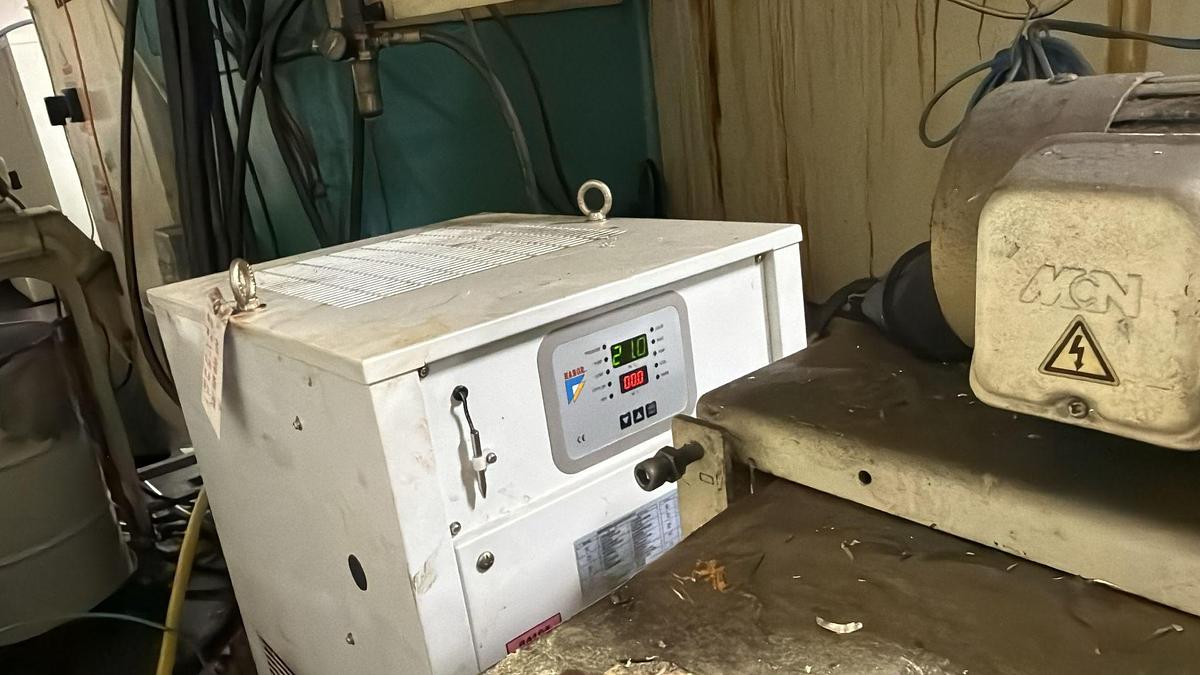

AGMA VMC-199 CNC VERTICAL MACHINING CENTER
AGMA VMC-199 CNC VERTICAL MACHINING CENTER
Available quantity:1
Description

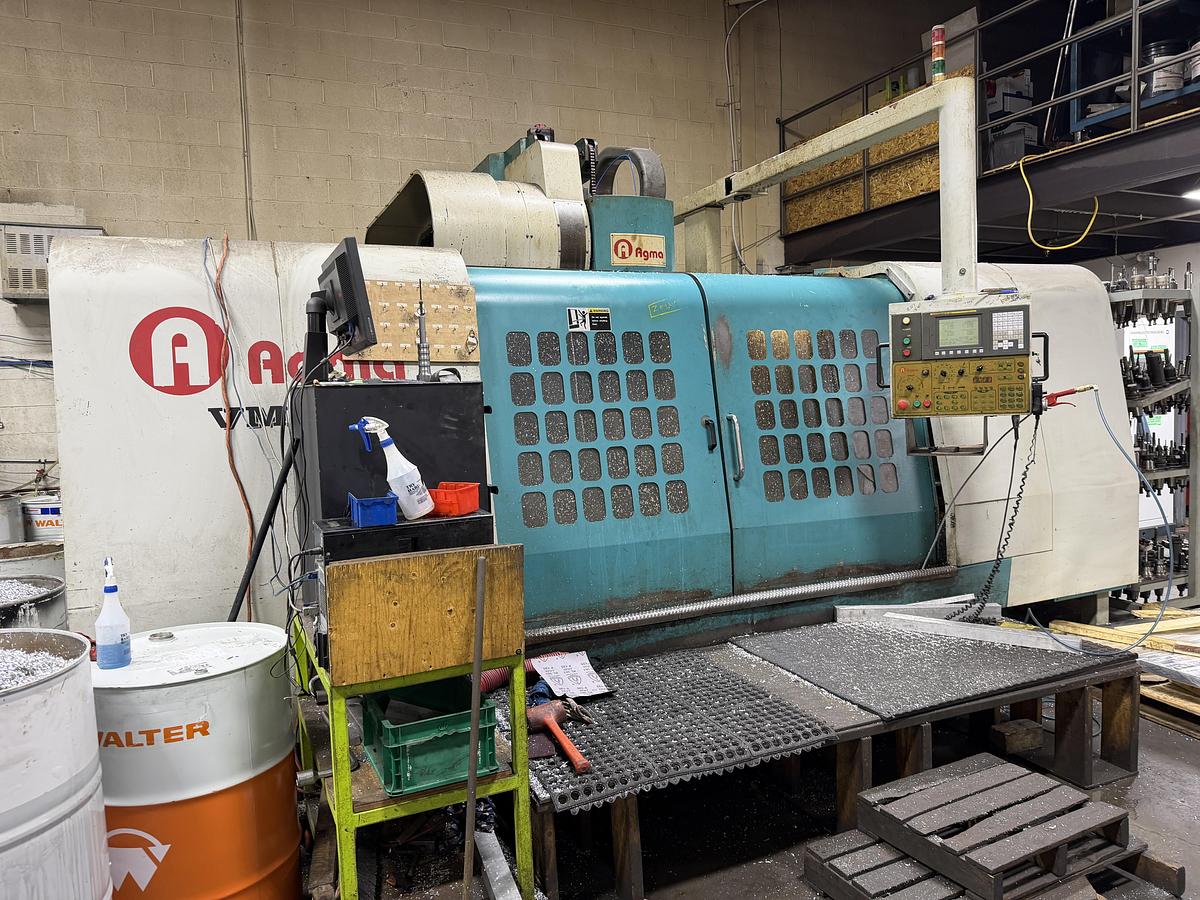

The AGMA VMC-199 is a reliable CNC vertical machining center designed for precision milling and general production machining. Featuring 35.4" (X), 19.7" (Y), and 19.7" (Z) travels with a 39" × 19.7" table, this machine offers excellent versatility for a wide range of machining applications. Equipped with an 8,000 RPM BT40 spindle, 16–24 station automatic tool changer, and Fanuc Oi-MC CNC control, the VMC-199 delivers dependable performance and efficient operation. Complete with full enclosure, coolant system, chip tray, and manual pulse generator, it is ideal for job shops and manufacturing environments seeking reliable CNC milling capability.
Specifications
| Manufacturer | Agma |

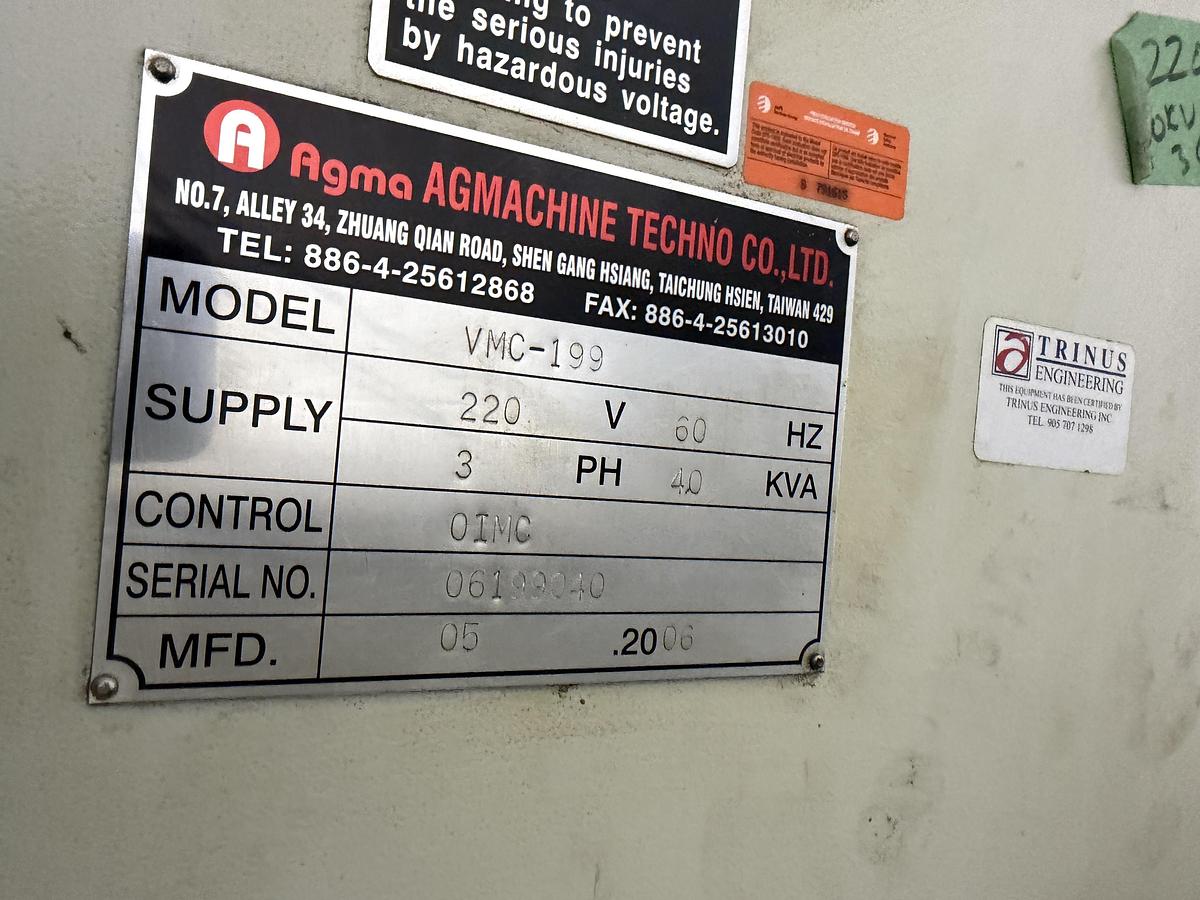

| Model | VMC-199 |
| Year | 2006 |
| Condition | Used |
| Serial Number | 06190040 |
| Stock Number | VMC-AGM-9040 |
| Machine Weight | 18,000 kg (39,600 lbs) |
| Floor Space | 5100 x 3900 mm (201" x 154") |
| Machine Height | 3600 mm (142") |
| Max Tool Weight | 15 kg (33 lbs) |
| Max Tool Length | 300 mm (11.81") |
| Max Tool Diameter | 250 mm (9.84") |
| Magazine Capacity | 32 Tools |
| Tool Shank | CAT 50 |
| Cutting Feedrate | 1 - 10,000 mm/min (1 - 393 IPM) |
| Rapid Traverse (Z) | 10 m/min (393 IPM) |
| Rapid Traverse (X/Y) | 12 m/min (590 IPM) |
| Spindle Nose to Table | 150 - 950 mm (5.91" - 37.40") |
| Max Table Load | 3000 kg (6,600 lbs) |
| Work Area | 1900 x 900 mm (74.80" x 35.43") |
| T-Slot Size | 18 mm x 6 x 150 mm (0.71" x 6 x 5.91") |
| Spindle Speed | 6,000 RPM |
| Spindle Taper | 50 |
Equipped With

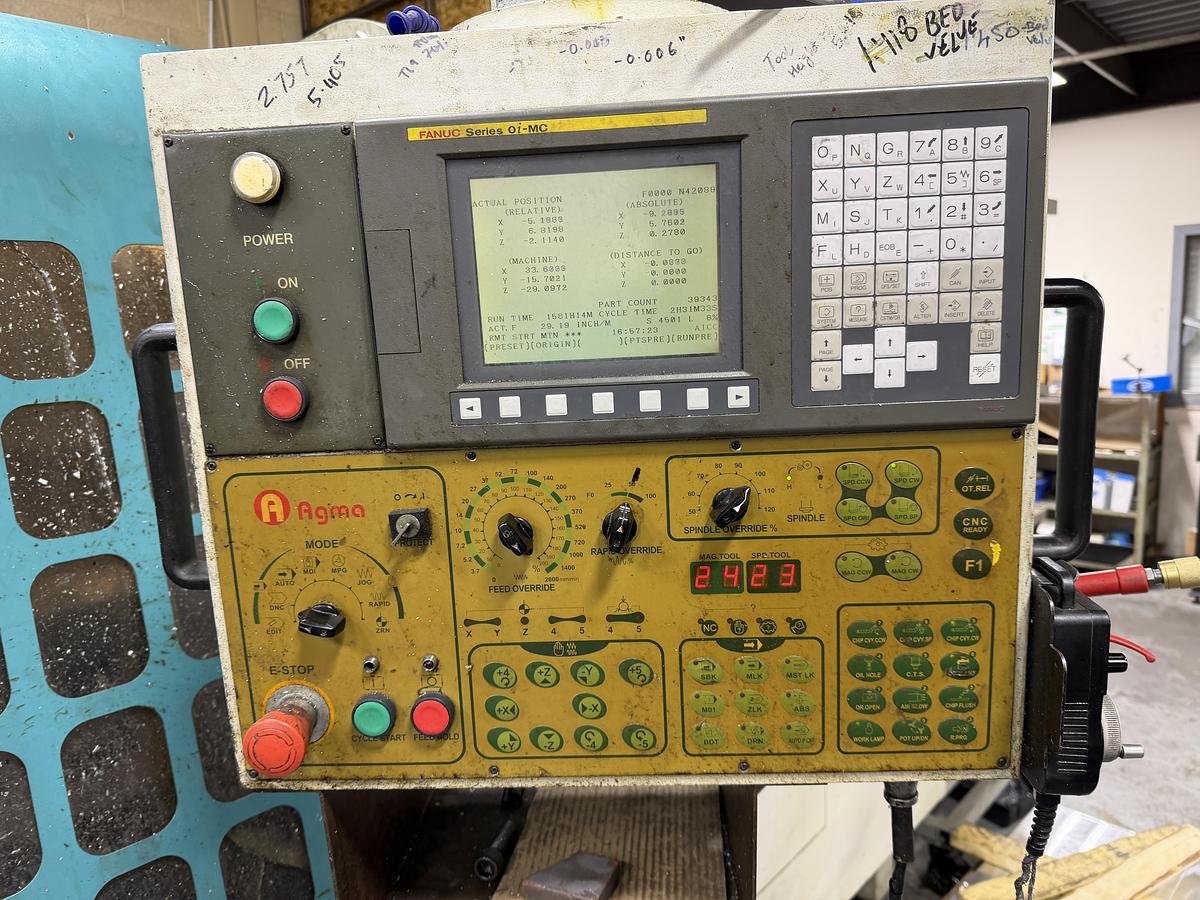

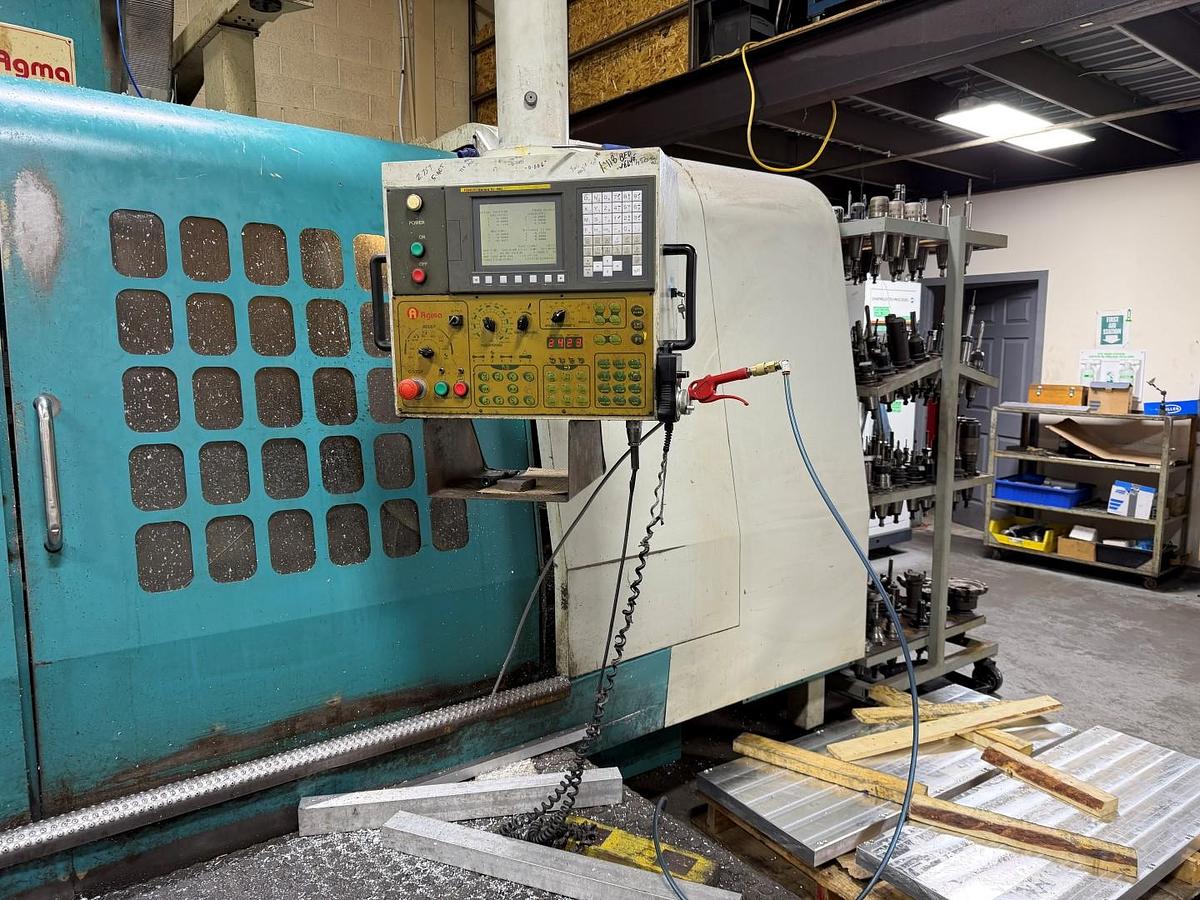

Fanuc Oi-MC CNC Control

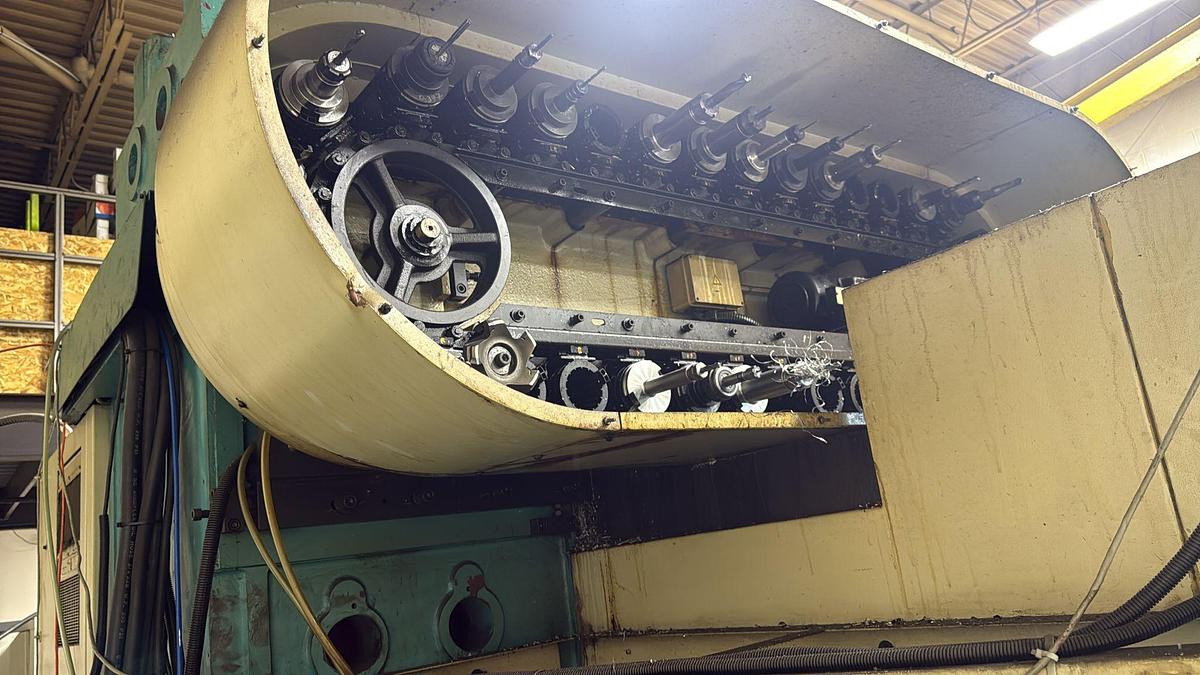

32 Station Automatic Tool Changer
Full Enclosure
Coolant System
Chip Management System
