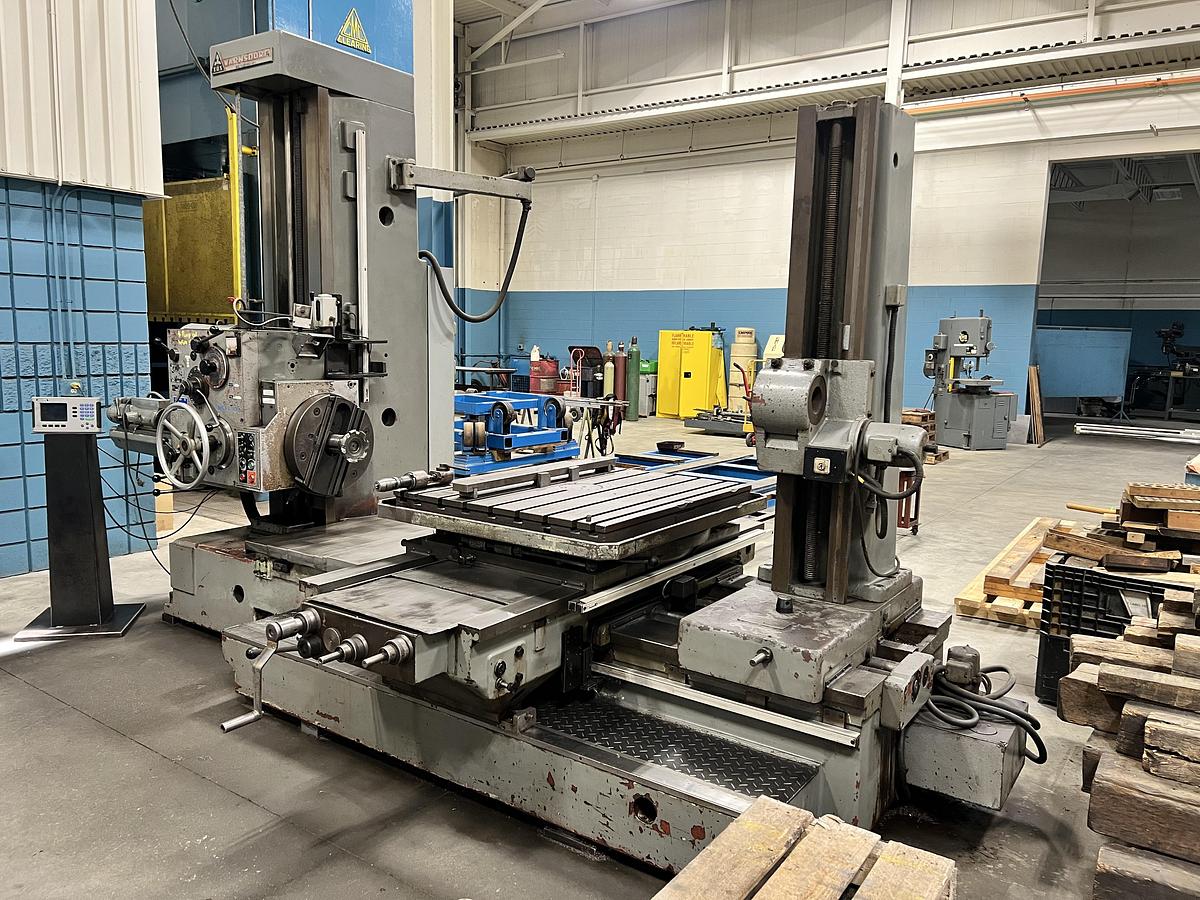

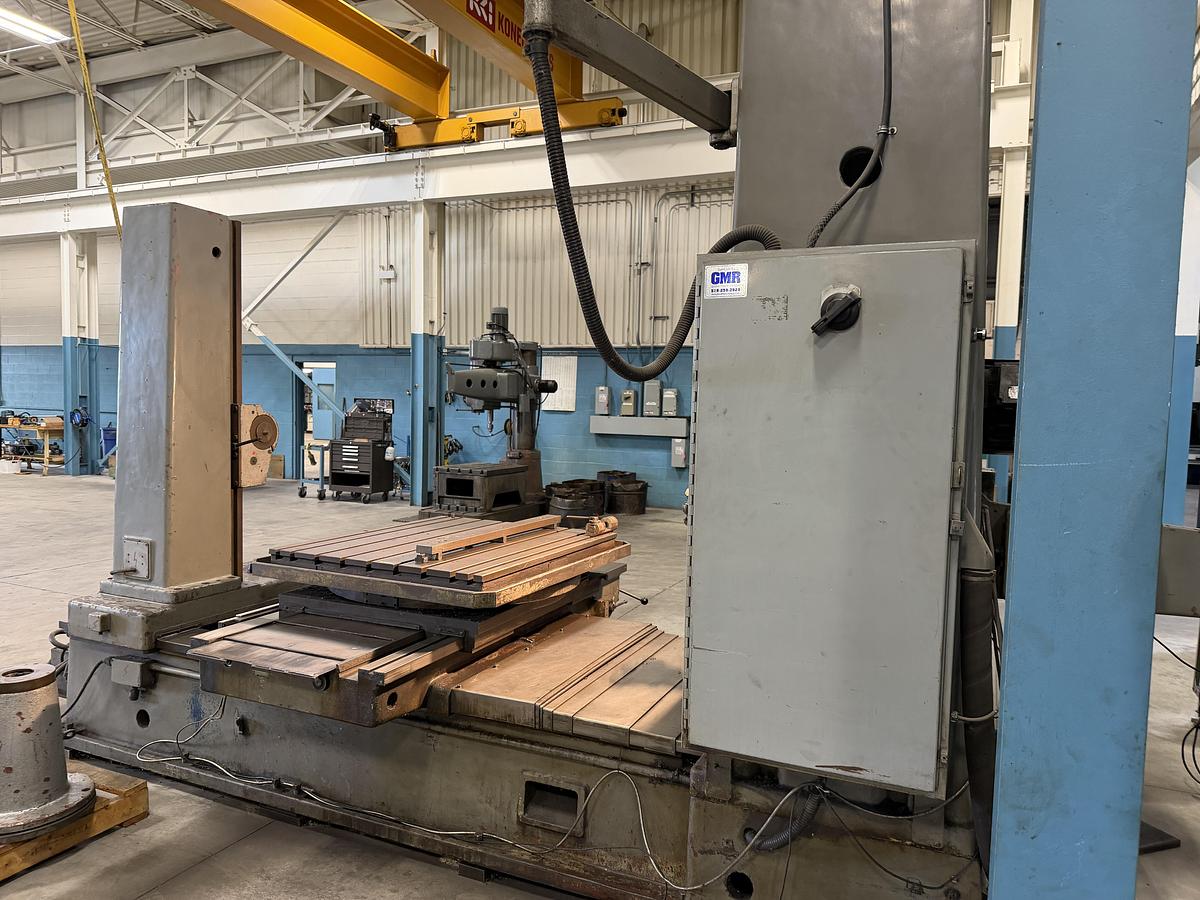

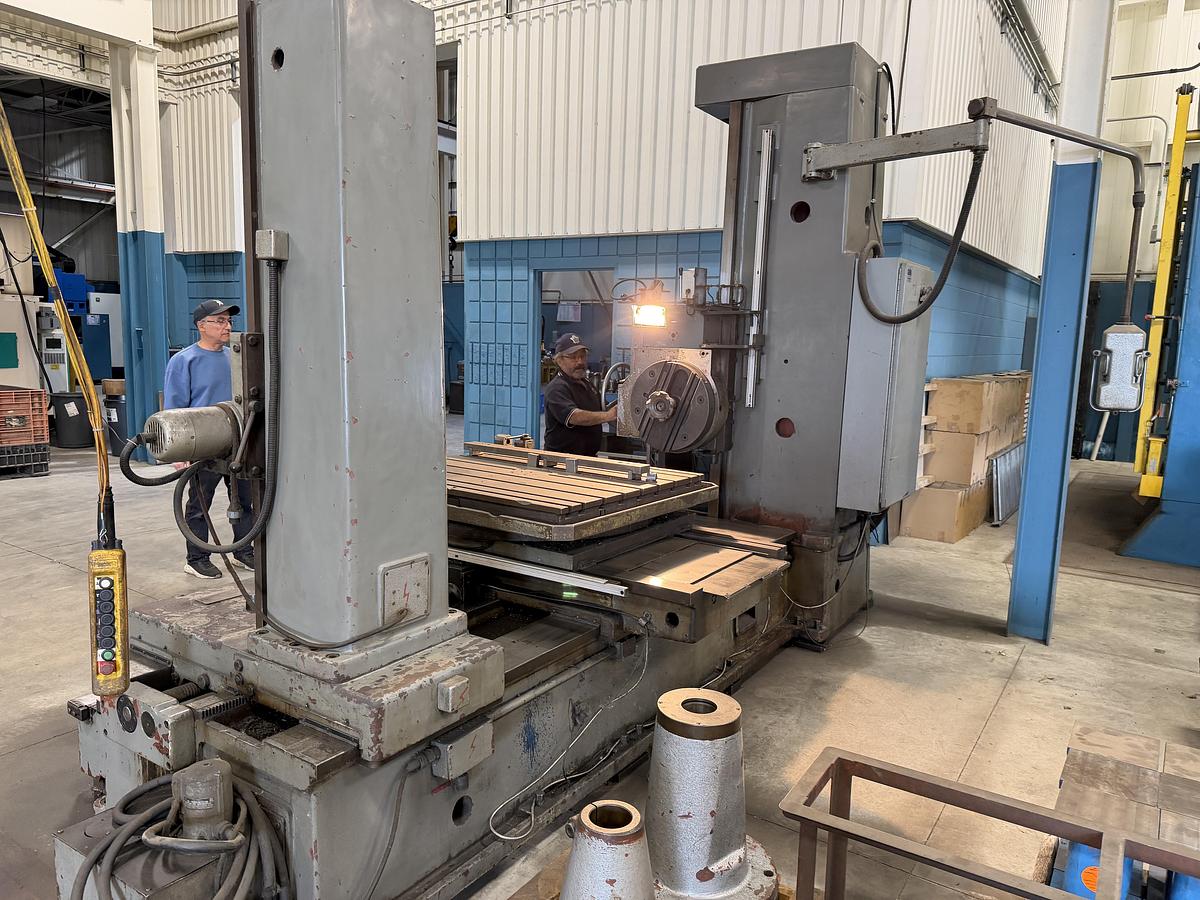

TOS VARNSDORF W9 HORIZONTAL BORING MILL
TOS VARNSDORF W9 HORIZONTAL BORING MILL
Available quantity:1
Description

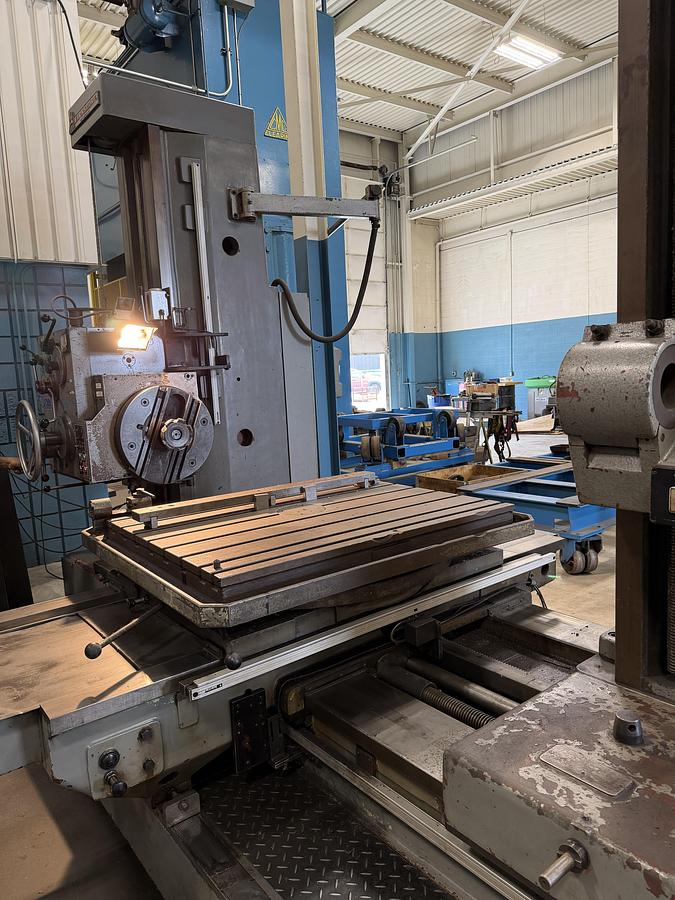

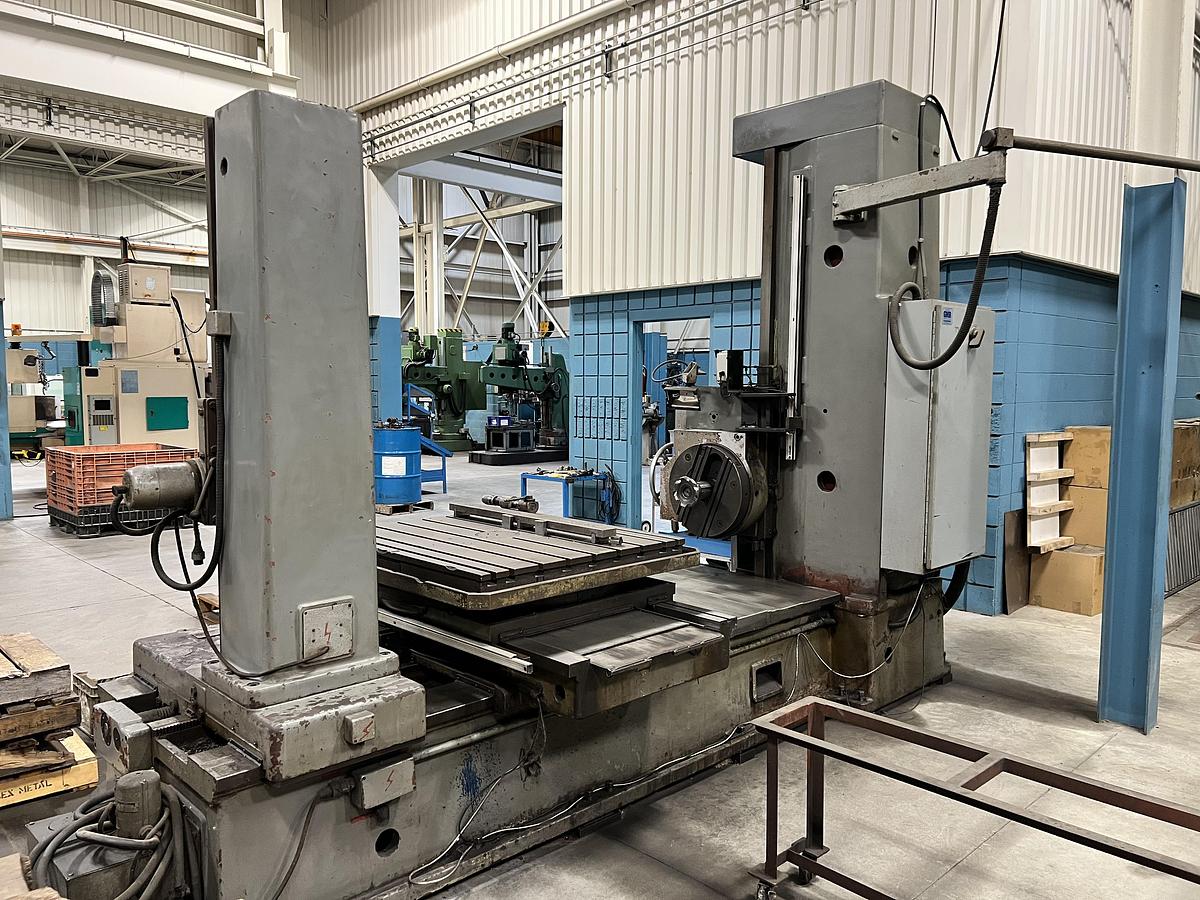

The TOS Varnsdorf W9 is a heavy-duty horizontal boring mill built for precision machining of large components and fabrication work. Featuring a 90 mm (3.54") ISO 50 spindle, generous travels of 52" (X), 46" (Y), 64" (Z), and 28" spindle travel (W-axis), this machine offers excellent rigidity and machining capacity. Equipped with a 44" × 40" rotary table, 15 HP spindle motor, and Acu-Rite 3-axis digital readout, the W9 is ideal for repair shops, heavy industrial machining, and general boring applications requiring accuracy and versatility.
Specifications
| Manufacturer | TOS VARNSDORF |
| Model | W9 |
| Year | 1977 |
| Condition | Used |

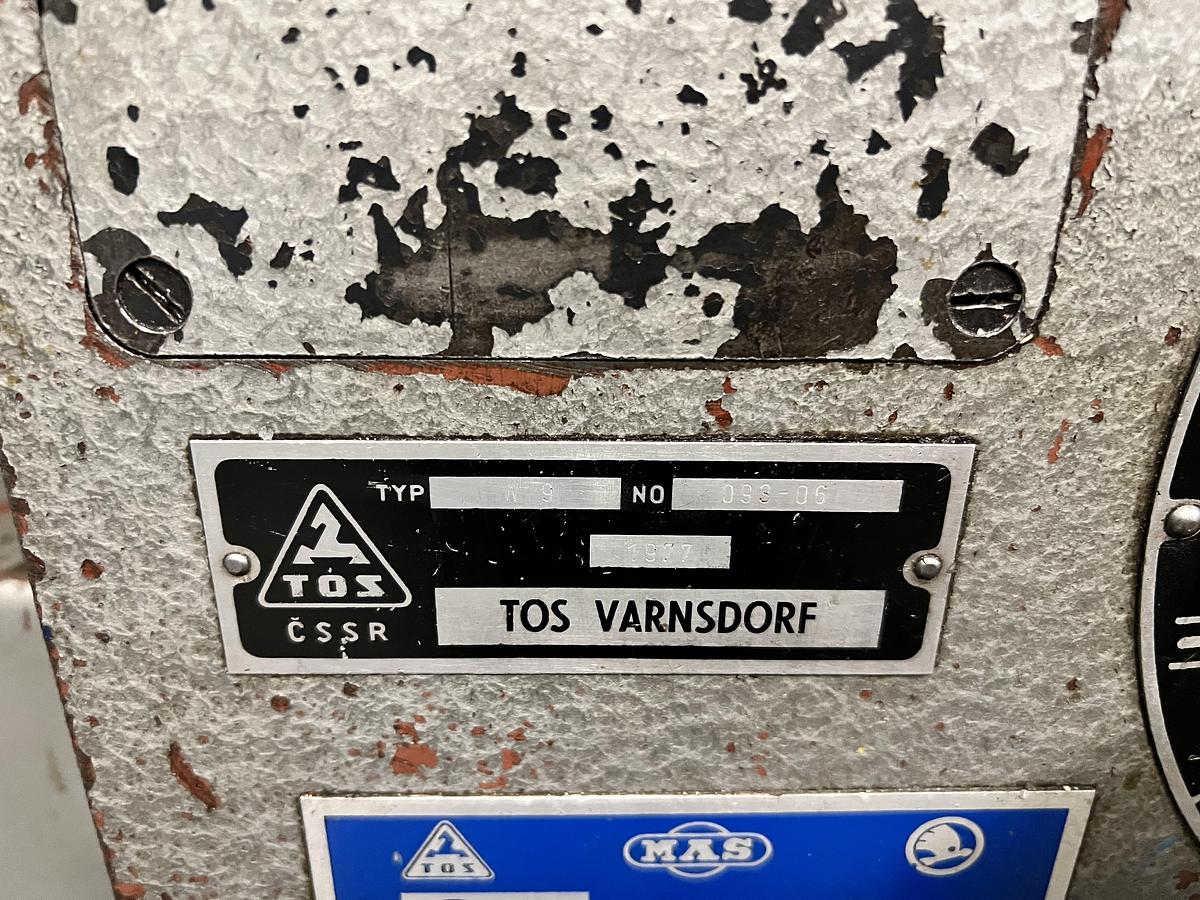

| Serial Number | 093-06 |
| Stock Number | BOR-TOS-9306 |
| Spindle Diameter | 90 mm (3.54") |
| Spindle Taper | ISO 50 |
| Spindle Speed Range | 10 - 1,250 RPM |
| Table Size | 1120 x 1000 mm (44" x 40") |
| X Axis Travel | 1320 mm (52") |
| Y Axis Travel | 1170 mm (46") |
| Z Axis Travel | 1625 mm (64") |
| W Axis (Spindle Travel) | 710 mm (28") |
| Table Load Capacity | 3500 kg (7,700 lbs) |

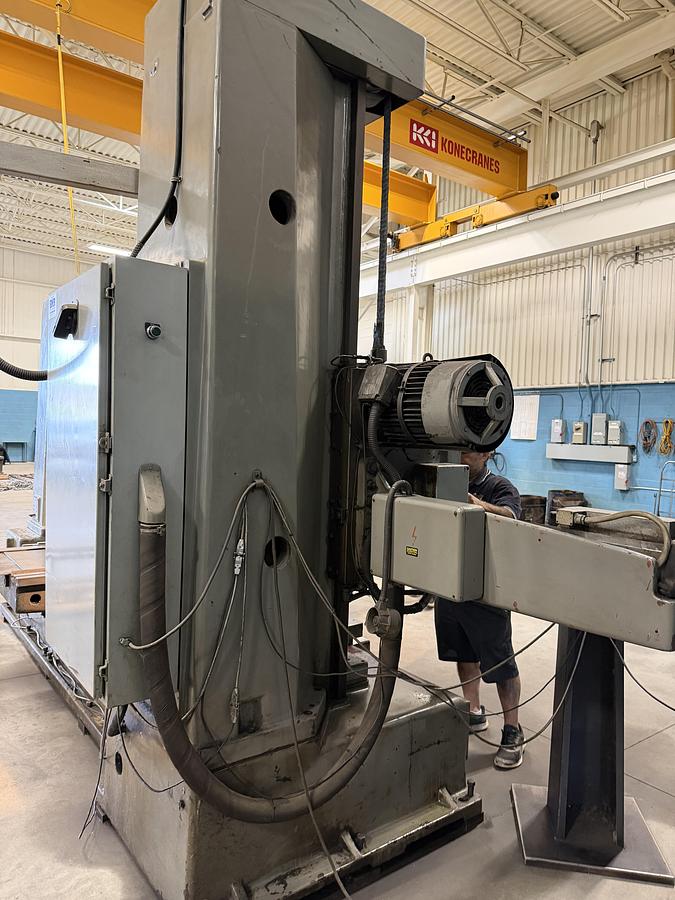

| Spindle Motor | 11 kW (15 HP) |
| Approximate Machine Weight | 11,000 kg (24,250 lbs) |
Equipped With

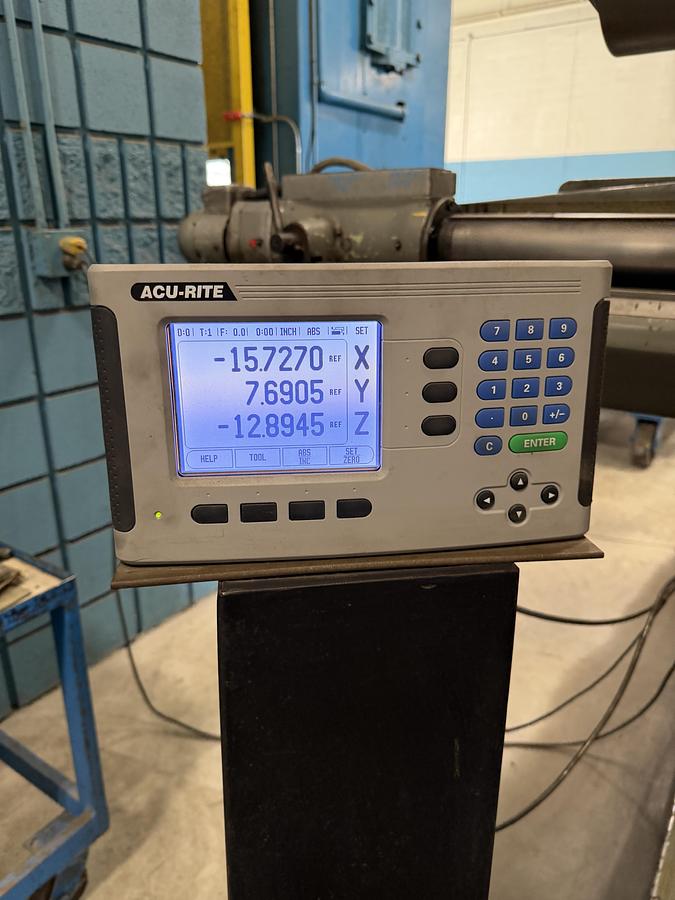

Acu-Rite 3-Axis DRO
Rotary Table
