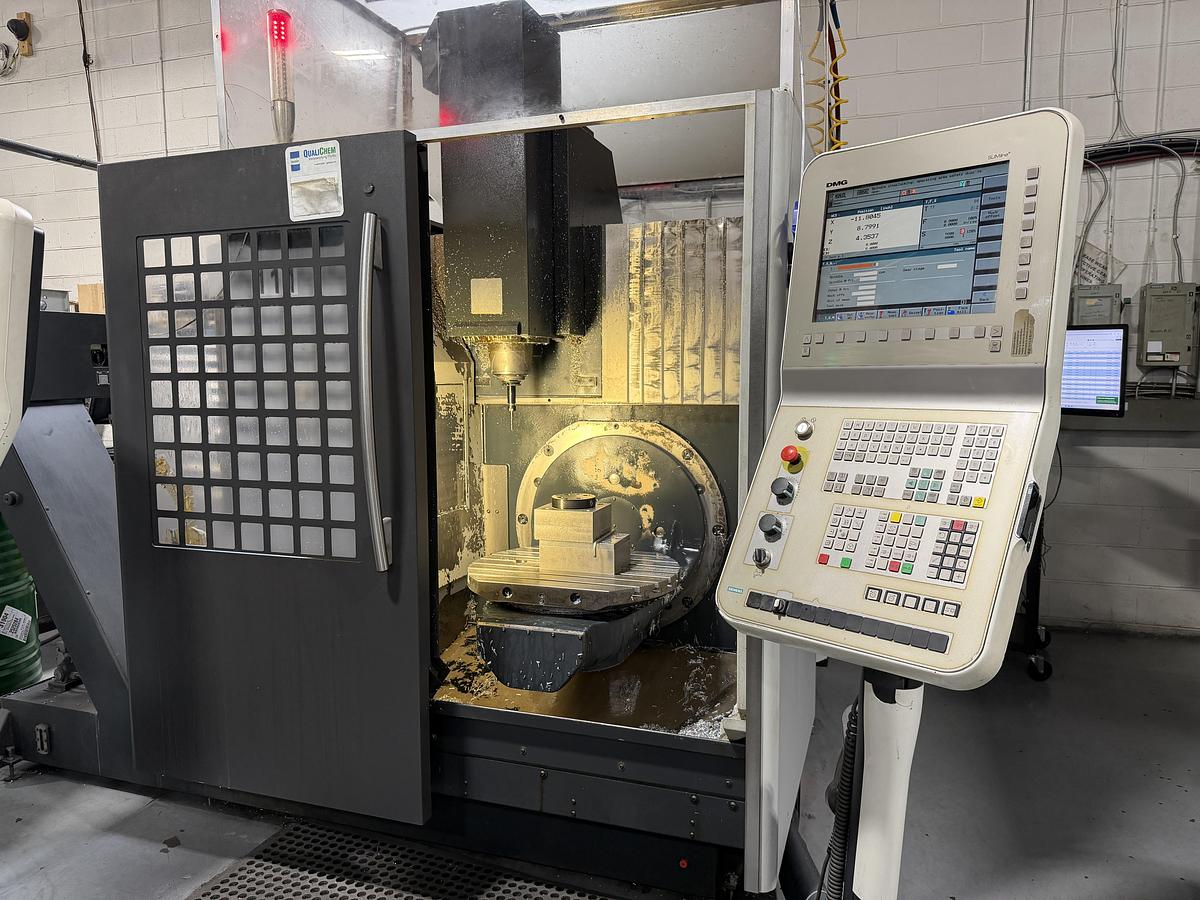

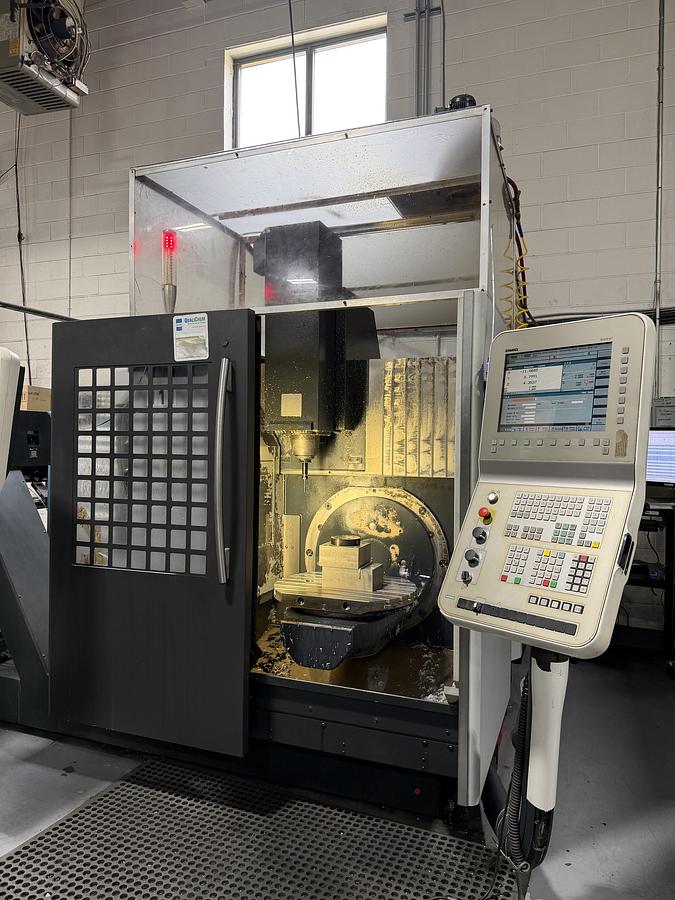

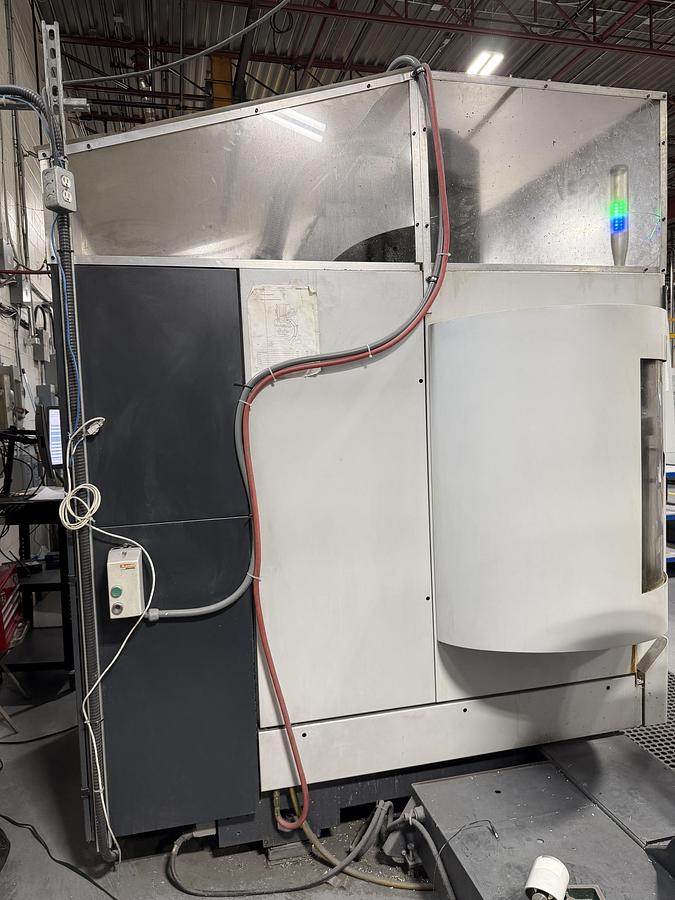

DMG MORI DMU 50 ECO CNC VERTICAL MACHINING CENTER
DMG MORI DMU 50 ECO CNC VERTICAL MACHINING CENTER
Available quantity:2
Description

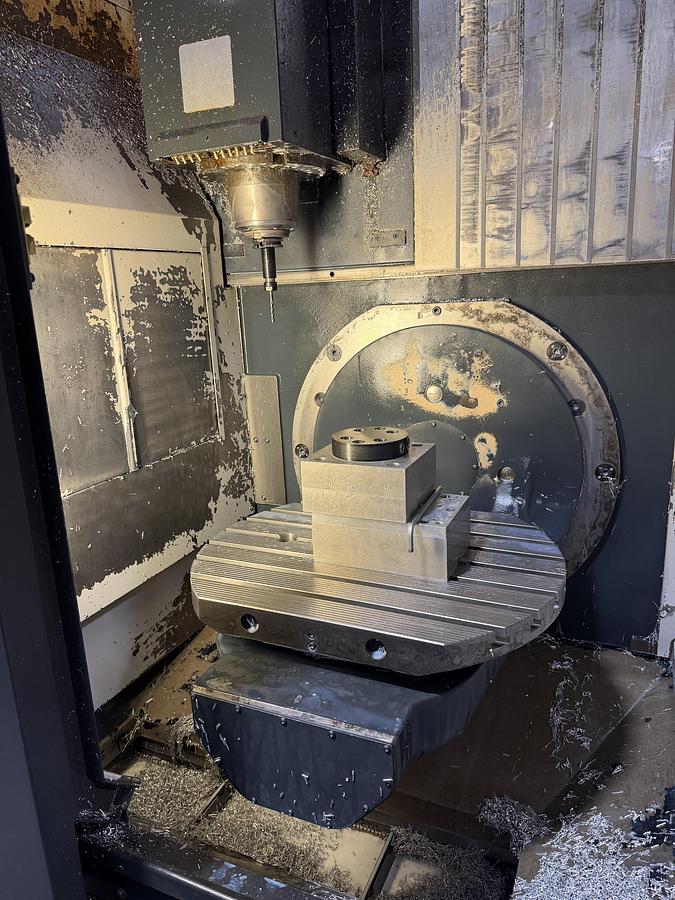

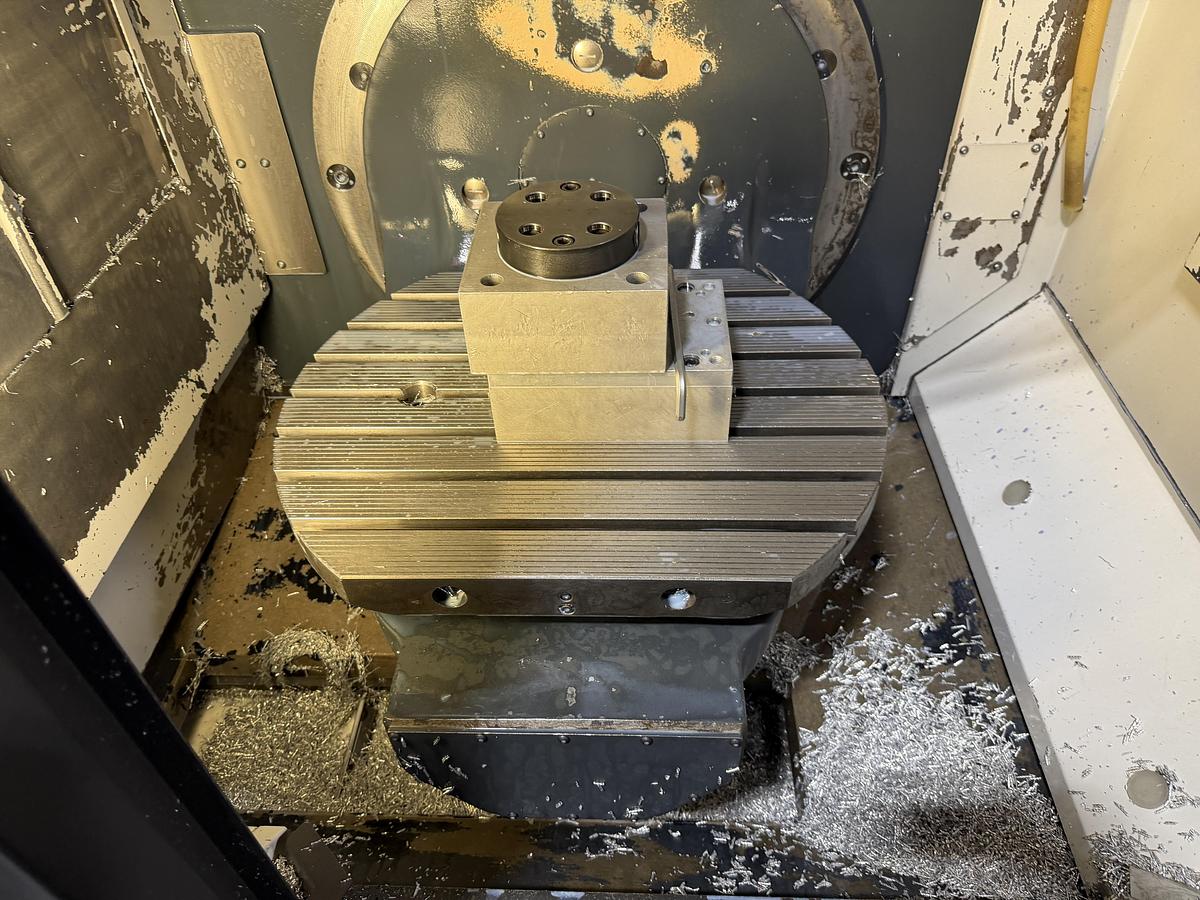

The DMG MORI DMU 50 eco is a versatile 5-axis CNC vertical machining center designed for precision multi-sided machining and complex part production. This 2011 machine features 19.7" (X), 17.7" (Y), and 15.7" (Z) travels with a 24.8" rotary table and full B-axis and C-axis capability for simultaneous 5-axis machining. Equipped with an 8,000 RPM SK40/CAT40 spindle, 16-tool automatic tool changer, and rapid traverse rates up to 945 IPM, the DMU 50 eco delivers excellent accuracy and productivity. Complete with swivel rotary table, chip conveyor, coolant system, and DMG control interface, it is ideal for aerospace, medical, and precision manufacturing applications.
Specifications
| Manufacturer | DMG MORI |
| Model | DMU 50 eco |
| Year | 2011 |
| Condition | Used |
| Stock Number | MAC-VMC-DMG-112A |
| X-Axis Travel | 500 mm (19.69") |
| Y-Axis Travel | 450 mm (17.72") |
| Z-Axis Travel | 400 mm (15.75") |
| Max Table Load | 400 kg (880 lbs) |
| Spindle Speed Up to | 8,000 RPM |
| Spindle Taper | SK40 / CAT40 |
| Rapid Traverse (X/Y/Z) | 24,000 mm/min (945 IPM) |

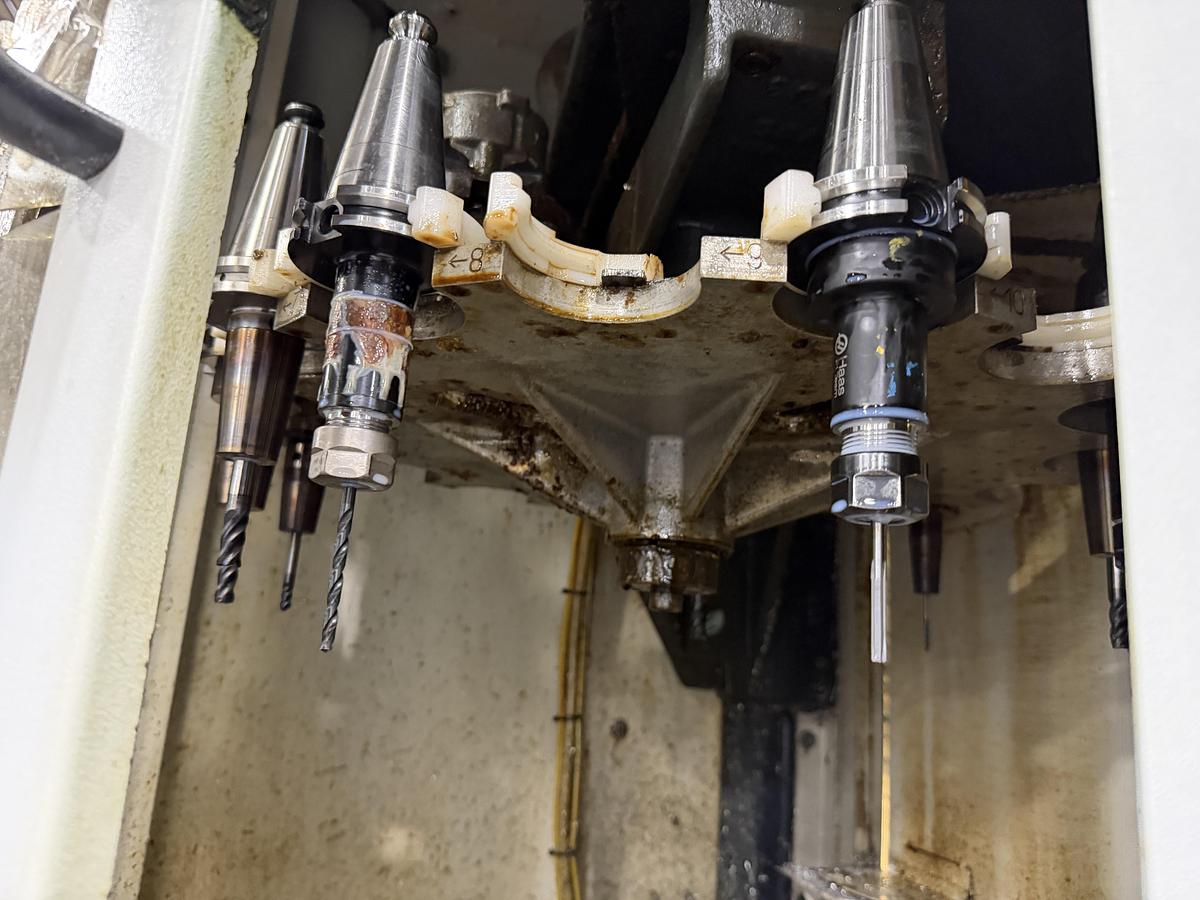

| Tool Capacity | 16 Tools |
| C-Axis Travel | 360° |
| Max Distance Spindle to Table | 100 - 500 mm (3.9" - 19.7") |
Equipped With
5-Axis Capability (B & C Axis)
Coolant System

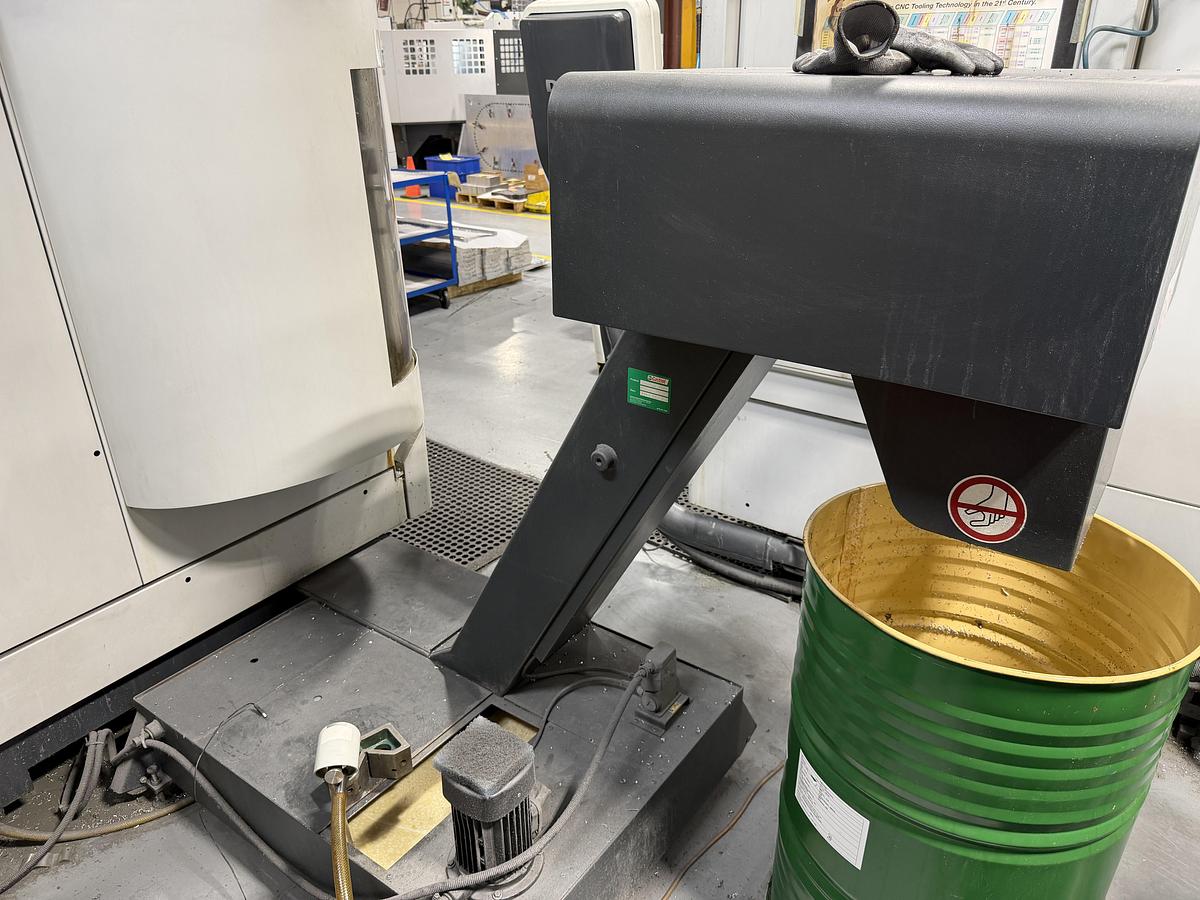

Chip Conveyor

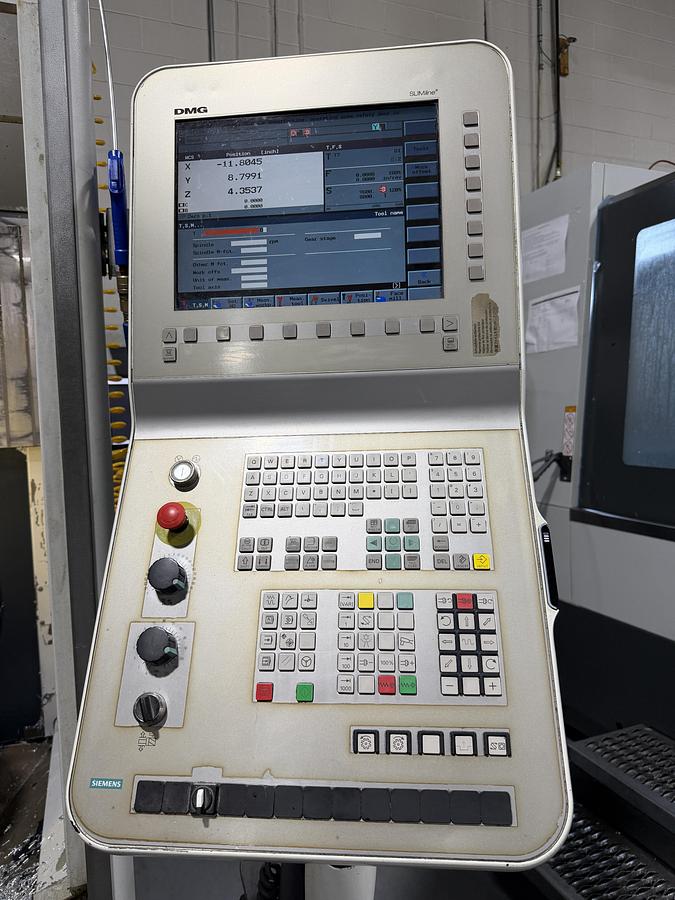

DMG Control Interface
