YCM TV158B CNC VERTICAL MACHINING CENTER
YCM TV158B CNC VERTICAL MACHINING CENTER
Available quantity:1
Description

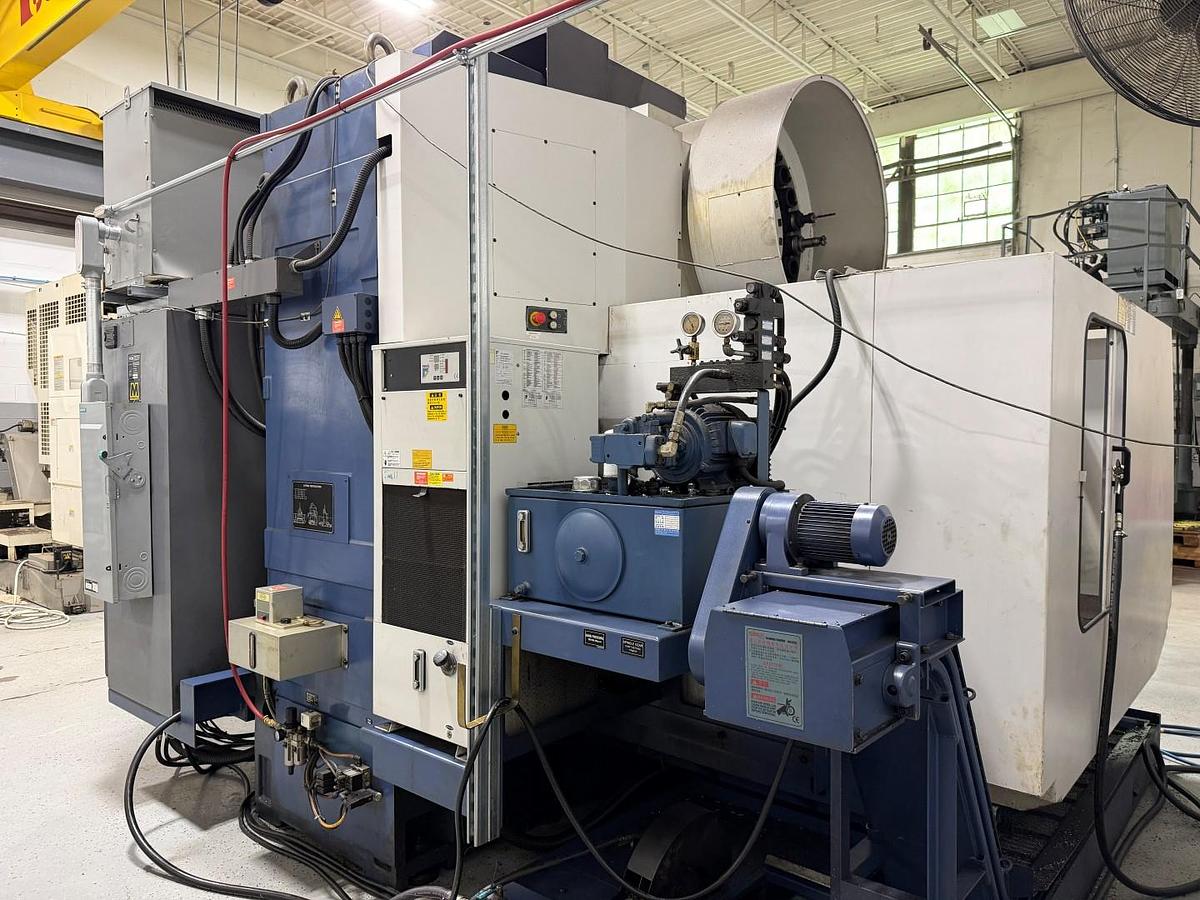

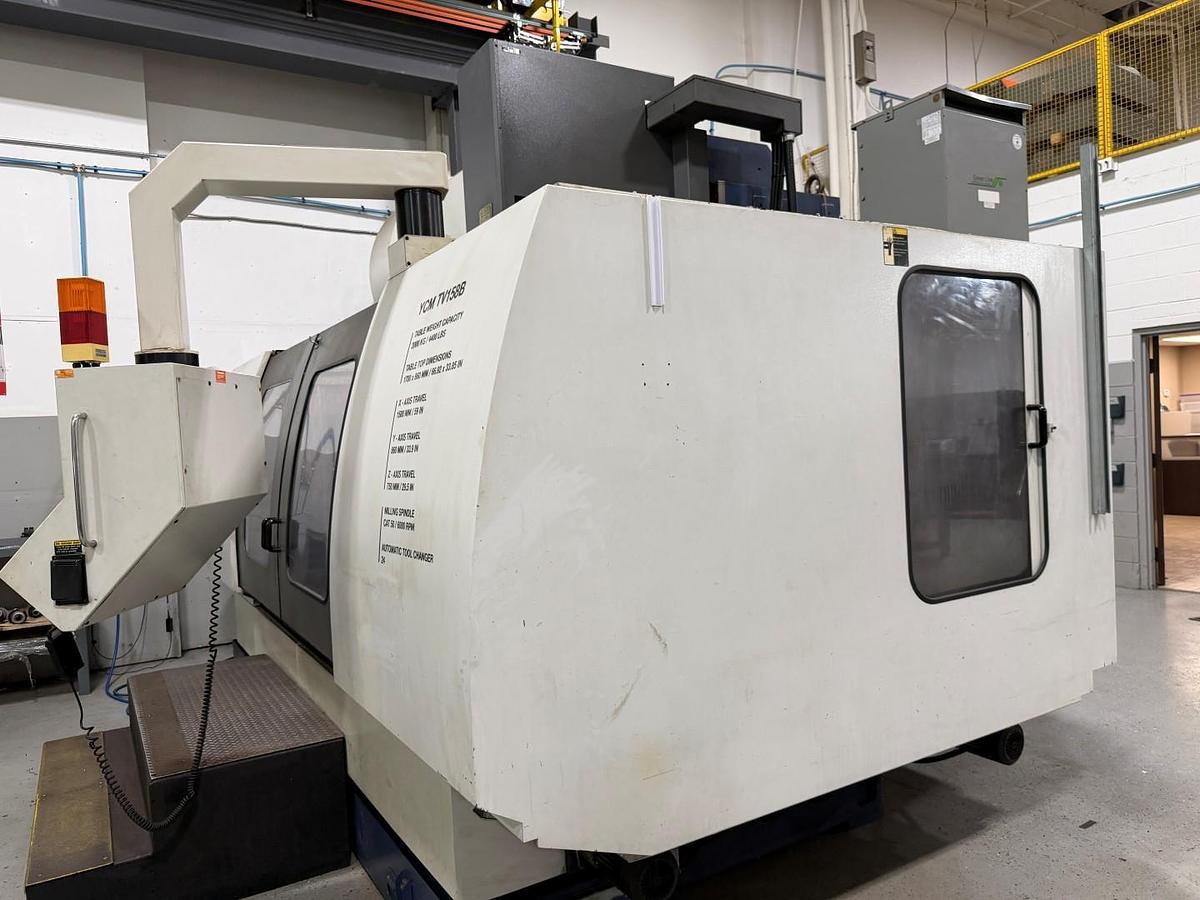

YCM TV158B CNC Vertical Machining Center – CAT50 – Large Capacity VMC
The YCM (Yeong Chin Machinery Industries) TV158B is a heavy-duty CNC vertical machining center designed for large-part machining and high-rigidity cutting applications. Featuring a large 66.9" × 33.9" table with 4,400 lb load capacity, and travels of 59" (X), 33.9" (Y), and 29.5" (Z), this machine provides excellent workspace and stability. Equipped with a CAT50 spindle, 6,000 RPM, and 24-tool automatic tool changer, the TV158B delivers strong cutting performance for demanding production environments. Complete with Fanuc CNC control, chip conveyor, and coolant system, it is ideal for mold work, heavy milling, and general manufacturing applications.
Specifications
| Manufacturer | Yeong Chin Machinery |
| Model | TV158 B |
| Year | 2005 |
| Condition | Used |
| Serial Number | 412214 |
| Stock Number | VMC-YCM-2214 |
| Table Weight Capacity | 2000 kg (4,400 lbs) |
| Table Size | 1700 x 860 mm (66.92" x 33.85") |
| X-Axis Travel | 1500 mm (59") |
| Y-Axis Travel | 860 mm (33.9") |
| Z-Axis Travel | 750 mm (29.5") |
| Spindle Taper | CAT 50 |
| Spindle Speed | 6000 RPM |
| Tool Changer Capacity | 24 Tools |
Equipped With

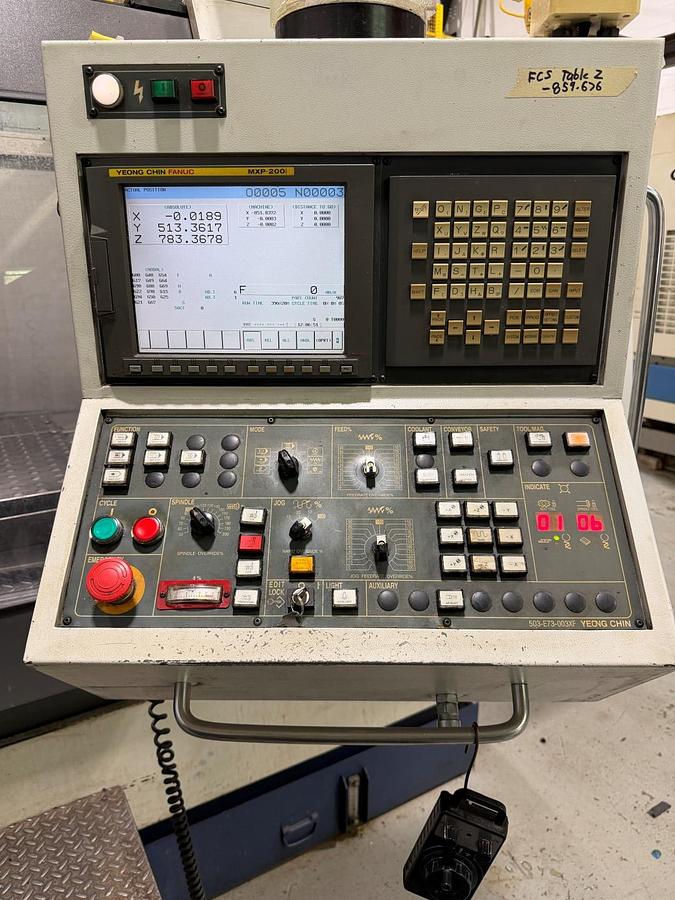

Fanuc CNC Control

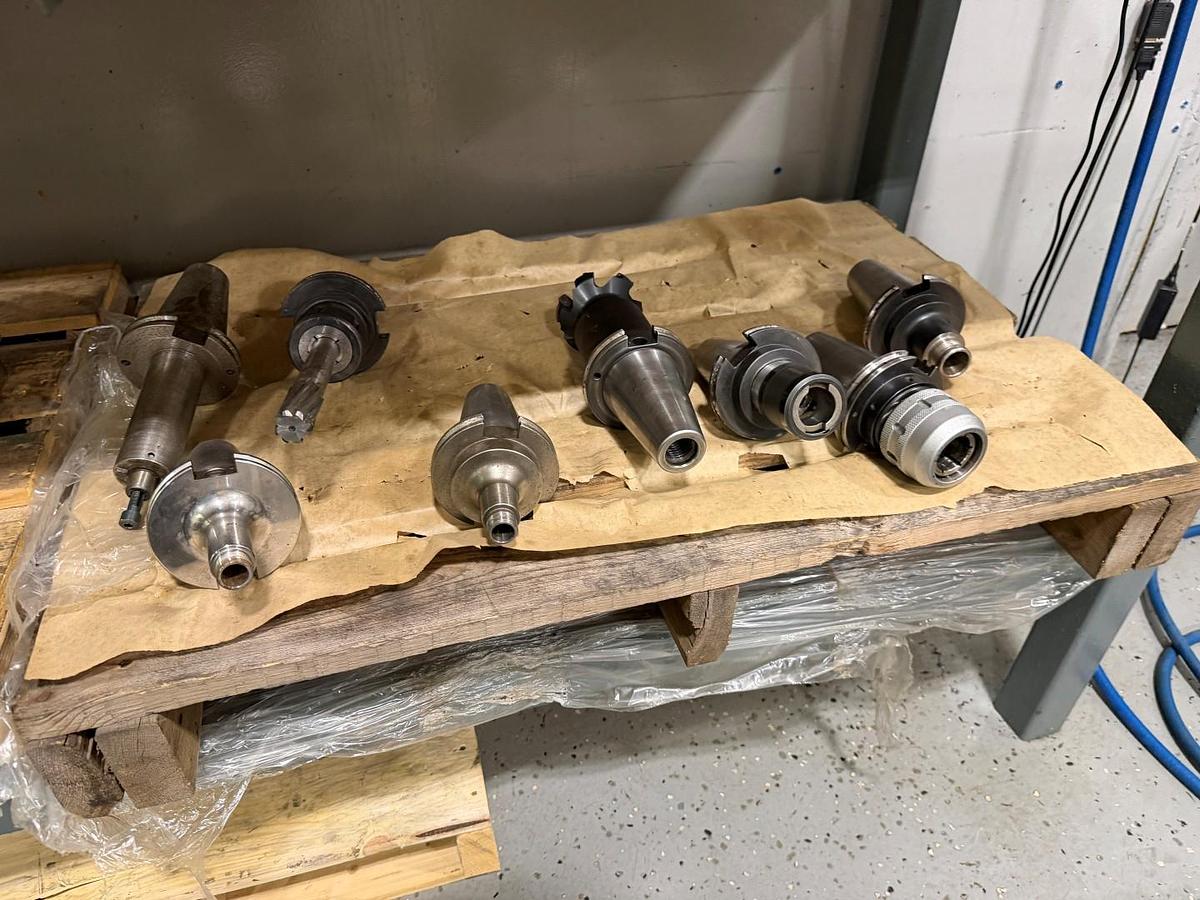

CAT 50 Spindle

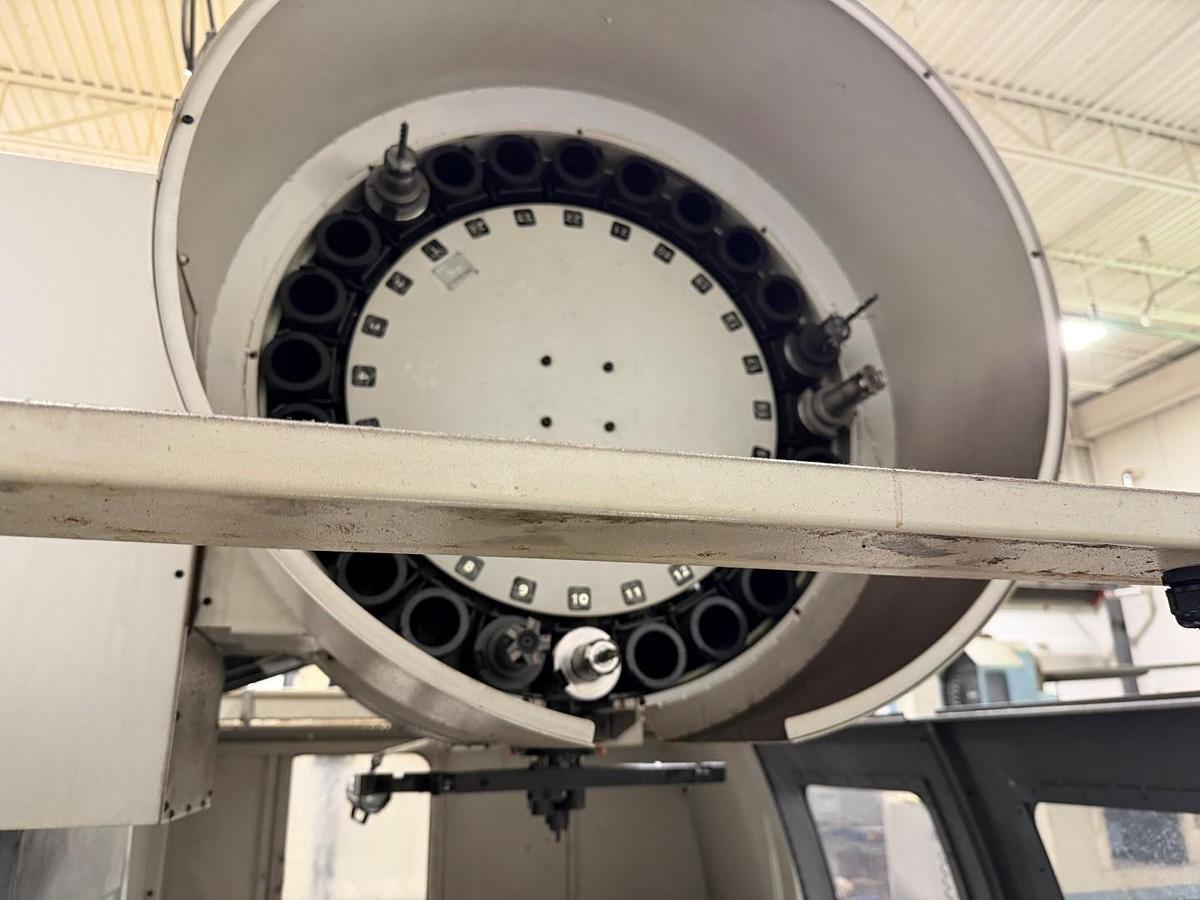

24 Station Automatic Tool Changer

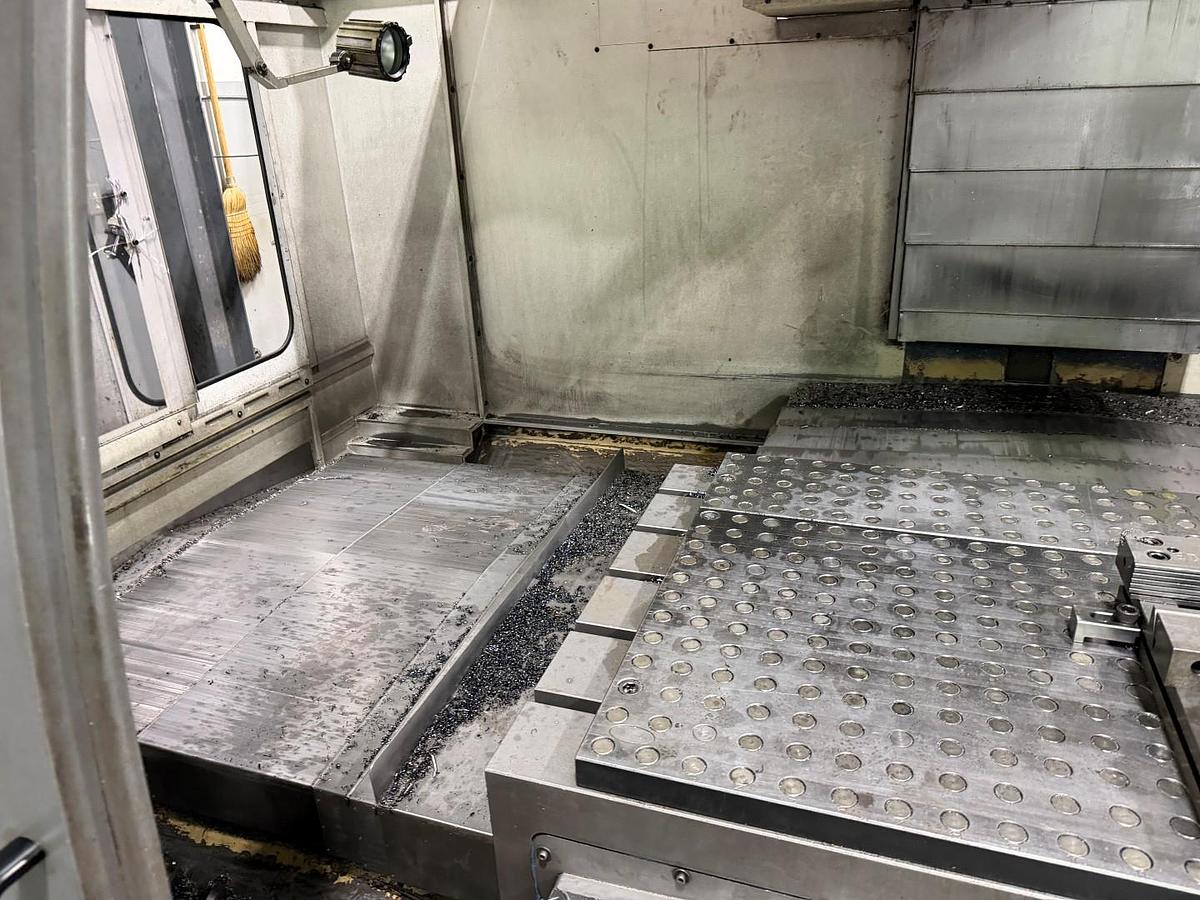

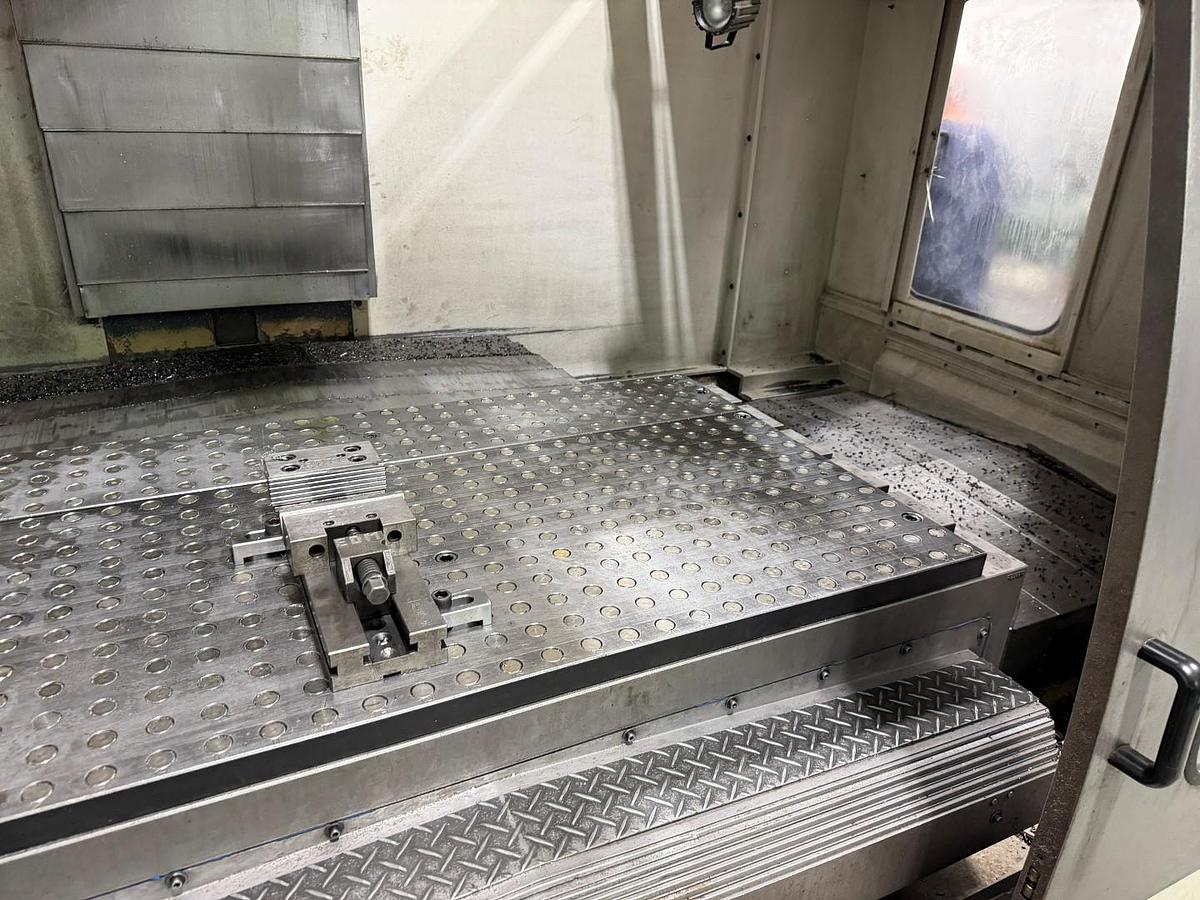

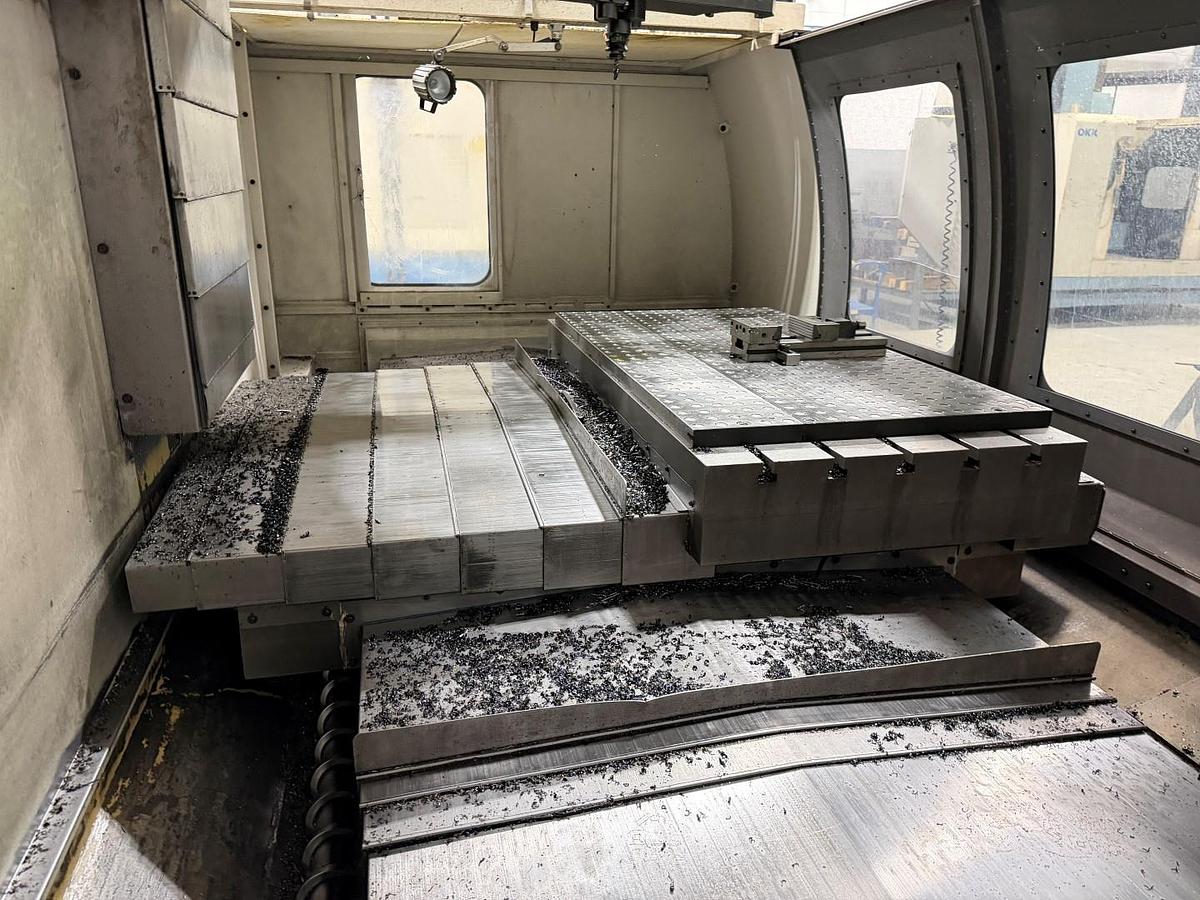

Large Capacity Work Table
Chip Conveyor
Coolant System
