HYUNDAI KIA VX-500 VERTICAL MACHINING CENTER (ONLY 5780 CUTTING HOURS)
HYUNDAI KIA VX-500 VERTICAL MACHINING CENTER (ONLY 5780 CUTTING HOURS)
Available quantity:1
Description

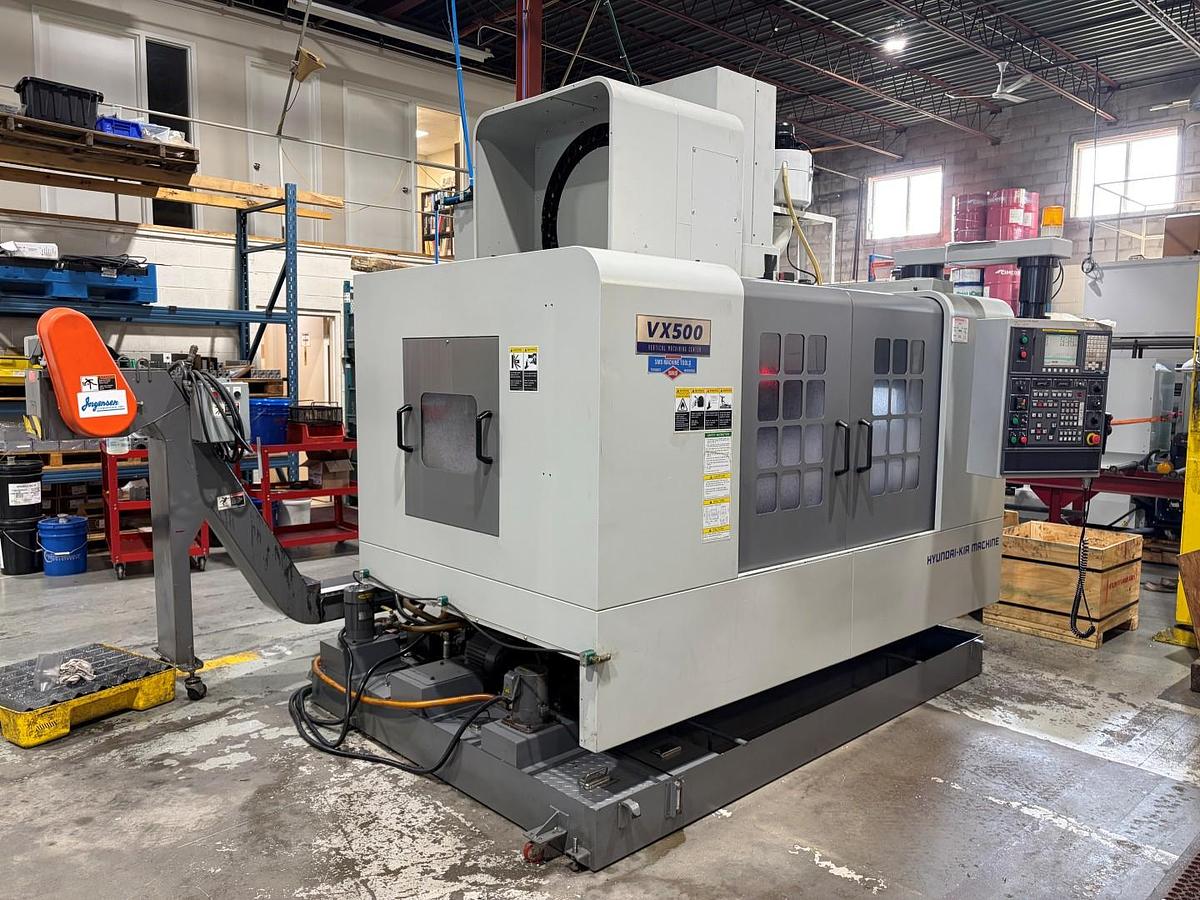

Hyundai Kia VX-500 Vertical Machining Center – Only 5,780 Cutting Hours – Through-Spindle Coolant

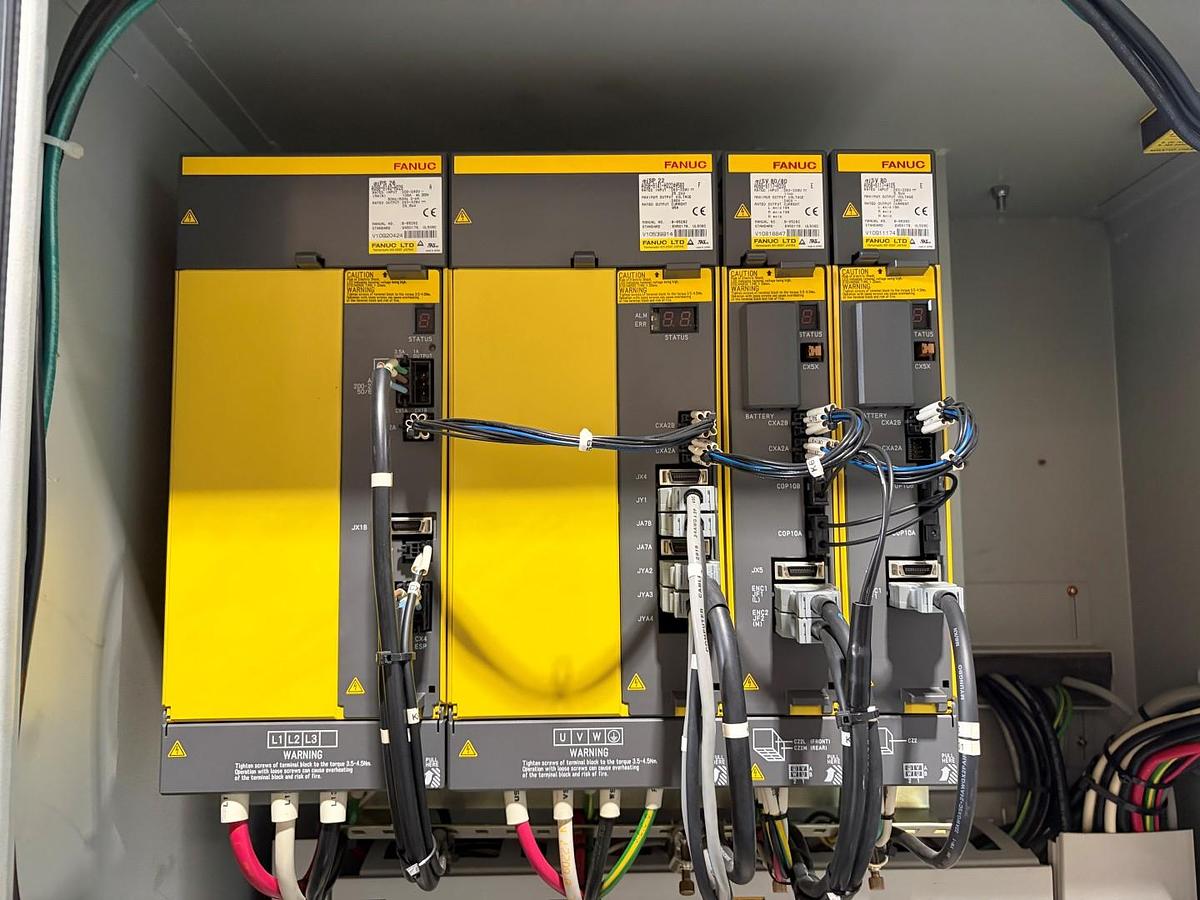

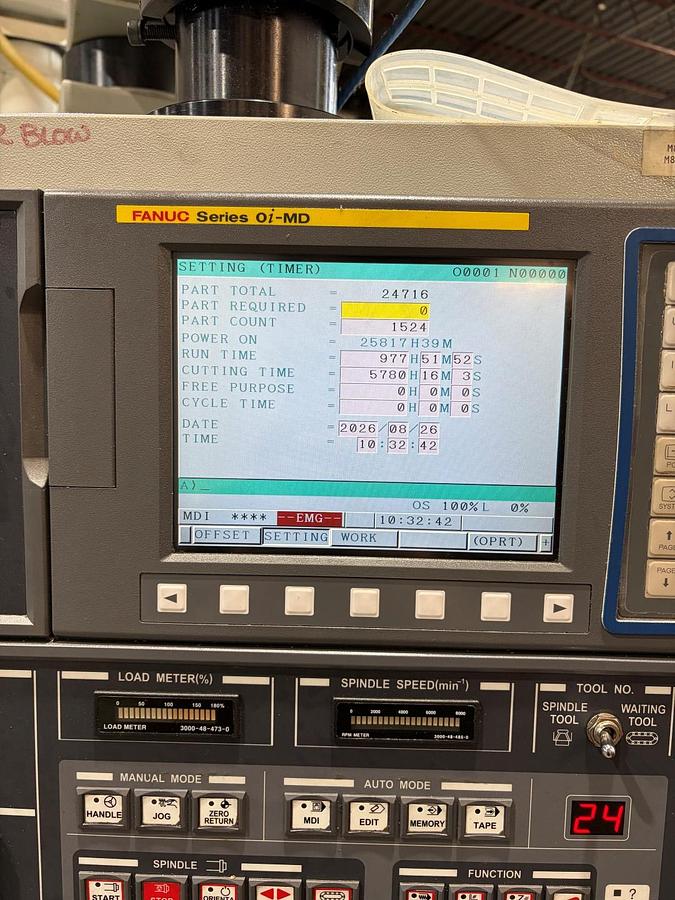

The Hyundai Kia VX-500 is a CNC vertical machining center with only 5,780 cutting hours, offering 41.73" (X), 20.07" (Y), and 25" (Z) travels with a 47.24" × 19.68" table and 1,763 lb load capacity. Equipped with an 8,000 RPM CAT40 spindle, 24-tool automatic tool changer, and rapid traverse rates up to 1,417 IPM, the VX-500 is designed for efficient precision machining and production work. Controlled by Fanuc Series 0i-MD CNC, the machine includes high-pressure through-spindle coolant, chip conveyor, mist collector, and coolant tank, making it ideal for automotive, aerospace, general manufacturing, and job shop applications.
Specifications
| Manufacturer | Hyundai |
| Model | VX500 |
| Year | 2010 |
| Condition | Used |

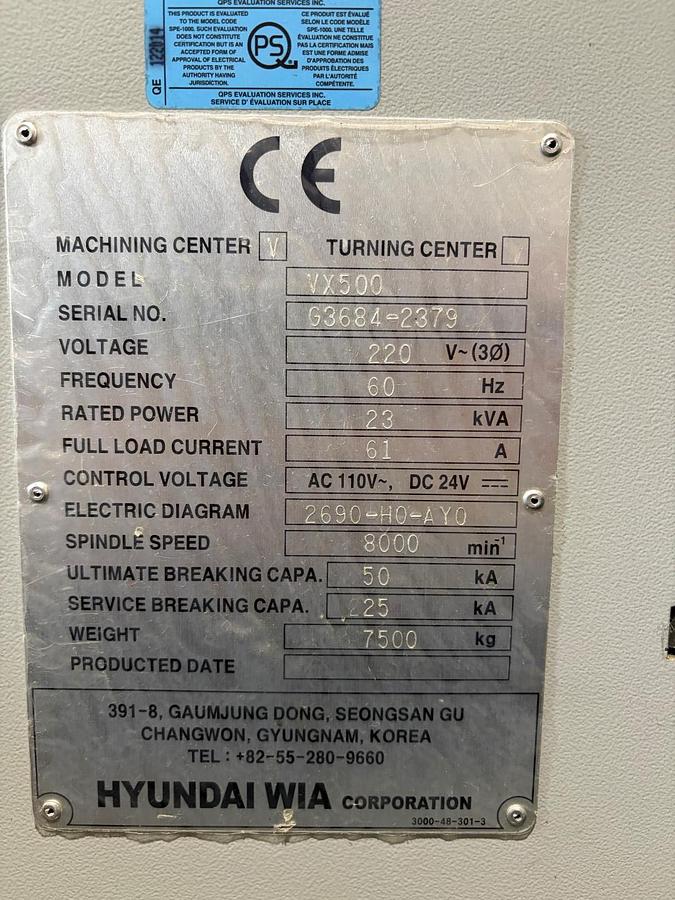

| Serial Number | 63684-2379 |
| Stock Number | VMC-HYN-2379 |
| X-Axis Travel | 1060 mm (41.73") |
| Y-Axis Travel | 510 mm (20.07") |
| Z-Axis Travel | 635 mm (25") |

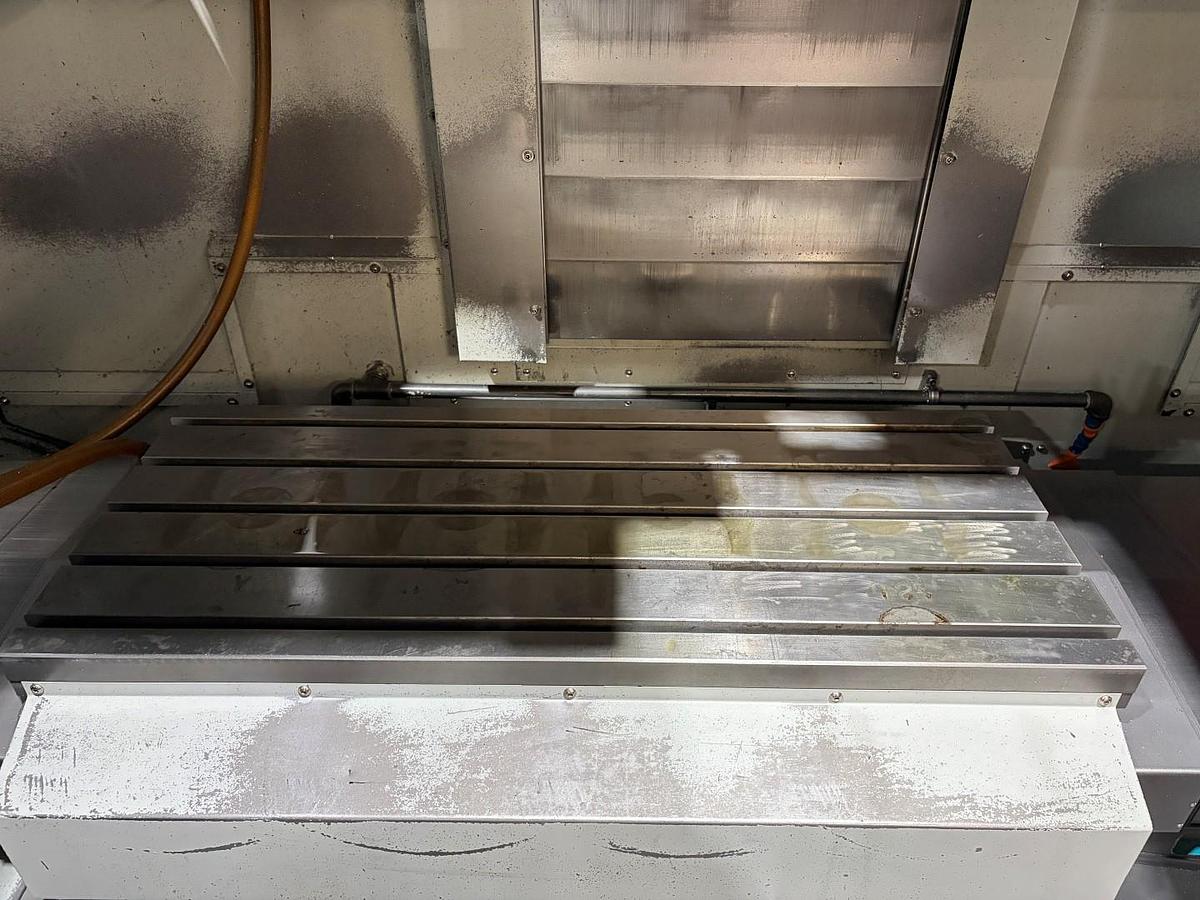

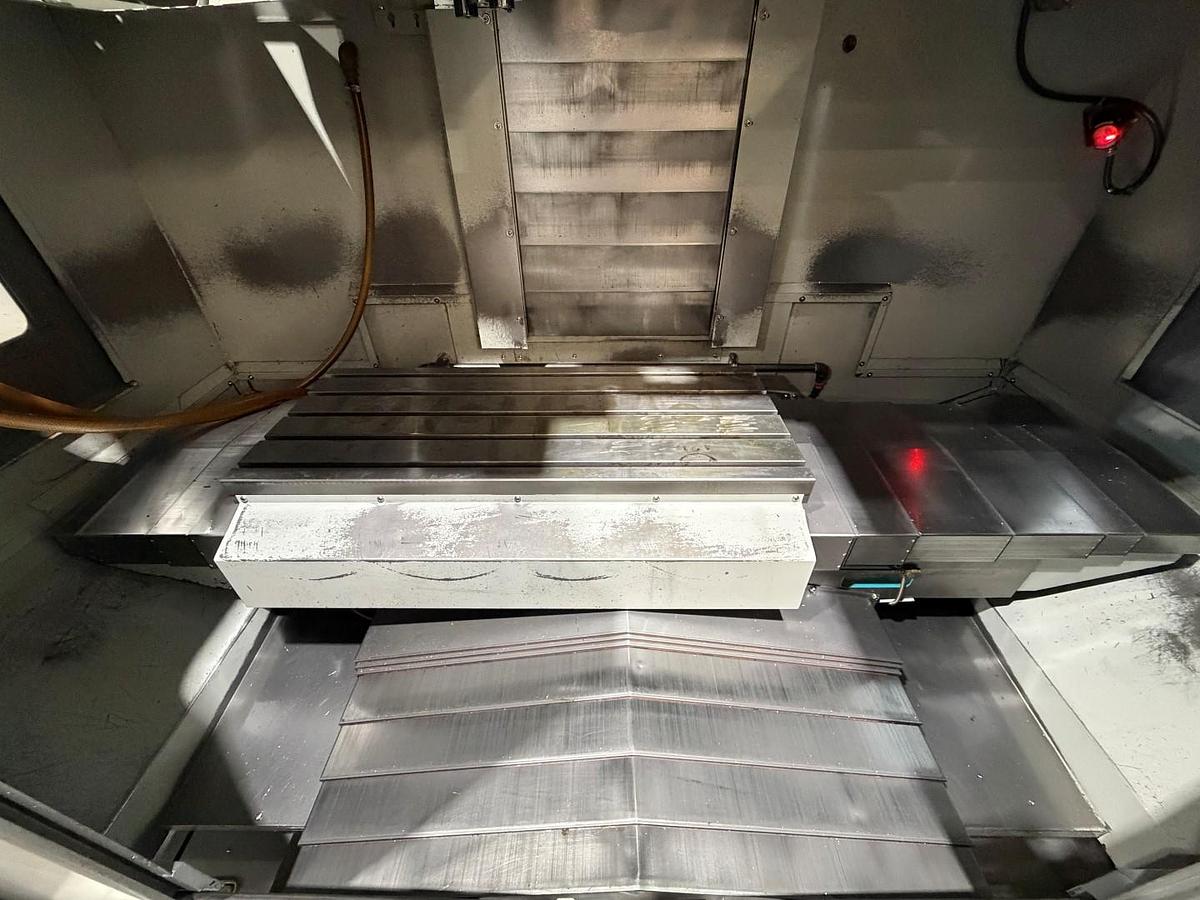

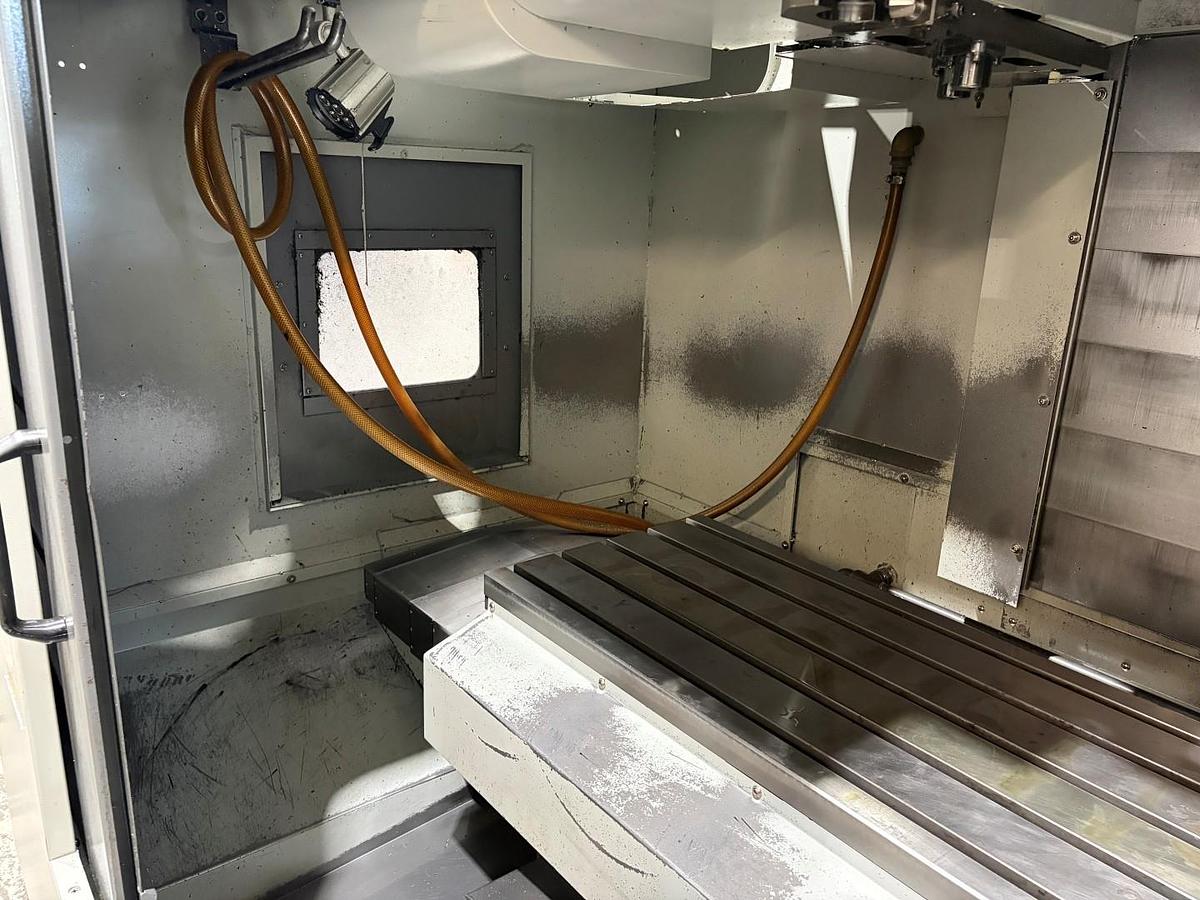

| Table Size | 1200 x 500 mm (47.24" x 19.68") |
| Max Table Load | 800 kg (1,763 lbs) |
| Rapid Traverse (X-Axis) | 36 m/min (1,417 IPM) |
| Rapid Traverse (Y-Axis) | 36 m/min (1,417 IPM) |
| Rapid Traverse (Z-Axis) | 30 m/min (1,181 IPM) |
| Cutting Feed Rate (X/Y/Z) | 15 m/min (590.55 IPM) |

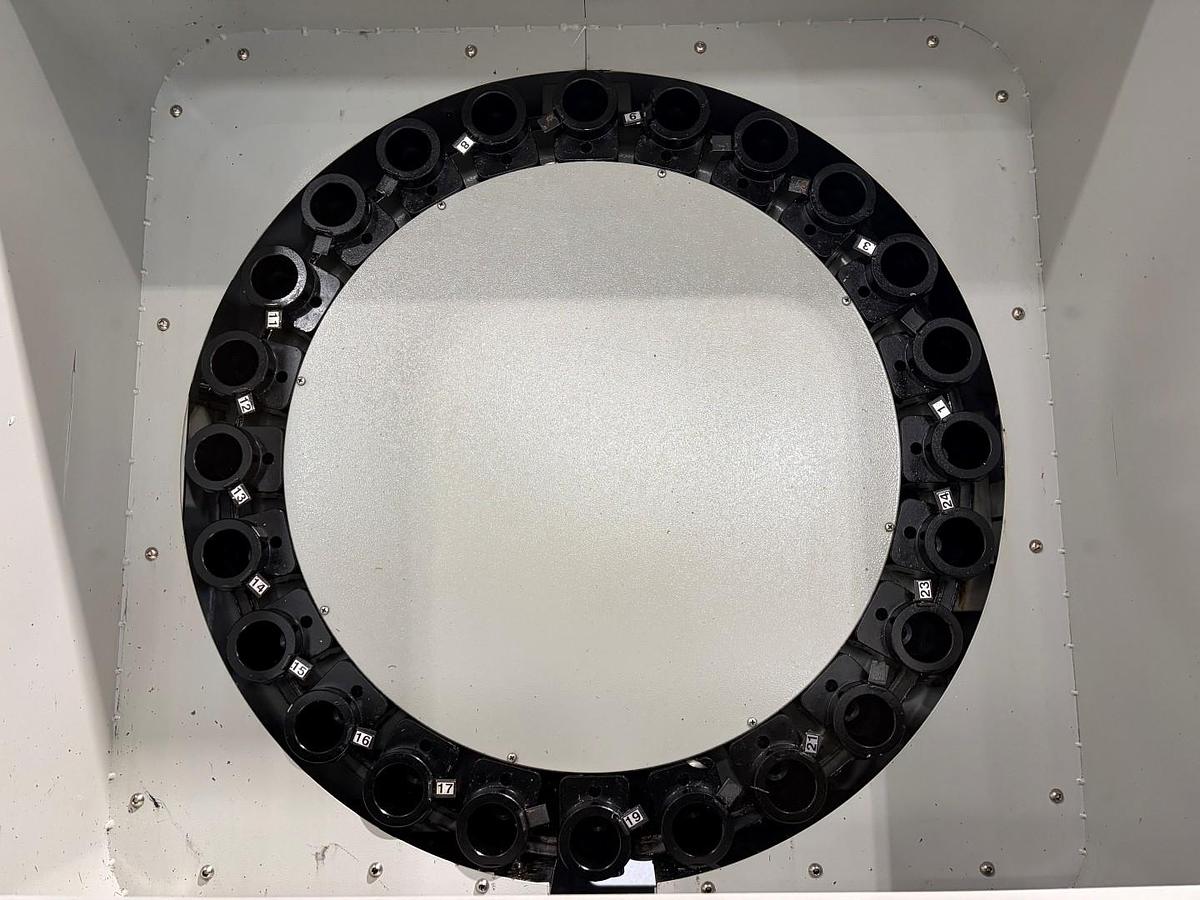

| Automatic Tool Changer | 24 Tools |

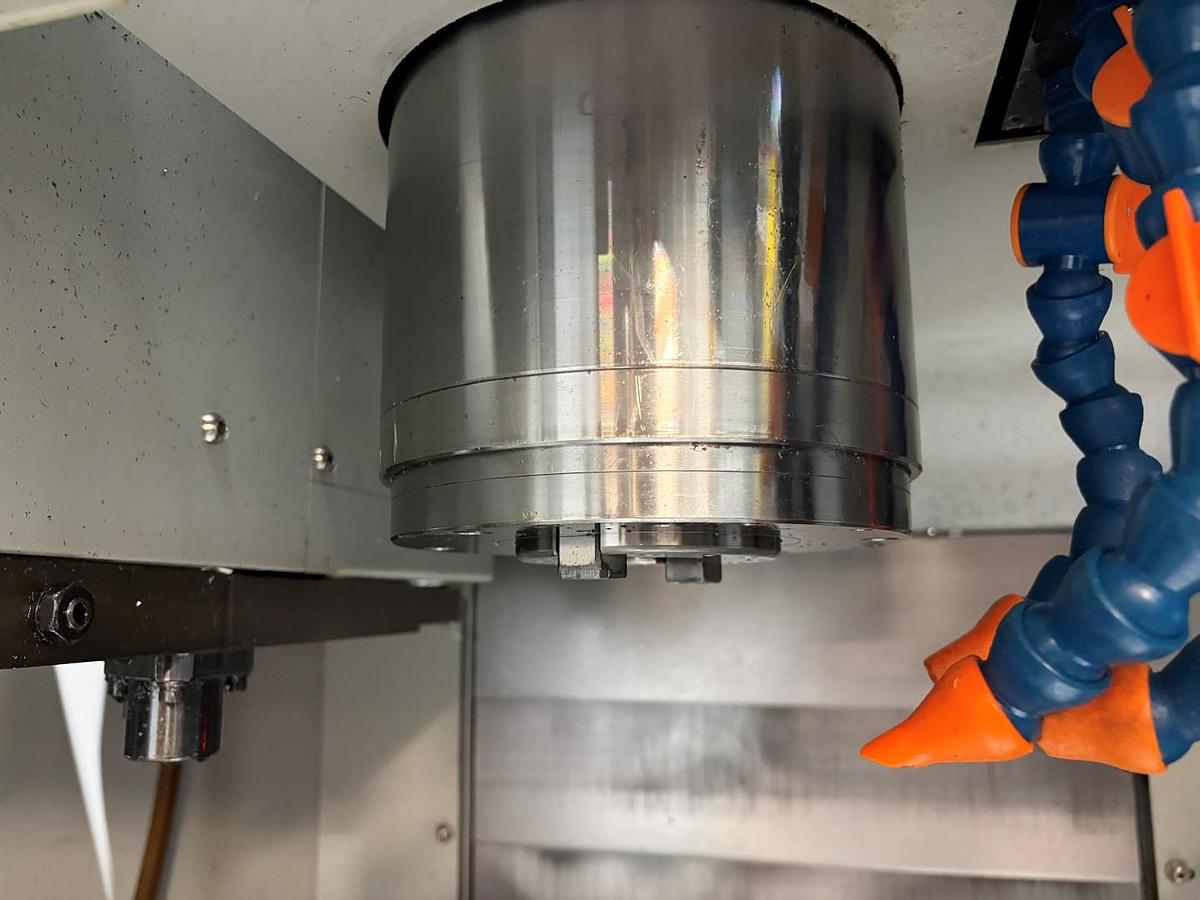

| Max Spindle Speed | 8,000 RPM |
| Spindle Taper | CAT 40 |
| Machine Weight | 7,700 kg (16,975 lbs) |
Equipped With

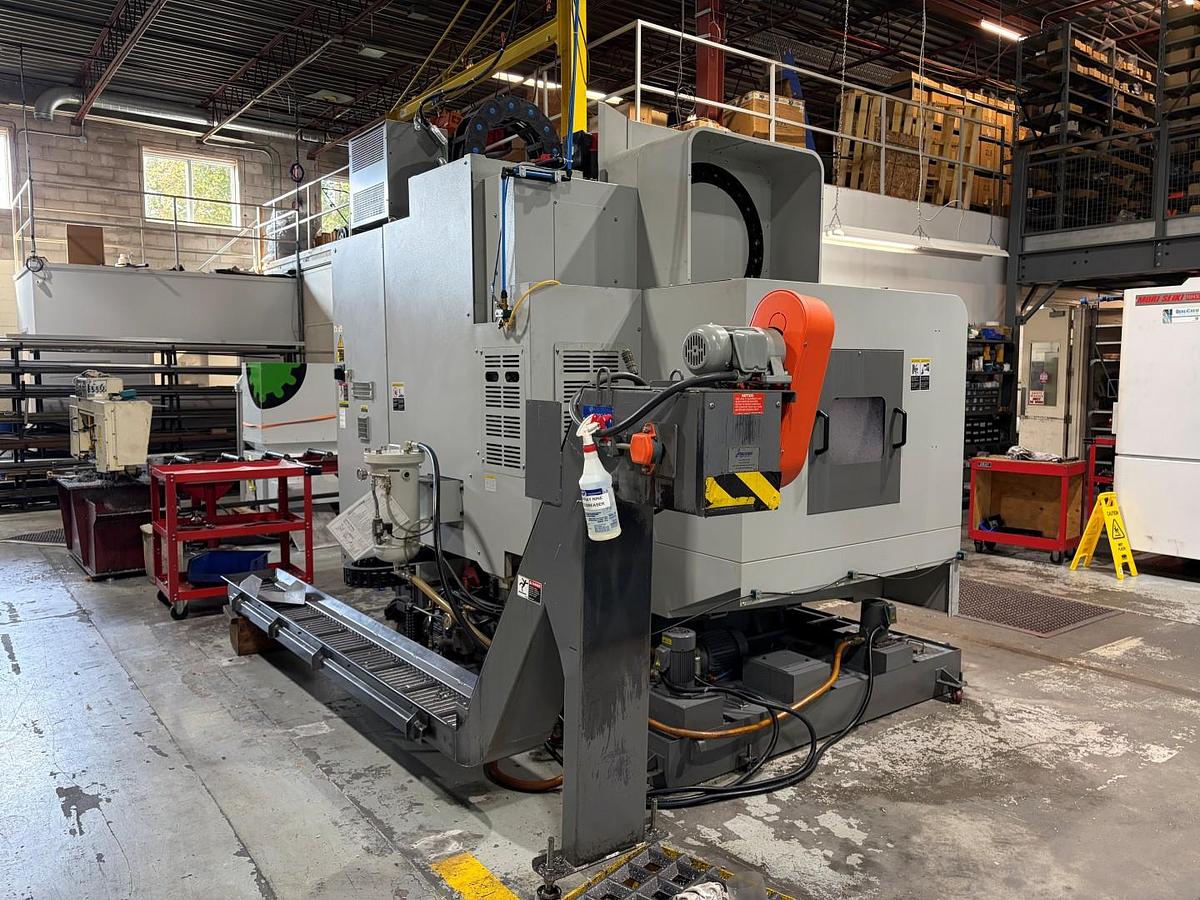

* Chip Conveyor
* High Pressure Through Spindle Coolant
* Mist Collector
* Coolant Tank
