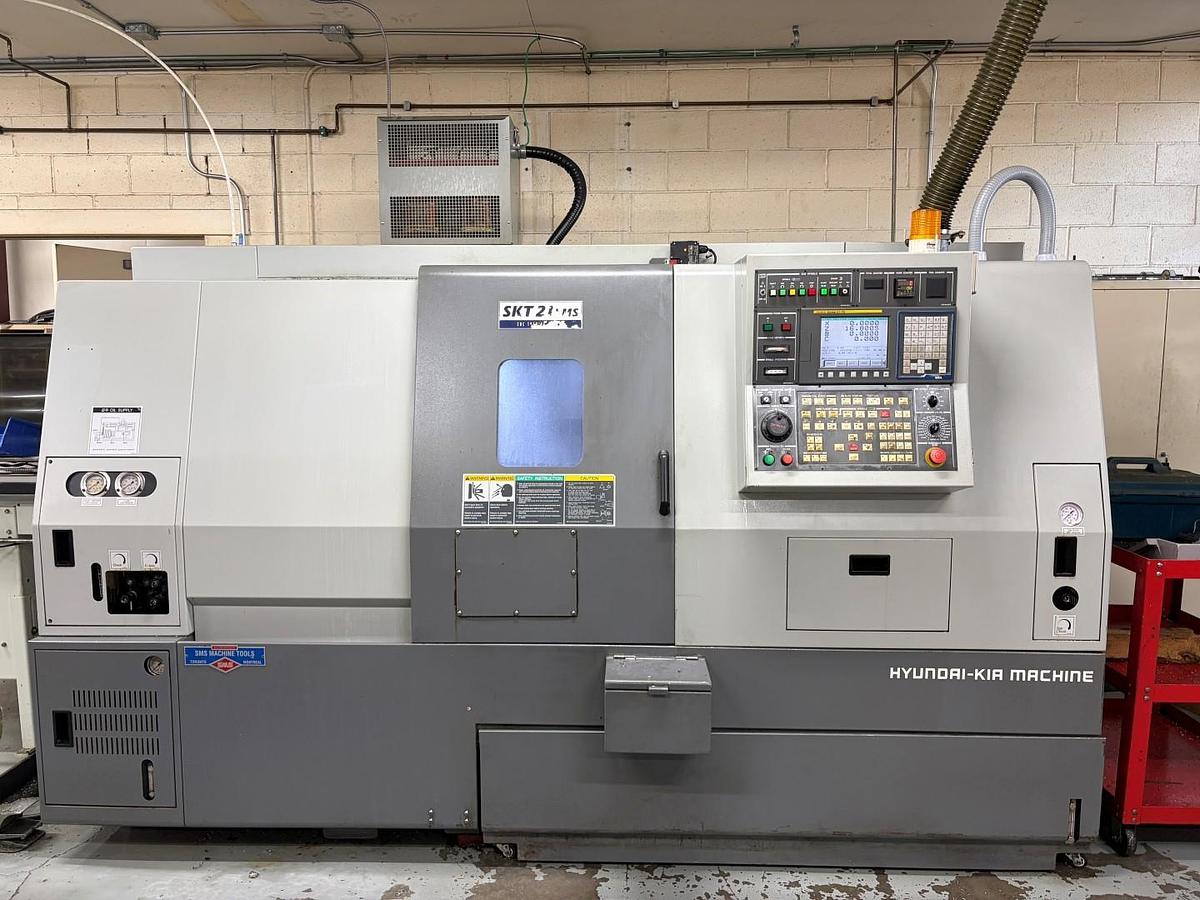

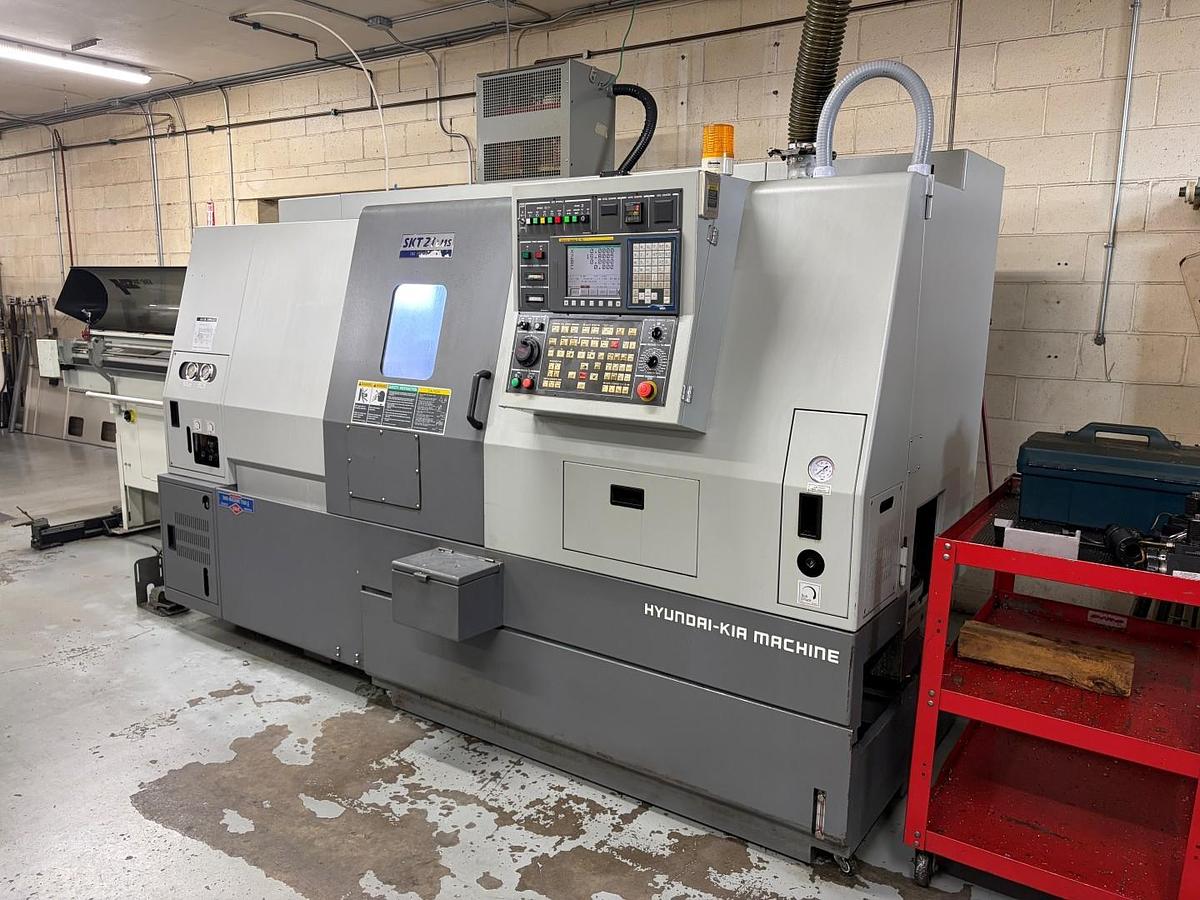

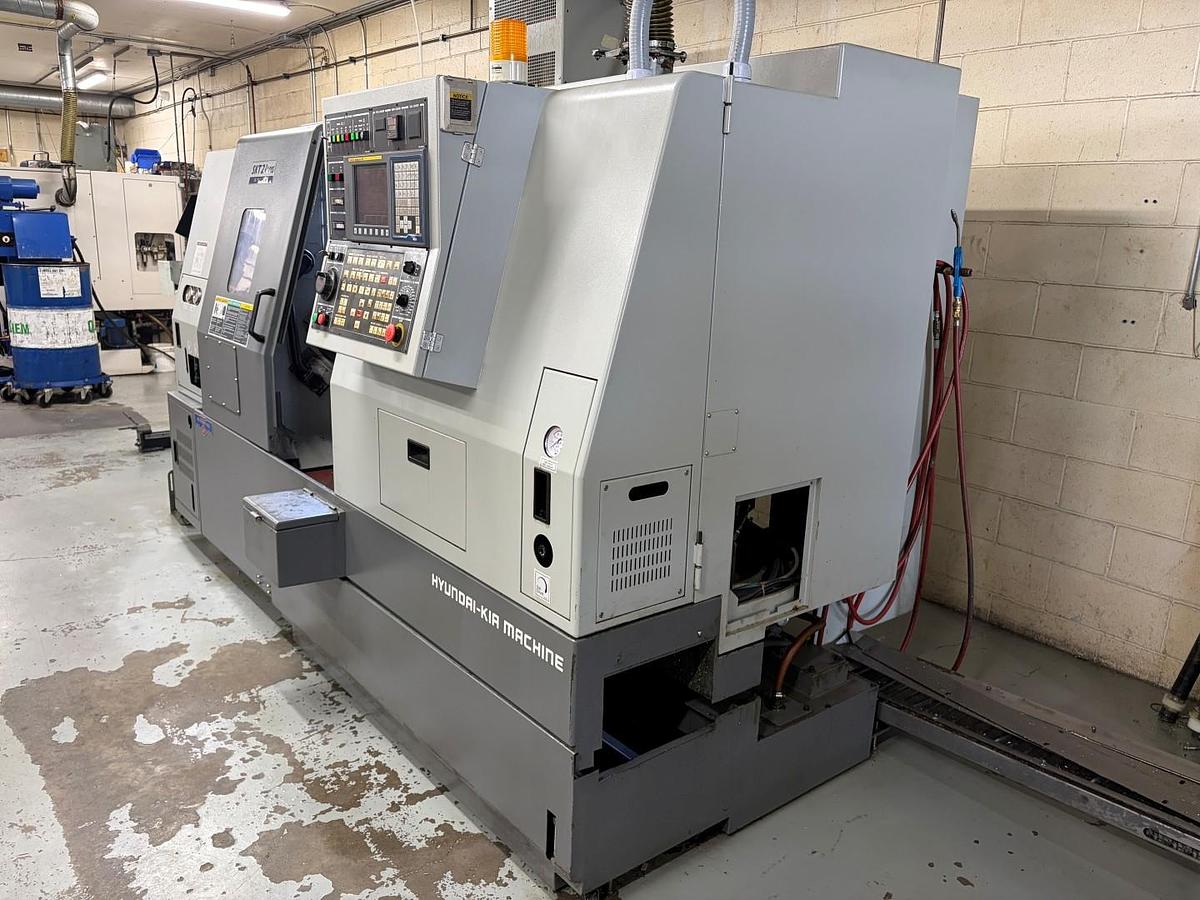

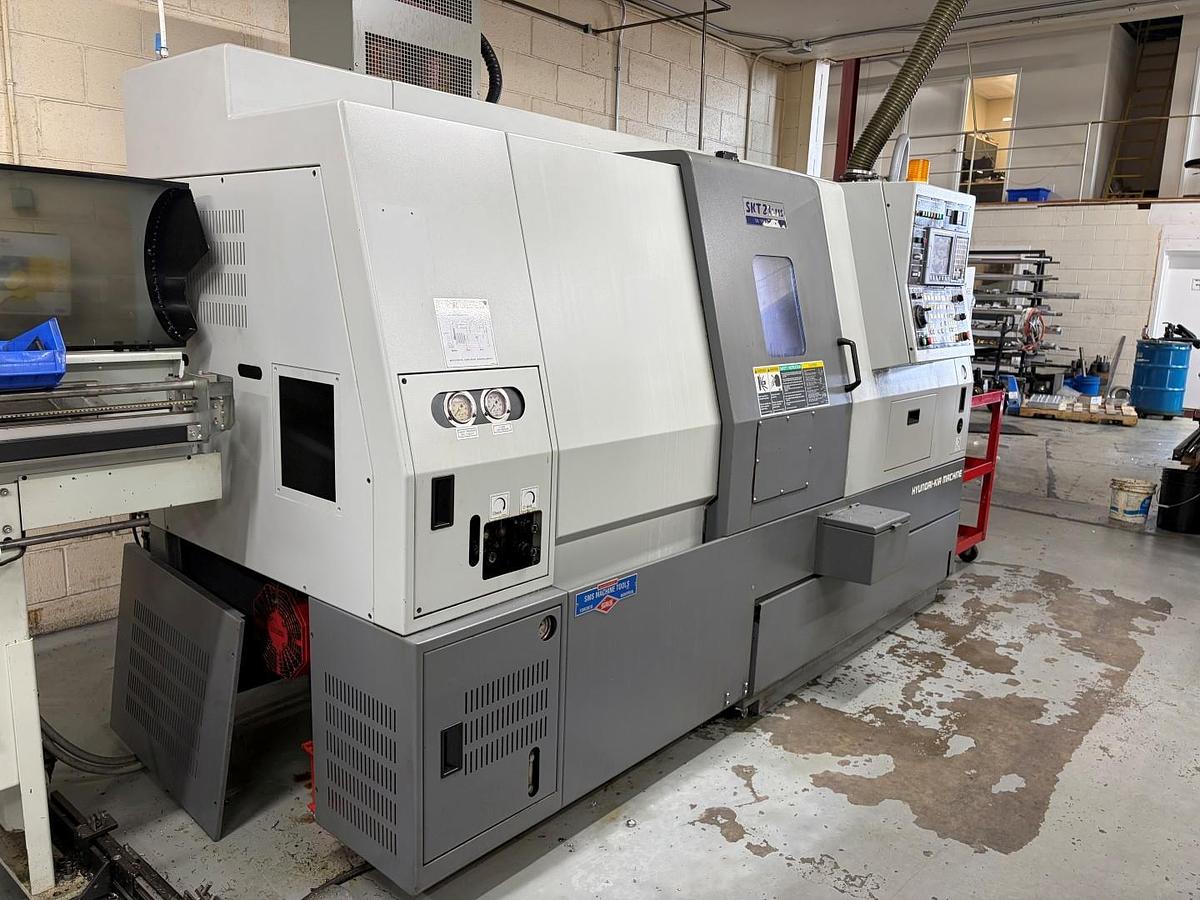

HYUNDAI KIA SKT21LMS CNC TURNING CENTER
HYUNDAI KIA SKT21LMS CNC TURNING CENTER
Available quantity:1
Description
The Hyundai Kia SKT21LMS is a versatile CNC turning center with live tooling and sub-spindle designed for complete turning and milling operations in a single setup. Featuring a 10.2" maximum turning diameter, 20.87" maximum cutting length, 2.56" bar capacity, and 4,000 RPM main spindle, the machine is well suited for precision production machining. Its 12-station turret supports live tooling speeds up to 4,000 RPM, while the 5" sub-spindle enables efficient secondary operations and finished-part production. Controlled by a Fanuc Series 0i-TC CNC, the machine is equipped with 2 radial live tools, 2 axial live tools, sub-spindle, parts catcher, tool setter, and chip conveyor, making it ideal for automotive, aerospace, and general precision machining applications.
Specifications
| Manufacturer | Hyundai Kia |
| Model | SKT21LMS |
| Condition | Used |

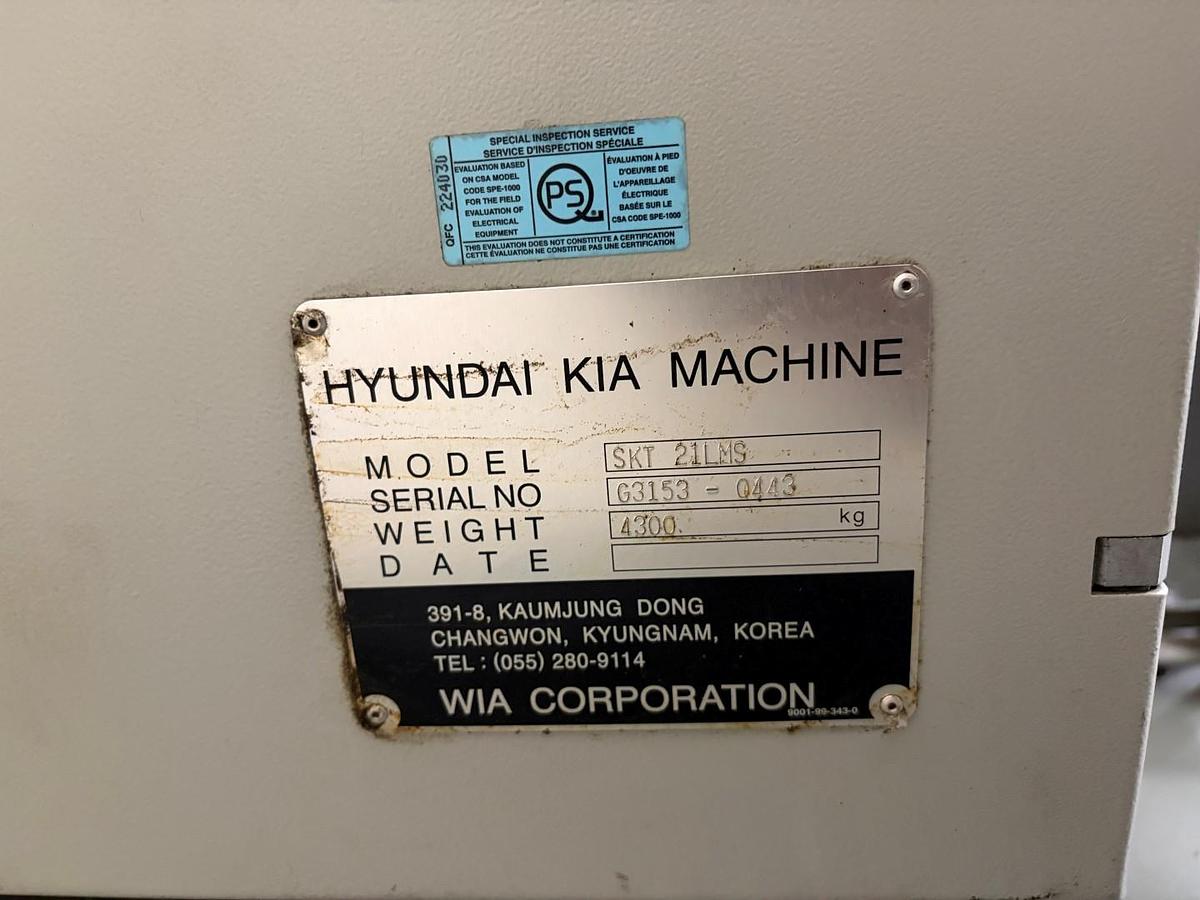

| Serial Number | G3153-0443 |
| Stock Number | LTH-HYN-0443 |
| Swing Over Bed | 551 mm (21.7") |
| Swing Over Saddle / Cross Slide | 351 mm (13.8") |
| Maximum Turning Diameter | 259 mm (10.2") |
| Maximum Cutting Length | 530 mm (20.87") |
| Distance Between Spindles | 551 mm (21.7") |
| X-Axis Travel | 211 mm (8.3") |
| Z-Axis Travel | 551 mm (21.7") |

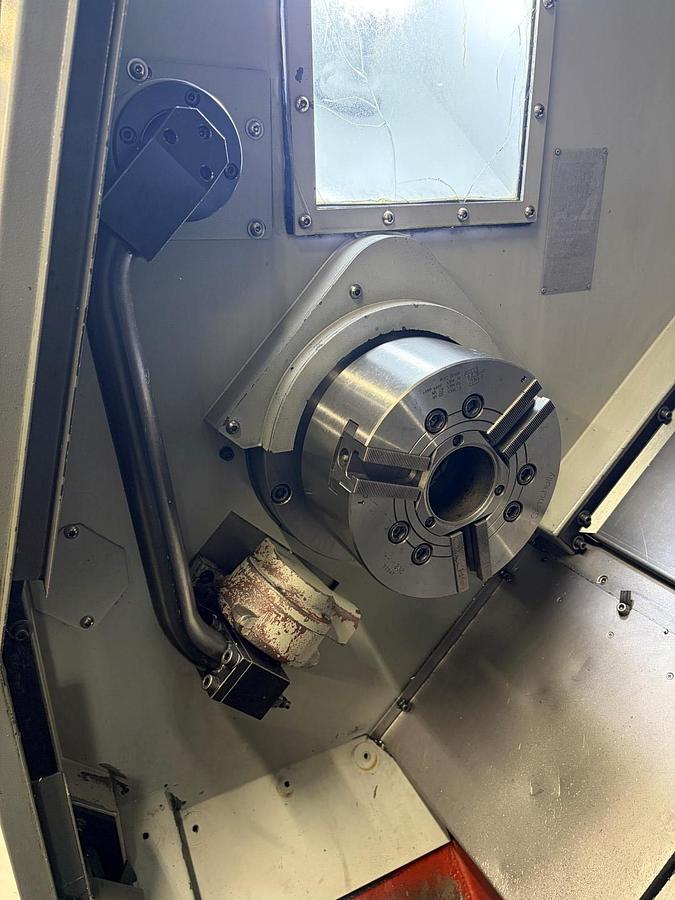

| Main Spindle Chuck Size | 203 mm (8") |
| Main Spindle Bore | 78.7 mm (3.1") |
| Main Spindle Maximum Bar Capacity | 65 mm (2.56") |
| Main Spindle Speed | 25 - 4,000 RPM |
| Main Spindle Motor (30 Min. / Continuous) | 14.9 / 11.2 kW (20 / 15 HP) |

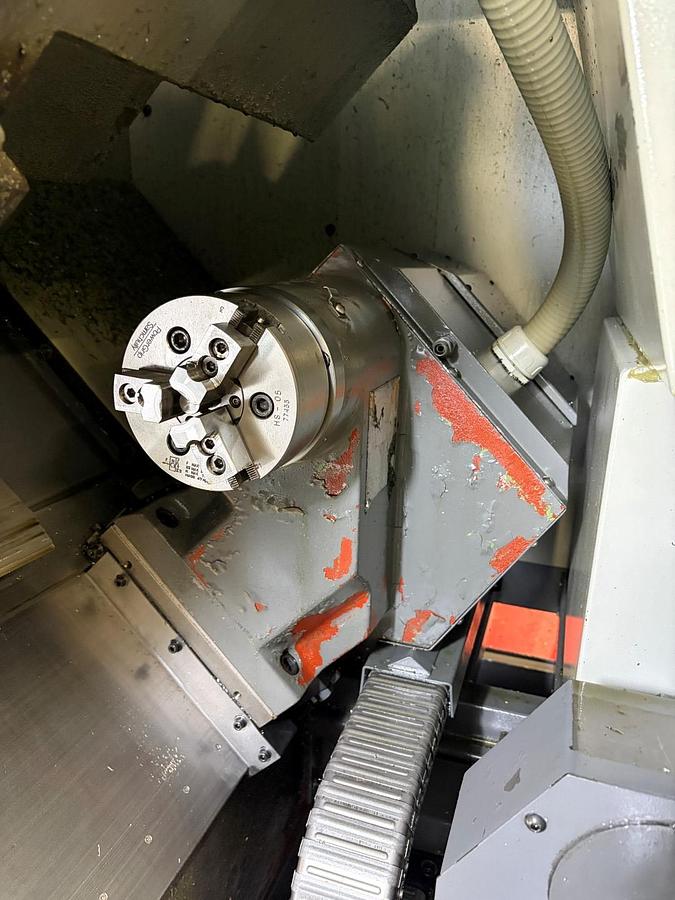

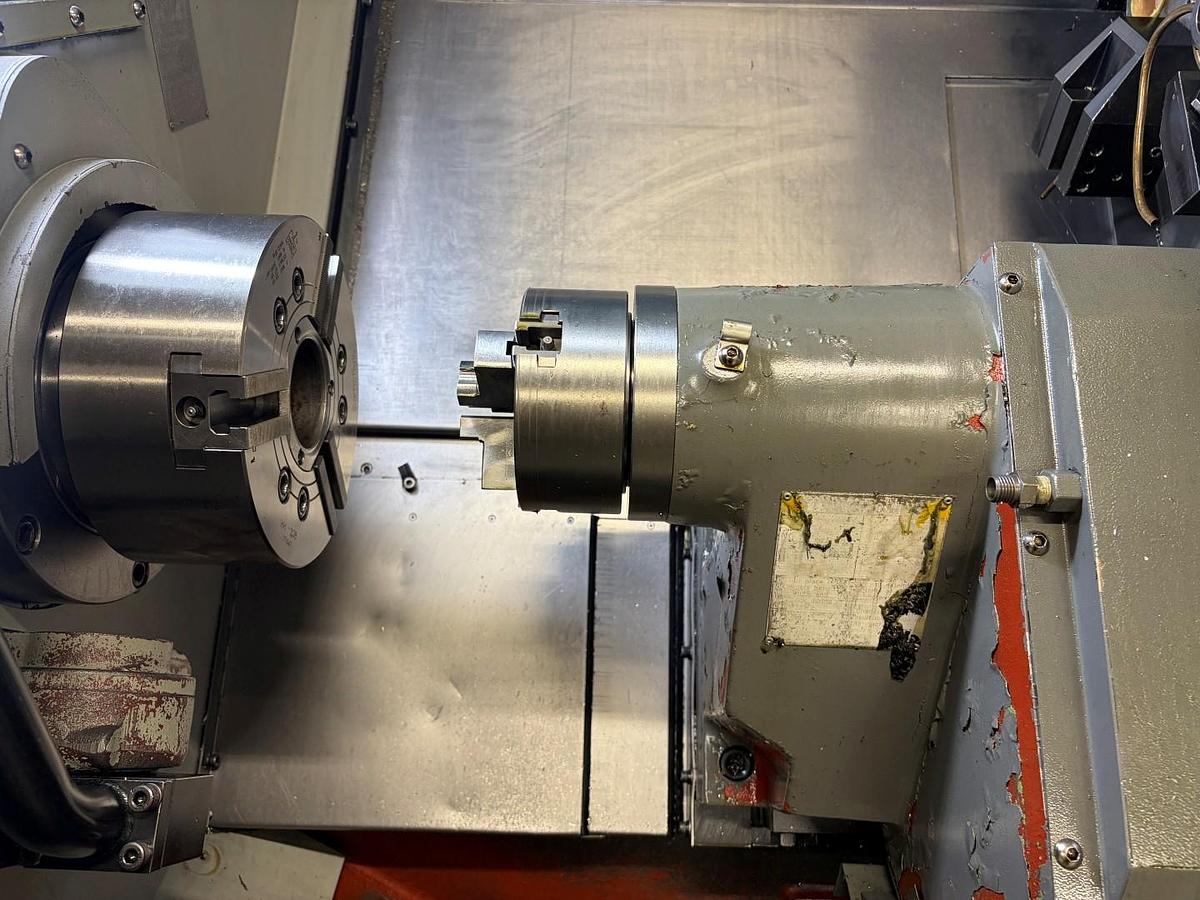

| Sub-Spindle Chuck Size | 127 mm (5") |
| Sub-Spindle Bore / Bar Capacity | 43.2 / 33 mm (1.7" / 1.3") |
| Sub-Spindle Speed | 40 - 4,000 RPM |
| Sub-Spindle Motor (30 Min. / Continuous) | 3.7 / 2.2 kW (5 / 3 HP) |

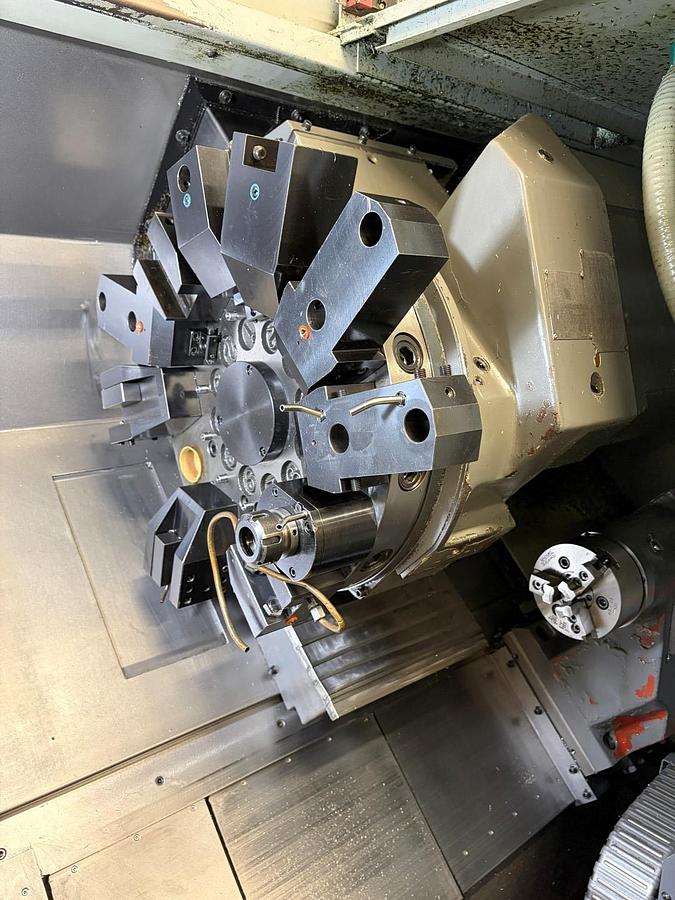

| Turret | 12 Stations |
| Rotary / Live Tool Speed | 30 - 4,000 RPM |
| Rotary Tool Motor (30 Min. / Continuous) | 3.7 / 2.2 kW (5 / 3 HP) |
| Rapid Traverse - X Axis | 15 m/min (590 IPM) |
| Rapid Traverse - Z Axis | 18 m/min (708 IPM) |
| Feed Rate - X & Z | 1 - 3,988 mm/min (0.04 - 157 IPM) |
| Machine Dimensions (L x W x H) | 3,048 x 1,676 x 2,032 mm (120" x 66" x 80") |
| Machine Weight | 4,300 kg (9,480 lbs) |
Equipped With

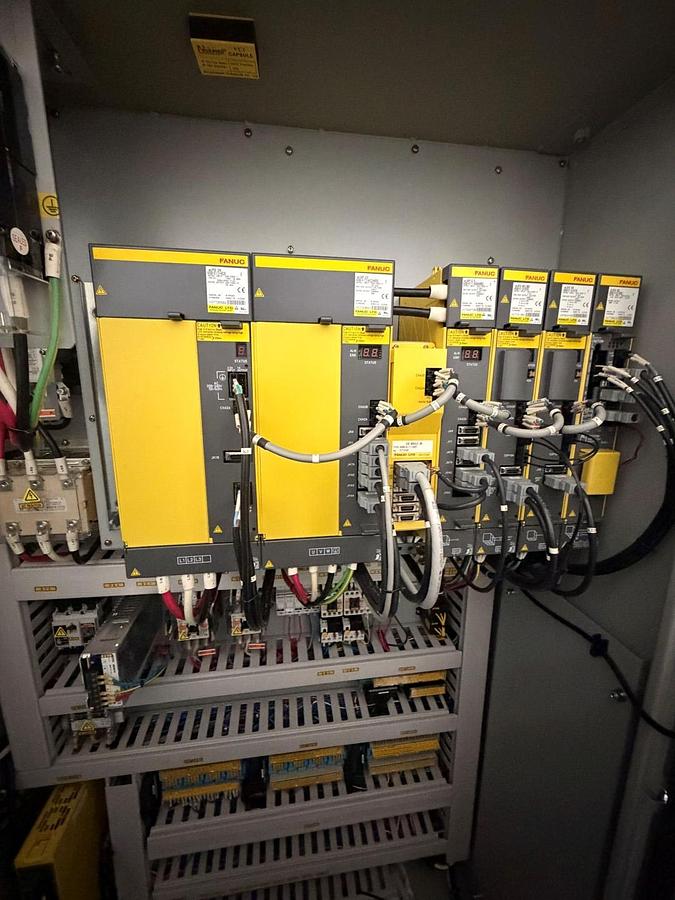

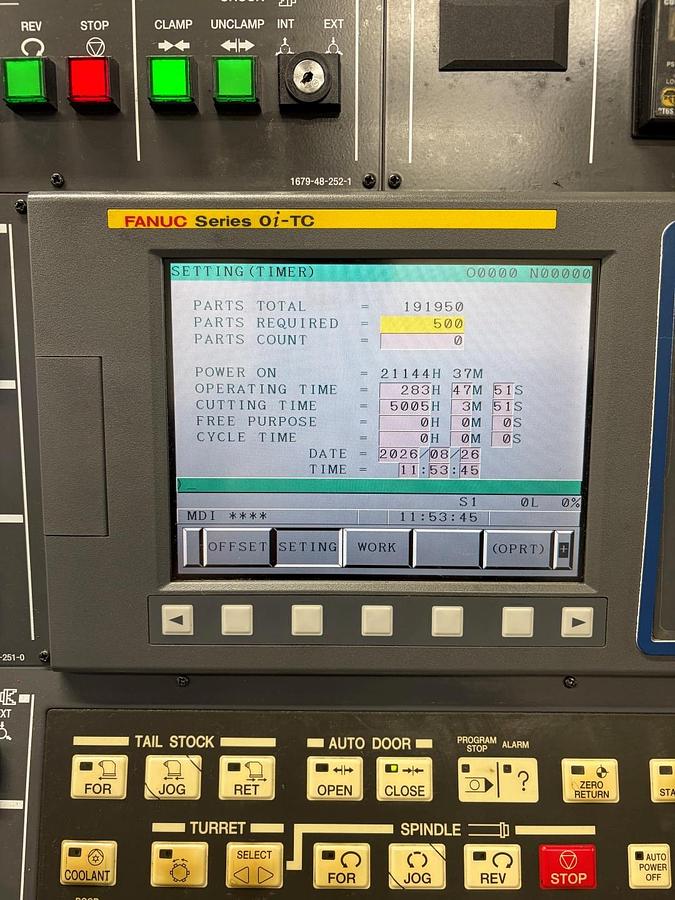

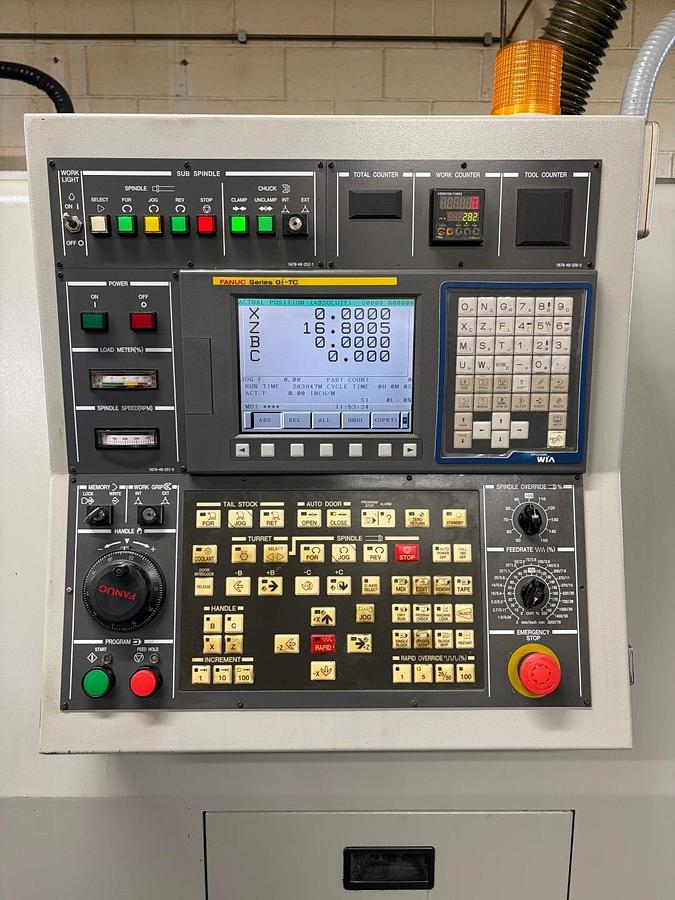

• Fanuc Series 0i-TC CNC Control

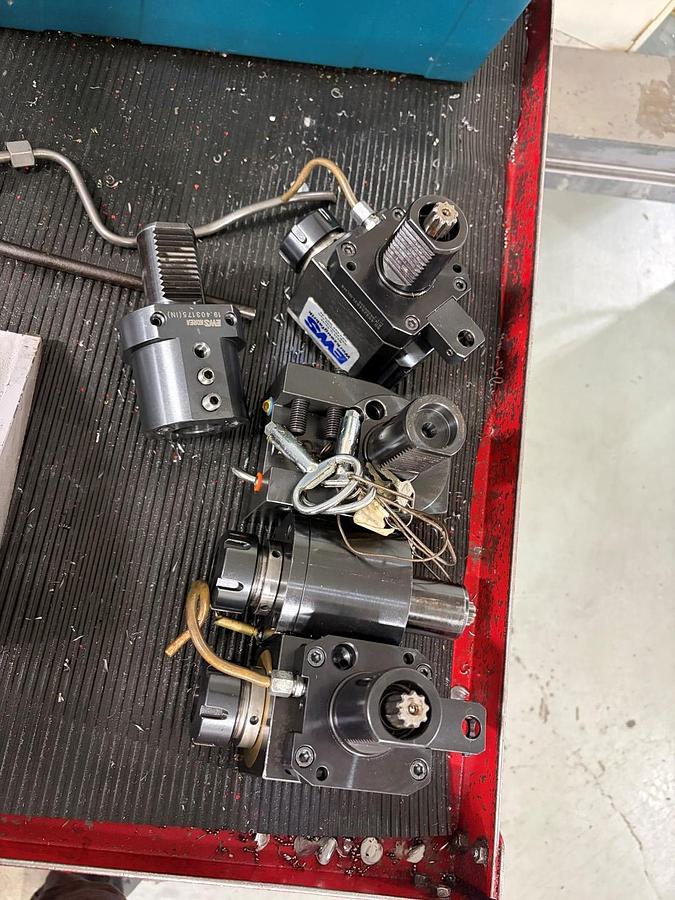

•2x Radial Live Tooling
•2x Axial Live Tooling
• Sub-Spindle
• Parts Catcher
• Tool Setter

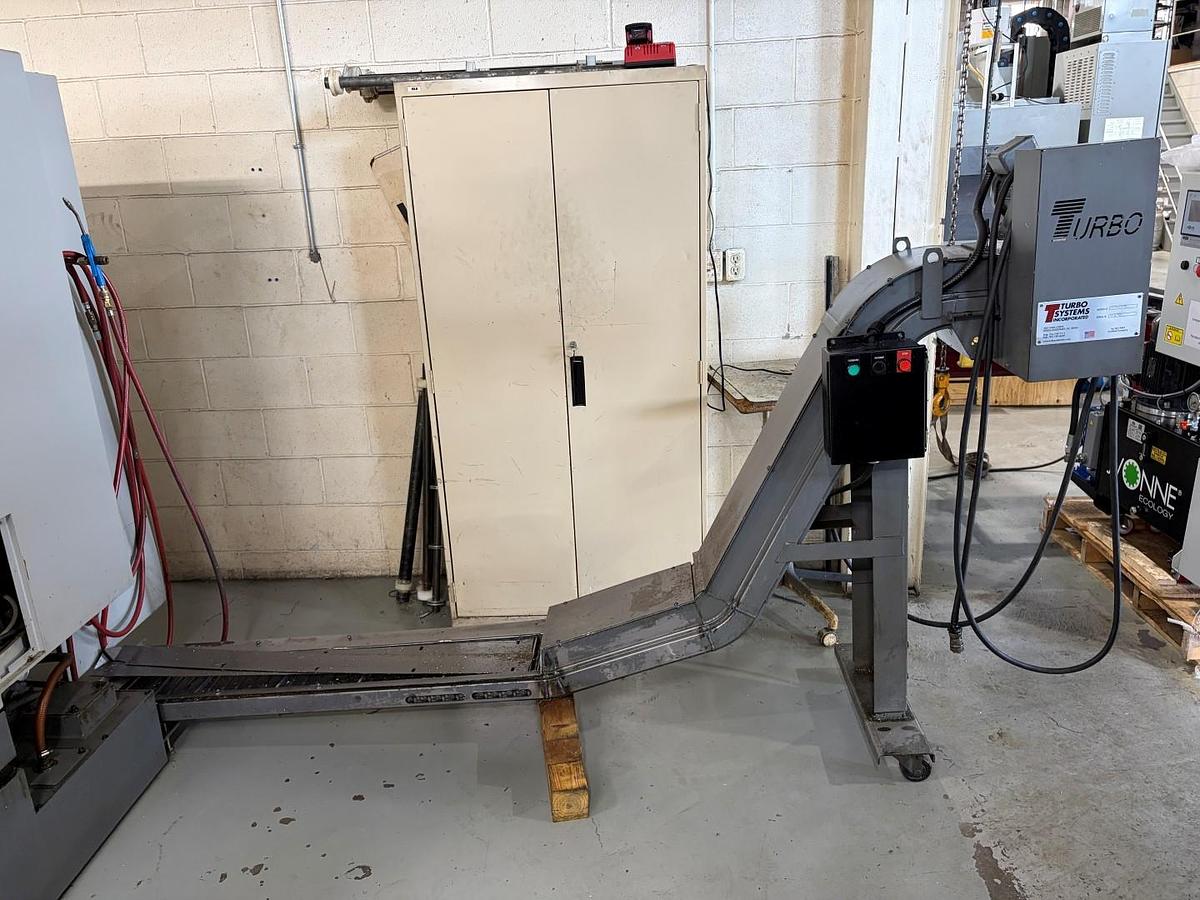

• Chip Conveyor
