OKUMA & HOWA 2SP-V35 CNC TWIN-SPINDLE VERTICAL TURNING CENTER
OKUMA & HOWA 2SP-V35 CNC TWIN-SPINDLE VERTICAL TURNING CENTER
Available quantity:1
Description

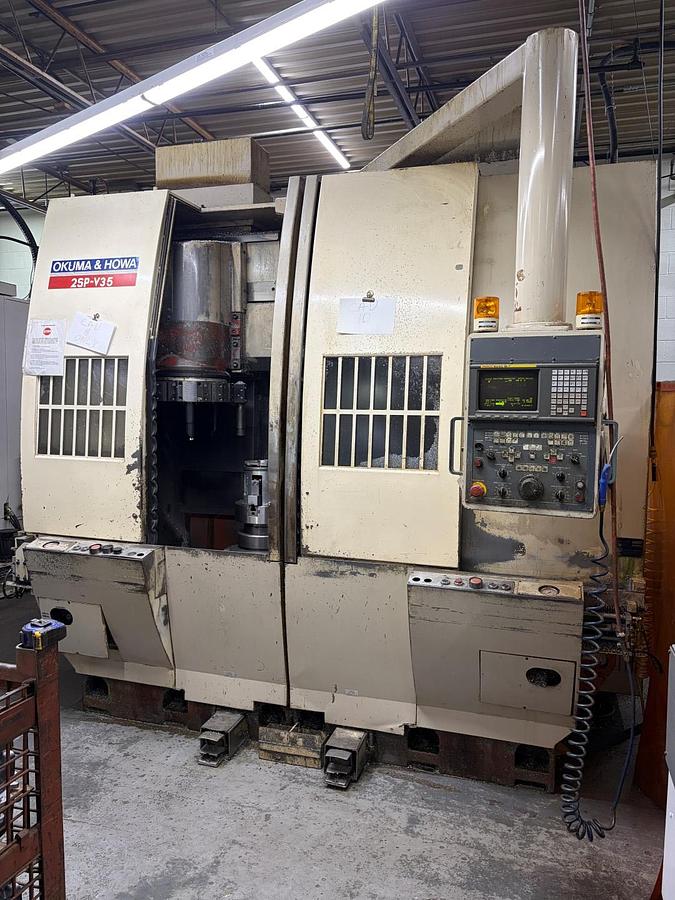

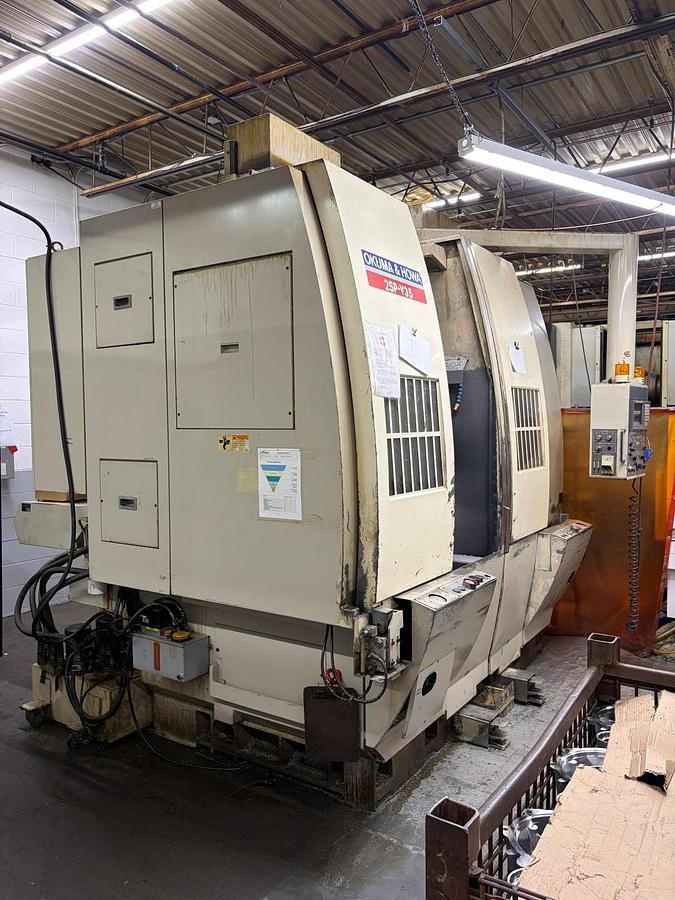

The Okuma & Howa 2SP-V35 is a heavy-duty CNC twin-spindle vertical turning center designed for high-volume production and simultaneous machining operations. Featuring two vertical spindles, a 13.78" maximum turning diameter, 19.69" maximum swing, and 16.93" maximum turning length, the machine provides excellent capacity for production turning. Both spindles operate up to 2,500 RPM, while the dual V12 turrets provide 12 tools per side (24 total) for efficient machining and reduced cycle times. Controlled by a Fanuc Series 18-T CNC, the machine is equipped with a twin-spindle configuration, dual 12-position turrets, chip conveyor, and coolant system, making it ideal for automotive, bearing, flange, and high-volume precision component manufacturing.
Specifications
| Manufacturer | Okuma & Howa |
| Model | 2SP-V35 |
| Condition | Used |

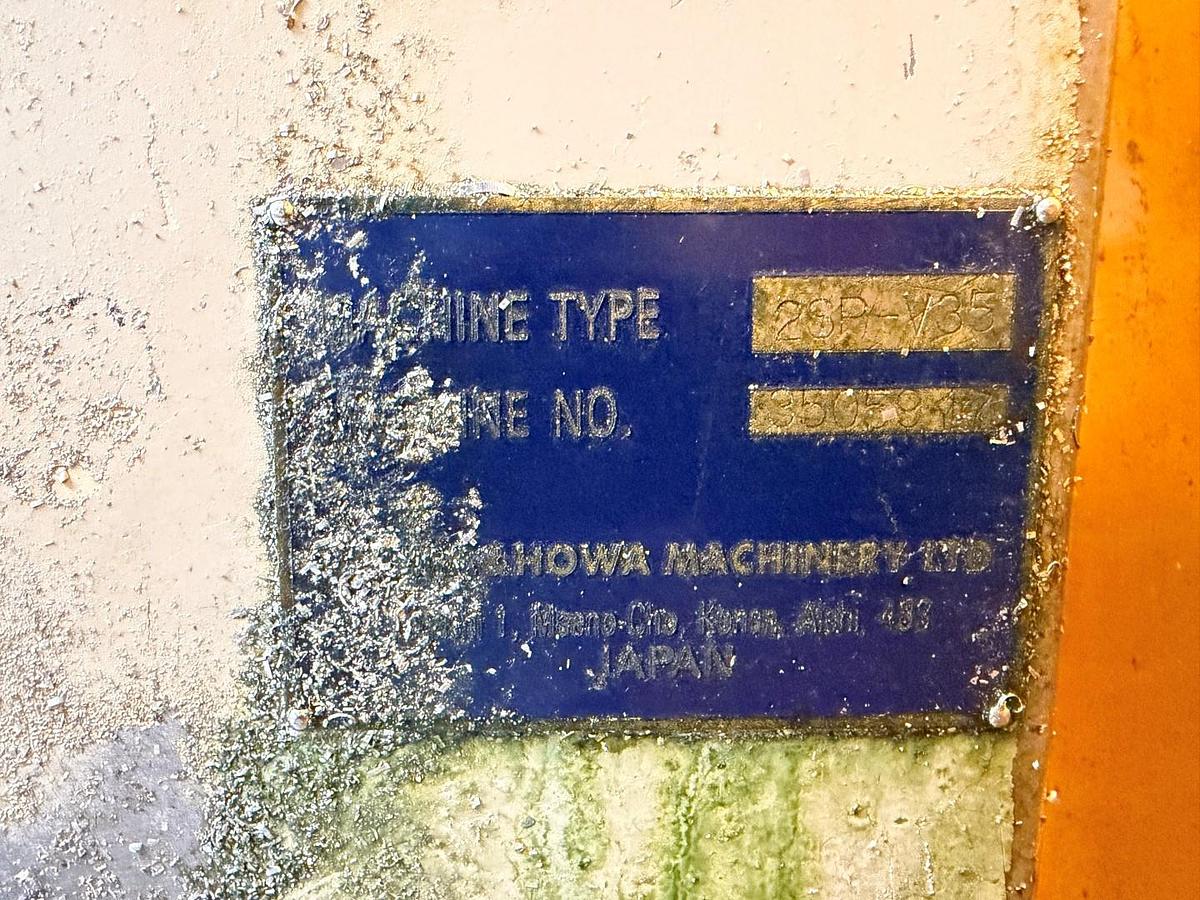

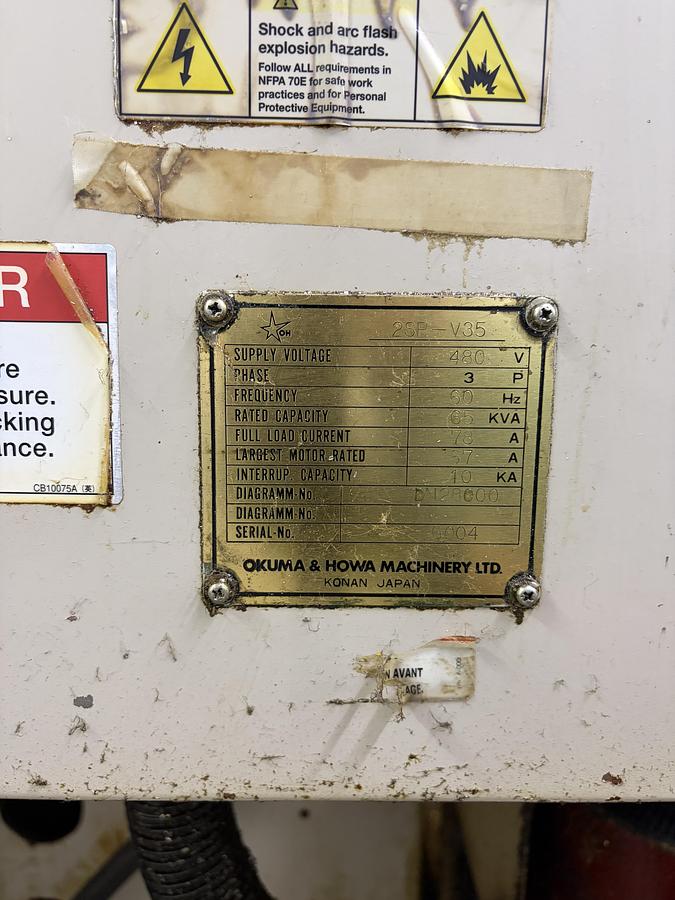

| Serial Number | 3505917 |
| Stock Number | VTL-OKH-5917 |
| Distance Between Spindle Centers | 600 mm (23.62") |
| Maximum Turning Diameter | 350 mm (13.78") |
| Maximum Swing | 500 mm (19.69") |
| Maximum Turning Length | 430 mm (16.93") |
| Spindle Center Height from Floor | 960 mm (37.80") |
| Spindle Hole Taper MT No. | 7 |
| Spindle Speed Range | 25 - 2,500 RPM |
| Maximum Number of Tools | 12 + 12 |
| Standard Tool JIS No. | 4; 25 mm (1") square |
| Optional Standard Tool | 32 mm (1-1/4") square |
| X-Axis Travel | 235 mm (9.25") |
| Z-Axis Travel | 430 mm (16.93") |
| X-Axis Rapid Traverse | 20 m/min (787.40 IPM) |
| Z-Axis Rapid Traverse | 20 m/min (787.40 IPM) |
| Cutting Feed Rate | 0.0001 - 240 mm/rev (0.00001 - 9.44 in/rev) |
| Approximate Machine Weight | 14,000 kg (30,800 lbs) |
Equipped With

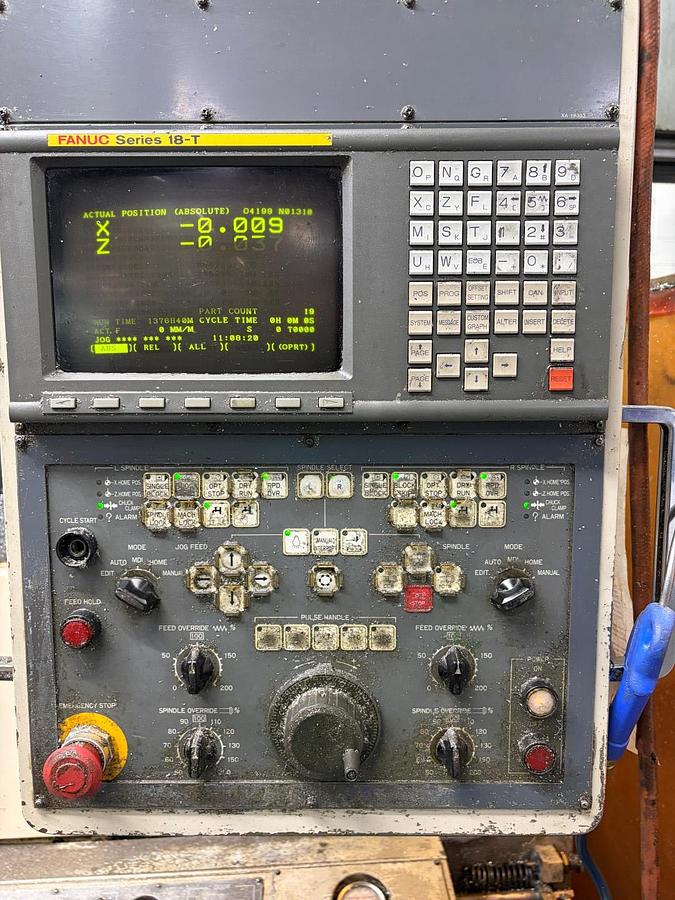

• Fanuc Series 18-T CNC Control

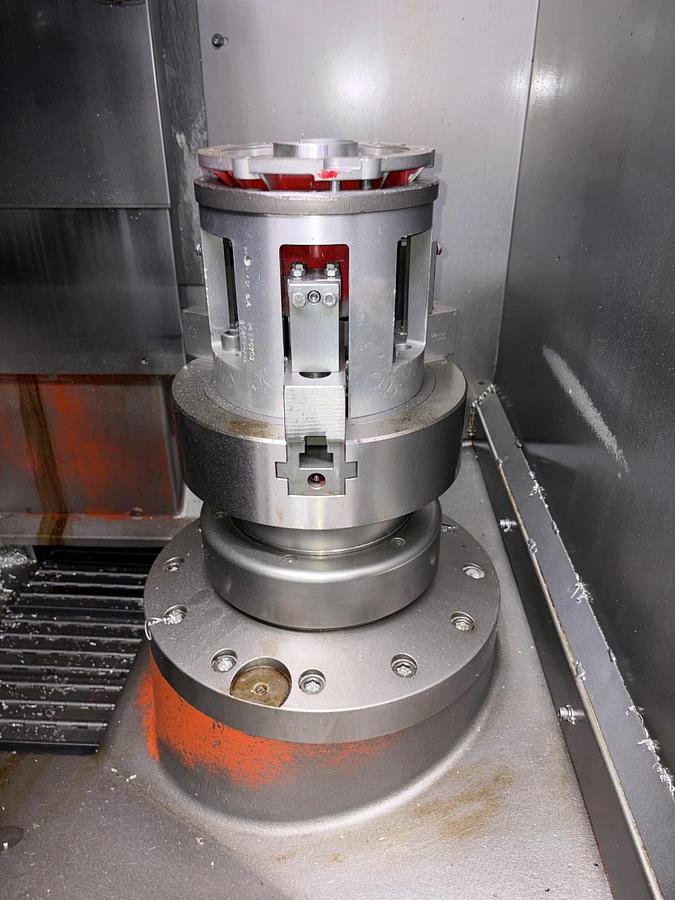

• Twin-Spindle Vertical Turning Configuration

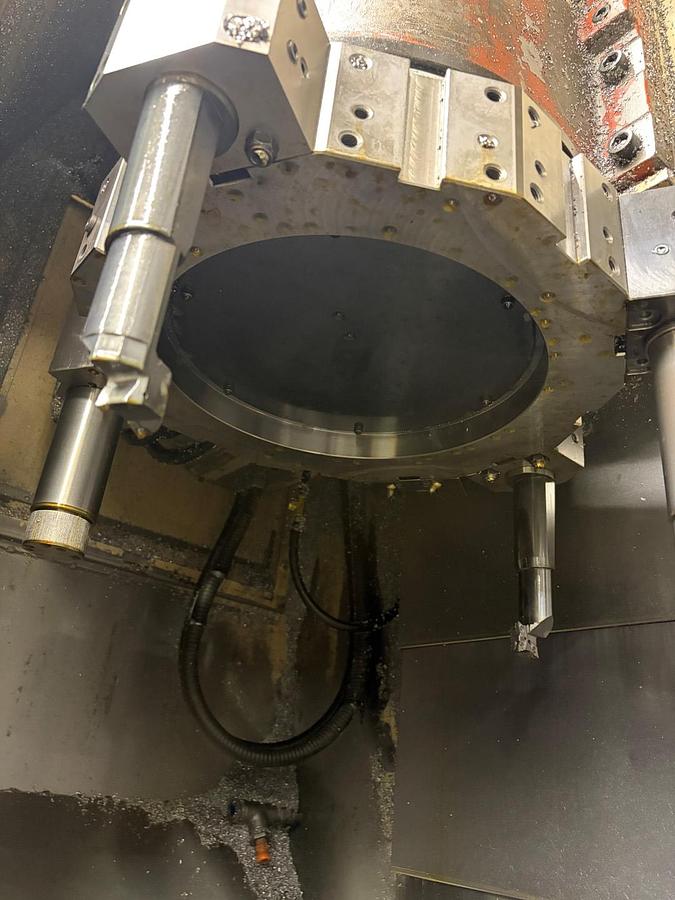

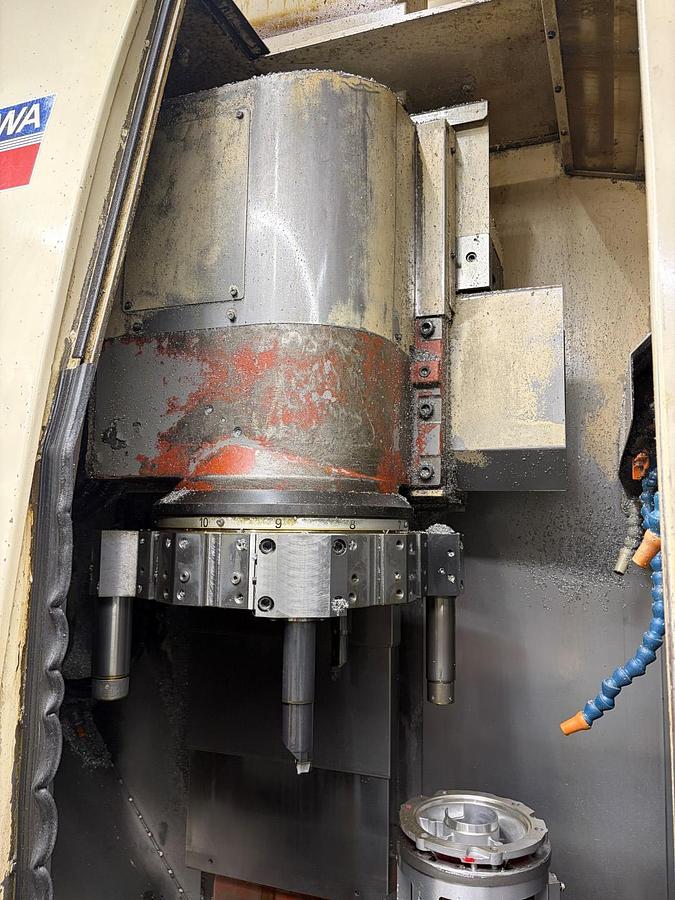

• Two 12-Position Tool Slides / Turrets (V12 + V12)

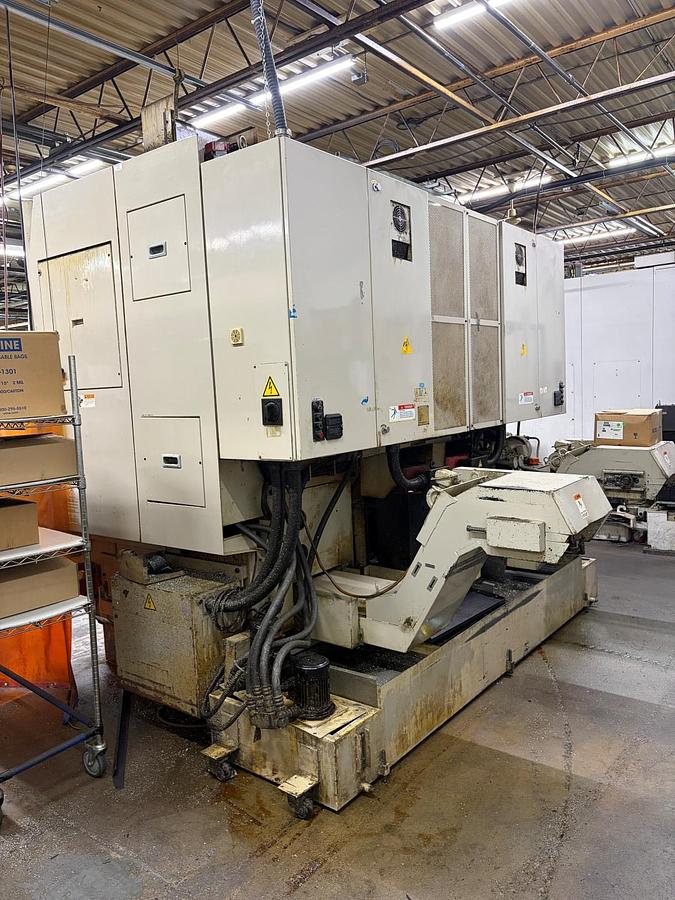

• Chip Conveyor
• Coolant System
