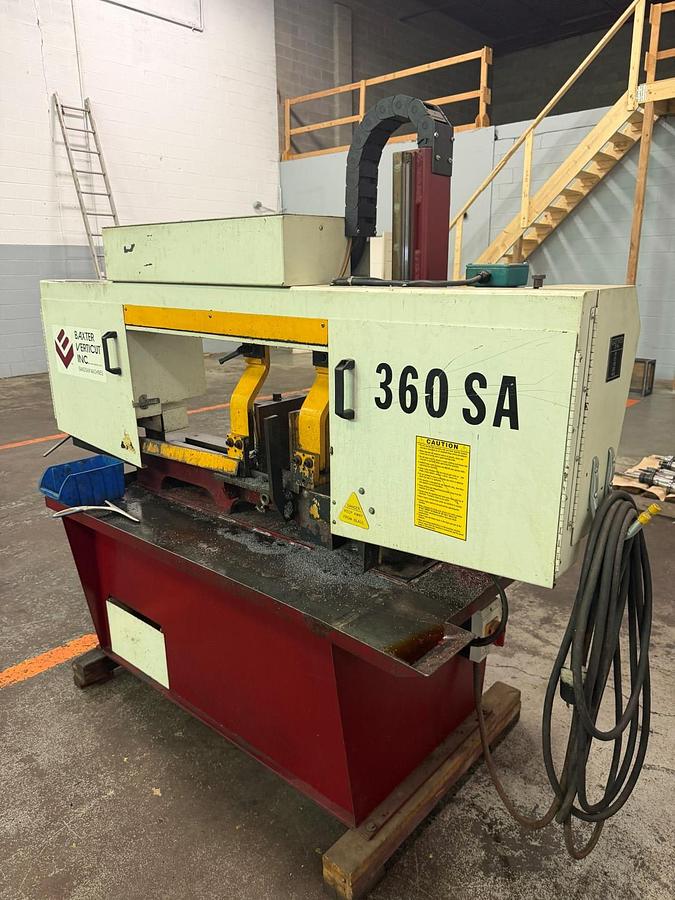

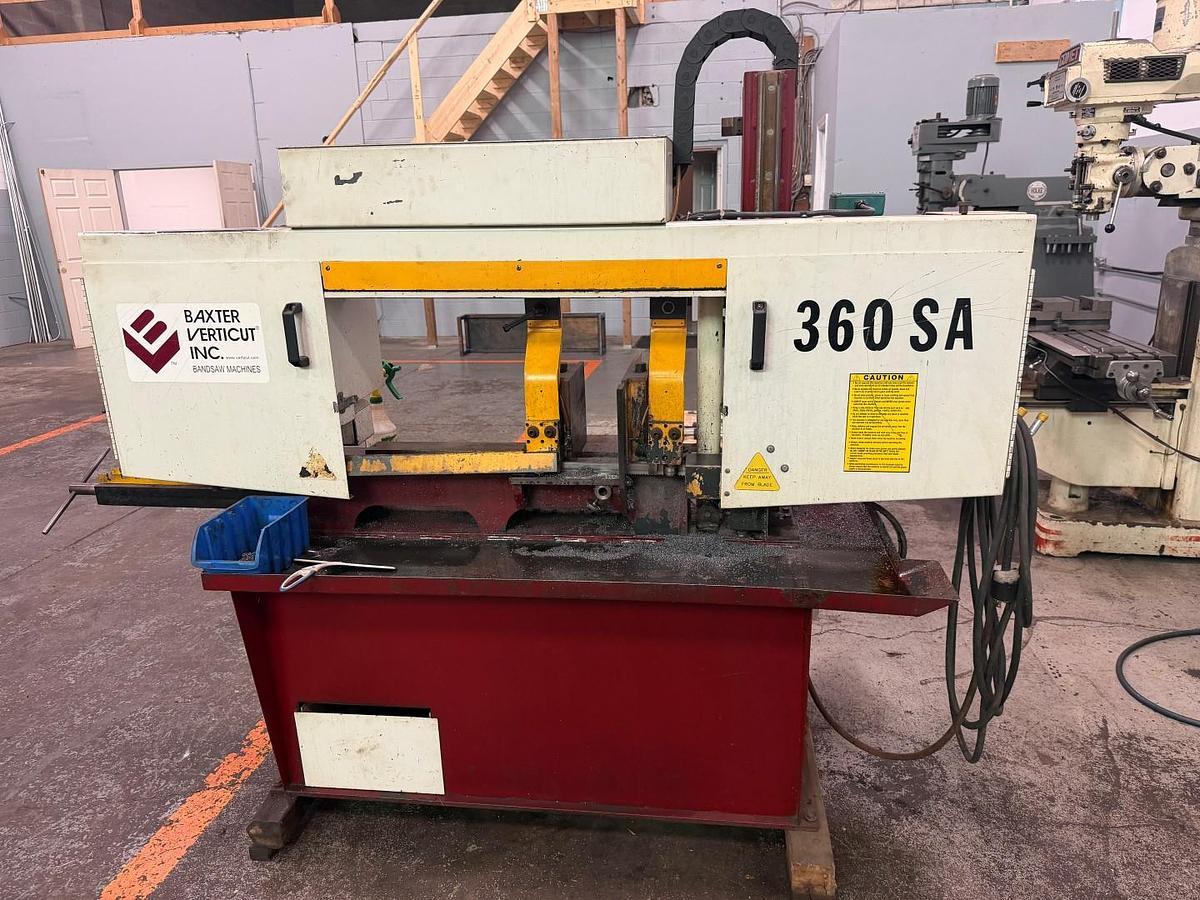

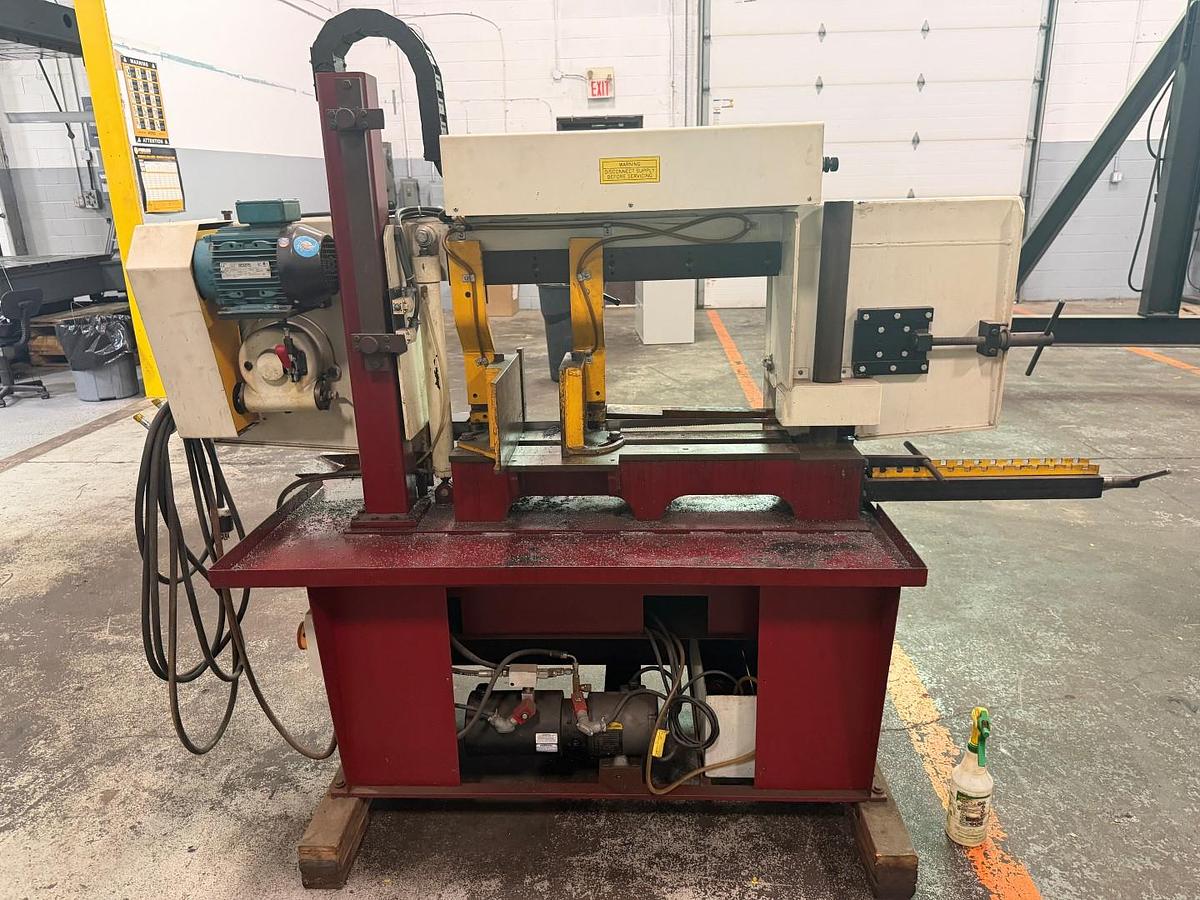

BAXTER VERTICUT 360SA SEMI-AUTOMATIC HORIZONTAL BANDSAW
BAXTER VERTICUT 360SA SEMI-AUTOMATIC HORIZONTAL BANDSAW
Available quantity:1
Description
The Baxter Verticut 360SA is a heavy-duty semi-automatic horizontal double-column bandsaw designed for accurate and efficient cutting of solid stock, tubing, and structural materials. It offers a 14" round cutting capacity at 90°, 10-3/4" capacity at 45°, and a maximum rectangular capacity of 14" × 19", with a 3,000 lb work load capacity. The machine features five blade speeds from 80–400 FPM, a 2 HP blade drive, hydraulic saw head lift, and hydraulically adjustable cutting feed. Equipped with quick-acting material clamping, 45° miter cutting, carbide blade guides, powered blade brush, load-sensing feed protection, and flood coolant system, the 360SA is ideal for fabrication shops, machine shops, and industrial metal-cutting applications.
Specifications
| Manufacturer | Baxter Verticut |
| Model | 360SA |
| Condition | Used |
| Stock Number | MNL-BAX-0001 |
| Round Cutting Capacity (90) | 90° 14" (360 mm) |
| Round Cutting Capacity (45) | 45° 10-3/4" (273 mm) |
| Rectangular Cutting Capacity | 14" x 19" (360 x 480 mm) |
| Blade Size | 1" x 13' 6" (27 x 4,115 mm) |
| Blade Speeds | 80, 125, 180, 265, 400 ft/min (25, 38, 55, 81, 122 m/min) |
| Blade Tension | 30,000 psi (207 MPa), Spring Compensated |
| Table Height | 26-1/4" (660 mm) |
| Maximum Work Load | 3,000 lbs (1,350 kg) |

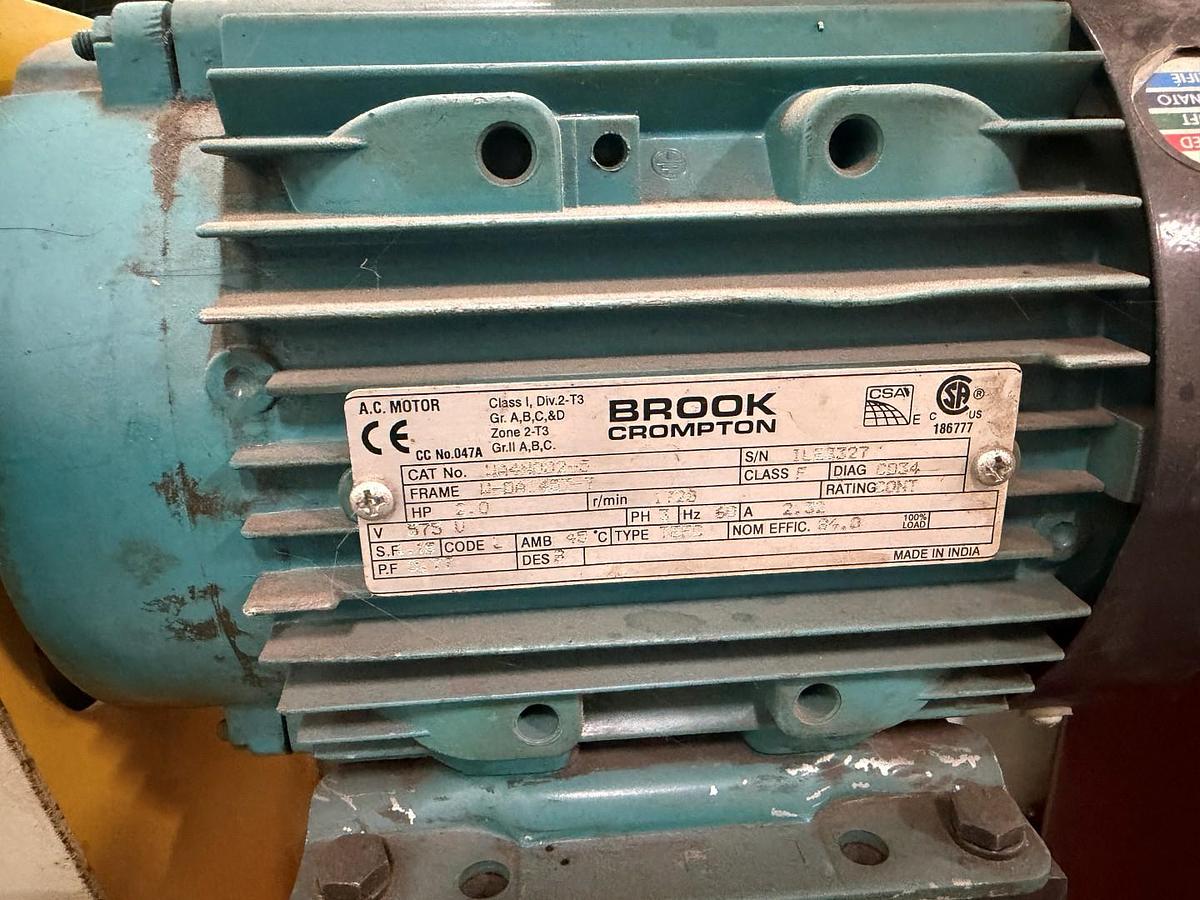

| Blade Drive | 2 HP (1.5 kW) |
| Hydraulic Drive | 1 HP (0.75 kW) |
| Available Voltage | 575 / 460 / 230 / 208 V, 3-Phase |
| Overall Dimensions | 7' x 4' x 6' (2,130 x 1,220 x 1,830 mm) |
| Machine Weight | 1,400 lbs (636 kg) |
Equipped With
• Double Column Design
• Hydraulic Saw Head Lift

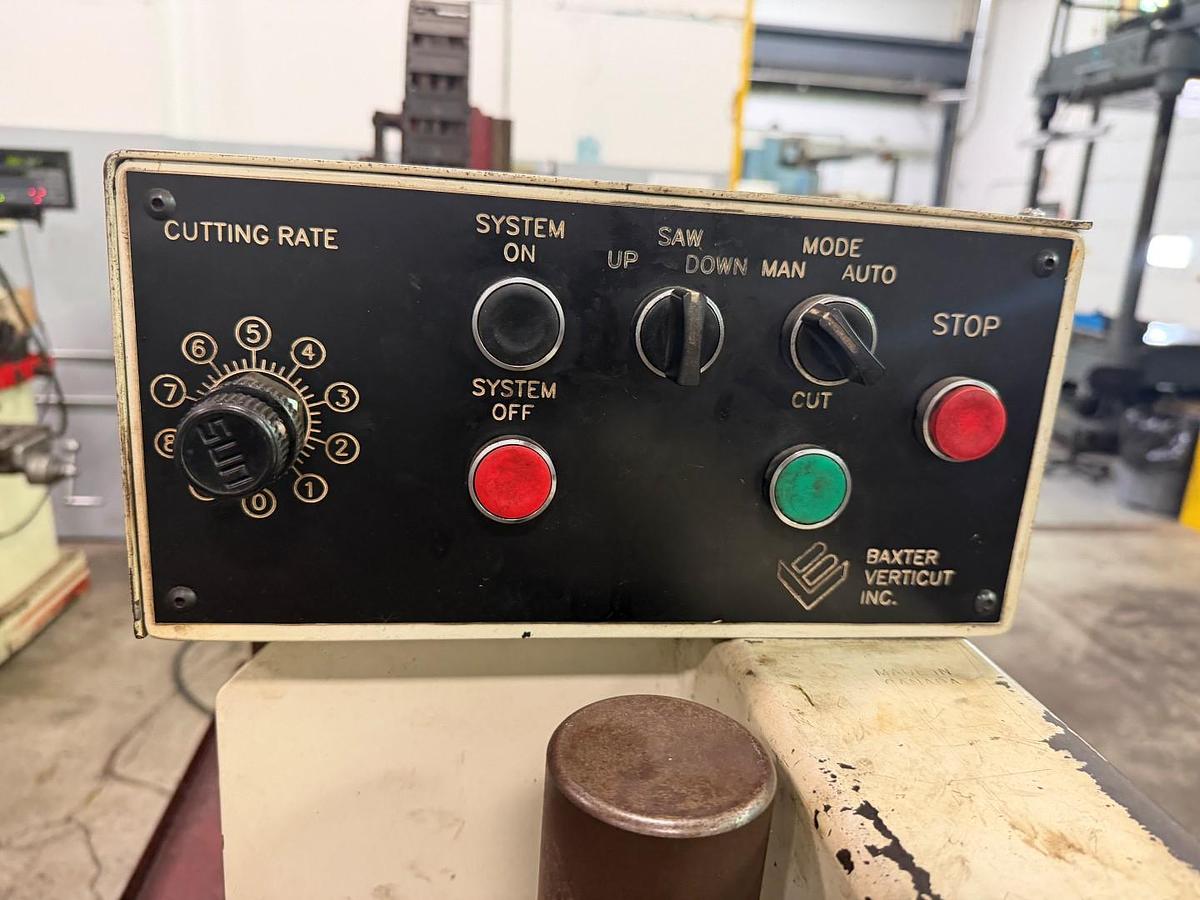

• Semi-Automatic Cut Cycle
• Hydraulically Adjustable Cutting Feed Rate
• Load Sensing Feed Protection
• Quick Acting Material Clamping
• 45° Miter Cutting by Swiveling Vise
• Adjustable Material Length Stop
• Powered Blade Brush
• Carbide-Faced Blade Guides with Rollers
• Flood Coolant System
• Magnetic Motor Starter with Automatic End-of-Cut Shutoff
• Power Disconnect
• Blade Guards
