NICOLAS CORREA EURO 2000 CNC MACHINING CENTER
NICOLAS CORREA EURO 2000 CNC MACHINING CENTER
Available quantity:1
Description

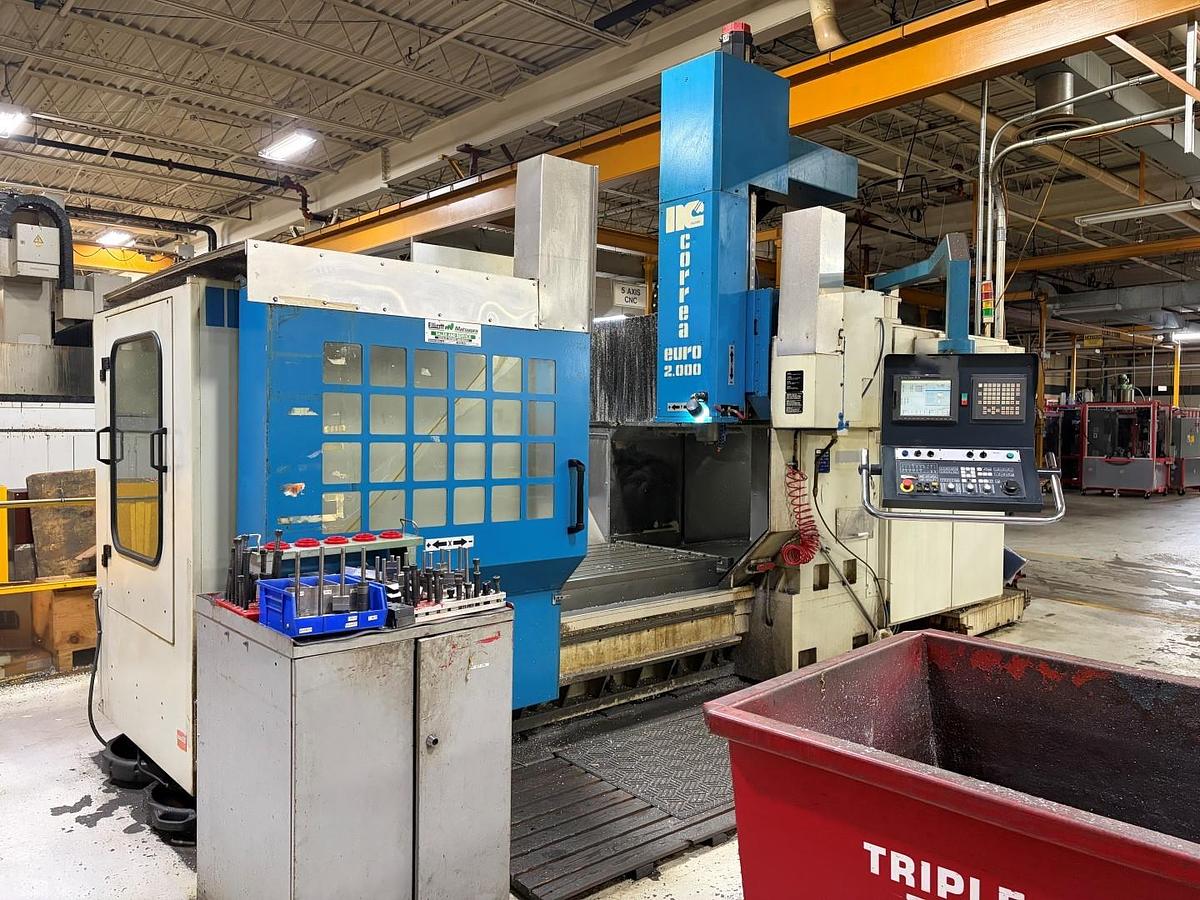

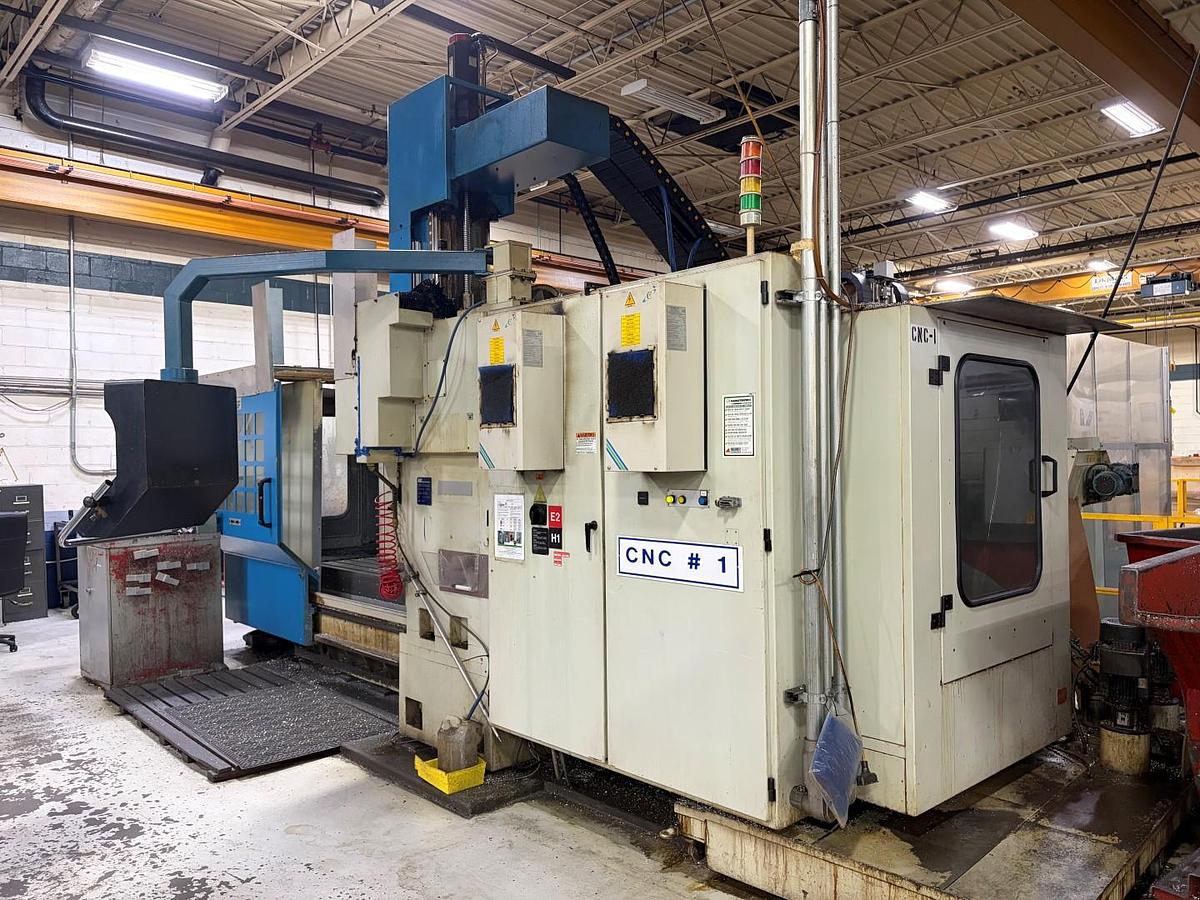

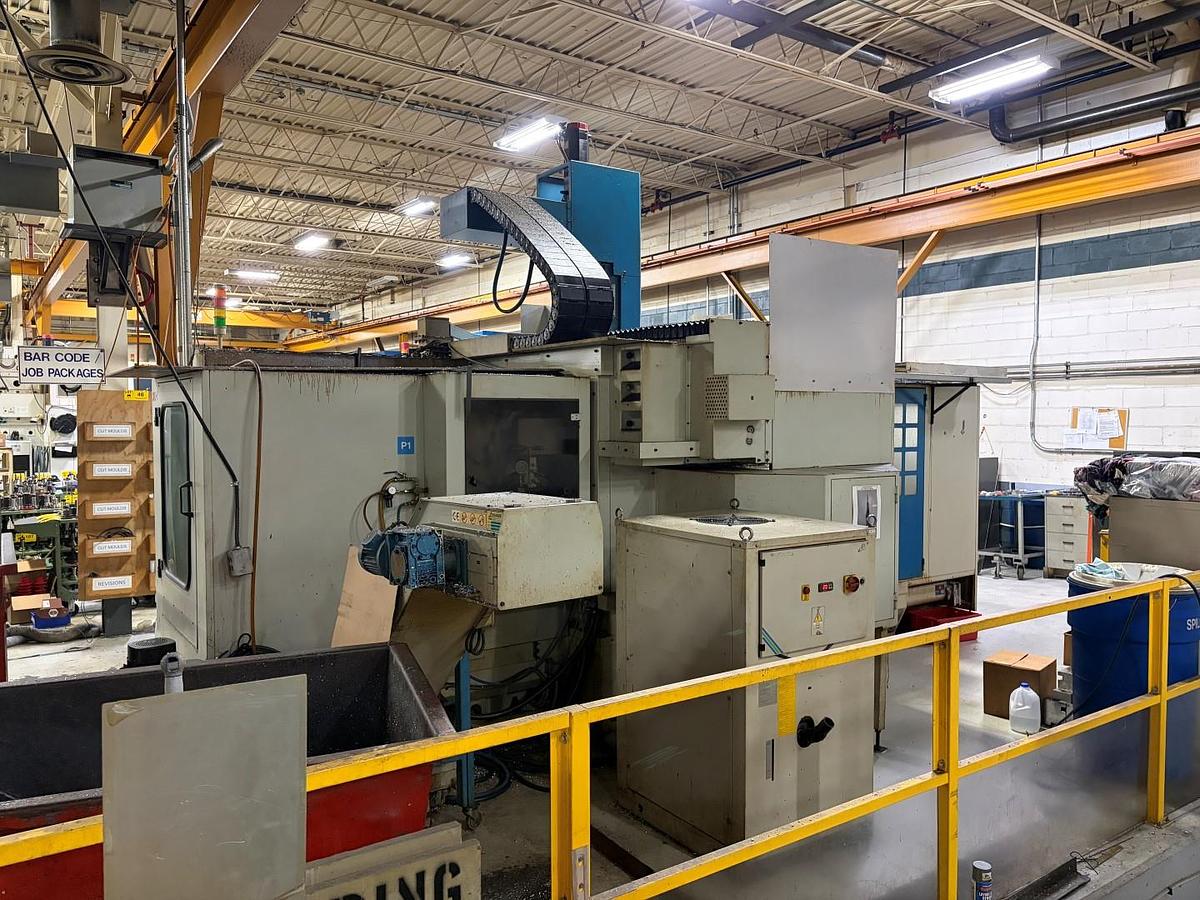

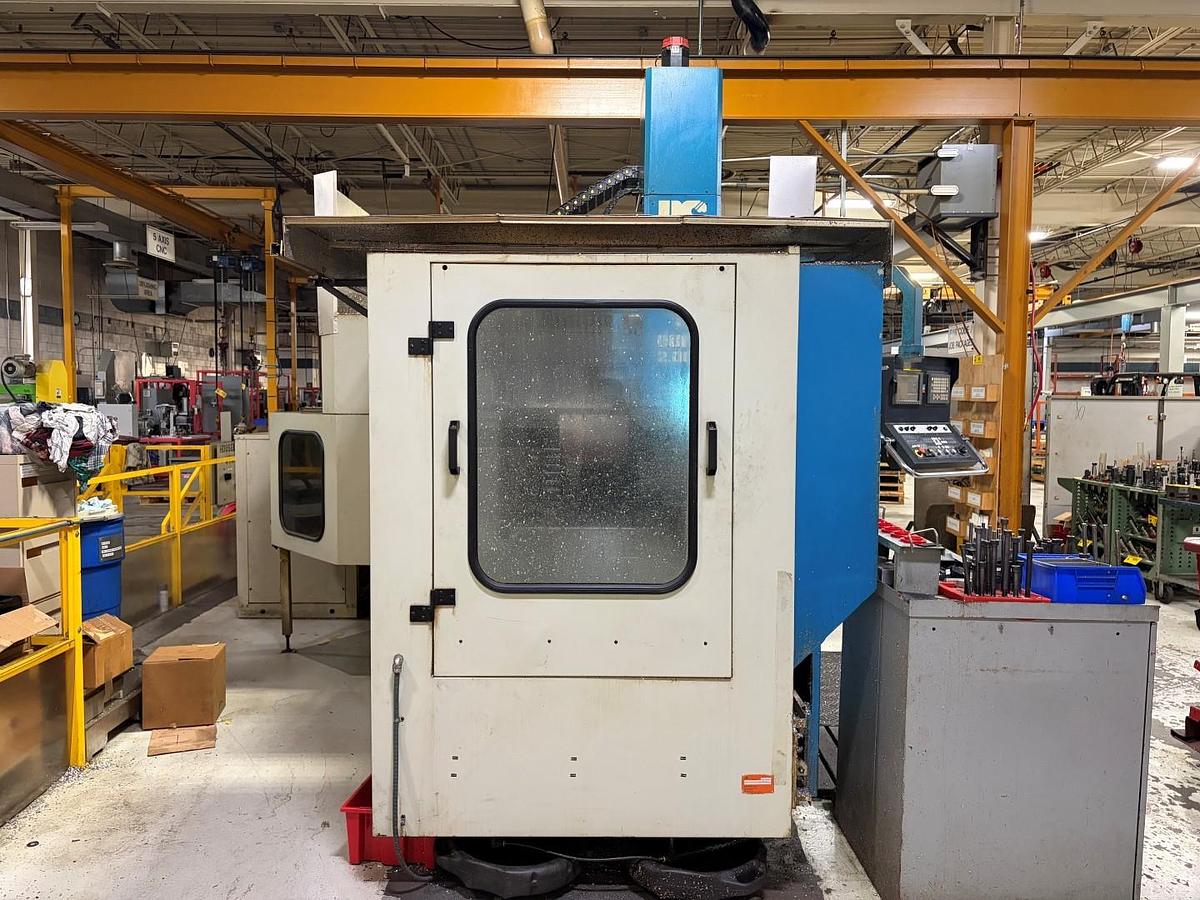

The Nicolas Correa EURO 2000 is a heavy-duty CNC machining center designed for large-part precision milling and demanding industrial applications. Featuring 78.74" (X), 49.21" (Y), and 25.59" (Z) travels, a 78.74" × 39.37" table, and an impressive 11,023 lb table load capacity, it provides substantial capacity for large and heavy workpieces. The machine features an ISO-40 spindle with speeds up to 10,000 RPM, 25 kW spindle output, and a 24-tool automatic tool changer. Controlled by a GE Fanuc Series 16i-M CNC, it is equipped with through-spindle coolant, chip conveyor, coolant tank, chiller, and manuals, making it ideal for aerospace, energy, mold and die, and general heavy-component machining.
Specifications
| Manufacturer | Nicolas Correa |
| Model | EURO 2000 |
| Year | 2000 |
| Condition | Used |

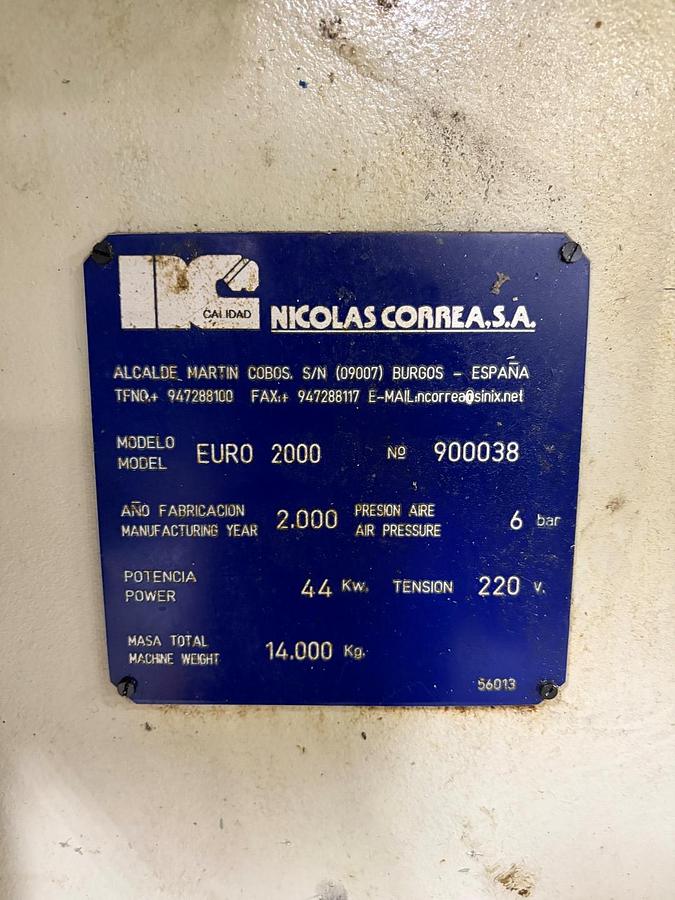

| Serial Number | 900038 |
| Stock Number | VNC-NIC-0038 |

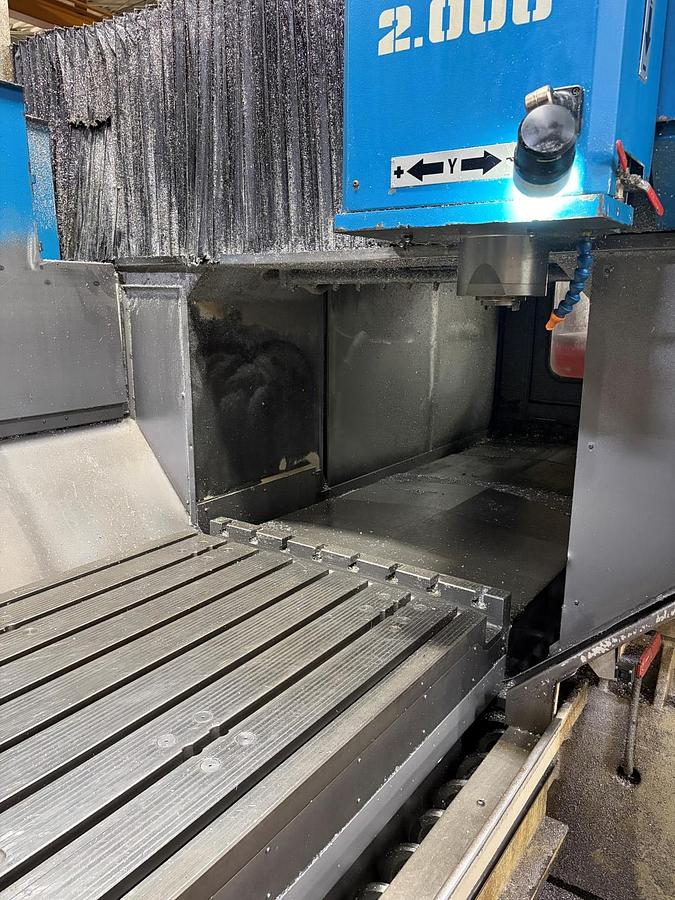

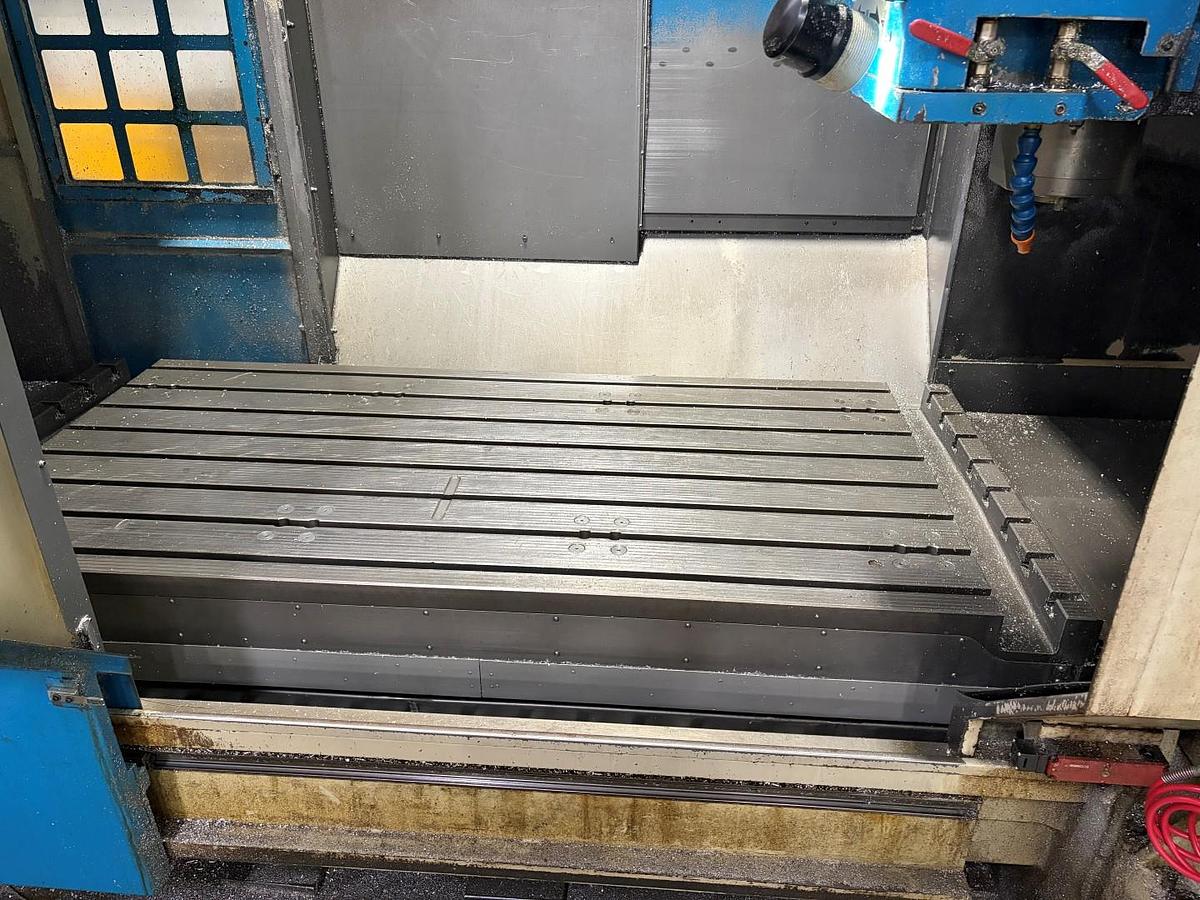

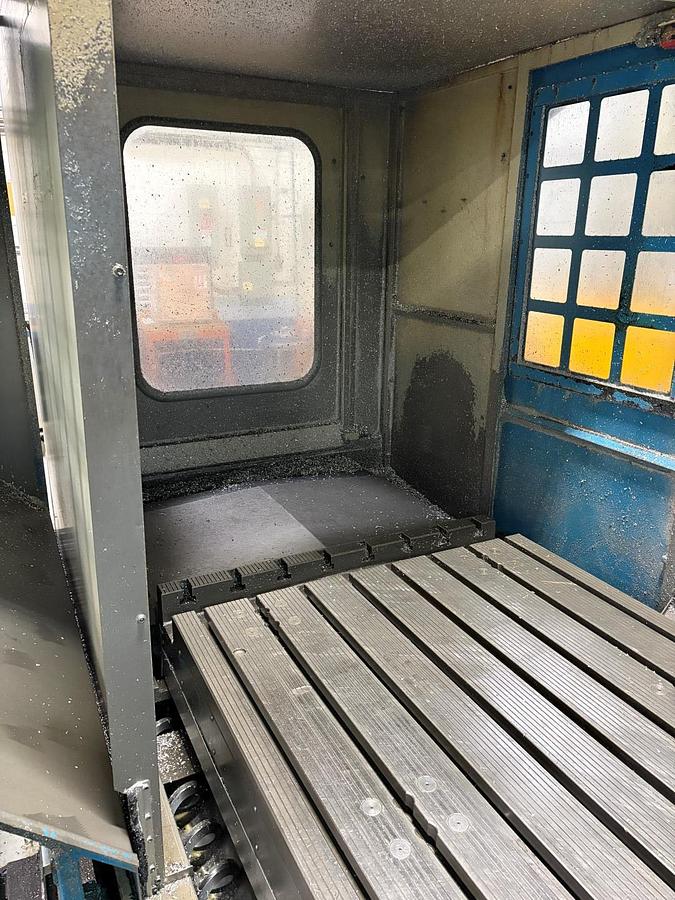

| Table Size | 2,000 x 1,000 mm (78.74" x 39.37") |
| T-Slots | 8 x 22 mm |
| Distance Between T-Slots | 125 mm (4.92") |
| X-Axis Travel - Longitudinal | 2,000 mm (78.74") |
| Y-Axis Travel - Cross | 1,250 mm (49.21") |
| Z-Axis Travel - Vertical | 650 mm (25.59") |
| Clearance Between Columns | 1,250 mm (49.21") |
| Maximum Work Envelope | 2,300 x 1,240 x 800 mm (90.55" x 48.82" x 31.50") |
| Spindle Taper | DIN 69871 / ISO-40 |
| Spindle Speed | 20 - 10,000 RPM |
| Constant Torque | 240 Nm (20-1,000 RPM) |
| Constant Spindle Output | 25 kW (1,000-8,000 RPM) |
| Maximum Feed - X/Y/Z | 20 m/min (787 IPM) |
| Maximum Axial Force - X/Y/Z | 13,000 N |
| Maximum Table Load | 5,000 kg (11,023 lbs) |
| ATC Capacity | 24 Tools |
| Maximum Tool Diameter | 100 mm (3.94") |
| Maximum Tool Length | 275 mm (10.83") |
| Maximum Tool Weight | 12 kg (26.5 lbs) |
| Electrical Power | 44 kW |
| Voltage | 220 V |
| Machine Weight | 14,000 kg (30,865 lbs) |
Equipped With

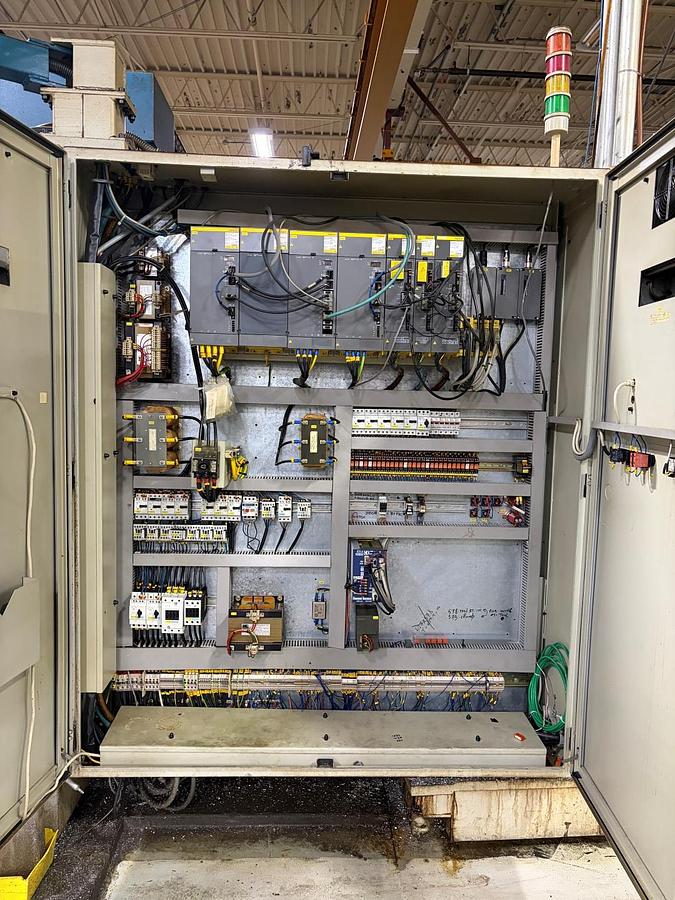

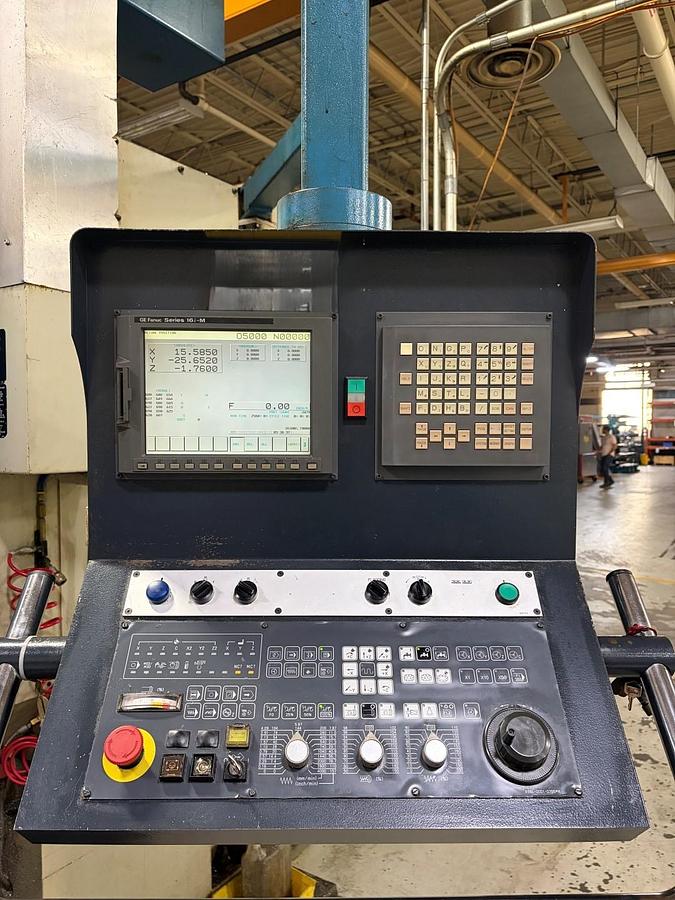

• GE Fanuc Series 16i-M CNC Control

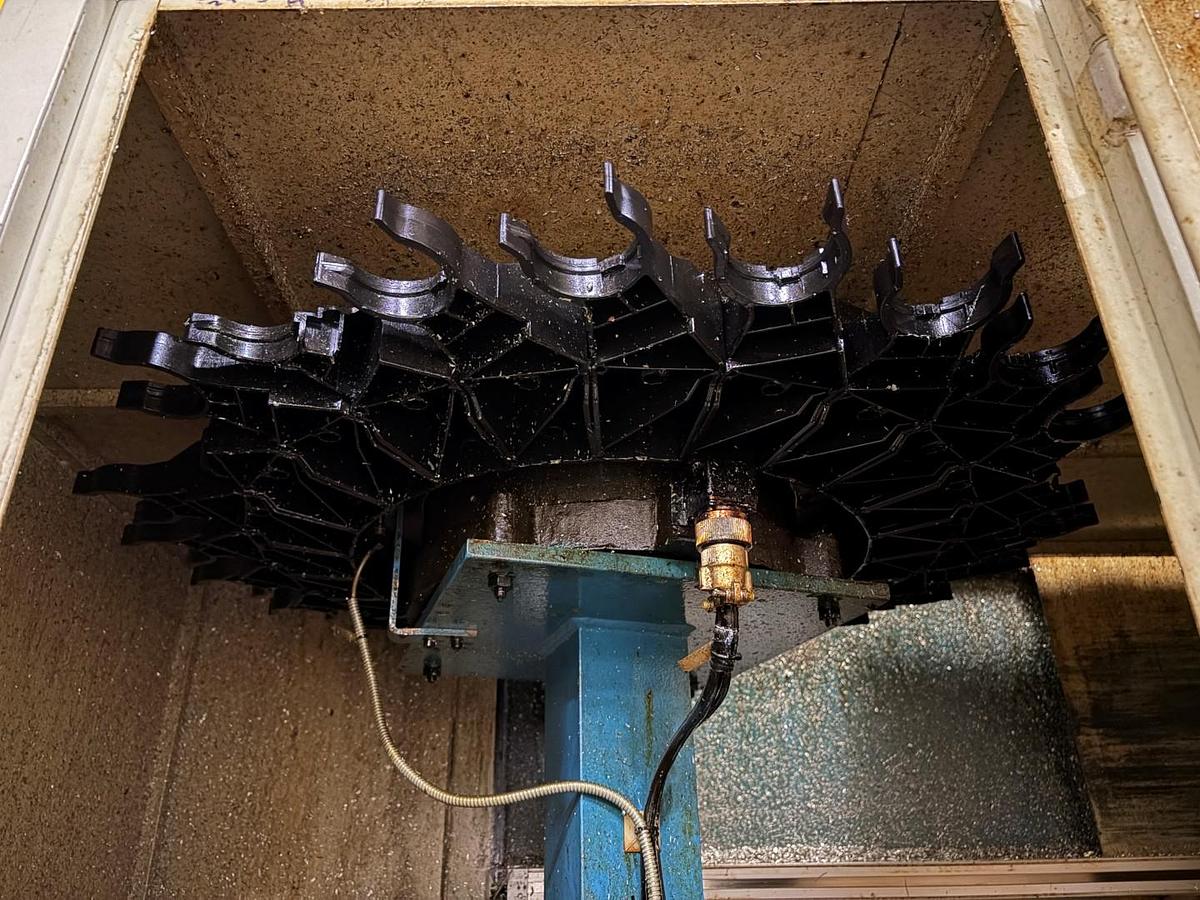

• 24-Position Automatic Tool Changer

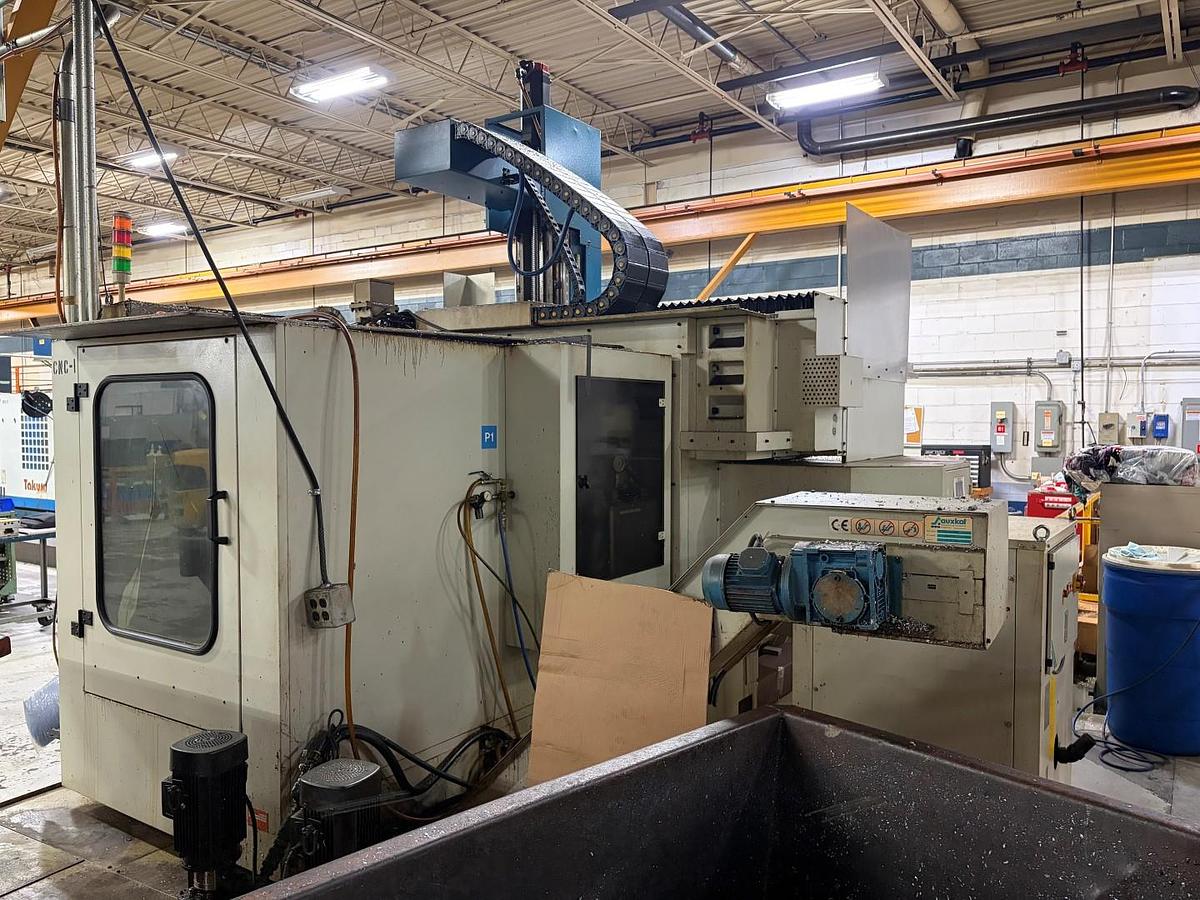

• Chip conveyor
• Coolant Tank
• Through Spindle Coolant

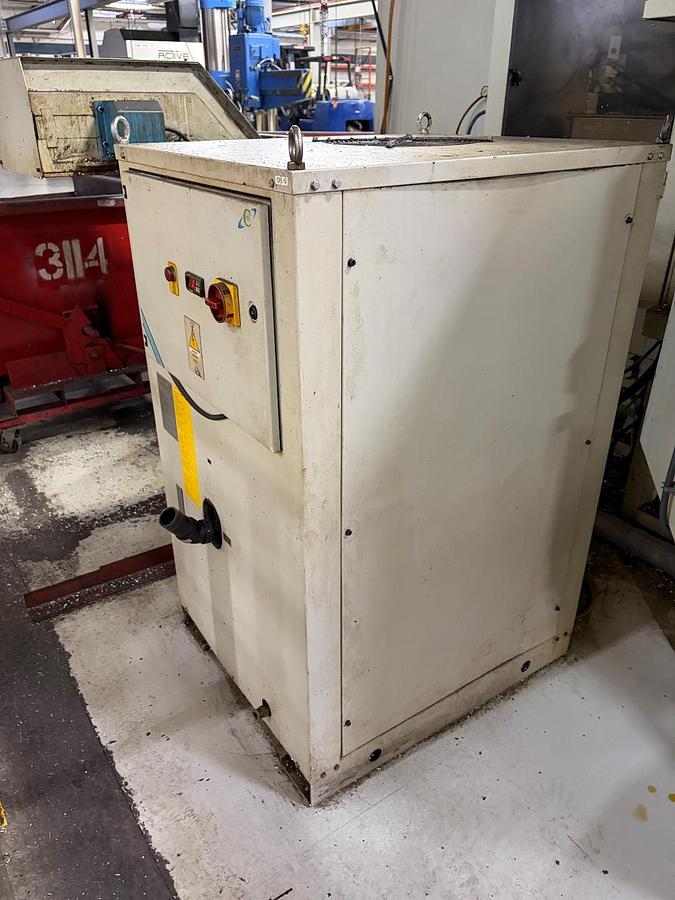

• Chiller
• Manuals
