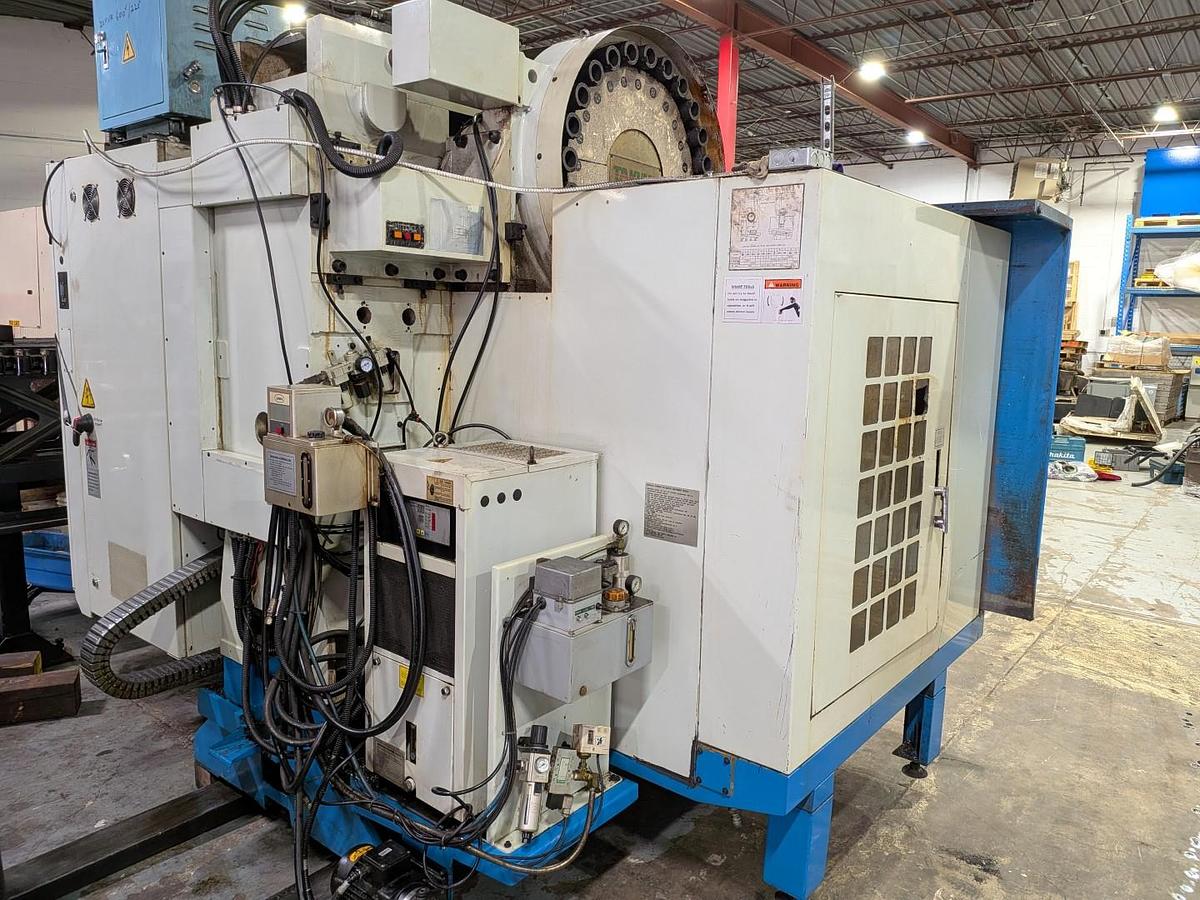

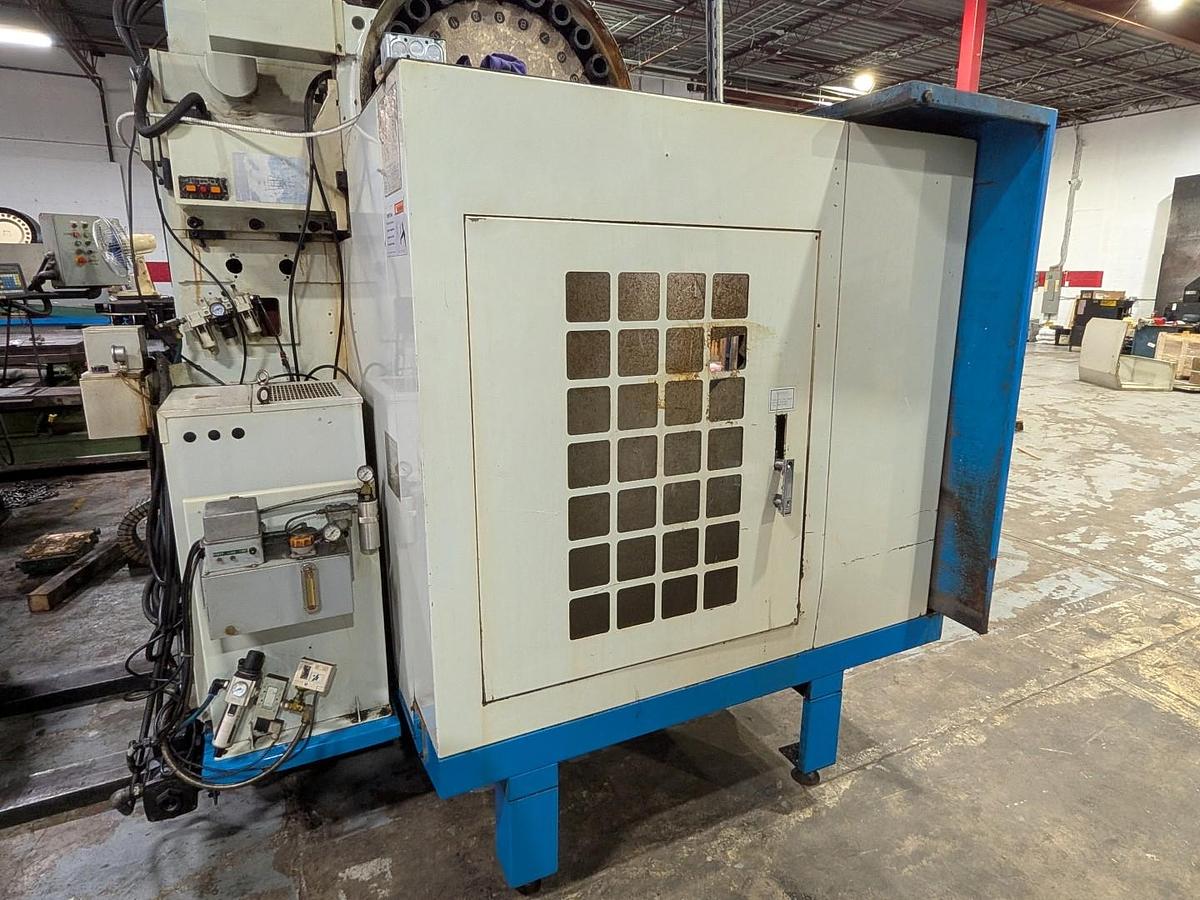

TAKUMI V-10AH CNC VERTICAL MACHINING CENTER
TAKUMI V-10AH CNC VERTICAL MACHINING CENTER
Available quantity:1
Description

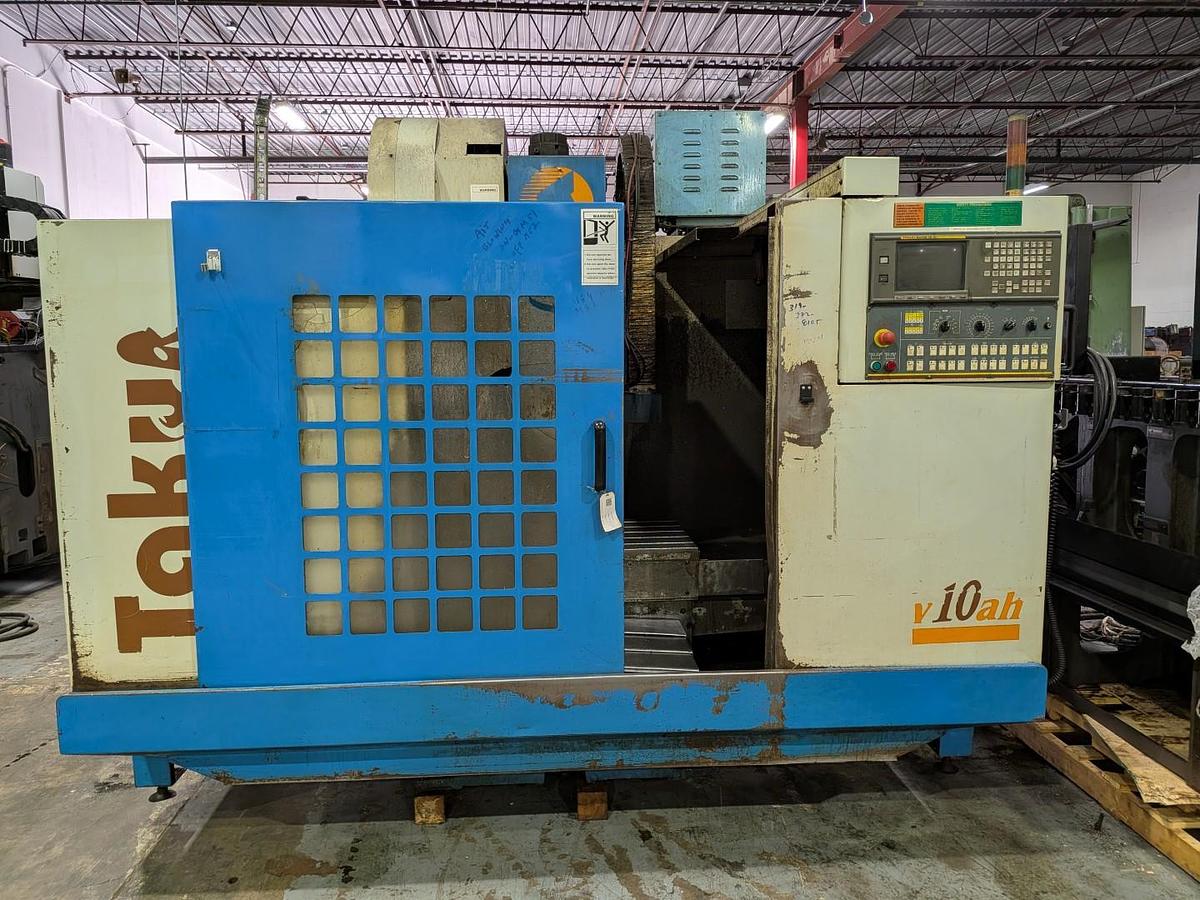

The Takumi V-10AH is a precision CNC vertical machining center designed for milling, drilling, and general manufacturing applications. This 1999 model features 39.5" (X), 20" (Y), and 18.1" (Z) travels, a 41.7" × 21.6" table, and a 1,320 lb table load capacity. Equipped with a 10,000 RPM spindle, 24-station automatic tool changer, and rapid traverse rates up to 787 IPM, the machine offers efficient cutting performance for precision machining operations. Controlled by a Fanuc Series 18-M CNC, the Takumi V-10AH is ideal for mold and die manufacturing, automotive components, toolrooms, and general precision machining applications.
Specifications
| Manufacturer | Takumi |
| Model | V-10AH |
| Year | 1999 |
| Condition | Used |

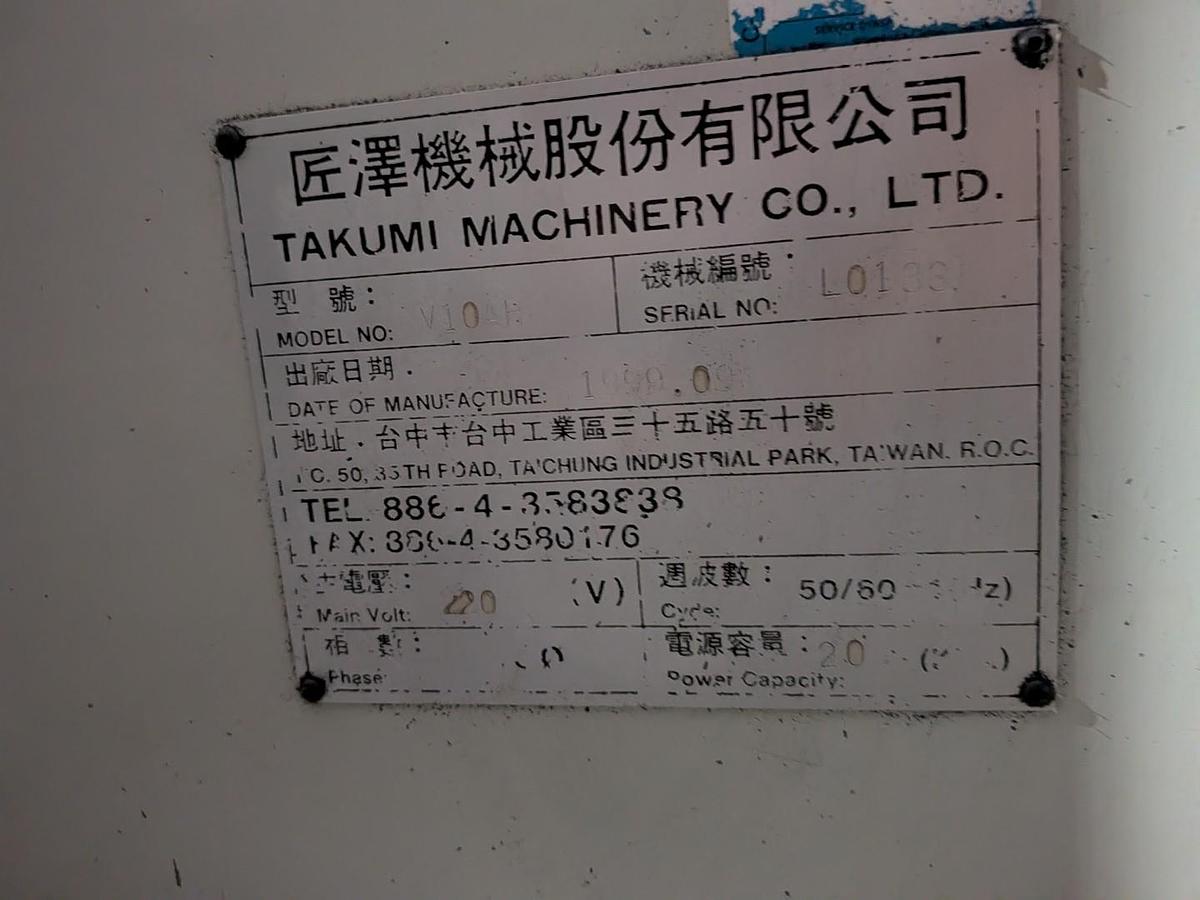

| Serial Number | L1033 |
| Stock Number | VMC-TKM-1033 |
| X-Axis Travel | 39.5 in (1,000 mm) |
| Y-Axis Travel | 20.0 in (510 mm) |
| Z-Axis Travel | 18.1 in (460 mm) |
| Distance from Floor to Table Surface | 32.3 in (820 mm) |
| Spindle End to Table Top | 5.9 - 24.0 in (150 - 610 mm) |
| Spindle Center to Column Surface | 22.4 in (570 mm) |

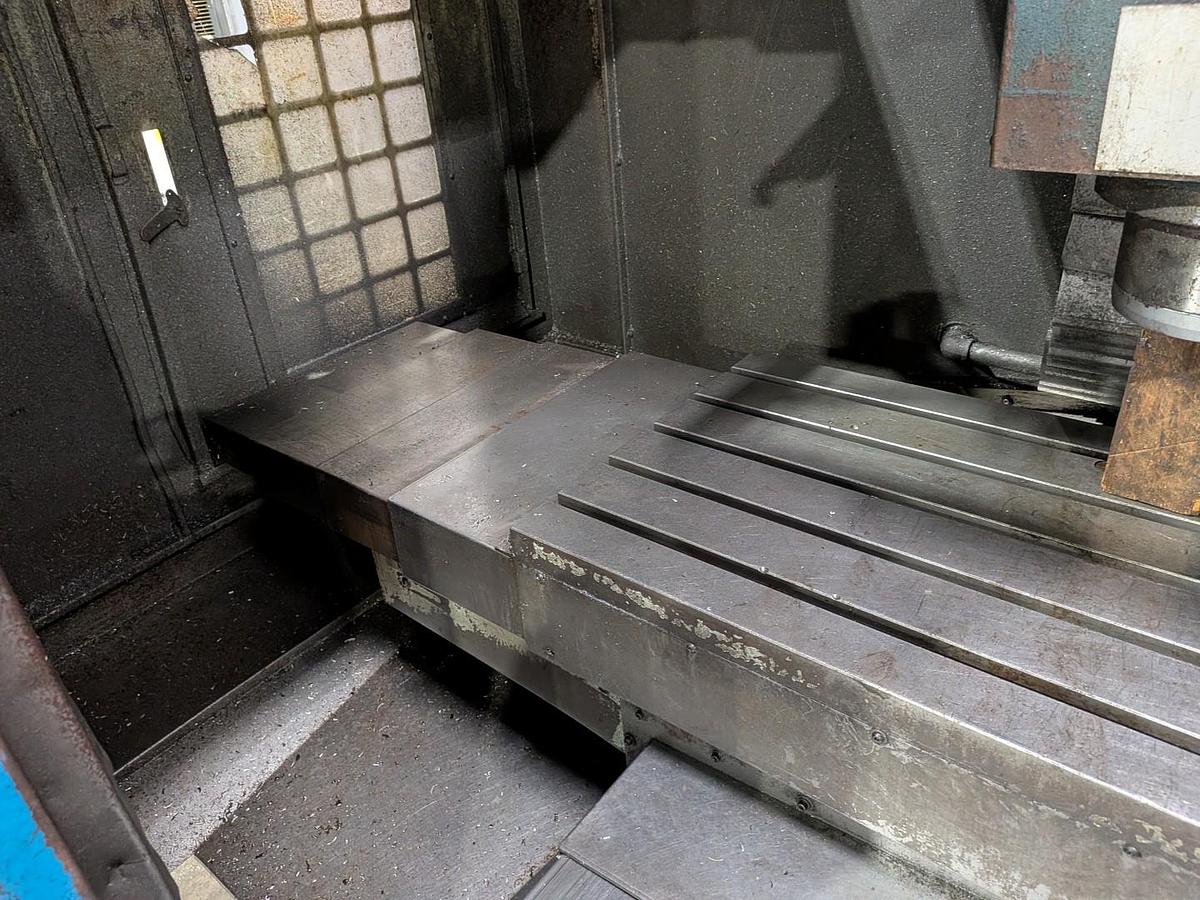

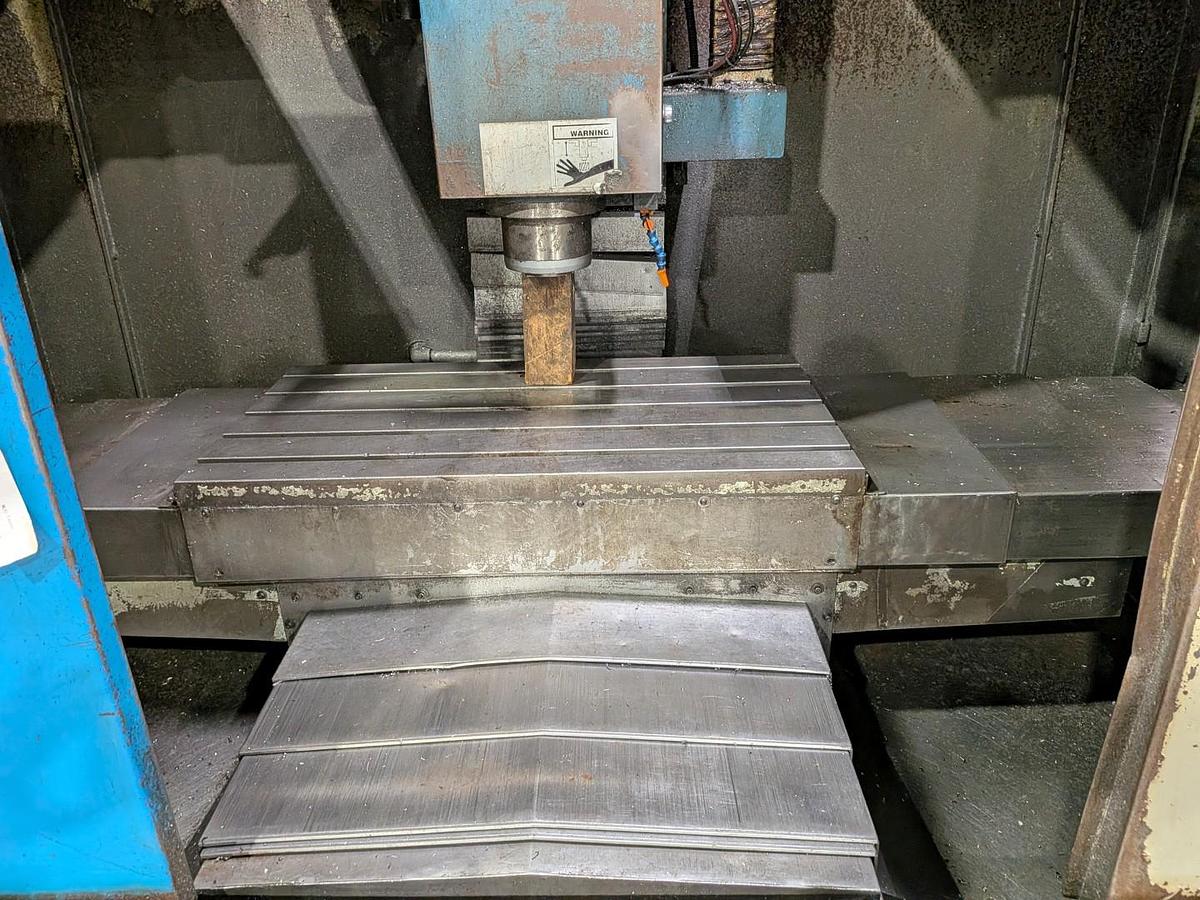

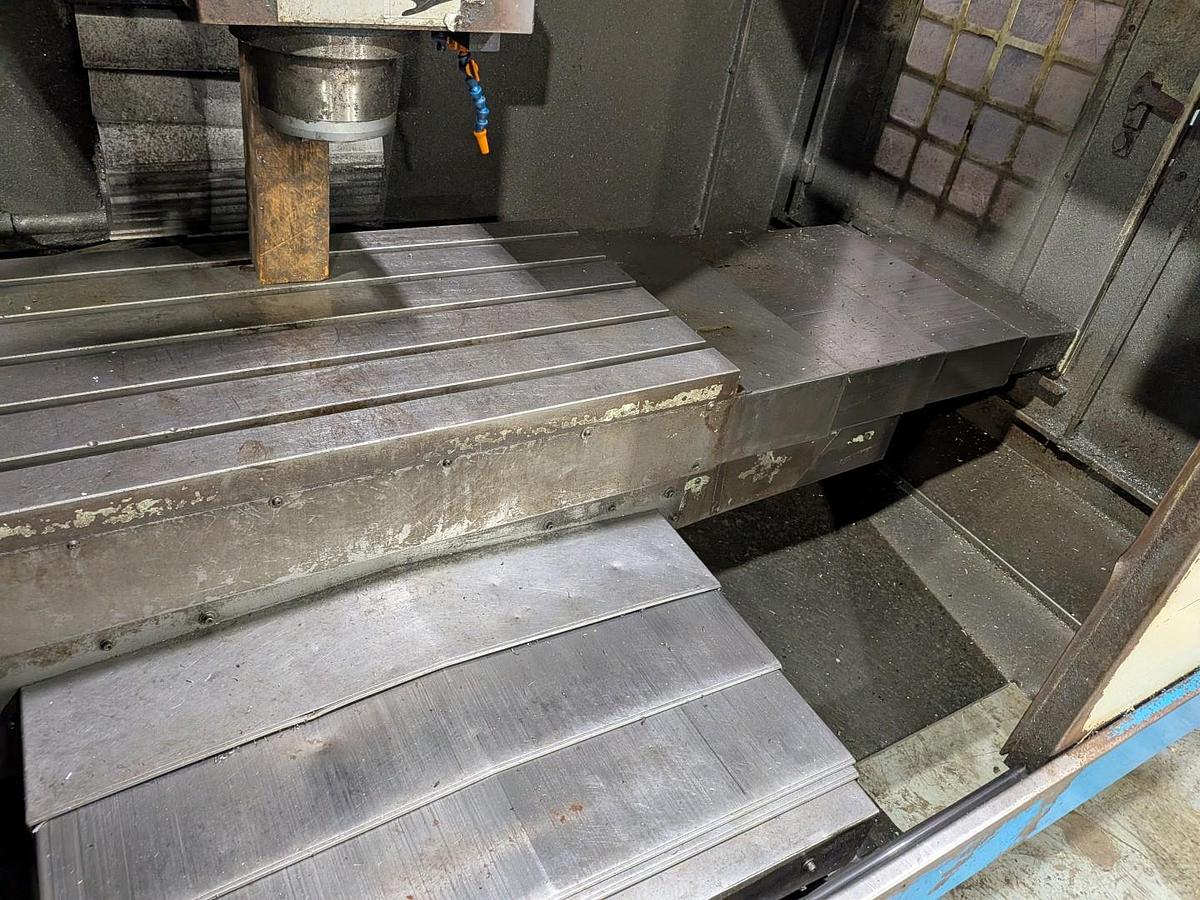

| Table Dimensions | 41.7 x 21.6 in (1,060 x 550 mm) |
| Maximum Table Load | 1,320 lbs (600 kg) |
| Table Locating Groove | 18 x 5 mm (0.71 x 0.20 in) |
| Spindle Speed Options | 10000 RPM |
| Spindle Nose | 7/24 |
| Spindle Bearing Inner Diameter | 70 mm (2.76 in) / DBB |
| Rapid Traverse X / Y / Z | 787 / 787 / 551 IPM (20 / 20 / 14 m/min) |
| Cutting Feed X / Y / Z | 276 IPM (7,000 mm/min) |

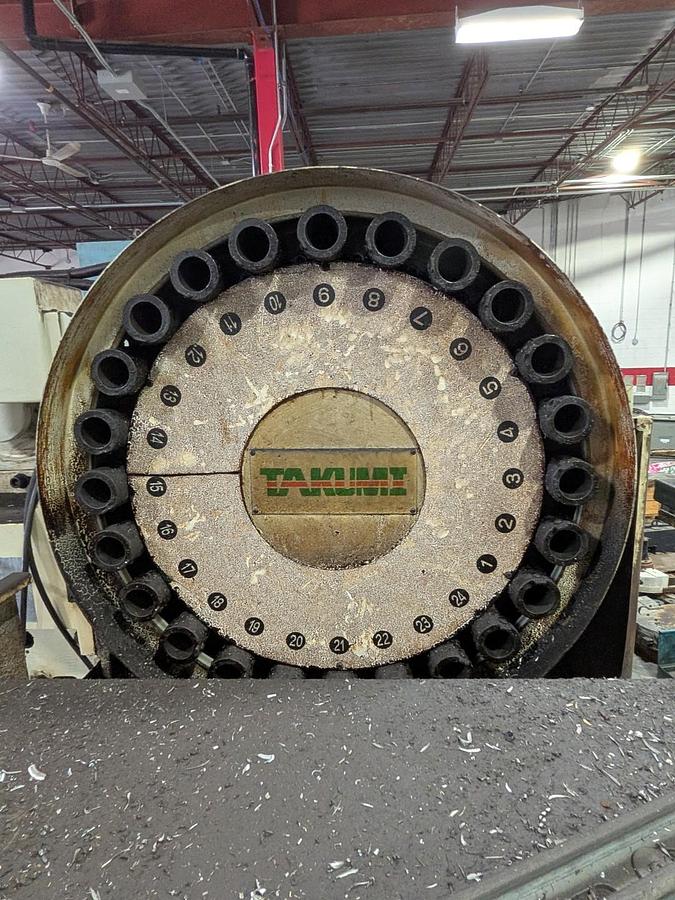

| Tool Changer Capacity | 24-Station |
| Maximum Tool Weight | 15.4 lbs (7 kg) |
| Maximum Adjacent Tool Diameter - | 24T 3.15 in (80 mm) |
| Maximum Tool Length | 9.84 in (250 mm) |
Equipped With

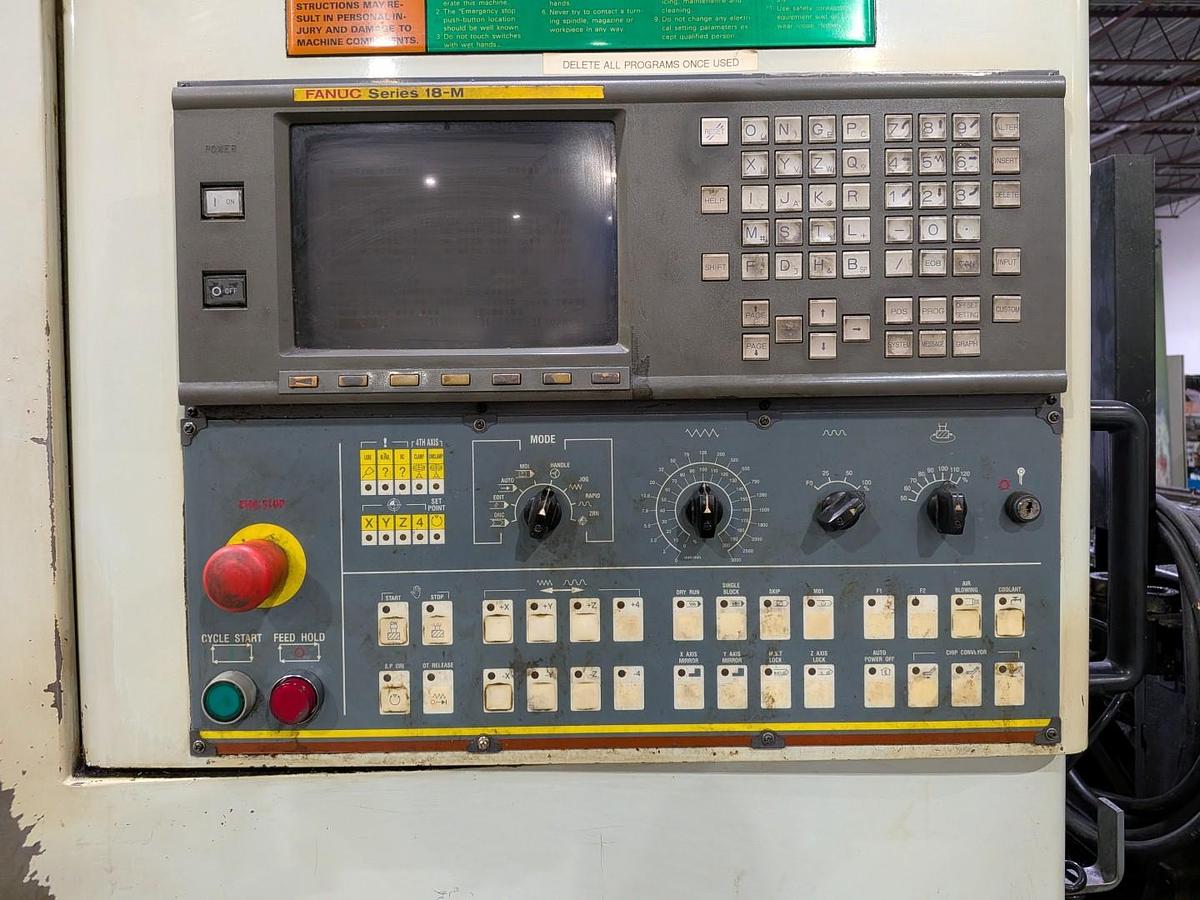

• Fanuc Series 18-M CNC Control
• 24-Station Automatic Tool Changer
