DOOSAN LYNX 220LC CNC TURNING CENTER
DOOSAN LYNX 220LC CNC TURNING CENTER
Available quantity:1
Description

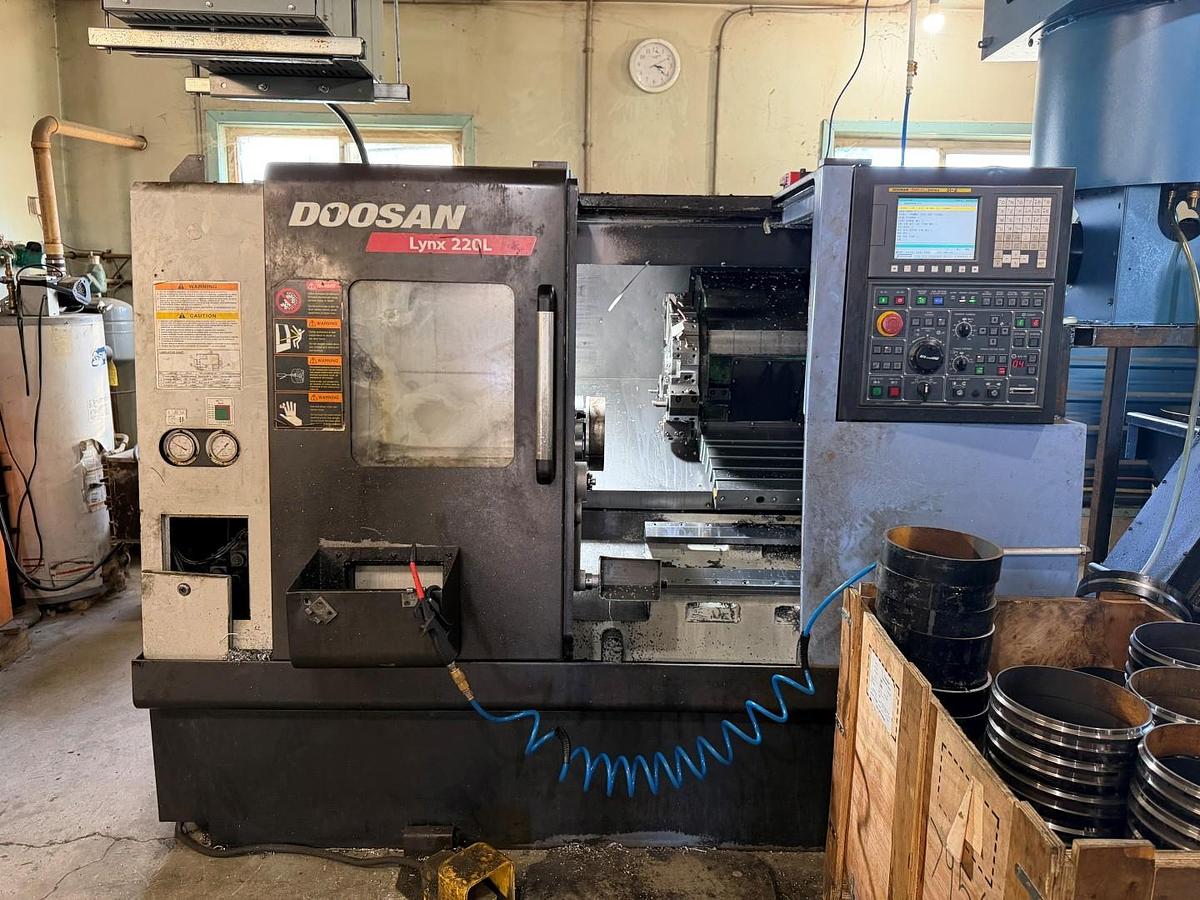

The Doosan Lynx 220LC is a reliable CNC turning center designed for precision turning and high-production machining applications. This 2010 model features a 12.6" maximum turning diameter, 20.7" turning length, 2.6" bar capacity, and 20.1" swing over bed. Equipped with an 8" hydraulic chuck, 4,000 RPM spindle, 20 HP spindle motor, and 12-station turret, the machine delivers efficient turning performance. Controlled by a Fanuc Series 0i-D CNC, it comes complete with a parts catcher, tailstock, chip conveyor, and coolant system, making it ideal for automotive components, shaft machining, job shops, and general precision turning applications.
Specifications
| Manufacturer | Doosan |
| Model | LYNX 220LC |
| Year | 2010 |
| Condition | Used |
| Serial Number | L2205088 |
| Stock Number | LTH-DOO-5088 |
| Swing Over Bed | 20.1 in (510 mm) |
| Swing Over Saddle | 11.4 in (290 mm) |
| Maximum Turning Diameter | 12.6 in (320 mm) |
| Maximum Turning Length | 20.7 in (525 mm) |
| X-Axis Travel | 6.9 in (175 mm) |
| Z-Axis Travel | 21.7 in (550 mm) |
| Chuck Size | 8 in (203 mm) |
| Bar Capacity | 2.6 in (65 mm) |
| Spindle Bore | 3.0 in (76 mm) |
| Maximum Spindle Speed | 4,000 RPM |
| Spindle Motor | 20 HP (15 kW) |
| Turret Capacity | 12 Stations |
| Rapid Traverse - X Axis | 1,181 IPM (30 m/min) |
| Rapid Traverse - Z Axis | 1,417 IPM (36 m/min) |
| Machine Weight | 8,598 lbs (3,900 kg) |

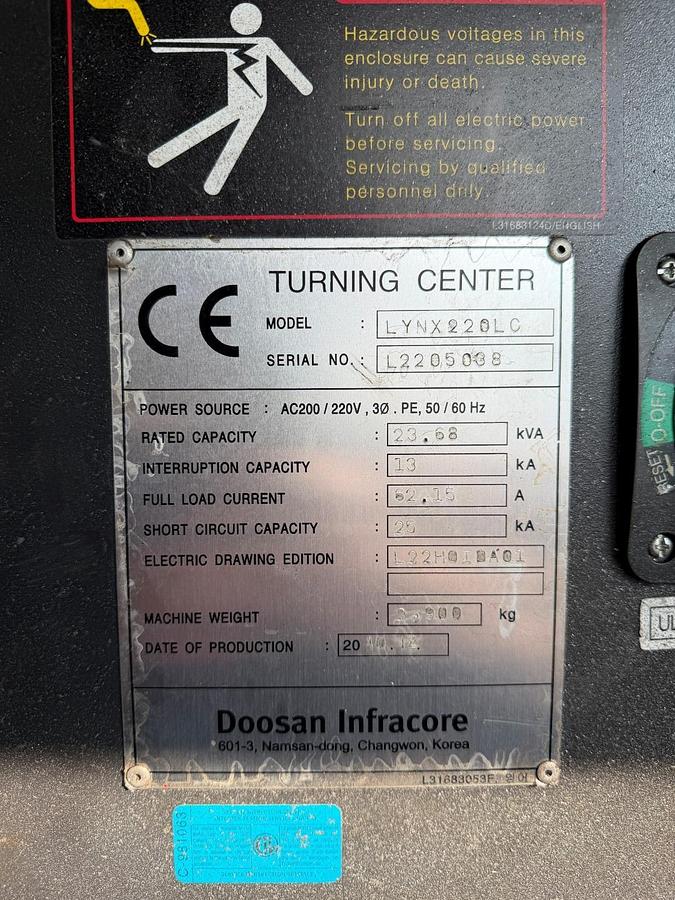

| Power Supply | AC 200 / 220 V, 3 Phase, 50 / 60 Hz |
| Rated Capacity | 23.68 kVA |
Equipped With

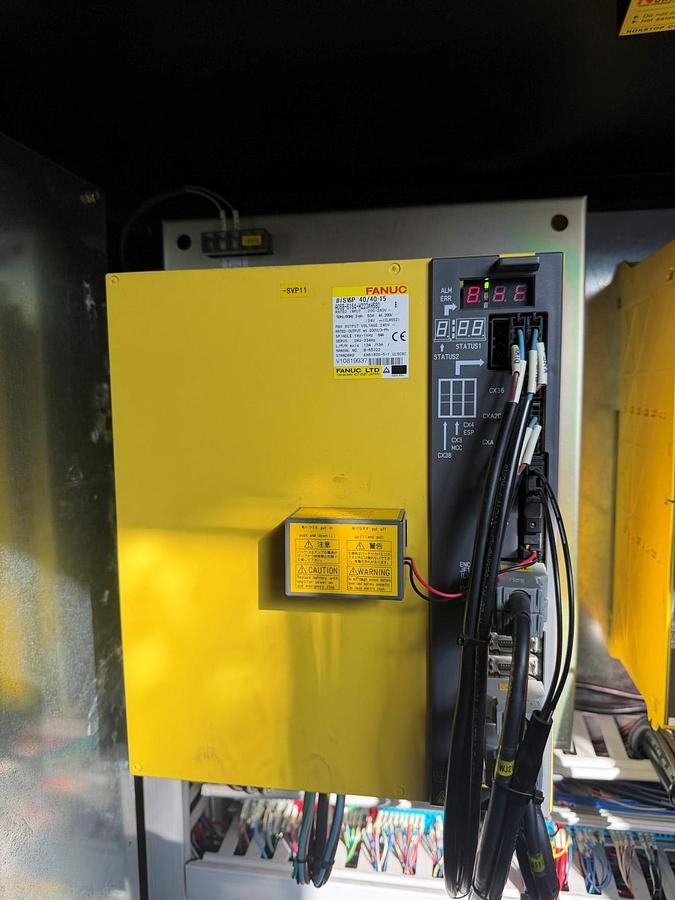

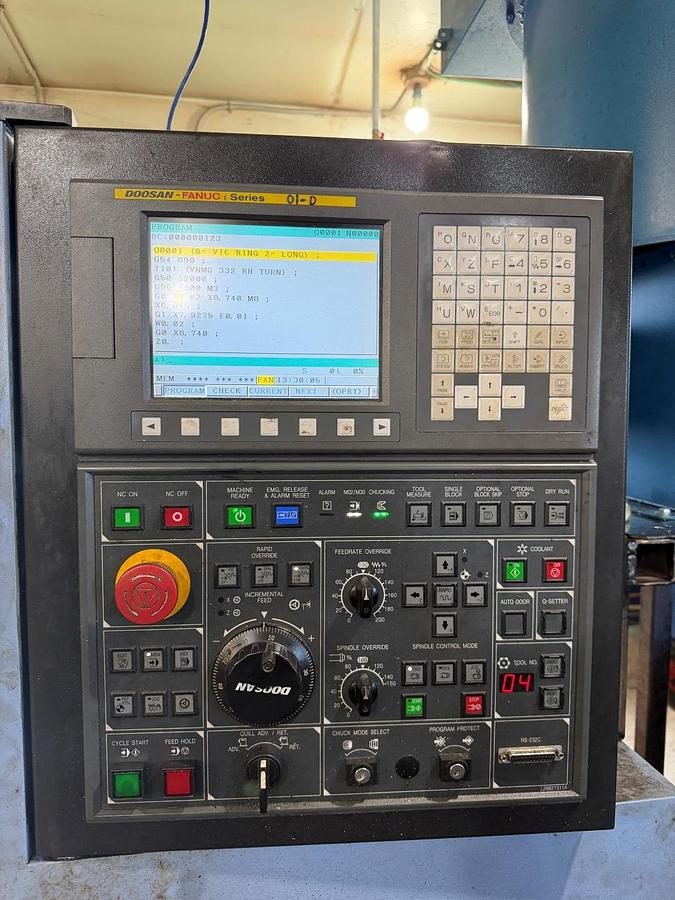

• Fanuc Series 0i-D CNC Control

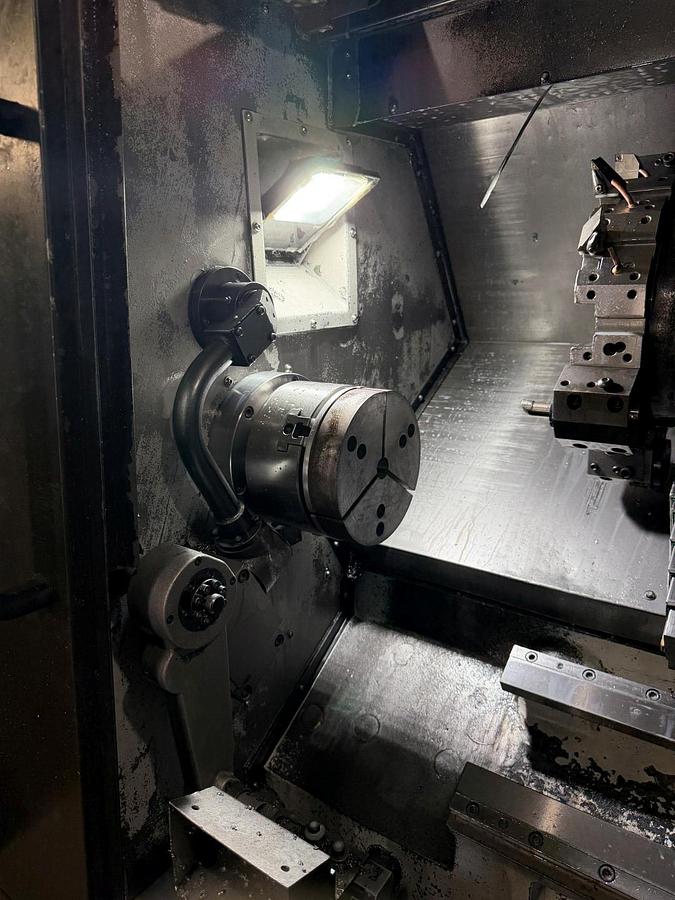

• 8 in Chuck

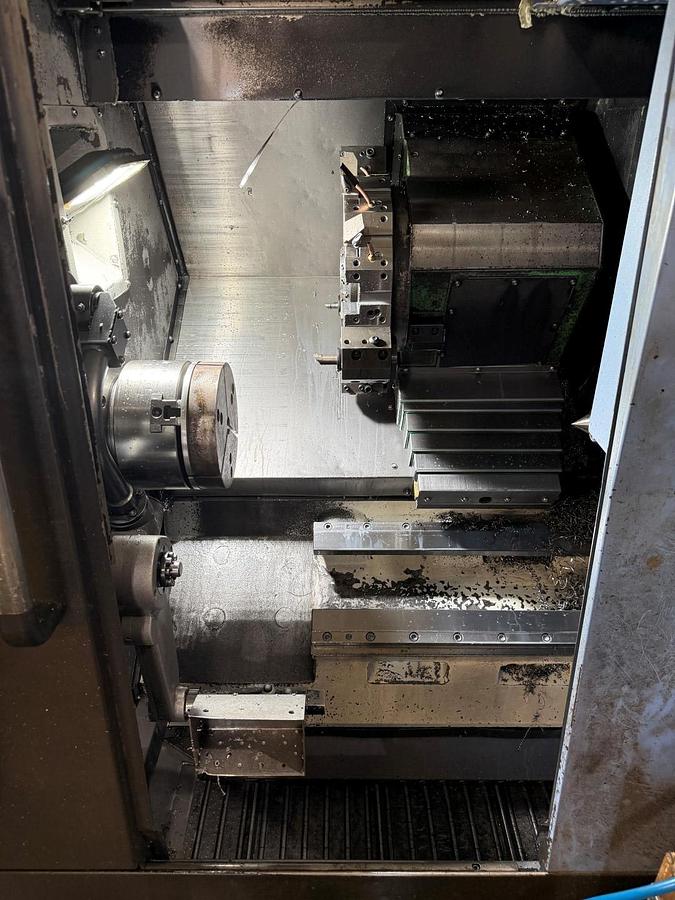

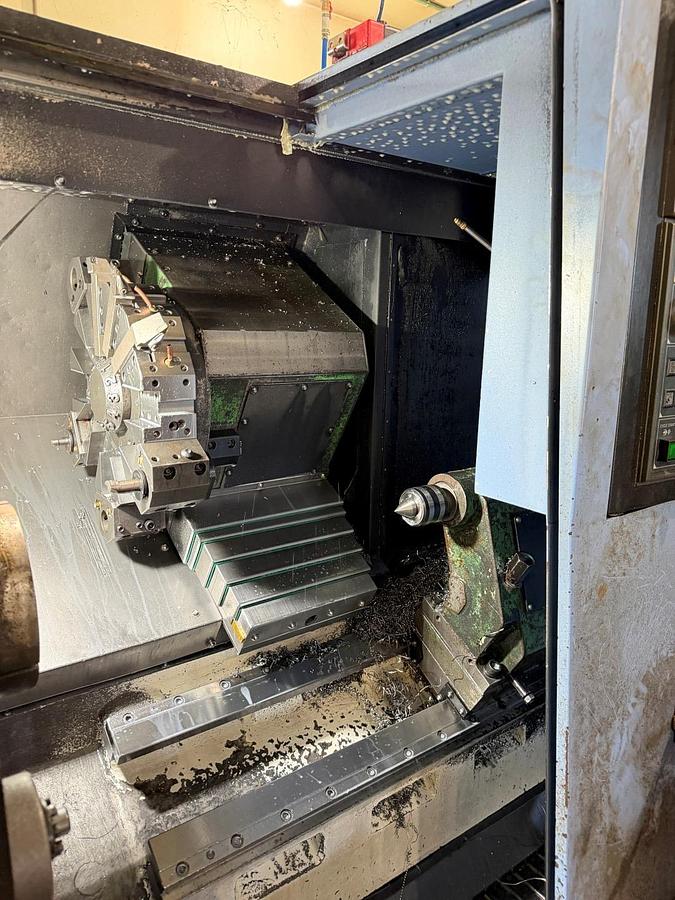

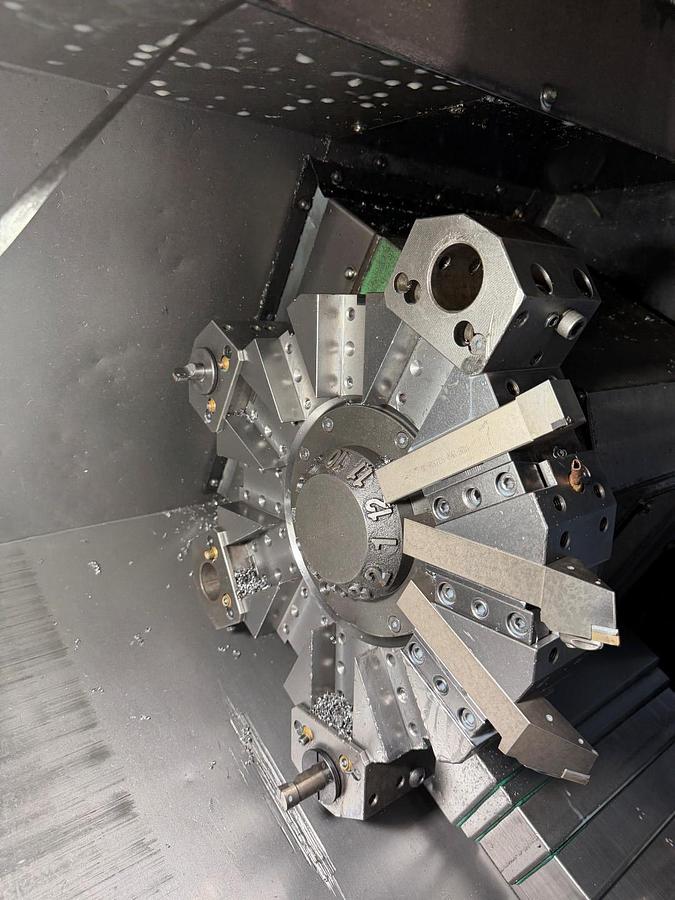

• 12-Station Turret
• Parts Catcher

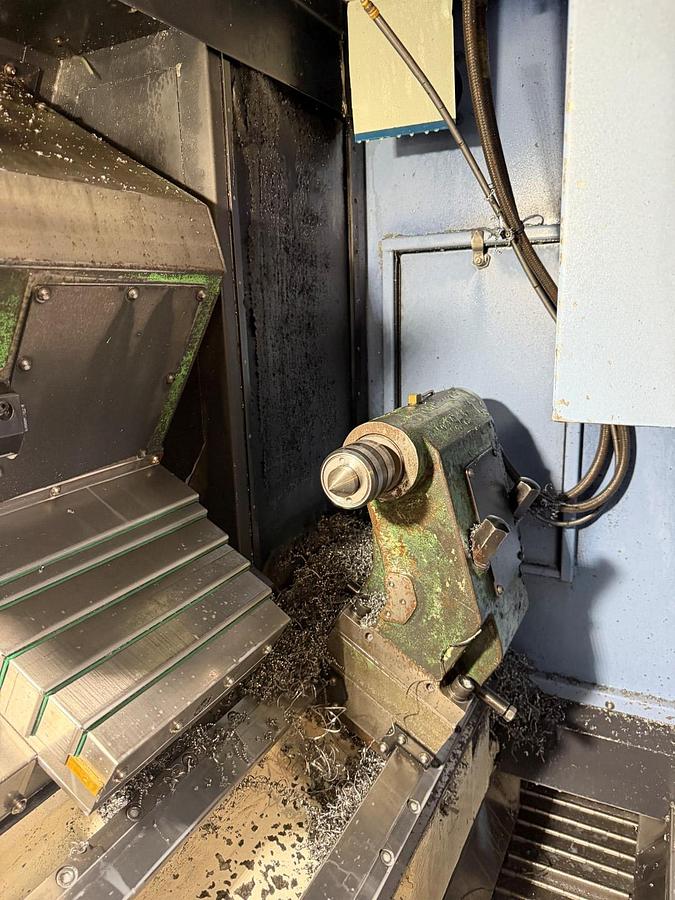

• Tailstock

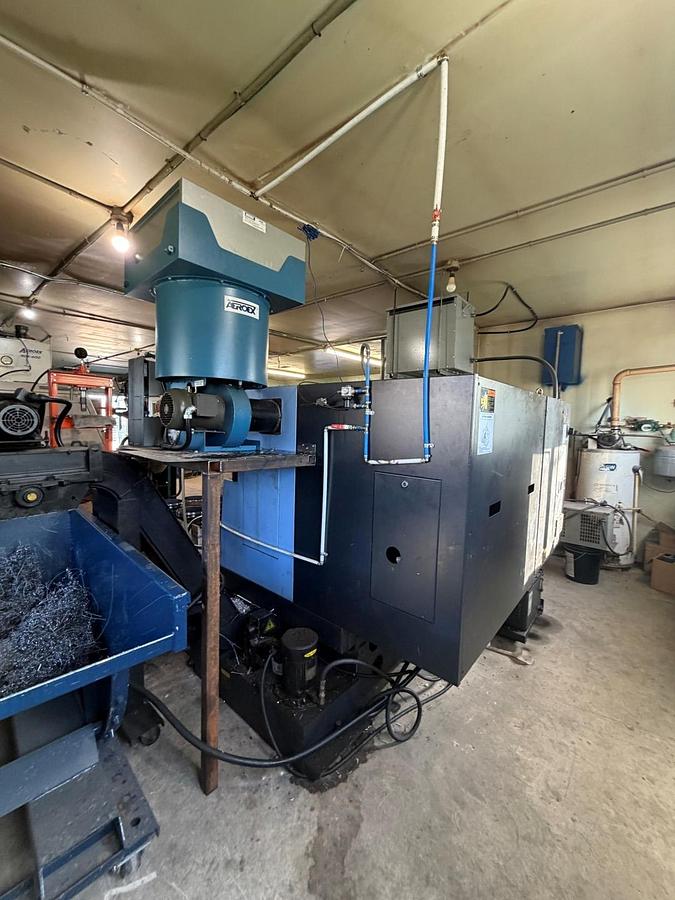

• Chip Conveyor
• Coolant System
