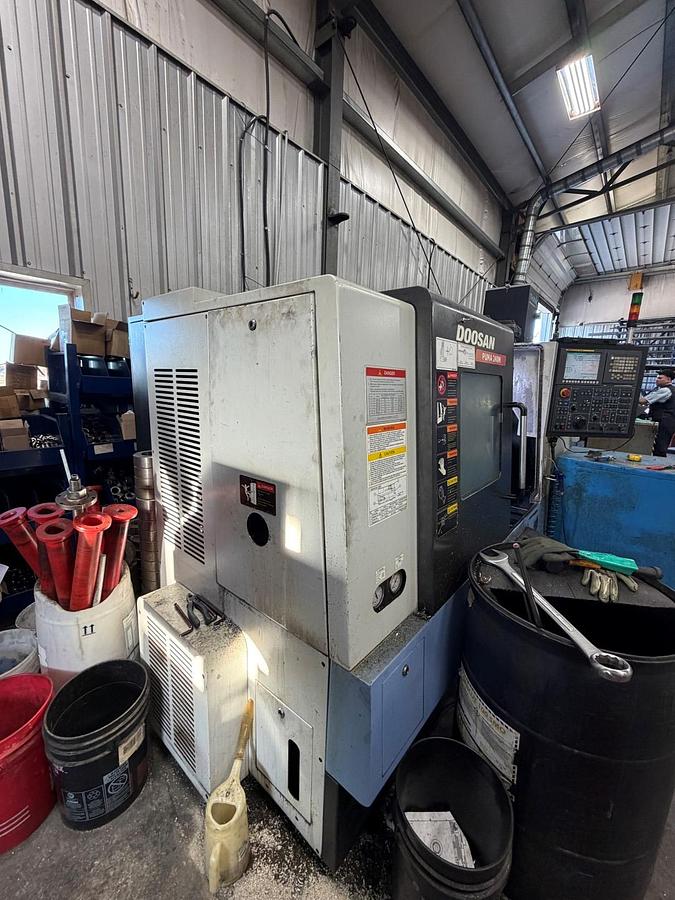

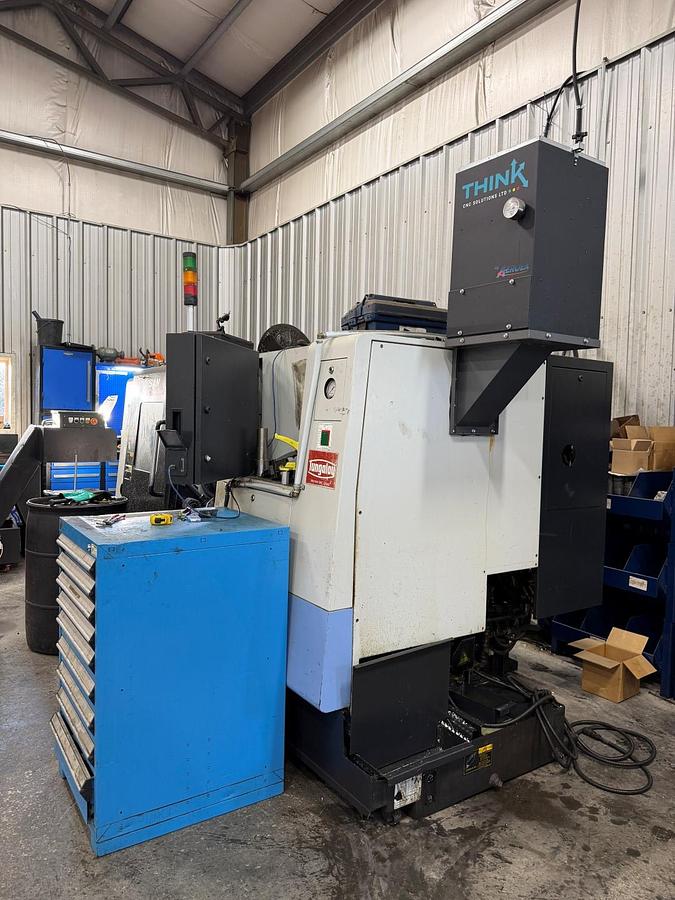

DOOSAN PUMA 240MB CNC TURNING CENTER
DOOSAN PUMA 240MB CNC TURNING CENTER
Available quantity:1
Description
The Doosan Puma 240MB is a versatile CNC turning center with live tooling and milling capabilities, designed for precision turning and complex part machining. This 2012 model features an 11.81" maximum turning diameter, 20.20" turning length, 21.7" swing over bed, and 2.56" bar capacity. Equipped with a 4,500 RPM main spindle, 20/24.8 HP spindle motor, 12-station turret, and 5,000 RPM live tooling, the machine supports efficient turning, drilling, and milling operations. Controlled by a Doosan-FANUC i Series CNC, it comes complete with a programmable tailstock, parts catcher, and coolant system, making it ideal for automotive, aerospace, and general precision machining applications.
Specifications
| Manufacturer | Doosan |
| Model | PUMA 240MB |
| Year | 2012 |
| Condition | Used |
| Serial Number | ML0043-000039 |
| Stock Number | LTH-DOO-0039 |
| Swing Over Bed | 21.7 in (550 mm) |
| Swing Over Saddle / Cross Slide | 15.35 in (390 mm) |
| Maximum Turning Diameter | 11.81 in (300 mm) |
| Maximum Turning Length | 20.20 in (513 mm) |
| X-Axis Travel | 8.07 in (205 mm) |
| Z-Axis Travel | 22.83 in (580 mm) |
| Maximum Spindle Speed | 4,500 RPM |
| Spindle Through Hole | 2.99 in (76 mm) |
| Bar Working Capacity | 2.56 in (65 mm) |

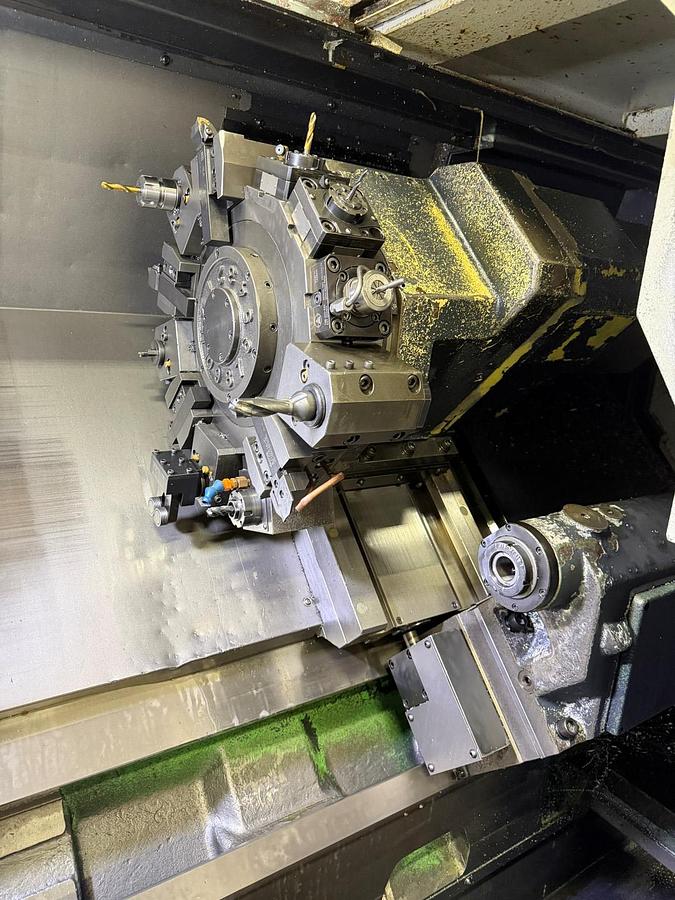

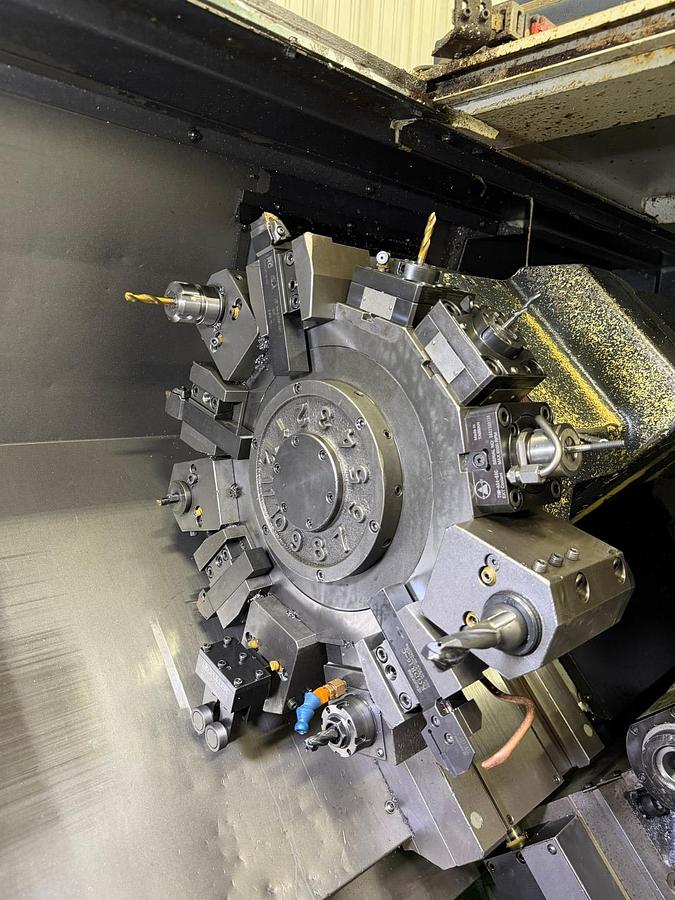

| Turret Capacity | 12 Stations |
| Maximum Live Tool Speed | 5,000 RPM |
| Main Spindle Motor | 20 / 24.8 HP (15 / 18.5 kW) |

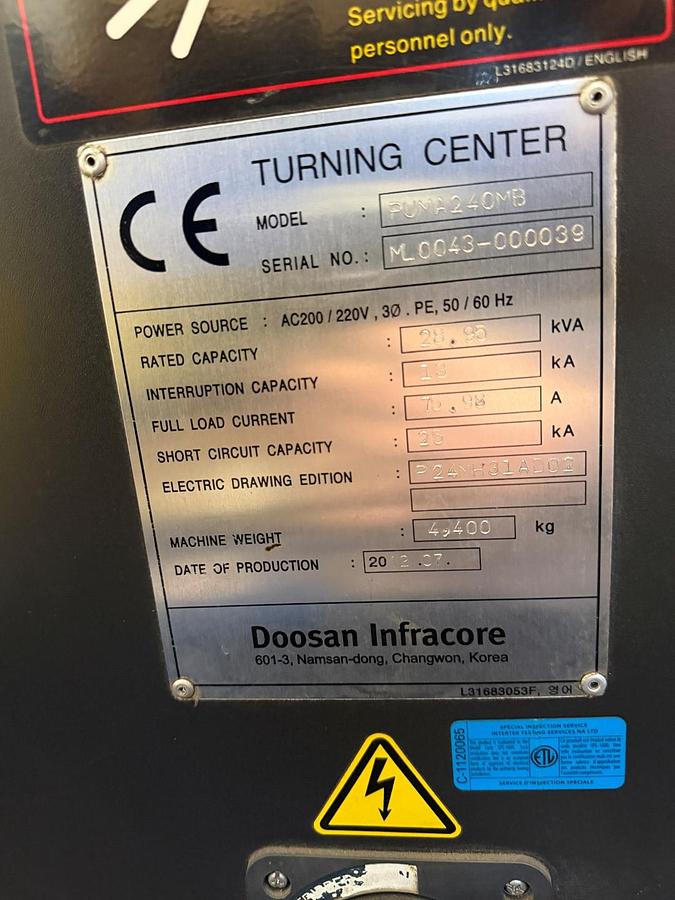

| Power Source | AC 200 / 220 V, 3-Phase, 50 / 60 Hz |
| Rated Capacity | 29.95 kVA |
| Full Load Current | 70.98 A |
| Machine Weight Approx. | 9,700 lbs (4,400 kg) |
Equipped With

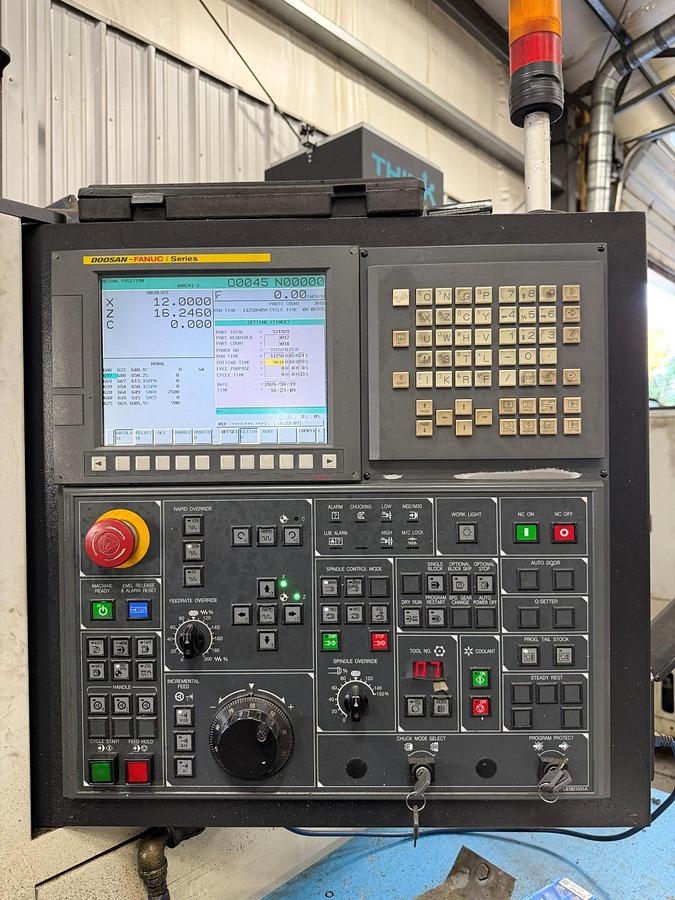

• Doosan-FANUC i Series CNC Control
• Parts catcher

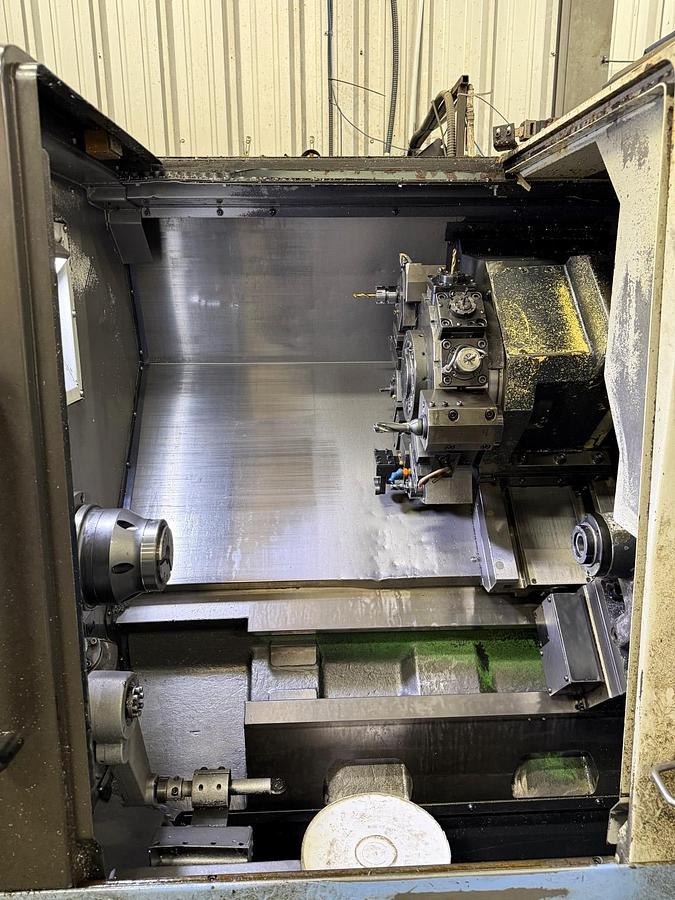

• Live Tooling / Milling Capability

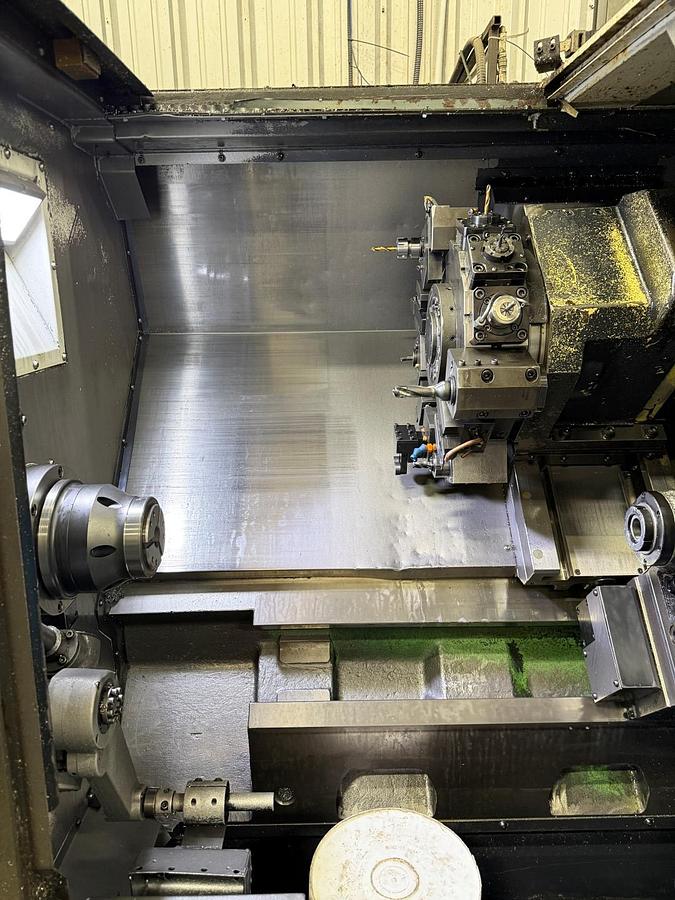

• 12-Station Turret
• Programmable Tailstock
• Coolant System
